Crosley CAE5M13 User manual

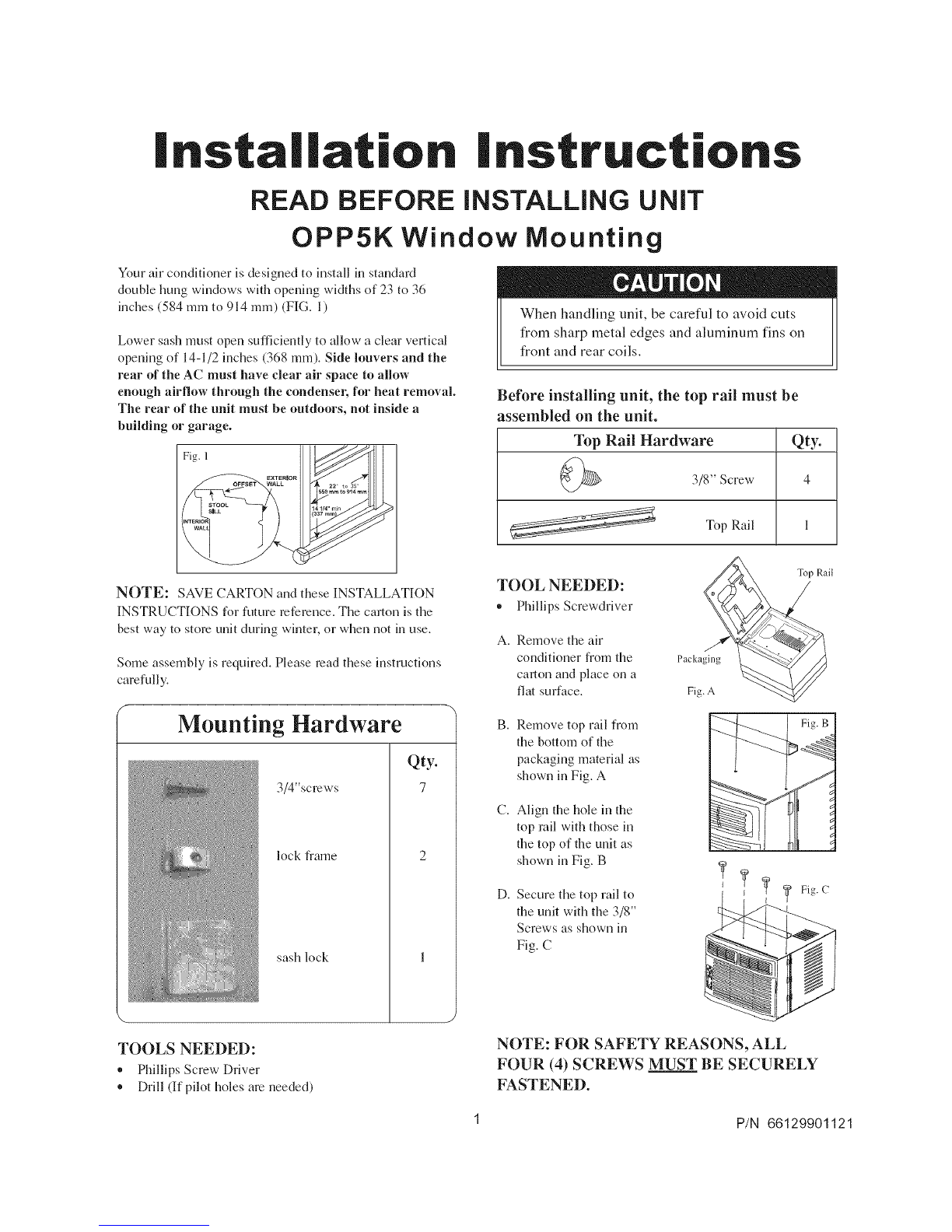

|nstailation instruct"

READ BEFORE iNSTALLiNG UNiT

OPP5K Window Mounting

Your air conditioner is designed to install in standard

double hung windows with opening widths of 23 to 36

inches (584 mm to 914 mm) (FIG, 1)

Lower sash must open sufficiently to allow- a clear vertical

opening of 14-1/2 inches (368 ram). Side louvers and the

rear of the AC must have clear air space to allow

enough airflow through the condensel; for heat removal.

The rear of the unit must be outdoors, not inside a

building or garage.

NOTE: SAVE CARTON and these ]INSTALLATION

INSTRUCTIONS fin future reference. The carton is the

best way to store unit during winter, or when not in use.

Some assembly is required, Please read these instructions

carefully.

Mounting Hardware

3/4"screws

lock flame

sash lock

Qty.

When handling unit, be careful to avoid cuts

from sharp metal edges and aluminum fins on

front and rear coils.

Before installing unit, the top rail must be

assembled on the unit.

Top Rail Hardware Qty.

3/8" Screw- 4

Top Rail 1

TOOL NEEDED: __ T°'_' aiit

* Phillips Screwdriver

A, Remove the air

conditioner from the Packa

carton and place on a

flat surface, [Zig.A

B. Remove top rail from

the bottom of the

packaging material as

shown in Fig. A

C. Align the hole in the

top rail with those in

the top of the unit as

shown in Fig. B

D, Secure the top rail to

the unit with the 3/8"

Screws as shown in

Fig. C

Fig._

TOOLS NEEDED:

, Phillips Screw Driver

*Drill (If pilot holes are needed)

NOTE: FOR SAFETY REASONS, ALL

FOUR (4) SCREWS MUST BE SECURELY

FASTENED.

1 P/N 66129901121

How to Install

NOTE: Top Rail and Sliding Panels at each side are

offset to provide the proper pitch to the rear of (5/16").

This is necessary for proper condensed water utilization

and drainage. If you are not using the Side Panels for

any reason, this pitch to the rear must be maintained!

Place unit on floor, a bench or a table. There is a

Left and Right Window Filler P_mel - be sure to

use the proper panel for each side.When installed

the flange for securing the panel in place to the window sill

will be facing into the room.

A. Hold the

Accordion

Pmlel in one

hand _md

gently pull

back the

center to free

the open end.

See Figure 2.

Once fl_epanel

has been

installed on the

side of the

cabinet, make

sum it sits

securely inside

the frame

channel by

making slight

adjustments. Slide the top and bottom ends of the frame

into the top and bottom rails of the cabinet. Figure 5.

Slide the panel all the way in and repeat on the other

side.

NOTE: If storm window blocks AC, see FIG. 14.

Keep a firm grip on the air conditioner, carefully

place the unit into the window opening so the

bottom of the air conditioner frame is against the

window sill (FIG. 6 & FIG. 6A). Carefully close the

window behind the top rail of the unit.

B. Slide the flee end ("F'sectiou) of the panel into the

cabinet as shown in Figures 3A, 3B & 4. Slide the

panel down. Be sure to leave enough space to slip the

top and bottom of the frame into the rails on the cabinet. Extend the side panels out against the window

frame (FIG. 7).

Placetheframelock belweenthe frame

extensionsandthewindow sill asshown

(Fig.8).Drive3/4" (19mm) locking

screwsthroughthe framelock andinto thesill

(FIG.9).NOTE:Topreventwindow sill from

splitting,drill 1/8"(3ram)pilot holesbefore

driving screws.

Cutfoamsealandinsertin thespace

betweentheupperandlowersashes

(FIG.13).

Drive 1/2"(13mm) lockingscrews

throughframeholesinto window sash

(FIG. 10/11).

IfAC is Blocked by Storm

Window

Add wood as shown in FIG. 14, or remove storm

window before air conditioner is installed.

FIG. 14 _i

SASH

BOARD

STORM WINDOW THICKNESS

FRAME AS REQUIRED,

OR OTHER 1 1/2" MIN FOR PROPER

OBSTRUCTION (38 mm) .

_. --'I I_- _, PITCH TO

REAR, ALONG

l_ ENTIRE SILL.

. ............ --::::;_ FASTEN WiTH

NAILS OR

SCREWS.

To secure lower sash in place, attach right

angle sash lock with 3/4" (19 mm) screw

as shown (FIG. 12).

If Storm Window Frame must remain, be sure the

drain holes or slots are not caulked or painted

shut. Accumulated Rain Water or Condensation

must be allowed to drain out.

Removing AC From

Window

*Turn AC off', and disconnect power cord.

* Remove sash seal from between windows,

and unscrew sash lock.

* Remove screws installed through frame and

frame lock.

* Close (slide) side panels into frame.

* Keeping a firm grip on air conditioner, raise

sash and carefully "rock" air conditioner

backward to drain any condensate water in

base of unit. Be careflfl not to spill any

remaining water while lifting unit from

window. Store parts WITH air conditioner.
