Cornelius 8027 User manual

ED300 Dispenser Kit Installation Instructions

INSTALLATION INSTRUCTIONS

FOR

KIT PART NUMBERS 08027 AND 08030

For Model ED300 Dispenser and the Following 30” Wide Ice Maker Model Series:

Manitowoc QQ1400C, Q-Dual

Scotsman CME 806/865/1002/1056

WARNING:

Disconnect power to the unit before installing the adaptor following all lockout/tag out procedures established by the

user. Verify that all the power is off to the unit before performing any work.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All ice baffle plates and bin stats, if included or recommended in this kit, must be installed as directed in this manual or

the equipment manufacturer’s instructions.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All of the attachment screws and plates must be installed as directed in this manual.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

The dispenser must be secured with 3/8 X 16 bolts (6) to the counter before installing this ice maker adapter kit. Refer

to the installation manual or Figure 3 for the counter mounting template.

NOTE: Adjust the automatic agitation timer located in the dispenser’s electrical control box to 5 sec-

onds on, 20 minutes off. Access to the timer is provided by removing the merchandiser/upper

front panel.

1. Remove the top plastic bin covers (2) from the dispenser.

2. Place the ice maker adapter lid assembly (item 1) on top of the dispenser and position it flush with the rear and

sides of the dispenser as shown in Figure 1.

3. Install the ice baffle on the lid assembly as shown in Figure 2.

Table 1: Loose Shipped Parts

Item No. Part No. Name Qty.

1 29505 Lid Assembly 1

2 22127 Ice Maker Mounting Bracket 2

3 50904 RTV. 3Oz Tube 1

4 52946 Manual Ice Fill Cover - Black (08027) 1

52964 Manual Ice Fill Cover - Gray (08030)

5 91957 Label, “Disconnect Power Before Cleaning” 1

6 620042919 ED300 Ice Baffle 1

7 620701601 #10 x 1/2” LG. Sheet metal Screw 12

8 620701902 #8-32 Nylon Acorn Nut 4

9 620701901 Sealing Washer 4

10 620701903 #8 Nylon Washer 4

11 92254 Installation Instructions 1

Release Date: November 10, 2010 www.cornelius.com Revision: F

ED300 Dispenser Kit Installation Instructions

IMPORTANT: The baffle prevents ice from over-filling the manual fill area during agitation/

dispensing with a full storage bin and forcing the manual fill cover off.

4. Using the slotted holes in the lid as a template, drill (4) 0.147” diameter holes (#26 drill) at the bottom of the slots

(see Figure 1 Detail A). BE CAREFULLY NOT TO DRILL INTO THE ICE STORAGE BIN. Secure the lid to the

dispenser with (4) #10 sheet metal screws.

5. Seal the ice maker to the dispenser lid as follows (see Figure 1).

A. Run beads of RTV around the opening in the lid and inside of the perimeter of the ice maker outline so

that the ice maker will set on the RTV.

B. Set the ice maker onto the lid and position it as shown in Figure 1.

C. Wipe away the excess RTV.

6. Drill 0.147” diameter holes into the ice maker cabinet and the dispenser lid using the ice maker mounting brack-

ets as templates. USE CAUTION SO AS NOT TO DRILL INTO ANY ICE MAKER COMPONENTS (CON-

DENSER, TUBING, ETC.). Secure the brackets using the #10 sheet metal screws provided.

7. Follow the ice maker manufacturer’s instructions to complete the installation of the ice maker including the bin

thermostat if so equipped or required.

IMPORTANT: For Scotsman CM series ice makers with sonic ice level control, Bin Thermostat Kit

KSB1 must be ordered with the ice maker

CAUTION:

The bin thermostat location must not interfere with agitator rotation.

8. Locate the cleaning caution label (item 5) on the manual ice fill cover (item 4) as shown in Figure 1. Place the

manual fill cover in position over the flange on the lid assembly and the front access hopper opening.

Figure 1. Dispenser

30 7

SEE

DETAIL A

ICEMAKER

SEAL TO ITEM 1

WITH ITEM 3

REFER TO

STEP 5

DETAIL A

DRILL ø .147 HOLES

USING BOTTOM OF

SLOTTED HOLES IN

LID AS A TEMPLATE

POSITION ICEMAKER

FLUSH WITH REAR OF

LID AND CENTERED

ON DISPENSER

7¼

ED300 Dispenser Kit Installation Instructions

Figure 2. ED300 Baffle Kit

Figure 3. Mounting Template

4 PLC. ICEMAKER SHOWN

FOR REFERENCE

ONLY

4 PLC.

BAFFLE

(ITEM 6)

SHOWN

IN PLACE

4 PLC.

ø7/16

(6) PLCS

OPENING

18 5/8

8 5/8

22 3/8

3 3/16

44 3/8

29 3/4

31 1/2

3 1/2

20 3/8

40 3/4

1 13/16

1 5/16

6 11/16

21 1/4

4 1/2

REMOVABLE

SINK

RECOMMENDED COUNTER OPENING SIZE 12" X 15"

FOR UTILITIES AND BEVERAGE TUBING. OPENING

CAN BE LOCATED ANYWHERE WITHIN THE SHADED

AREA.

16 1/8

2 9/16

8 1/2

TO FRONT OF DRIP TRAY

ON COUNTER

TOP

TO FRONT TOP OF

DRIP TRAY

This manual suits for next models

Table of contents

Other Cornelius Dispenser manuals

Cornelius

Cornelius FRUITISTA 3 User manual

Cornelius

Cornelius 2230 K4-100 User manual

Cornelius

Cornelius 2232 User manual

Cornelius

Cornelius pbd175 User manual

Cornelius

Cornelius ED22 Series User manual

Cornelius

Cornelius DF250 User manual

Cornelius

Cornelius FlavorFusion User manual

Cornelius

Cornelius Bubble Manual

Cornelius

Cornelius IDC 255 PROGATE DRIVE THRU UNIT User manual

Cornelius

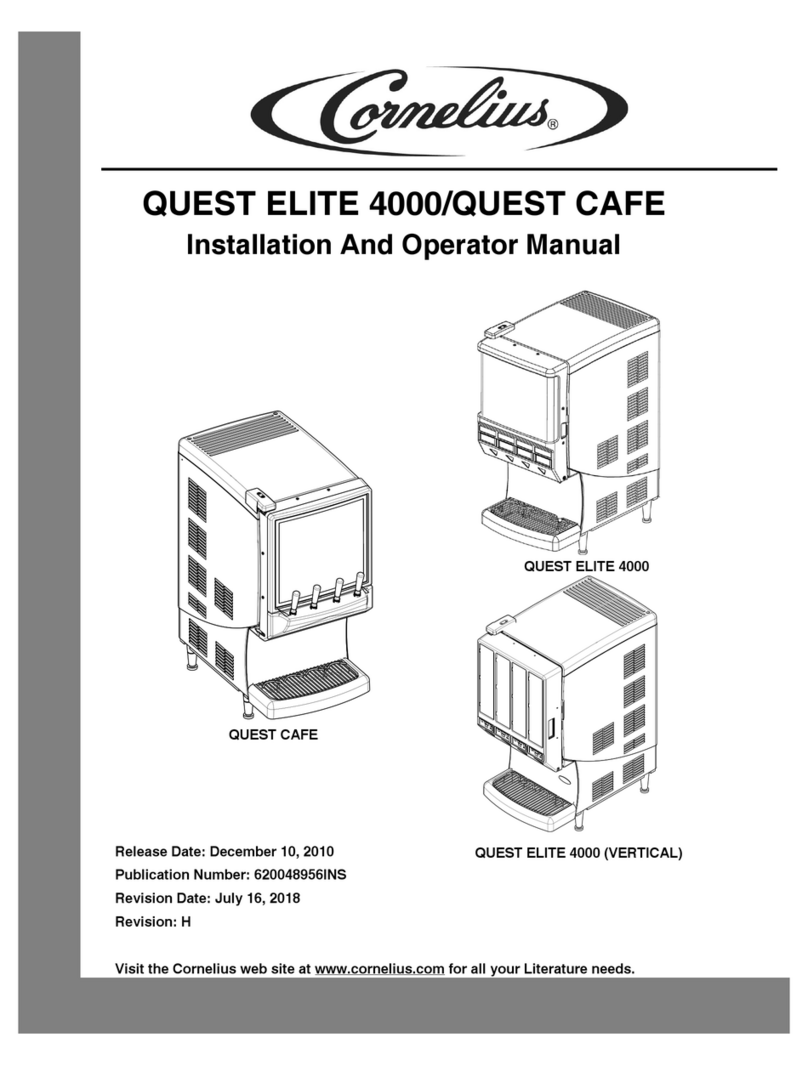

Cornelius QUEST CAFE Setup guide
