VISION FLOOD ARCHITECTURAL FLOOD LUMINAIRE

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 1

ARCHITECTURAL FLOOD LUMINAIRE

VISION FLOOD

- Facade

- Sign

- Landscape

– Architectural Highlighting

– General Area Illumination

FLUENT FORM

VISION Flood’s cylindrical form blends effortlessly to architectural and landscape environments.

Available in wattages up to 1000 watt Metal Halide and in two (2) housing sizes, VISION Flood offers

properly scaled solutions for any floodlighting application.

EXCEPTIONAL DESIGN

Designed for sustaining quality, VISION Flood’s precisely engineered die-cast aluminum

housing and door incorporate IP65 rated gasketing strategies, while the heavy duty knuckle provides

infinite aiming flexibility and lock-down strength tested to withstand 3G of vibration.

OPTICAL FLEXIBILITY

Designed to offer community friendly optical control, VISION Flood optics focus lamp output

into defined rectangular patterns while controlling direct visibility of the lamp, a root cause of glare

and light pollution. Six (6) available optical systems provide maximum design flexibility, while a

broad array of light control accessories provide supplemental cutoff control.

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 2

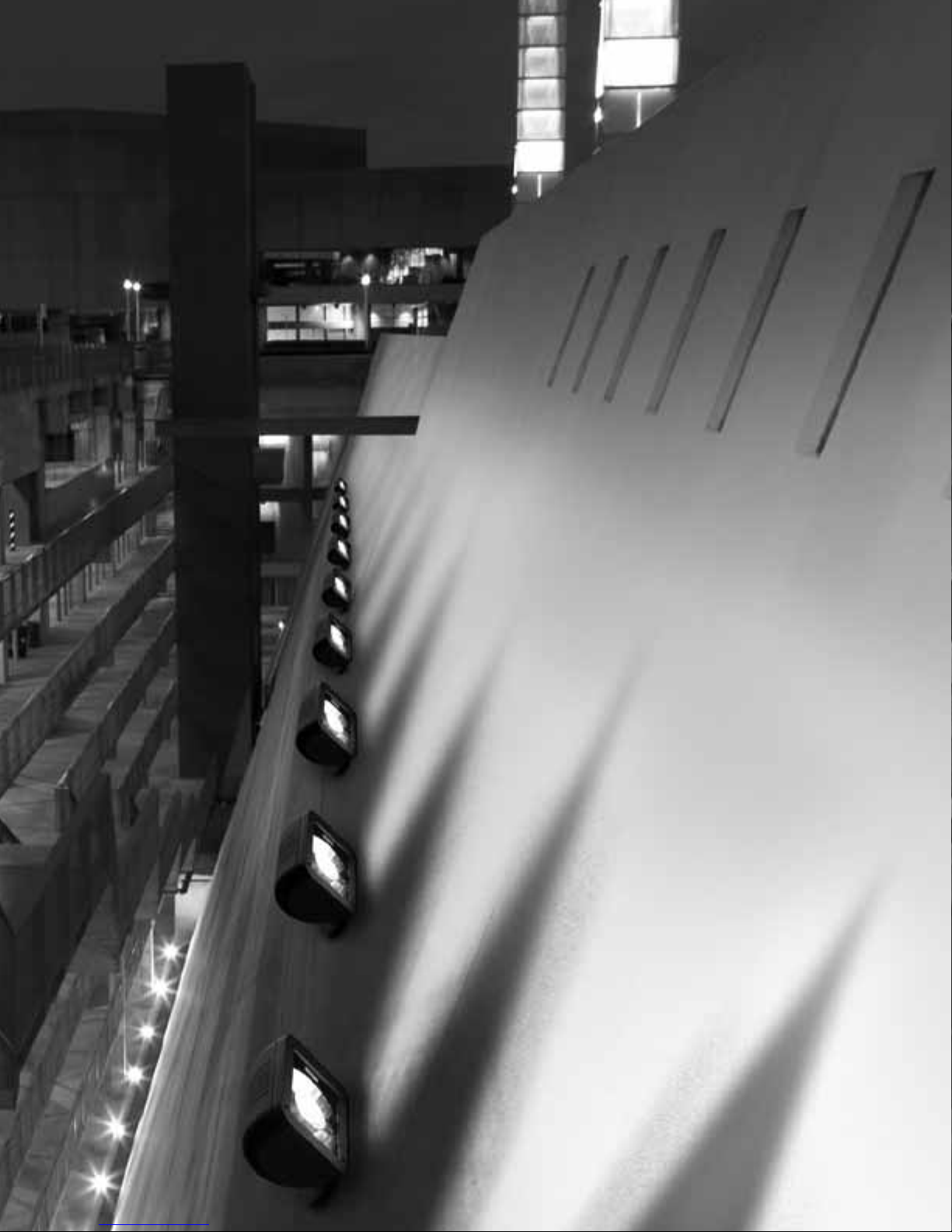

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 3

VISION FLOOD Architectural Flood Luminaire

- Inverse Square Cosine Law

FLOODLIGHTING FUNDAMENTALS

E D2

COS (x) X=45°

45°

I=707 cd

D=10'

5 fc (10')2

COS (45°)=707 candela

E=fc

E D2

COS (x)

X=30°

30°

I=577 cd

5 fc (10')2

COS (30°)

D=10'

=577 candela

E=5 fc

E D2

COS (x) X=30°

30°

I=2,310 cd

5 fc (20')2

COS (30°)

D=20'

=2,310 candela

E=5 fc

E D2

COS (x)

X=30°

I=577 cd

5 fc (10')2

COS (30°)

D=10'

=577 candela E=5 fc

30°

Footcandle levels are ultimately dependent upon the projected distance, aiming angle, and luminous intensity of a lamp/reflector combination.

A cursory understanding of the equation which relates these variables provides insights to proper design technique and distribution selection.

Holding other variables constant, as the projected distance increases from the luminaire to the surface being illuminated, a greater amount

of luminous intensity (I, Candela) is required to sustain an equal illuminance (E, Footcandle) level.

INVERSE SQUARE COSINE LAW

E=I cos (x)/D2 -or-

Illuminance (Footcandles, fc) = Luminous Intensity (Candelas, Cd) * cos (incident angle X) / Distance2

Holding incident angle X constant at 30˚ while increasing the projected distance D from 10' to 20' requires an increase in candela from

577 to 2310 respectively to sustain an equal 5 footcandles (fc) of illumination at the target point.

The incident angle as measured from a luminaire’s directed intensity to the target surface normal also plays a significant role in determining

illuminance values. Holding other variables constant as the incident angle from the target surface to the projected aiming line increases, so does

the amount of luminous intensity (I, Candela) required to sustain an equal illuminance value.

Holding projected distance D constant at 10' while increasing incident angle X from 30˚ to 45˚ requires an increase in candela from

577 to 707 respectively to sustain an equal 5 footcandles (fc) of illumination at the target point.

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 4

VISION FLOOD Architectural Flood Luminaire

NEMA Beam Field Angle Description +

Classification Range Setback

110-18°Narrowest Beam, Long Setback

218-29°Narrow Beam, Long Setback

329-46°Narrow Beam, Long Setback

446-70°Medium Beam, Medium Setback

570-100°Medium Beam, Medium Setback

6100-130°Wide Beam, Shorter Setback

7130°-Greater Widest Beam, Short Setback

- Floodlighting Terminology

- NEMA [IES] Classifications

FLOODLIGHTING TERMINOLOGY

NEMA [IES] CLASSIFICATIONS

NEMA classifications are extrapolated from the table below and are determined by a distribution’s Field Angle. This relative classification is used

to describe the general shape and application of a distribution. NEMA classifications are used to classify both the horizontal and vertical

components of a floodlight distribution.

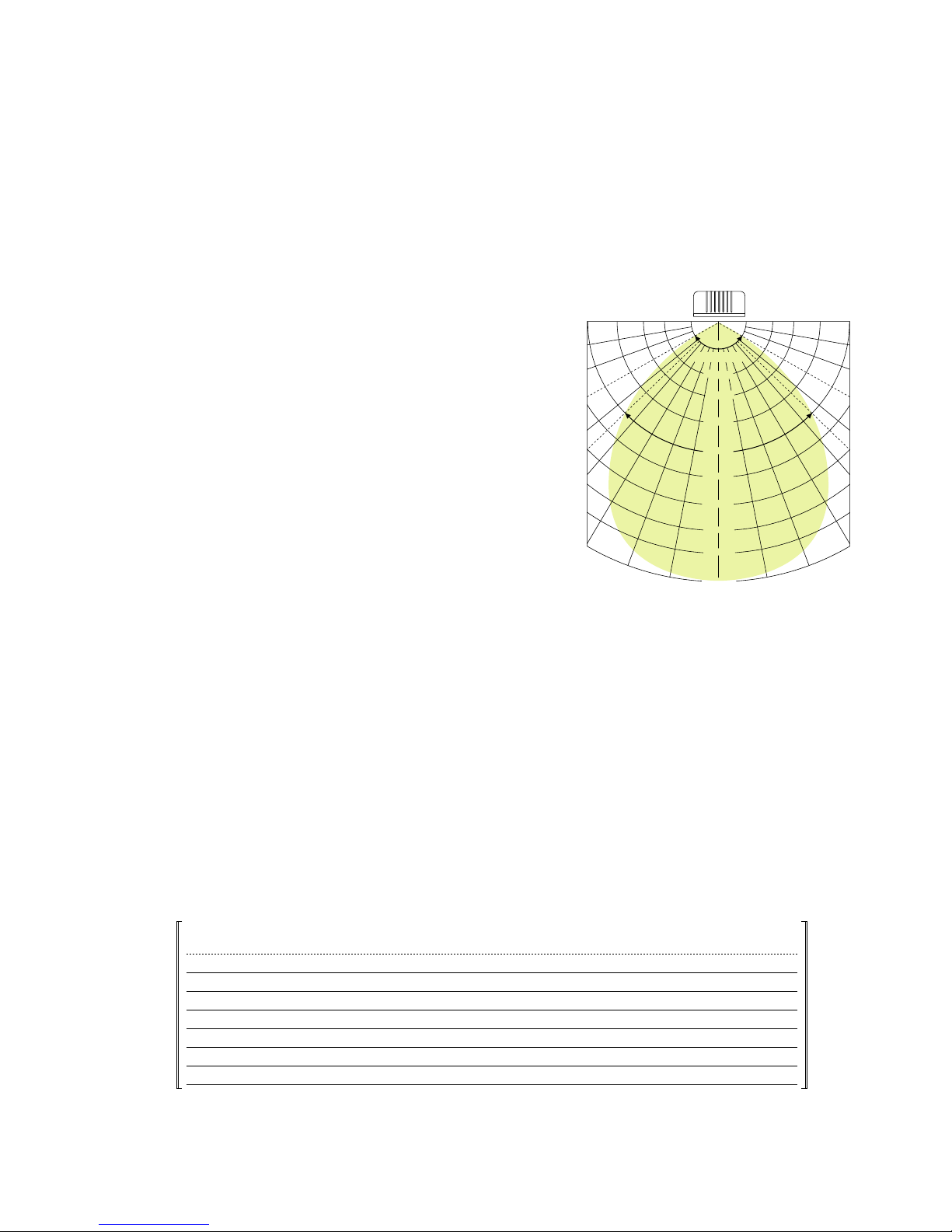

The example distribution in FIG. 1 above would have a NEMA Classification of 6 as the 120° Field Angle falls between the 100-130° range.

FLOODLIGHTING TERMINOLOGY

Ever wonder how NEMA (H x V) Classifications are derived, or how they relate

to the performance and design application of a floodlighting distribution?

How about beam and field angles, and maximum candela values?

-Maximum Candela is defined as the maximum candela value emitted

from the luminaire in any given direction.

- Beam angle is defined as the included angle between points of 50%

of Maximum Candela.

- Field Angle is defined as the included angle between points of 10%

of Maximum Candela.

As an example, a distribution with a 50,000 Cd maximum candela value

as shown in the intensity distribution graph to the right (FIG. 1) would have a

Beam Angle defined by the included angle of 25,000 Cd values, and a Field

Angle defined by the included angle of 5,000 Cd values.

EXAMPLE

Max Candela = 50,000 Cd

Candela Value defining Beam Angle = (50% * 50,000 Cd) = 25,000 Cd

Candela Value defining Field Angle = (10% * 50,000 Cd) = 5,000 Cd

Beam Angle = 90°

Field Angle = 120°

90°

60°

80°

70°

50°

40°

30°

45°

0°

Beam Angle

Field Angle

90°

60°

80°

70°

50°

40°

30°

45°

20°

10°

20°

10°

FIG. 1

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 5

- Internal Louvers

- External Grid Louvers

- Top Visor

- 4 Sided Shield

- Barn Doors

- Rectangular Beam Patterns

SPILL + GLARE CONTROL

VISION FLOOD Architectural Flood Luminaire

Limiting the amount of stray light which falls beyond the boundaries of the intended target is not only good design practice, but is increasingly

a mandate of local and state adopted lighting ordinances. The VISION Flood series offers a family of beam control options to limit unwanted stray

light and control direct viewing of the lamp, a common source of discomfort and disability glare.

EXTERNAL GRID LOUVERS

Designed to control lamp glare and spill light

while maintaining beam efficiency. Useful when

aiming direction or intended target lies in close

proximity to pedestrian and/or motor vehicle

activity. Mounts to accessory channel in

doorframe. Compatible with all distributions.

Available on VFM only.

Without Internal Louvers

With Internal Louvers

INTERNAL LOUVERS

Standard on Narrow Spot and Narrow Flood

distributions, integral ring louver controls lamp

glare while eliminating spill light outside the

main beam.

VISION Flood offers a host of beam control options that limit

unwanted stray light and control direct viewing

of the lamp source.

Without External Louvers

With External Louvers

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 6

VISION FLOOD Architectural Flood Luminaire

BARN DOORS

Four (4) independently mounted and adjustable

doors control cutoff angles in all directions,

allowing custom distribution control. Compatible

with all distributions.

Without Top Visor

TOP VISOR

Controls excess spill and glare on top portion

of distribution. Especially useful in uplighting

applications to limit light travel above an

intended wall surface or sign. Mounts to

accessory channel in doorframe. Compatible

with all distributions.

With Top Visor

4-SIDED SHIELD

Controls lamp glare and spill light in all

directions. Useful when aiming direction or

intended target lies in close proximity to

pedestrian and/or motor vehicle activity.

Mounts to accessory channel in doorframe.

Compatible with all distributions. Available on

VFM only.

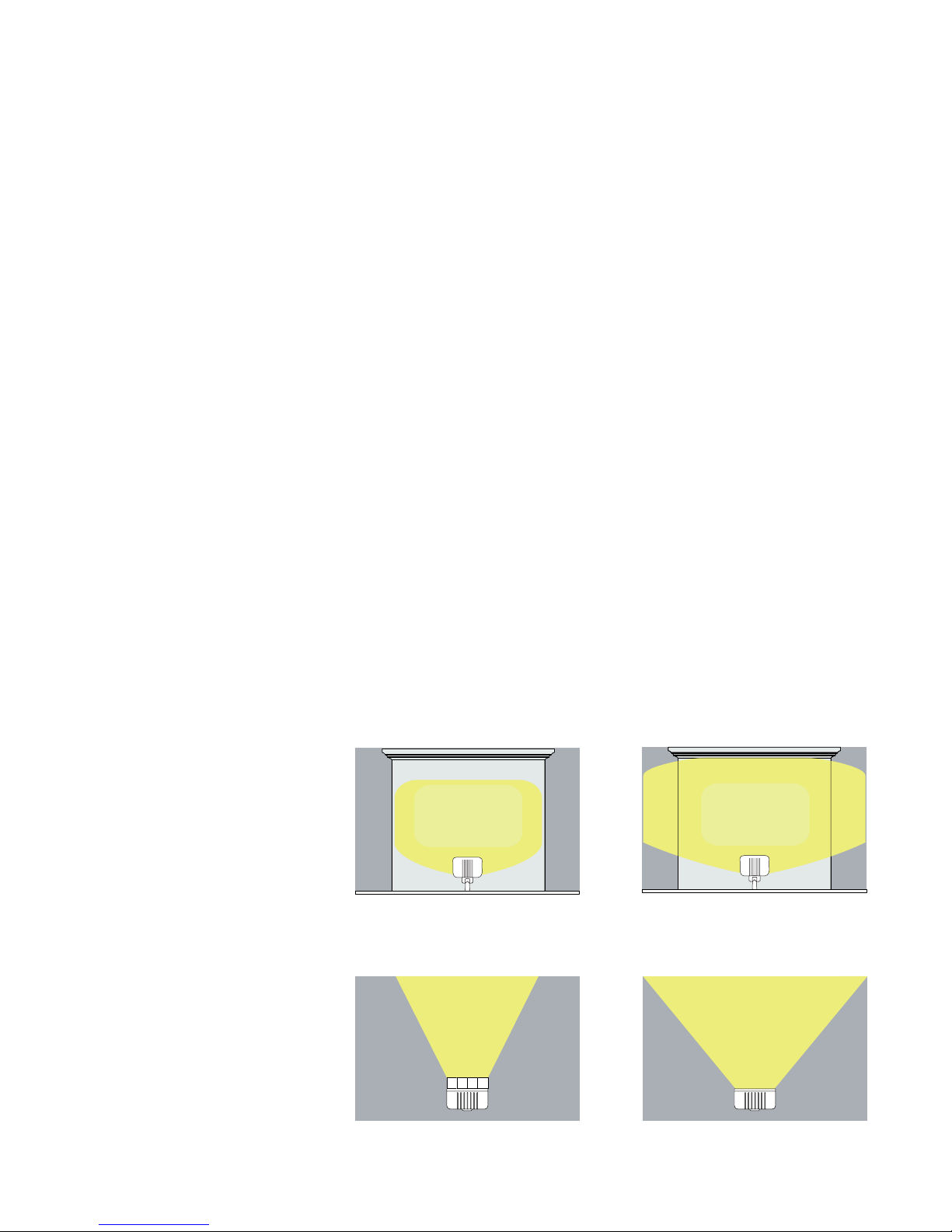

RECTANGULAR BEAM PATTERNS

Structures, signs, and other various objects which

dominate our visual landscape are largely defined

by straight lines and planar surfaces. Lighting

these objects with rectangular distributions

eliminates excess spill light while maintaining

optimal uniformity.

Without 4-Sided Shield

With 4-Sided Shield

Without Barn Doors

With Barn Doors

Typical Round Beam Patterns

Rectangular Beam Patterns

Typical round patterns create shadows in

corners, requiring closer fixture

spacings. Uniformity is compromised.

Rectangular beams produce more

uniform coverage, resulting in reduced

fixture counts and less stray light

spilling beyond the intended target.

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 7

VISION FLOOD Architectural Flood Luminaire

ILLUMINATION RECOMMENDATIONS

Effective floodlighting design is a complex and subjective task. Results are heavily dependent upon surrounding light levels, surface finish of the

intended target, spectral color distribution of the lamp source, mounting location allowances, and viewers perceptions.

The following table lists IESNA (Illuminating Engineering Society of North America) recommended illuminance levels for the floodlighting of

buildings and monuments.

Cooper Lighting Application Engineers are available to assist in providing design layouts, aiming diagrams, and illuminance plots for your next

floodlighting project. Consult your INVUE Lighting Systems Representative for more information.

Area Target Surface Average Target

Description Finish Illuminance

Bright Surroundings Light Surfaces 5 fc

Bright Surroundings Medium Light Surfaces 7 fc

Bright Surroundings Dark Surfaces 10 fc

Dark Surroundings Light Surfaces 2 fc

Dark Surroundings Medium Light Surfaces 3 fc

Dark Surroundings Medium Dark Surfaces 4 fc

Dark Surroundings Dark Surfaces 5 fc

NEMA Beam Field Angle Maximum

Lamp Lamp Beam IES (50% Max. Candela) (10% Max. Candela) Candela Total

Wattage Type Pattern Type in Degrees in Degrees Value Efficiency

175W MH 1ED-17 Narrow Spot 1 H x 3 V 7 H x 15 V 17 H x 33 V 102,434 60%

Narrow Flood 3 H x 3 V 16 H x 23 V 30 H x 45 V 53,892 71%

Medium Flood 5 H x 3 V 52 H x 18 V 74 H x 41 V 25,698 84%

Wide Flood 7 H x 6 V 70 H x 55 V 132 H x 103 V 8,346 84%

Vertical Flood 7 H x 6 V 98 H x 58 V 147 H x 130 V 5,420 71%

Horizontal Spot 6 H x 6 V 80 H x 27 V 111 H x 120 V 10,694 83%

400W MH 2BT-37 Narrow Spot 1 H x 2 V 8 H x 16 V 14 H x 27 V 304,593 41%

Narrow Flood 2 H x 3 V 12 H x 19 V 23 H x 36 V 162,701 50%

Medium Flood 4 H x 4 V 22 H x 23 V 48 H x 49 V 92,191 81%

Wide Flood 7 H x 6 V 86 H x 58 V 137 H x 101 V 20,734 81%

Vertical Flood 7 H x 7 V 106 H x 57 V 145 H x 139 V 14,761 74%

Horizontal Spot 5 H x 5 V 86 H x 15 V 94 H x 90 V 34,463 61%

1000W MH 3BT-37 Narrow Spot 1 H x 4 V 5 H x 16 V 13 H x 48 V 633,201 51%

Narrow Flood 2 H x 4 V 14 H x 27 V 29 H x 55 V 279,879 53%

Medium Flood 4 H x 4 V 23 H x 33 V 53 H x 68 V 197,476 78%

Wide Flood 7 H x 6 V 85 H x 74 V 139 H x 116 V 52,625 83%

Vertical Flood 7 H x 7 V 111 H x 55 V 152 H x 135 V 42,981 76%

Horizontal Spot 6 H x 5 V 85 H x 16 V 105 H x 96 V 99,290 64%

150W HPS 4ED-17 Narrow Spot 1 H x 4 V 9 H x 23 V 17 H x 46 V 74,261 61%

Narrow Flood 3 H x 4 V 21 H x 31 V 31 H x 57 V 41,007 70%

Medium Flood 5 H x 4 V 49 H x 27 V 77 H x 54 V 23,522 81%

Wide Flood 7 H x 6 V 8 x 69 V 136 H x 109 V 7,567 79%

Vertical Flood 7 H x 6 V 99 H x 55 V 145 H x 126 V 6,331 69%

Horizontal Spot 5 H x 6 V 77 H x 14 V 95 H x 112 V 18,237 84%

400W HPS 5ED-18 Narrow Spot 1 H x 4 V 6 H x 20 V 13 H x 47 V 260,454 48%

Narrow Flood 2 H x 4 V 15 H x 27 V 27 H x 52 V 112,314 44%

Medium Flood 4 H x 5 V 23 H x 33 V 54 H x 71 V 86,573 78%

Wide Flood 7 H x 6 V 88 H x 80 V 140 H x 117 V 21,630 80%

Vertical Flood 7 H x 7 V 102 H x 60 V 145 H x 137 V 20,686 75%

Horizontal Spot 6 H x 5 V 81 H x 15 V 102 H x 100 V 44,433 62%

1 If using a 100W MH lamp, apply a 0.629 scaling factor to the 175W MH maximum candela values.

2 If using a 250W MH lamp, apply a 0.569 scaling factor to the 400W MH maximum candela values.

3 If using a 750W MH lamp, apply a 0.745 scaling factor to the 1000W MH maximum candela values.

4 If using a 100W HPS lamp, apply a 0.594 scaling factor to the 150W HPS maximum candela values.

5 If using a 250W HPS lamp, apply a 0.55 scaling factor to the 400W HPS maximum candela values.

BEAM PATTERN INFORMATION

DESIGN GUIDE

- Illumination Recommendations

- Beam Pattern Information

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 8

VISION FLOOD Architectural Flood Luminaire

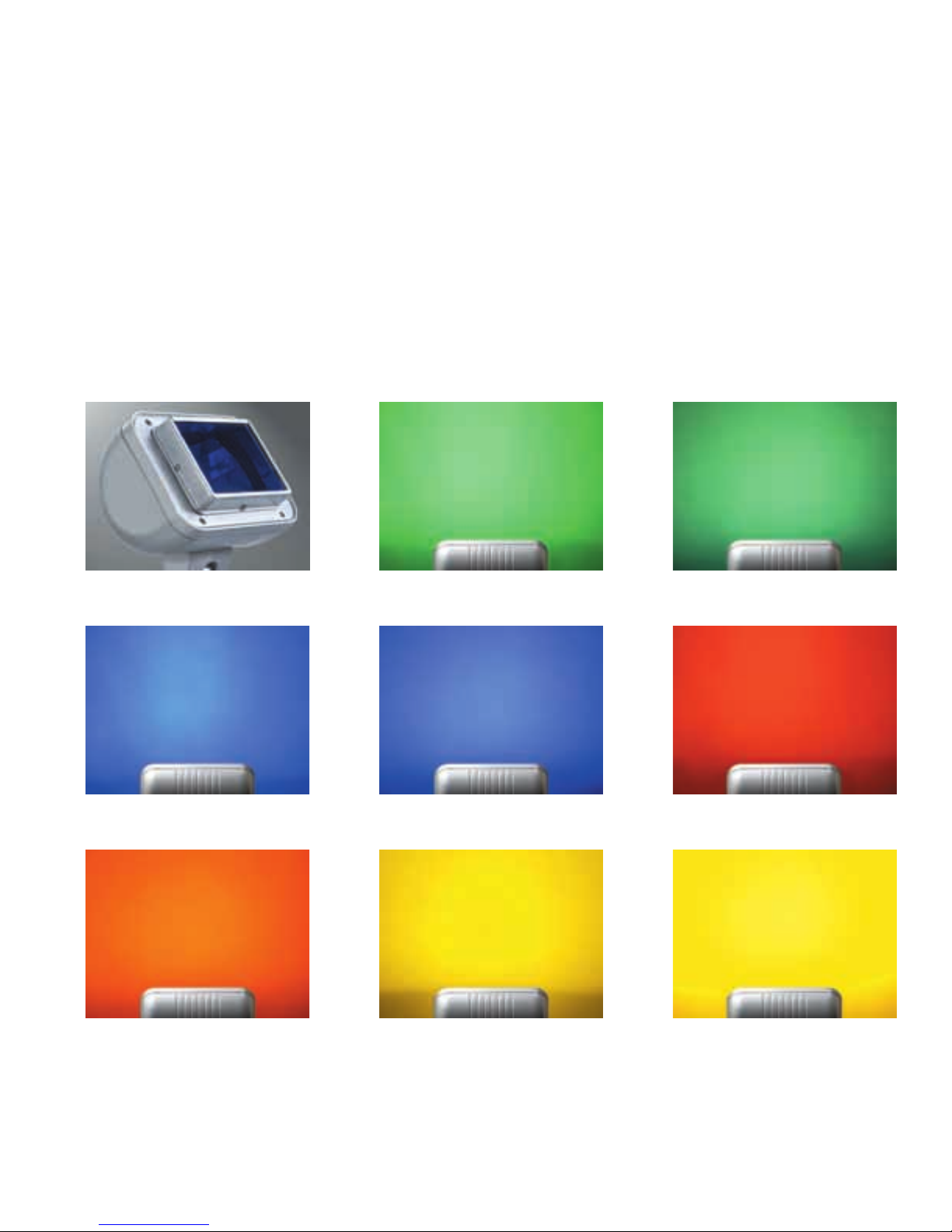

COLOR CAPABILITIES

VISION Flood can be specified with one of four (4) standard color gels: Deep Green, Bright Blue, Red or Warm Orange. Dichoric glass filter options

and custom colors are also available. Consult your INVUE Lighting Systems Representative for more information.

WITH COLOR FILTER

ADAPTER

NOTE: Color representations are for comparative purposes only, and do not imply achieved color in application which is dependent upon lamp

source, optic, and target surface properties.

METAL HALIDE

DEEP GREEN FILTER

HIGH PRESSURE SODIUM

DEEP GREEN FILTER

METAL HALIDE

BRIGHT BLUE FILTER

HIGH PRESSURE SODIUM

BRIGHT BLUE FILTER

METAL HALIDE

RED FILTER

HIGH PRESSURE SODIUM

RED FILTER

METAL HALIDE

WARM ORANGE FILTER

HIGH PRESSURE SODIUM

WARM ORANGE FILTER

Infusing color to a visual landscape elicits attention,

emotion, and intrigue.

COLOR CAPABILITIES

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 9

VISION_FLOOD.wpc 11/19/03 6:20 PM Page 10

This manual suits for next models

Table of contents

Other Cooper Lighting Light Fixture manuals

Cooper Lighting

Cooper Lighting AMETRIX SRR User manual

Cooper Lighting

Cooper Lighting Halo L741 User manual

Cooper Lighting

Cooper Lighting TQS1000QD User manual

Cooper Lighting

Cooper Lighting Combolight LV470 User manual

Cooper Lighting

Cooper Lighting Combo Trimless Series LV-516-TR User manual

Cooper Lighting

Cooper Lighting Metalux RKS/RKD SERIES User manual

Cooper Lighting

Cooper Lighting AMETRIX YIxx User manual

Cooper Lighting

Cooper Lighting Halo L530020ESCPL User manual

Cooper Lighting

Cooper Lighting Combolight MLU213 User manual

Cooper Lighting

Cooper Lighting Metalux UT Series User manual

Cooper Lighting

Cooper Lighting PM611cb User manual

Cooper Lighting

Cooper Lighting ComboLight Suspended Series User manual

Cooper Lighting

Cooper Lighting Combo Trimless Series LV-216-TR User manual

Cooper Lighting

Cooper Lighting Metalux 248HO User manual

Cooper Lighting

Cooper Lighting RFR Series User manual

Cooper Lighting

Cooper Lighting Halo L5300 User manual

Cooper Lighting

Cooper Lighting COMBOLIGHT Recessed Single-Lamp Fixture User manual

Cooper Lighting

Cooper Lighting SURE-LITES EUS Series User manual

Cooper Lighting

Cooper Lighting COMBOLIGHT LV3005IS User manual

Cooper Lighting

Cooper Lighting HALO LV208 User manual

Cooper Lighting

Cooper Lighting CORELITE Traverse Wall 2T5HO User manual

Cooper Lighting

Cooper Lighting Combolight LV416SQ User manual

Cooper Lighting

Cooper Lighting Metalux EIM Series User manual

Cooper Lighting

Cooper Lighting Halo H2577 User manual

Popular Light Fixture manuals by other brands

Emos

Emos CLASSIC ZY1431T manual

Westinghouse

Westinghouse Outdoor Lighting Fixture owner's manual

Hedler

Hedler C 12 silent Operation manual

Blizzard Lighting

Blizzard Lighting Puck: CSI manual

Energetic Lighting

Energetic Lighting ELYSL-5004 Series installation instructions

Lightmaxx

Lightmaxx Shaft 5R user manual

Triarch

Triarch 31083 Assembly instructions

Philips

Philips 32614 Series user manual

IKEA

IKEA TIVED Assembly instructions

Lightolier

Lightolier LP200 specification

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH user manual

Martin

Martin MAC 250 Krypton user manual

Stageline

Stageline ODW-2410RGBW instruction manual

Light Sky

Light Sky Tornado Series user manual

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U specification

Lightolier

Lightolier Lytespan 83ED17S specification

Lightolier

Lightolier Calculite CS8226 specification

ArtFox

ArtFox Beam 15R extreme manual
