Cooper Lighting PM611cb User manual

RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

PM24

"537!9352&!#%

,OCKING

!DJUSTABILITY

,OCKING

!DJUSTABILITY

v

v

v

v

v

v

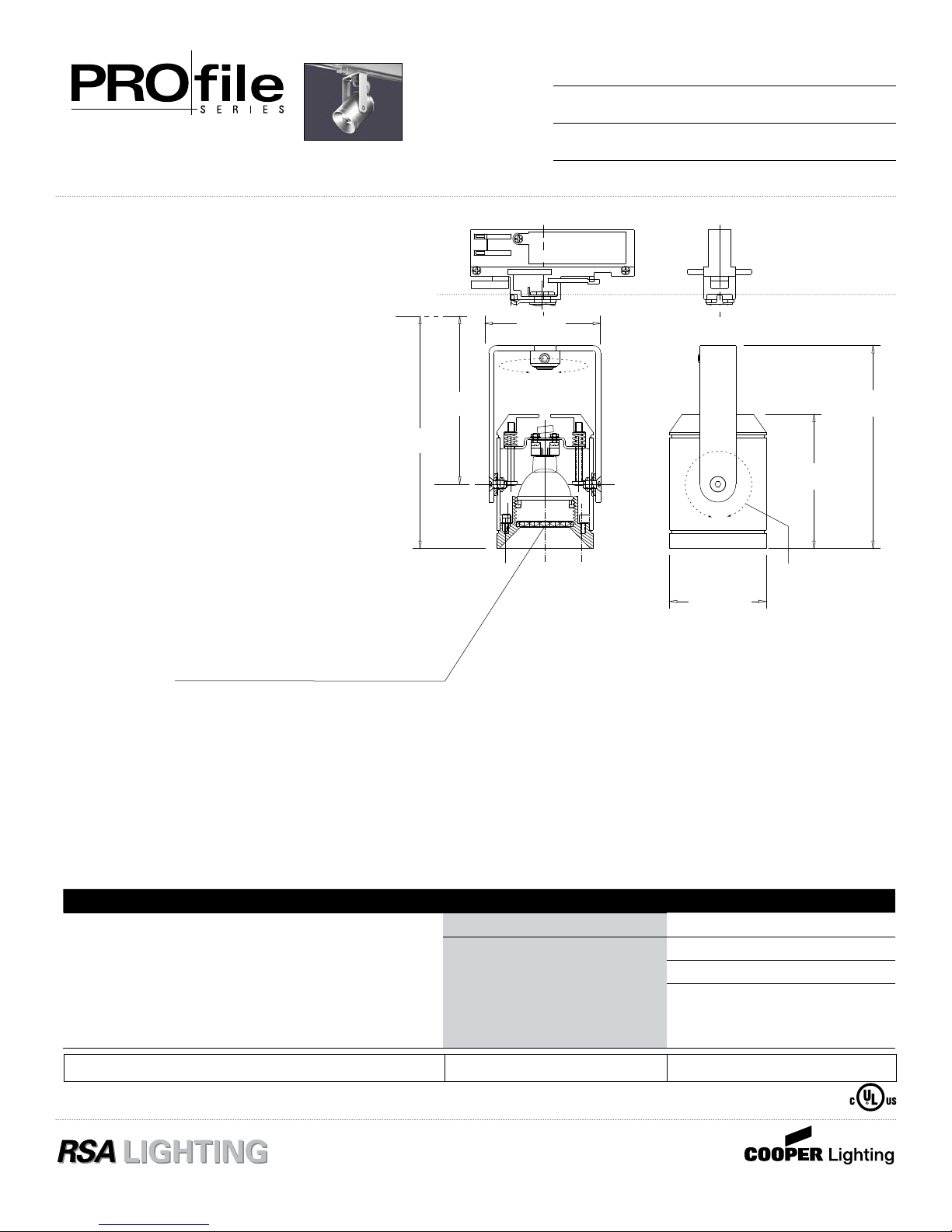

PM611cb

60 Amp Busway Adapter

Catalog #

Type

Project

A machined aluminum track ﬁxture for low voltage

MR11 lamps for 20 or 35 watts. For use with RSA

Proﬁle Series 60 Amp Busway.

Front loading lamp with bayonet action lens /

accessory bezel. Optical accessories are captured

in the bezel with a threaded retainer ring preventing

accessory spill-out during relamping. Can accom-

modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps

extend for easy access and automatically retract

to optimum position. This is extremely helpful when

dealing with varying accessory combinations or dif-

fering manufacturer lamp dimensions.

Optical accessories include color filters, UV ﬁl-

ters, screens, spread lenses, louvers, hex louvers,

snoots. Consult RSA for details.

Locking on both the horizontal and vertical

planes. 370º vertical rotation possible due to over-

center locking mechanism (60 amp busway only).

270º horizontal locking adjustment.

UL and CUL listed

Clear lens included.

Available in White, Black, Natural Aluminum or

custom ﬁnishes.

MR11 12V

Closed Back Machined Fixture

PM611cb

Closed Back Machined Fixture Lamp Wattage Finish

❑ PM611cb - MR11 for 60 Amp Busway ❑ 20 20 Watt 12V MR11 ❑ WH White

❑ 35 35 Watt 12V MR11 ❑ BK Black

❑ AL Natural Aluminum

❑ PT Custom Finish

Ordering Example: PM611cb-35-AL

PM25

MR11 12V Halogen 2-Pin G4

Q20 MR11 /SP15 (FTC) GEL 3 196 0.9 0.9 3 127 1.2 1.1 1.7 1 271 0.9 0.6 1.7 2 169 1.1 0.9 2.

Beam Spread = 15° x 15° 4 110 1.3 1.3 4 71 1.7 1.5 2.3 2 68 1.9 1.1 3.5 3 75 1.7 1.3 3.0

CBCP = 1,760 5 70 1.6 1.6 5 46 2.1 1.8 2.9 3 30 2.8 1.7 5.2 4 42 2.2 1.7 4.0

Rated Life = 3,500 Hrs. 6 49 1.9 1.9 6 32 2.5 2.2 3.5 4 17 3.7 2.3 6.9 5 27 2.8 2.1 5.0

Q20 MR11 /NFL30 (FTD) GEL 2 291 1.0 1.0 2 232 1.1 1.0 1.2 1.0 288 0.6 0.7 1.7 1.5 265 0.9 0.9 1.5

Beam Spread = 30° x 30° 3 129 1.5 1.5 3 103 1.7 1.5 1.7 2.0 72 1.3 1.4 3.5 2.0 149 1.3 1.2 2.0

CBCP = 600 4 73 2.0 2.0 4 58 2.3 2.0 2.3 3.0 32 1.9 2.1 5.2 2.5 95 1.6 1.5 2.5

Rated Life = 3,500 Hrs. 5 46 2.5 2.5 5 37 2.8 2.6 2.9 4.0 18 2.5 2.8 6.9 3.0 66 1.9 1.7 3.

Q35 MR11 /SP20 (FTF) GEL 3 333 1.0 1.0 3 228 1.3 1.1 1.7 1.5 228 1.4 0.9 2.6 2 303 1.2 0.9 2.0

Beam Spread = 20° x 20° 4 188 1.4 1.4 4 128 1.8 1.5 2.3 2.0 128 1.9 1.2 3.5 3 135 1.8 1.4 3.0

CBCP = 3000 5 120 1.7 1.7 5 82 2.2 1.9 2.9 2.5 82 2.3 1.5 4.3 4 76 2.4 1.8 4.0

Rated Life = 3,500 Hrs. 6 83 2.1 2.1 6 57 2.3 2.3 3.5 3.0 57 2.8 1.8 5.2 5 48 3.0 2.3 5.0

Q35 MR11 /NFL30 (FTH) GEL 3 179 1.5 1.5 3 145 1.7 1.6 1.7 1.5 180 1.0 1.1 2.6 2.0 212 1.2 1.4 2.0

Beam Spread = 30° x 30° 4 101 2.0 2.0 4 82 2.3 2.1 2.3 2.0 101 1.3 1.4 3.5 2.5 135 1.5 1.8 2.

CBCP = 1,300 5 64 2.5 2.5 5 52 2.9 2.6 2.9 2.5 65 1.6 1.8 4.3 3.0 94 1.8 2.1 3.0

Rated Life = 3,500 Hrs. 6 45 3.0 3.0 6 36 3.5 3.2 3.5 3.0 45 2.0 2.1 5.2 3.5 69 2.1 2.5 3.5

0° Aiming Angle 30° Aiming Angle 30° Aiming Angle 45° Aiming Angle

Horizontal Footcandles Horizontal Footcandles Vertical Footcandles Vertical Footcandles

D FC L W D FC L W CB D FC L W CB D FC L W CB

FC FC

L L

30° 30°

Lamp Performance Data

D = Distance to the horizontal or vertical surface.

FC = Initial footcandles at the center of the beam.

L = Length of the beam where candlepower is reduced to 50%

of center beam candlepower.

W = Width of the beam where candlepower is reduced to 50%

of center beam candlepower.

CB = Distance to the center of the beam.

Lamp data given is typical and is based on bare lamp performance.

Contact lamp manufacturers for availability and specific performance.

Distance, length and width given in decimal feet.

Optivex UV

Filter

Red Color

Filter

Blue Color

Filter

Amber Color

Filter

Cosmetic Peach

2800K Filter

Milk White

Lens

Diffusion Spread

Lens

Linear Spread

Lens

LN15 LN16 LN17 LN19 CP11 LN14 LN10 LN13

Prismatic Spread

Lens

20% Reduction

Screen

30% Reduction

Screen

40% Reduction

Screen

Hex Cell

Louver

Cross

Bafﬂe

Snoot

LN12 RS2011 RS3011 RS4011 LN10 CB11 SN11
