Cooper Lighting FAIL-SAFE 2VRGC Series User manual

FAIL-SAFE®

ARCHITECTURAL VANDAL RESISTANT

COOPER LIGHTING

DESCRIPTION

The Fail-Safe VRGC and 2VRGC

Series ﬂuorescent luminaires

feature recessed aesthetics and

the latest in energy-efﬁcient

technology. Their Energy

Saving Ballast complies with

Federal Energy Standards.

Features include a die-

embossed housing, four

convenient end suspension

points, and high comfort

photometrics. U.L. listed and

C.S.A. certiﬁed.

• Nominal 41/2" deep

paracontoured housing,

die formed code gauge,

prime cold rolled steel

• Finish is lighting grade

baked white enamel

• Die formed, heavy gauge,

ﬂat steel door with

reinforced mitered corners

and baked white enamel

ﬁnish. Positive light seals.

Frame and lens are secured

to housing with 4 or 6

stainless steel TORX®

screws

• Positive cam action spring

loaded steel latches with

baked white enamel ﬁnish

• Ballasts are CBM/ETL Class

"P" and positively secured

by mounting bolts.

Pressure lock lampholders

VRGC

2VRGC

1' x 4', 2' x 2', 2' x 4'

1, 2, 3, OR 4 LAMP

VANDAL RESISTANT

LUMINAIRE

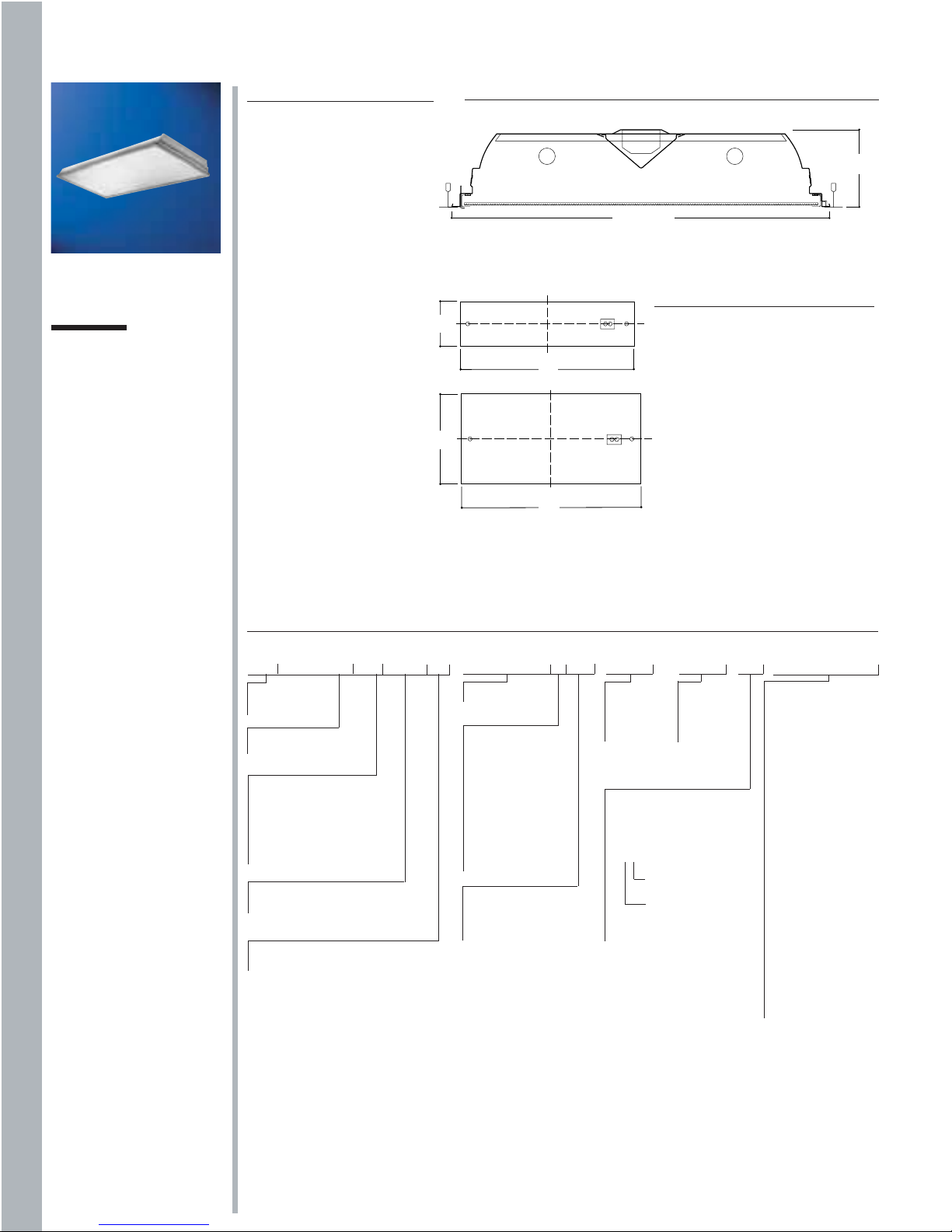

MOUNTING

ABC

VRGC 5 5/8" 11 3/4" 48"

(1' x 4') (143mm) (298mm) (1219mm)

2VRGC 4 5/8" 23 3/4" 24"

(2' x 2') (117mm) (603mm) (610mm)

2VRGC 4 5/8" 23 3/4” 48"

(2' x 4') (117mm) (603mm) (1219mm)

DIMENSIONS

ORDERING INFORMATION

SAMPLE NUMBER: 2VRGC-232A-120V-EB81-U

Options

(order as sufﬁx)

PAF=Painted After

Fabrication

GL=Internal Single

Element Fusing

GM=Dual Element

Fusing

LCWE=F40/Cool White

Energy Saving Lamps,

Installed

L8730=F32T8 3000

Kelvin Lamps, Installed

L8735=F32T8 3500

Kelvin Lamps, Installed

L8741=F32T8 4100

Kelvin Lamps, Installed

EL4=Emergency

Lighting self-contained 1

RIF1=Radio Interference

Suppressor

FR=Suitable for Fire

Rated Applications

EQ=T-BAR Safety

Earthquake Clips3

RLS=Rotor-Lock Socket

(T8 Lamps Only)

6S=Six TORX-head

Screws(3 per side)

SC=Safety Chain

Number of Lamps

1,2,3, or 4lamps

(Not included)

Wattage (Length)

U3=40W (24")

U6=40W (24")

U6T8=31W (24")

20=20W (24")

17=17W (24")

U1-5/8=31W

T8 (24")

BX40=40W

Biax (24")

40=40W (48")

32=32W T8 (48")

Series

Trim Type1

G=Grid/Lay-in – Standard

G=Concealed T

G=Slot Grid

F=Flange Trim

MZ=Modular Trim

EMZ=Modular Trim (Extended

Swing Arm)

Door Type

Standard=Flat White Steel Door

(Leave Blank)

Voltage 1

120=120V

277=277V

347=347V

UNV=

Universal

Voltage

120-277V

Voltage

LTS=Low

Trigger Start

(20 Watt)

HTS=High

Trigger Start

(20 Watt)

Ballast Type

Standard Magnetic Ballast

Leave Blank (Biax Only)

LE3= Energy Saving Ballast

LEOC8= Energy Saving Ballast

(T-8 Lamp Only)

EB _ _= Generic Electronic

Ballast

No. of Ballasts

1or 22

Lamp Size

2=T12

8=T8

(For Speciﬁc Electronic Ballast

Specify Brand and Catalog

Number)

Lens Type

ACTF140= .140 Thick

ACTF187= .187 Thick

PA375= .250 polycarbonate

with .125 prismatic

overlay

(standard with 6S

option)

Product Family

Width

Blank=1'

2=2'

NOTE: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without notice.

1Consult Pre Sales Technical Support. 2Two ballast in 2 or 4 lamp require LAO (less access opening). 3EQ Grid Clip is recommended for all 9/16"

ceiling systems.

1430
