Cooper Lighting Combo Classic CR230M39 User manual

Catalog #

Type

Project

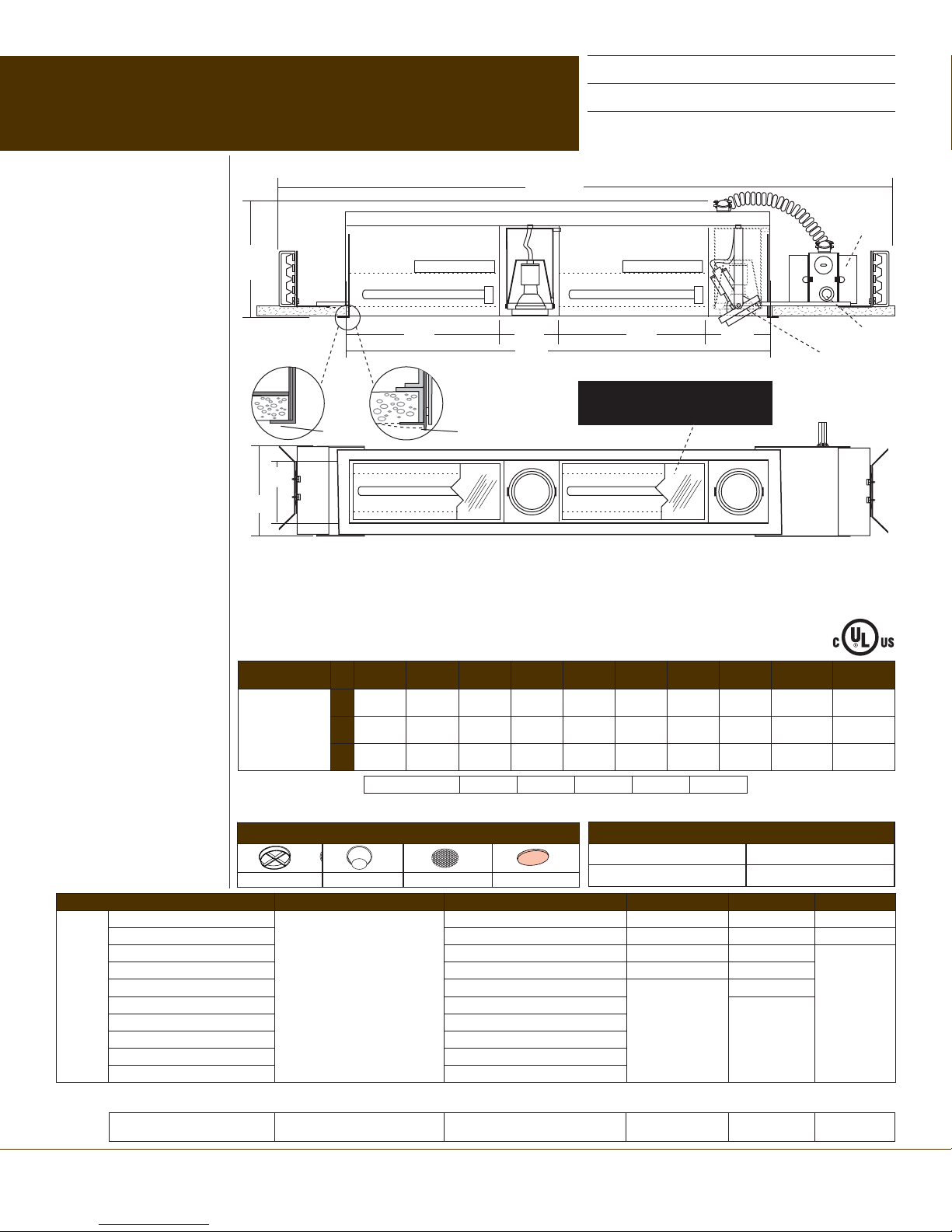

COMBOLIGHT® COMBO CLASSIC RECESSED

LAMP GROUP 2 - CONFIGURATION “D”

TWO (2) Metal Halide lamp cells - TWO (2) Fluorescent lamp cells

New Construction Recessed Housing - Trim or Trimless

ORDERING EXAMPLE:

= Two PAR20 Metal Halide 39W lamps with Two BIAX® 40W Fluorescent • Black Interior • White Trim • 120 volts

CR220M39 DBX40 BK WH 120

Fluorescent >> BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54

Lamp Group 2

Metal Halide

A65.18” 65.18” 65.18” 30.18” 31.18” 33.18” 112.18” 136.18” 88.18” 112.18”

B81.98” 81.98” 81.98” 46.98” 47.98” 49.98” 128.98” 152.98” 104.48” 128.98”

C25.50” 25.50” 25.50” 8.00” 8.50” 9.50” 49.00” 61.00” 37.00” 49.00”

RSA LIGHTING®

RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com

SPECIFY - D

380º x 45º locking

angular adjustment

45º visual cut-off

Dual Fluorescent lamp cells

w/ integral ballast accessible

from below

Integral reflector Integral reflector

Butterfly

Brackets

for Black Iron

Mounting

Thermal Protector

0.75" Trim

7.00"

9.50"

8.75"

6.90"

4.20"

Ceiling compund

is applied right

to the edge of the

fixture opening

Must specify a diffuser or louver

for fluorescent cell. See below.

Ballast Ballast

Aromat®

Electronic

Metal Halide

Ballasts

Optional Accessories - See RSA Combo Classic accessory page for details.

Baffle Snoots Louvers Lenses

Fluorescent Diffusers and Louvers - Please specify

❑ TWD - Textured White Diffuser ❑ CB1 - 2” Parabolic Louver

❑ MPD - Conical Prism Diffuser ❑ CB2 - 1” Parabolic Louver

Custom configurations are available with Combo Classic fixtures.

Also available with T8 fluorescent lamps. Consult RSA for details

DESCRIPTION:

An adjustable recessed fixture

suitable for multiple downlighting

applications with one point of elec-

trical entry. Mixes the use of metal

halide lamps with fluorescent

lamps. Powder coat finish on hous-

ing & lamp assembly.

CONSTRUCTION:

Housing, Plaster Frame & Trim

Assembly: 18 gauge CRS. J-Box

Assembly: 16 gauge CRS (galva-

nized). Fixture is offered with a .75”

ceiling trim or as a trimless fixture.

Can accommodate 0.50” to 1.00”

ceiling thickness.

LAMP ASSEMBLY:

Two Metal Halide lamp cells with

two fluorescent lamp cells . Can

accept up to two optical acces-

sories. 380º x 45º locking lamp

adjustment. Provides 45º visual

cut-off.

SYSTEM PROTECTION:

Thermal protection provided to

guard against overheating, and

misuse of insulation over and

around fixture. Vent holes in hous-

ing provide cooler operation

ELECTRICAL:

Fixture is two circuit.

Circuit 1: Integral Aromat® elec-

tronic metal halide ballasts for

metal halide lamps.

Circuit 2: Integral electronic bal-

lasts for fluorescent lamps.

Lutron® dimming ballasts avail-

able upon request.

Junction box is UL listed for

through branch wiring, for 8 #12,

90°C supply conductors or 60°C for

end of run (access above ceiling

not required).

Made in the USA.

Item # / Lamp Type Configuration Fluorescent Lamp Cell Interior Finish Trim Finish Voltage

Lamp

Group 2

Metal

Halide

CR220M39 - PAR20MH 39W D - Two Metal Halide lamp

cells with Two

Fluorescent lamp cells

BX40 - 40W BIAX® BK - Black BK - Black 120 - 120 Volts

CR230M39 - PAR30MH 39W BX50 - 50W BIAX® WH - White WH - White 277 - 277 Volts

CR230M70 - PAR30MH 70W PLL80 - 80W PL-L S - Silver S - Silver

PLT26 - 26W PL-T PT - Custom PT - Custom

PLT32 - 32W PL-T TR - Trimless

PLT42 - 42W PL-T

T528 - 28W T5

T535 - 35W T5

T5HO39 - 39W T5HO

T5HO54 - 54W T5HO

T8 lamps also available
