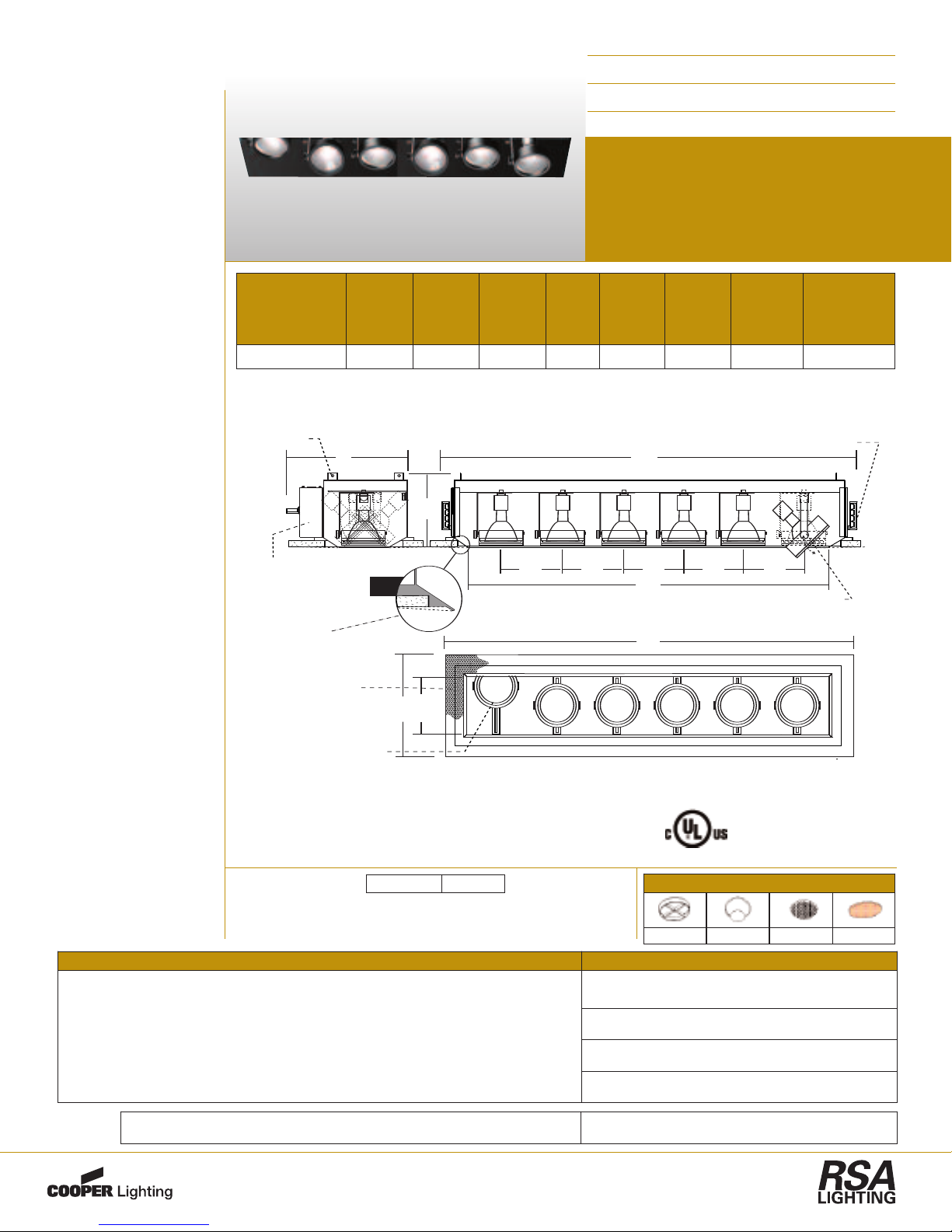

Cooper Lighting COMBOLIGHT LV3060IS User manual

Catalog #

Type

Project

COMBOLIGHT®LV Series

SIX (6) Light Recessed

Next Generation Trimless

Multi-Lamp Luminaire

PAR30 Line Voltage

6.75"6.75"6.75"6.75"6.75"

380º x 45º locking

angular adjustment



45º visual cut-off

Perforated mesh plaster 

frame adheres to ceiling 

compound for seamless 

trimless mounting.

Beveled housing interior and 

standard retractable yokes allow 

lamp holders to slide within the 

housing for added adjustability.

Trimless

Detail

Ceiling mudding 

compound is applied 

directly to the edge 

of the aperture.



Side mounted compartment

houses wiring and thermal

protector. Accessible 

through fixture opening.

Tabs for aircraft 

cable suspension

above ceiling Butterfly Brackets

for Black Iron mounting

Other Adders

CC - Two Circuit

CP - Chicago Plenum

RECESSED PAR30

LV TRIMLESS

Dimensions A

Housing

Length

Housing

Height

Aperture

Length

Aperture

Width

Plaster Frame

Width

Plaster Frame

Length

Above Ceiling

Width

Ceiling

Cut-Out

48.77” 8.40” 43.00” 7.00” 12.75” 48.75” 14.95” 46.25” x 10.25”

Optional Accessories - Details on Other Side

Baffle Snoots Louvers Lenses

DESCRIPTION:

An adjustable PAR30 fixture suit-

able for multiple downlighting

applications with one point of

electrical entry. Powder coat fin-

ish on housing & lamp assembly.

Housing suitable for new con-

struction applications.

CONSTRUCTION:

All aluminum construction.

Perforated mesh plaster frame

adheres to ceiling compound for

seamless trimless mounting.

Beveled fixture opening provides

easy mudding compound applica-

tion. Can accommodate 0.50” or

0.625” drywall. Includes butterfly

brackets for black iron commer-

cial mounting.

LAMP ASSEMBLY:

6-PAR30 lamps mounted in

adjustable bezels. Each lamp can

accept up to two optical acces-

sories. 380º x 45º locking adjust-

ment. Fixture provides 45º visual

cut-off. Lamp holders retract for

added internal adjustment.

SYSTEM PROTECTION:

Thermal protection provided to

guard against overheating, and

misuse of insulation over and

aroundfixture.Vent holes in hous-

ing provide cooler operation

ELECTRICAL:

Junction box is UL listed for

through branch wiring, (access

above ceiling not required) for 8

#12, 90°C supply conductors or

60°C for end of run. J-Box and

wiring accessible through ceil-

ing opening via access door on

housing sidewall.

ALL RSA COMBOLIGHT PRODUCTS

ARE MADE IN THE U.S.A.

SPECIFY -

ORDERING EXAMPLE:

=Six Light Trimless Recessed PAR30 - White Interior

LV3060IS WH

Cat. # / Description Interior Finish

LV3060IS : 6Light Recessed Next Generation Trimless Combo Fixture 120V PAR30 BK - Black

WH - White

S - Silver

PT - Custom (Specify)

LV3060IS

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
