Compaq ProSignia 300 Manual

Notice

The information in this guide is subject to change without notice.

Compaq Computer Corporation shall not be liable for technical or editorial

errors or omissions contained herein; nor for incidental or consequential

damages resulting from the furnishing, performance, or use of this

material.

This guide contains information protected by copyright. No part of this

guide may be photocopied or reproduced in any form without prior written

consent from Compaq Computer Corporation.

Compaq, Systempro, Deskpro, Compaq Insight Manager,

Registered U.S. Patent and Trademark Office.

ProSignia, Systempro/XL, ProLiant, NetFlex, ROMPaq, and QVision are

trademarks of Compaq Computer Corporation.

The software described in this guide is furnished under a license agreement

or nondisclosure agreement. The software may be used or copied only in

accordance with the terms of the agreement.

Product names mentioned herein may be trademarks and/or registered

trademarks of their respective companies.

MAINTENANCE AND SERVICE GUIDE

COMPAQ PROSIGNIA 300 SERVERS

First Edition (December 1994)

Text Number 137786-001

Preface

This Maintenance and Service Guide is a troubleshooting guide that can be

used for reference when servicing the Compaq ProSignia 300 Server.

Compaq Computer Corporation reserves the right to make changes without

notice.

Symbols

The following text and symbols mark special messages throughout this guide:

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

Text set off in this manner indicates that failure to follow directions in

the warning could result in bodily harm or loss of life.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

Text set off in this manner indicates that failure to follow directions

could result in damage to equipment or loss of data.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

IMPORTANT: Text set off in this manner presents clarifying information or

specific instructions.

NOTE: Text set off in this manner presents commentary, sidelights, or

interesting points of information.

Technician Notes

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

Only authorized technicians trained by Compaq should attempt to repair this

equipment. All troubleshooting and repair procedures are detailed to allow

only subassembly/module level repair. Because of the complexity of the

individual boards and subassemblies, no one should attempt to make repairs

at the component level or to make modifications to any printed wiring

board. Improper repairs can create a safety hazard. Any indications of

component replacement or printed wiring board modifications may void any

warranty.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

To properly ventilate your system, you must provide at least 12 inches

(30.48 cm) of clearance at the front and back of the computer.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

The computer is designed to be electrically grounded. To ensure proper

operation, plug the AC power cord into a properly grounded AC outlet only.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

Locating Additional Information

The following documentation is available to support these products:

o User Documentation

o Compaq Service Quick Reference Guide

o Service Training Guides

o Compaq Service Advisories and Bulletins

o Compaq QuickFind

o Compaq Insight Manager 2.0

Chapter 1. Illustrated Parts Catalog

Chapter 1.0 Introduction

This chapter provides the illustrated parts breakdown and a spares parts

list for the Compaq ProSignia 300 Server.

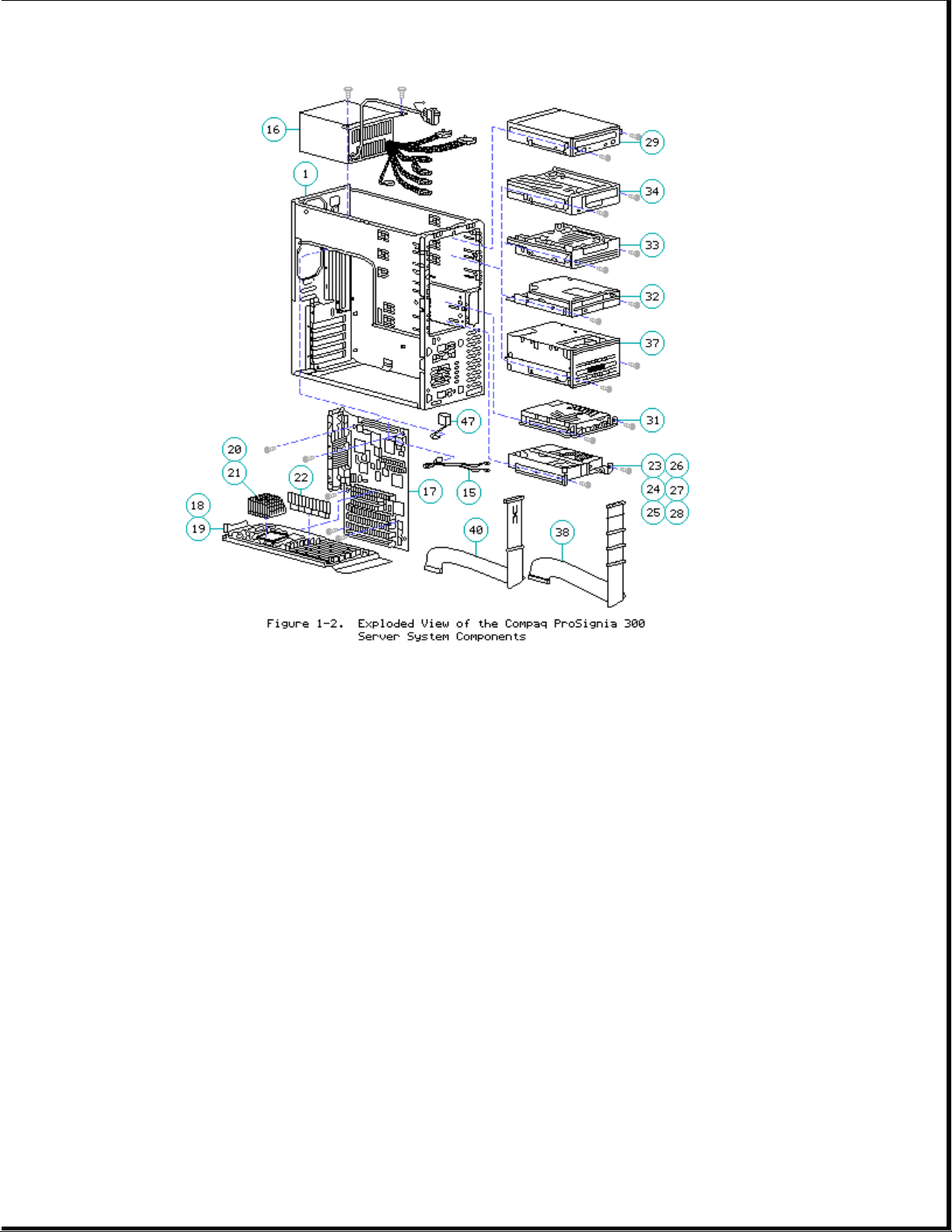

Chapter 1.1 Exploded View and Spares Parts List

Table 1-1. Spares Parts List - Compaq ProSignia 300

===========================================================================

Ref Description Part Number

===========================================================================

CHASSIS:

--------

1 Chassis 194491-001

2 J Hood 197836-001

3 Side Access Panel 194486-001

4 Front Bezel Door 194485-001

5 Speaker 197831-001

6 Bezel Kit (1/6, 1/3, 1/2 Height -

Quantity = 5 each/ Full Height - Quantity = 2) 211449-001

7 Miscellaneous Hardware (Foot, Thumbscrews,

R&L CD and Diskette Drive rails) 197841-001

8 System Fan with Bracket and Guard 211442-001

9 Board Guide and Speaker Holder 197835-001

10 Air Baffle (2 part) 211451-001

11 Security Bracket 199109-001

12 Logo Kit (Quantity = 2) 211445-001

13 5 1/4 and 3 1/2 Drive Mounting Kit 194493-001

14 Option Slot Cover (Quantity = 5) 141081-001

15 Power Switch and LED Bracket 197832-001

SYSTEM COMPONENTS:

------------------

16 Power Supply 200W 197416-001

BOARDS:

-------

17 System Board I/O 184359-001

18 Processor Board for 5/75 MHz Processor

(not included) 211454-001

19 Processor Board for 5/90 MHz Processor

(not included) 211450-001

20 5/75 MHz Processor Chip with Heatsink 211455-001

21 5/90 MHz Processor Chip with Heatsink 211452-001

MEMORY:

-------

22 4 MB Memory Module (60 ns) 139139-001

22 8 MB Memory Module (60 ns) 139140-001

22 16 MB Memory Module (60 ns) 139141-001

22 32 MB Memory Module (60 ns) 139142-001

22 4 MB Memory Module (70 ns) 141754-001

22 8 MB Memory Module (70 ns) 141755-001

22 16 MB Memory Module (70 ns) 149947-001

22 32 MB Memory Module (70 ns) 149948-001

---------------------------------------------------------------------------

Ref Description Part Number

---------------------------------------------------------------------------

MASS STORAGE:

-------------

23 535 MB Fast-SCSI-2 Drive 137730-001

24 1.05 GB Fast-SCSI-2 Drive 142039-001

25 2.1 GB Fast-SCSI-2 Drive 142272-001

26 4.3 GB Fast-SCSI-2 Drive 199585-001

27 2.1 GB Fast-Wide SCSI-2 Drive 199644-001

28 4.3 GB Fast-Wide SCSI-2 Drive 199599-001

29 Tray Load CD-ROM Drive (Internal) 142223-201

30 Tray Load CD-ROM Drive (External) 199430-001 *

31 1.44 MB, 3.5" Diskette Drive 112565-001

32 1.2 MB, 5.25" Diskette Drive 112566-001

33 2/8 GB DAT Drive with Compression 142074-001

34 525 MB ACA Tape Drive 142073-001

35 1.2 GB ACA Tape Drive 199615-001 *

36 4/16 GB TurboDAT Drive 199464-001 *

37 TurboDAT AutoLoader 199466-001

CABLE KITS:

-----------

38 Internal Fast-SCSI-2 HDD Cable 211448-001

39 Internal Fast-Wide SCSI-2 HDD Cable 211457-001 *

40 Diskette Cable (2-Device) 211447-001

41 External 100-Pin to 50-Pin Cable 142159-001 *

42 Loop Back Cable (2 CH NIC) 142254-001 *

43 Loop Back Cable (NetFlex) 142054-001 *

44 2 Channel Ethernet "Y" Cable 197134-001 *

KEYBOARDS/MOUSE:

----------------

45 Keyboard, U.S. English 160648-101 *

45 Keyboard, U.K. English 160648-103 *

45 Keyboard, German 160648-104 *

45 Keyboard, French 160648-105 *

45 Keyboard, Italian 160648-106 *

45 Keyboard, Spanish 160648-107 *

45 Keyboard, Danish 160648-108 *

45 Keyboard, Norwegian 160648-109 *

45 Keyboard, Swedish/Finnish 160648-110 *

45 Keyboard, Swiss 160648-111 *

45 Keyboard, French Canadian 160648-112 *

45 Keyboard, Portuguese 160648-113 *

45 Keyboard, Turkish 160648-114 *

45 Keyboard, Greek 160648-115 *

45 Keyboard, Latin American 160648-116 *

45 Keyboard, Arabic 160648-117 *

45 Keyboard, Belgian 160648-118 *

46 Mouse 141189-201 *

---------------------------------------------------------------------------

Ref Description Part Number

---------------------------------------------------------------------------

MISCELLANEOUS:

--------------

47 Battery 160274-001

48 Maintenance and Service Guide 211462-001 *

49 System ROMpaq 143198-001 *

50 Option ROMpaq 142207-001 *

51 Shipping Boxes 211444-001 *

52 Shipping Box & Buns 211446-001 *

OPTIONS:

--------

53 Rack Conversion Kit 187347-001 *

54 SMART Controller 142130-001 *

55 Fast-SCSI-2 Controller 142040-001 *

56 NetFlex-2 TR Controller 199521-001 *

57 DualPort Ethernet Controller 142151-001 *

58 NetFlex-2 ENET-TR Controller 142222-001 *

59 Fast-Wide SCSI-2 Controller/E 199634-001 *

60 Fast-Wide SCSI-2 Controller/P 199633-001 *

---------------------------------------------------------------------------

* Not Shown

===========================================================================

Chapter 2. Removal and Replacement Procedures

Chapter 2.0 Introduction

This chapter provides subassembly/module-level removal and replacement

procedures for the Compaq ProSignia 300 Server. After completing all

necessary removal and replacement procedures, run the DIAGNOSTICS program

to verify that all components operate properly.

NOTE: Refer to the support software guide for procedures on using the

Compaq System Configuration utility when installing or removing

expansion boards, mass storage devices, and Extended Industry

Standard Architecture (EISA) or Peripheral Component Interconnect

(PCI) options.

To service the Compaq ProSignia 300 Server, you will need the following:

o Torx T-15 screwdriver

o Ethernet loop back plug

o System Configuration software

o Diagnostics software

o Drive Array Advanced Diagnostics software

Chapter 2.1 Electrostatic Discharge Information

A discharge of static electricity can damage static-sensitive devices or

micro-circuitry. Proper packaging and grounding techniques are necessary

precautions to prevent damage. To prevent electrostatic damage observe the

following precautions:

o Transport products in static-safe containers such as conductive tubes,

bags, or boxes.

o Keep electrostatic-sensitive parts in their containers until they arrive

at static-free stations.

o Cover work stations with approved static-dissipating material. Provide a

wrist strap connected to the work surface and properly grounded tools and

equipment.

o Keep work area free of non-conductive materials such as ordinary plastic

assembly aids and Styrofoam.

o Always be properly grounded when touching a static sensitive component or

assembly.

o Avoid touching pins, leads or circuitry.

o Always place drives' PCB assembly side down on the foam.

o Use conductive field service tools.

Chapter 2.2 Preparation Procedures

Before beginning any of the removal and replacement procedures, complete

the following steps:

1. Turn the server and any peripheral devices off.

2. Disconnect the AC power cord from the AC outlet, then from the system

unit.

3. Disconnect all external peripheral devices from the server.

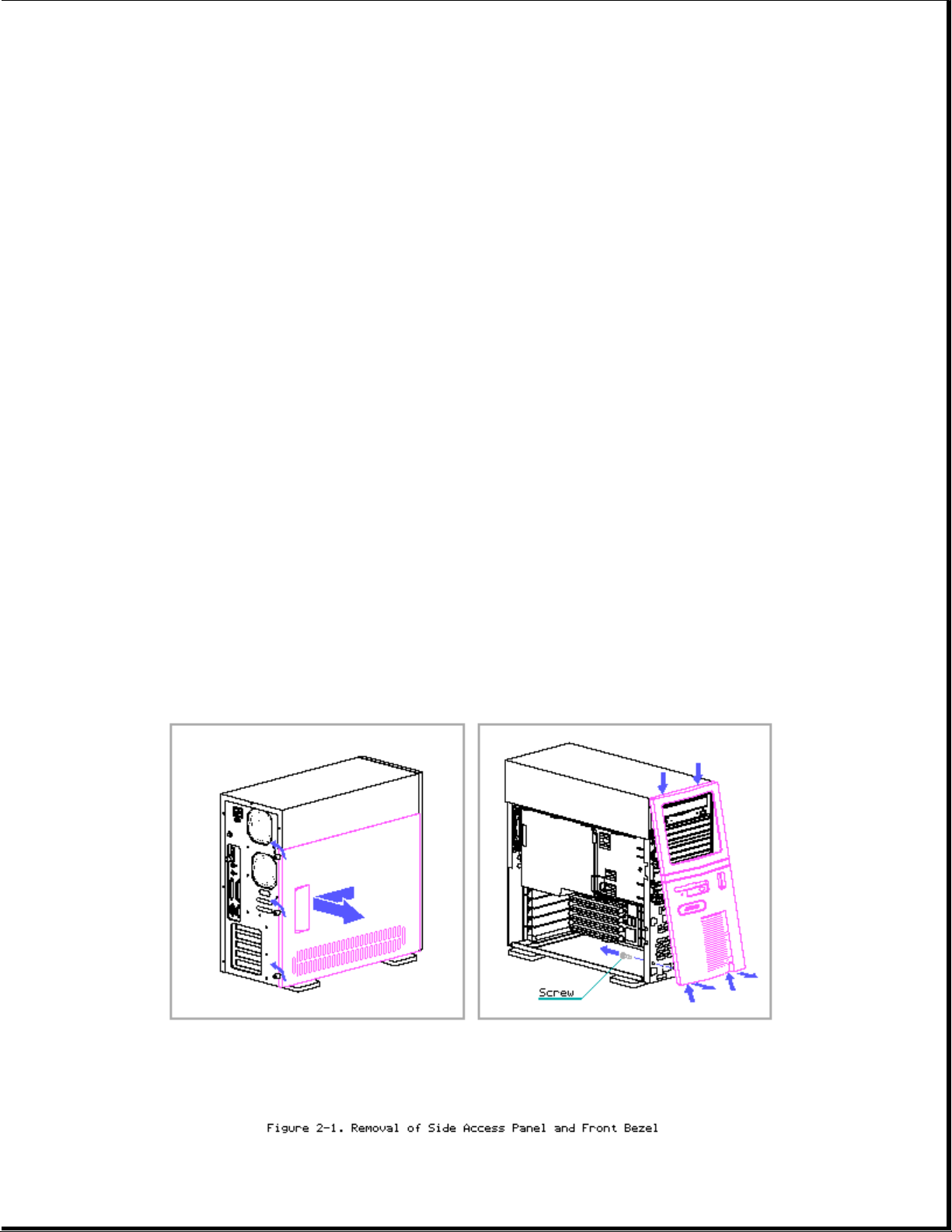

Chapter 2.3 Side Access Panel/Front Bezel

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

High voltage present. Extreme care must be taken when running the Compaq

ProSignia 300 Server without the system unit cover on.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
