Compaq T1000 - Terminal Thin Client PC User manual

T1000 SERIES TERMINAL EMULATION

REFERENCE GUIDE

-2

NOTICE

The information in this document is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR

EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFOR-

MANCE, OR USE OF THIS MATERIAL.

This document contains information protected by copyright. No part of this document may be

photocopied or reproduced in any form without prior written consent from Compaq Computer

Corporation.

COMPAQ and the Compaq logo are registered in the U.S. Patent and Trademark Office.

Microsoft, MS, ActiveSync, Active Desktop, Outlook, Windows, Windows NT, and the Windows

CE logo are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing,

Inc., a wholly owned subsidiary of Microsoft Corporation.

Product names mentioned herein aremay be trademarks and/orregistered trademarks of their

respective companies.

T1000 Series Terminal Emulation Reference Guide

CompaqT1000 Series Windows-based Terminal

Second Edition. August 2000.

158623T-002

Table of Contents

I-1

TABLE OF CONTENTS

Chapter 1: Getting Started ____________________________________ 1

WBT Session Configuration_________________________________________1

The Command Bar _______________________________________________11

The Status Bar__________________________________________________13

The Scroll Bar __________________________________________________14

Hotspots ______________________________________________________15

Chapter 2: Keyboard Configuration ______________________________ 1

Keyboard Nationality _____________________________________________1

Keyboard Mapping_______________________________________________1

Defining Key Functions____________________________________________2

Compose Character Sequences _____________________________________4

Chapter 3: Mouse Functions ___________________________________ 1

Introduction ____________________________________________________1

Redefining Mouse Functions________________________________________2

Send Keyword __________________________________________________3

Moving The Cursor In Block Mode____________________________________3

Emulating The Middle Mouse Button__________________________________3

Show & Action Hotspots ___________________________________________3

I-2

Table of Contents

Chapter 4: Setup Menus______________________________________ 1

Displaying & Closing Menus ________________________________________1

Using The Menus ________________________________________________2

Dialog Boxes ___________________________________________________3

Default Settings _________________________________________________4

Menu Descriptions _______________________________________________4

Chapter 5: DEC VT Emulations _________________________________ 1

Introduction ____________________________________________________1

The Status Bar__________________________________________________2

Chapter 6: IBM 3270 Emulation ________________________________ 1

Introduction ____________________________________________________1

Running The Emulation____________________________________________1

IBM 3287-1 Printer Support ________________________________________2

SysReq Key Support______________________________________________2

Network Virtual Terminal Mode______________________________________3

The Status Line _________________________________________________3

Chapter 7: IBM 5250 Emulation ________________________________ 1

Introduction ____________________________________________________1

Running The Emulation____________________________________________2

Network Virtual Terminal Mode______________________________________3

The Status Line _________________________________________________3

Table of Contents

I-3

Chapter 8: Wyse Emulations ___________________________________ 1

Introduction ____________________________________________________1

Display Format__________________________________________________1

Status Line Messages ____________________________________________2

Chapter 9: TA6530 Emulation __________________________________ 1

Introduction ____________________________________________________1

The Status Line _________________________________________________1

Operating Modes ________________________________________________2

Keyboard Mapping_______________________________________________3

Appendix A: Virtual Key Names _________________________________ 1

Standard Virtual Key Names ________________________________________2

DEC VT320 Virtual Key Names ______________________________________3

IBM 3270 Virtual Key Names________________________________________4

IBM 5250 Virtual Key Names________________________________________5

SCO Console Virtual Key Names _____________________________________6

Wyse Virtual Key Names___________________________________________7

Appendix B: Character Sets ___________________________________ 1

Introduction ____________________________________________________1

I-4

Table of Contents

Appendix C: Host Command Summary ___________________________ 1

VT52 Emulation _________________________________________________2

ANSI VT100 Emulation ____________________________________________4

ANSI VT300 Emulation ____________________________________________12

ANSI VT420 Emulation ____________________________________________16

Wyse Emulations ________________________________________________21

Additional Commands ____________________________________________31

Getting Started

1-1

chapter 1

GETTING STARTED

This chapter describes how to configure a session and describes various display features.

WBT Session Configuration

Using The Connection Wizard

This section describes the basic procedure for creating a session configuration in WBT

mode. The options available are described in detail in the following sections.

1. Click the Configure tab in the Winterm Connection Manager.

2. Click Add. The New Connection dialog box appears.

3. Select Terminal Emulation.

4. Click OK. The Terminal Emulation Client Connection Wizard - Connection

Information dialog box appears.

5. Enter a name that identifies this session configuration in the Connection Name box.

6. Select the terminal emulation from the Emulation list box. The default emulation set-

ting is VT400, 7-bit.

1-2

Getting Started

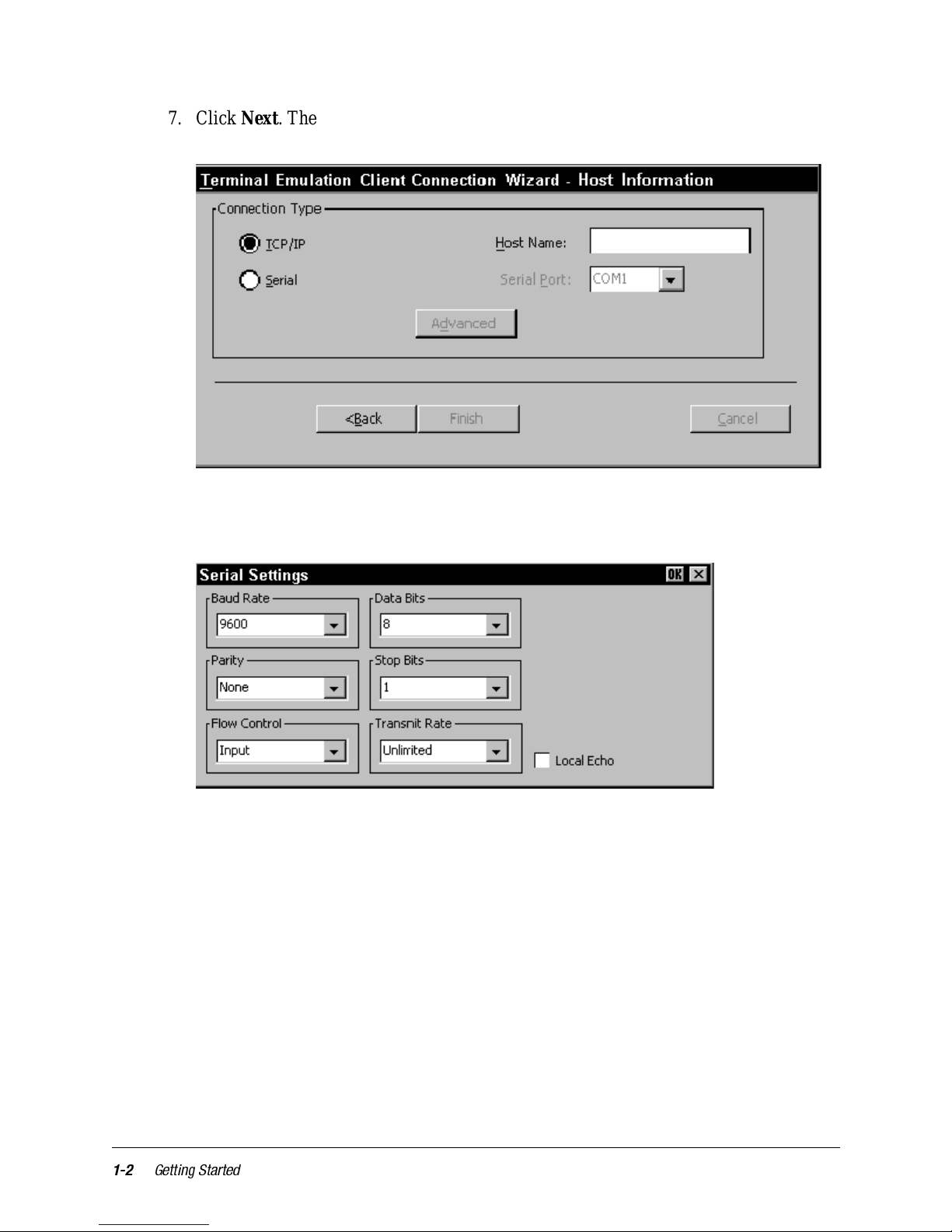

7. Click Next.The Host Information dialog box appears. Notice that the Advanced,

Finish, and Cancel buttons are disabled until you enter a host name.

8. For a serial connection, click the Serial button, select the Serial Port, then click

Advanced for additional serial options. Make the relevant selections and then click

OK to return to the Host Information dialog box and click Finish.

For a TCP/IP connection, click the TCP/IP button, enter the name or Internet address

of the host computer in the Host Name box, then click Advanced for additional Telnet

options.

Getting Started

1-3

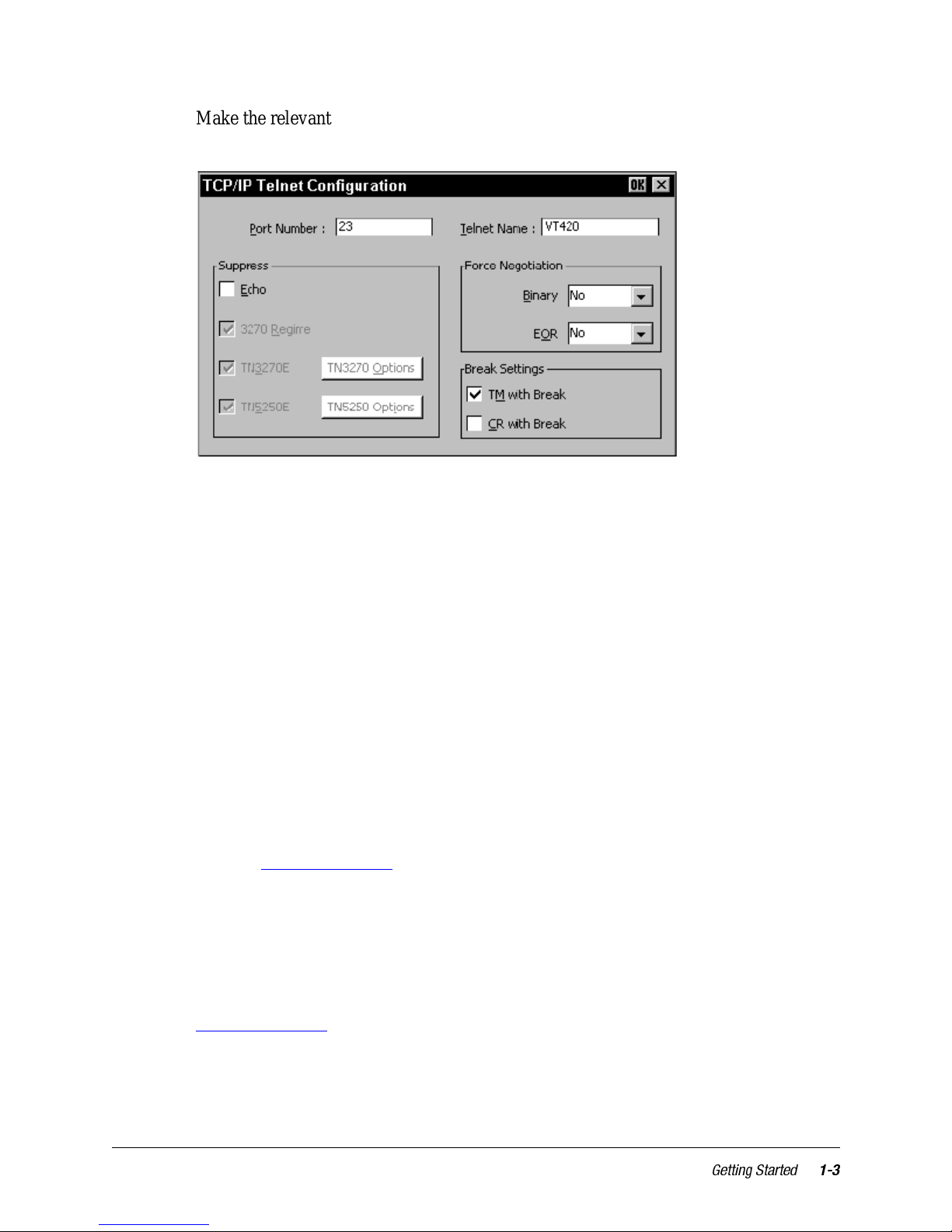

Make the relevant selections then click OK to return to the Host Information dialog

box, then click Finish.

NOTE: The default TCP/IP Telnet configuration type is IBM 3270. Your configuration may dif-

fer from the example above.

9. Click on the Connections tab in the Winterm Connection Manager. Display the

Connections list and select the session name you specified earlier in step 3. Click the

Connect button or double-click on the session’s Connection Name.

10. If additional configurations are required, make the relevant selections using steps 1

through 8.

Terminal Emulation Settings

Emulation Options

The Emulation options are as follows:

• The ADDS A2 emulation provides compatibility with software designed to drive the

ADDS Viewpoint A2 terminal, as emulated by the Wyse WY-50/50+/60 terminals.

Refer to Wyse Emulations for details.

• The ANSI BBS emulation is a derivative of the ANSI device driver ANSI.SYS sup-

plied with all DOS based PCs and which provides the screen management for the DOS

console screen. PC based UNIX systems and Bulletin Board Systems (BBS) often rely

on the ANSI emulation when being accessed by a PC.

• The HZ 1500 emulation provides compatibility with software designed to drive the

Hazeltine 1500 terminal, as emulated by the Wyse WY-50/50+/60 terminals. Refer to

Wyse Emulations for details.

1-4

Getting Started

• The IBM 3270 emulation provides compatibility with software designed to drive the

IBM 3270 terminal. Note that the initial display is an ASCII text screen known as Net-

work Virtual Terminal mode (NVT mode for short). The setting of the IBM Model

option determines the size of the display and whether or not extended attributes are

supported. Refer to IBM 3270 Emulation for details.

• The IBM 5250 emulation provides compatibility with software designed to drive IBM

5250 type alphanumeric terminals. This emulation can be used for connection to an

IBM AS/400, System/36 or System/38. Note that the initial display is an ASCII text

screen known as Network Virtual Terminal mode (NVT mode for short). Refer to IBM

5250 Emulation for details.

•SCO Console is an emulation of the SCO UNIX box.

• The TVI 910+, TVI 920 and TVI 925 emulations provide compatibility with software

designed to drive the TeleVideo 910+, 920 and 925 terminals, respectively, as emu-

lated by the Wyse WY-50/50+/60 terminals. Refer to Wyse Emulations for details.

• The VT52 and VT100 emulations enable you to run applications written for the DEC

VT52 and VT100 terminals, respectively. Refer to DEC VT Emulations for details.

• The VT400 7-Bit and VT400 8-Bit emulations enable you to run applications written

for the DEC VT320 terminal, the difference is in their treatment of 8-bit control codes.

When VT400 7-Bit is selected, all 8-bit codes are converted to their 7-bit equivalents,

whereas VT400 8-Bit leaves 8-bit codes unchanged. If you are using VT200 applica-

tions, select VT400 7-Bit. Refer to DEC VT Emulations for details.

• The WY50, WY50+ and WY60 emulations provide compatibility with software

designed to drive the Wyse WY-50, WY-50+ and WY-60 terminals, respectively.

Refer to Wyse Emulations for details.

DEC VT Options

The VT Terminal ID option identifies the particular terminal model being emulated in

response to a terminal identification request from the host.

IBM 3270 Options

The setting of the IBM 3270 Model option determines the display size and if extended

attributes are supported. TN3287 printing is supported by selecting 3287-1.

One of four display sizes can be selected:

•3278/9-2 24 rows by 80 columns

•3278/9-3 32 rows by 80 columns

•3278/9-4 43 rows by 80 columns

•3278/9-5 27 rows by 132 columns

Other manuals for t1000 - Terminal Thin Client PC

This manual suits for next models

Other Compaq Server manuals

Compaq

Compaq TruCluster Server AA-RHGWB-TE User manual

Compaq

Compaq ProLiant 6000 Series Operating and safety instructions

Compaq

Compaq 222863-001 - TaskSmart W2200 Model 10 User manual

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Technical document

Compaq

Compaq ProLiant 1000 Quick reference guide

Compaq

Compaq 234664-002 - ProLiant - ML330T02 Manual

Compaq

Compaq 6000 - ProLiant - 128 MB RAM Quick start guide

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Reference manual

Compaq

Compaq DL760 - ProLiant - 1 GB RAM Installation guide

Compaq

Compaq 108164-003 - ProLiant - 800 Quick reference guide

Compaq

Compaq ML350 - ProLiant - G2 Operating and safety instructions

Compaq

Compaq DL320 - ProLiant - G3 Operating and safety instructions

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Reference manual

Compaq

Compaq 195294-001 - ProLiant - ML370R Installation guide

Compaq

Compaq AlphaServer 160 User manual

Compaq

Compaq NC3122 User manual

Compaq

Compaq 195294-001 - ProLiant - ML370R Operating and safety instructions

Compaq

Compaq 1850R - ProLiant - 128 MB RAM Quick start guide

Compaq

Compaq 108164-003 - ProLiant - 800 Quick start guide

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM User manual

Compaq

Compaq 1850R - ProLiant - 128 MB RAM Operating and safety instructions

Compaq

Compaq ML530 - ProLiant - 128 MB RAM Installation guide

Compaq

Compaq ProLiant 5000 User manual

Compaq

Compaq AlphaServer GS80 User manual

Popular Server manuals by other brands

HP AlphaServer ES47 Cli reference manual

Dell

Dell PowerEdge R410 Getting started

PowerNAS

PowerNAS CMA quick start guide

Supero

Supero FatTwin F617R3-FT user manual

MSI

MSI P1-109N-L70 user manual

Dell

Dell PowerEdge XE9640 Installation and service manual

Dell

Dell PS4100 Hardware

EtroVISION

EtroVISION EV3151 user manual

NEC

NEC Express5800/T110j System configuration guide

HP ProLiant Gen9 user guide

Dell

Dell PowerEdge 3YPMN Getting started guide

iRobo

iRobo IPC2U user manual

Nortel

Nortel 1000 Con?guration guide user manual

Asus

Asus AP7500 Hardware reference guide

Avid Technology

Avid Technology AirSpeed 5000 manual

HP Integrity rx2600 overview

Milestone

Milestone Husky IVO 350T Getting started

Planet

Planet NAS-7410 user manual

Compaq t1000 - Terminal Thin Client PC User manual

Popular Server manuals by other brands
