HP COMPAQ PRO 4300 ALL-IN-ONE PC

FRONT

Webcam Activity LED

Webcam & Microphone (optional)

Power Button

Power Indicator LED

Business Quality Speakers

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Overview

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 1

HP COMPAQ PRO 4300 ALL-IN-ONE PC

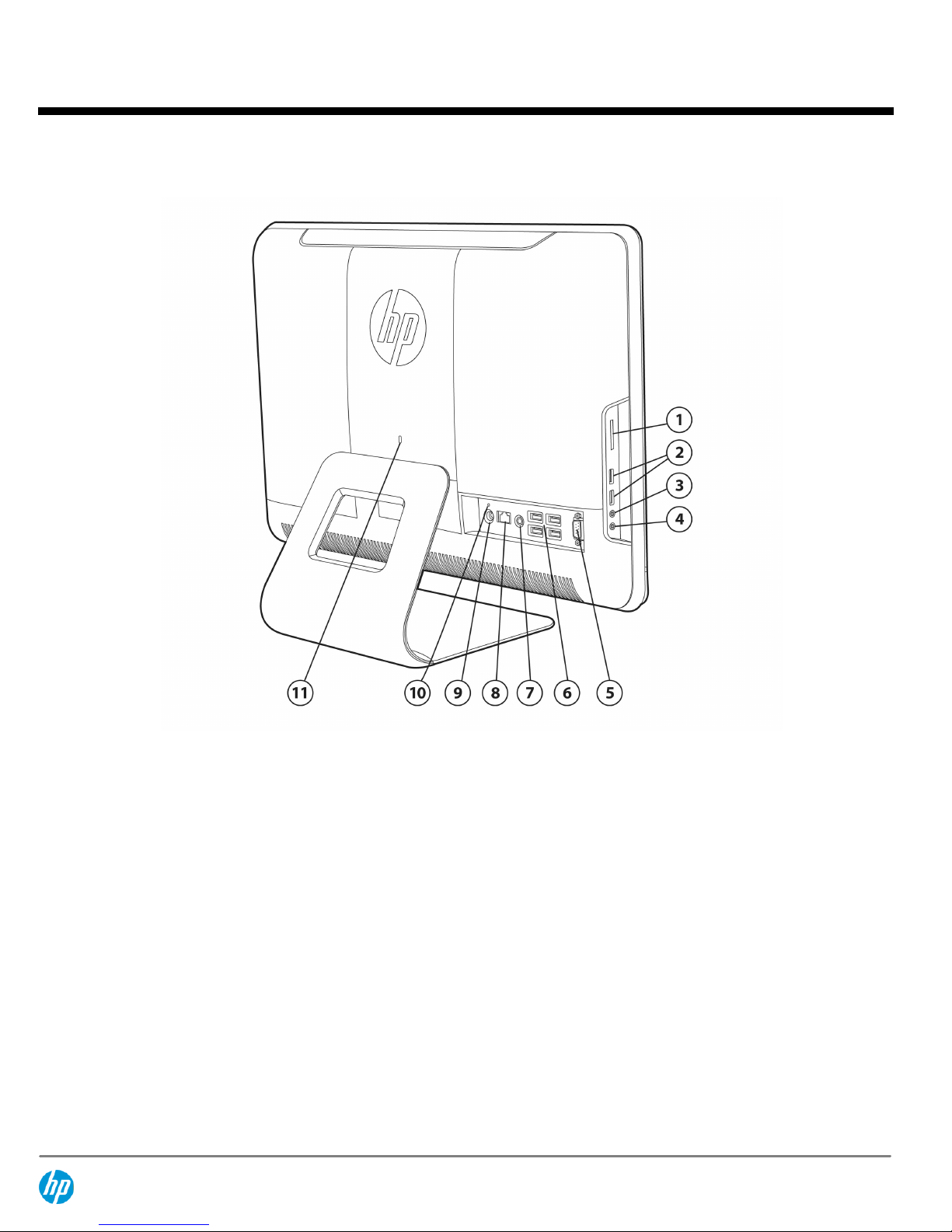

BACK

HP 6-in-1 Media Card Reader

(2) USB 2.0 ports

Microphone jack

Headphone jack

Serial Port

(4) USB 2.0 ports

Stereo audio line out

RJ-45 Gigabit Ethernet port

Power connector

10.

Power connector LED indicator

11.

Security lock slot

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Overview

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 2

HP COMPAQ PRO 4300 ALL-IN-ONE PC

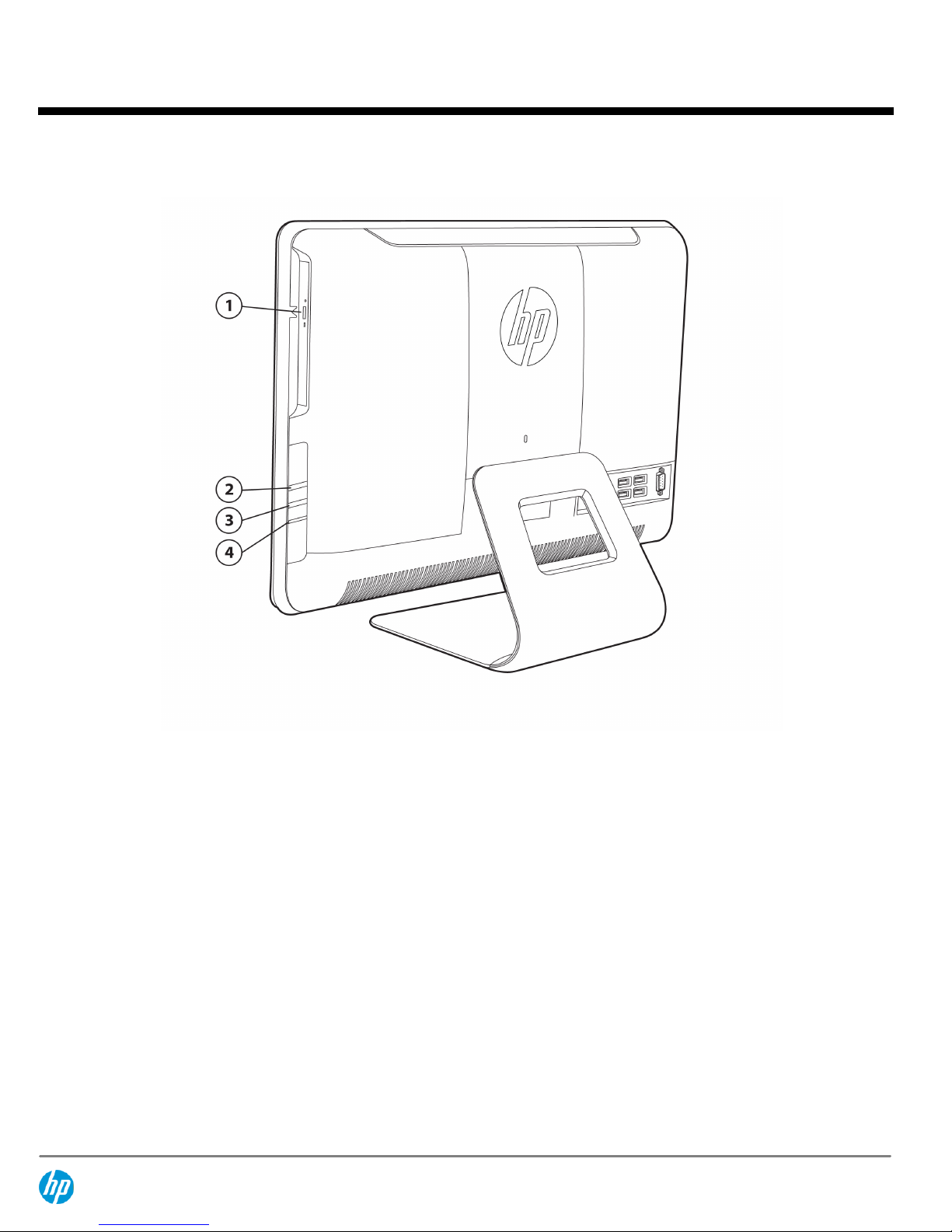

SIDE

Slim tray-load ODD (optional)

Brightness increase button

Brightness decrease button

Hard drive activity LED

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Overview

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 3

At A Glance

Windows 7 or Windows 8

20-inch diagonal widescreen WLED backlit anti-glare LCD

Integrated all-in-one form factor

Intel® H61 Express chipset

Intel 2nd & 3rd generation Core™ processors

Integrated Intel HD Graphics

Realtek RTL8111F GbE Ethernet Controller optional wireless connectivity:

Intel Advanced-N 6205 WLAN (mini PCI Express)

Intel 802.11 a/b/g/n

WLAN (mini PCI Express)

HP 802.11 b/g/n

WLAN and Bluetooth Combo Card

HP 802.11 a/b/g/n Bluetooth® 4.0

Optional Integrated 1.3 MP webcam & Single Non-Array Microphone

Business quality speakers

Up to 16 GB of DDR3 SDRAM, dual channel memory support, two SODIMM slots

Up to 1 TB SATA hard drive, up to 128GB Solid State Drive and a 256GB Self-Encrypting Drive / Solid State Drive

Slim Tray-load SuperMulti Optical Disc Drive or DVD ROM Optical Disc Drive

6-in-1 Media Card Reader

ENERGY STAR® qualified. EPEAT® registered where applicable/supported. See

www.epeat.net

for registration status by country.

CCC, CECP & SEPA Certified

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Overview

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 4

OPERATING SYSTEM

Preinstalled

Windows 8 Professional (64-bit)*

Windows 8 (64-bit)*

Windows® 7 Ultimate (32-bit)**

Windows® 7 Ultimate (64-bit)**

Windows® 7 Professional (32-bit)**

Windows® 7 Professional (64-bit)**

Windows® 7 Professional (32-bit) (available through downgrade rights from Windows 8 Pro)***

Windows® 7 Professional (64-bit) (available through downgrade rights from Windows 8 Pro)***

Windows® 7 Home Premium (32-bit)**

Windows® 7 Home Premium (64-bit)**

Windows® 7 Home Basic (32-bit)**

FreeDOS 2.0

Novell SUSE Linux Enterprise Desktop 11

*Not all features are available in all editions of Windows 8. Systems may require upgraded and/or

separately purchased hardware, drivers and/or software to take full advantage of Windows 8

functionality. See

http://www.microsoft.com

**Not all features are available in all editions of Windows 7. This system may require upgraded and/or

separately purchased hardware to take full advantage of Windows 7 functionality. See

http://www.microsoft.com/windows/windows-7/

for details.

***This system is preinstalled with Windows® 7 Pro software and also comes with a license and media

for Windows 8 Pro software. You may only use one version of the Windows software at a time.

Switching between versions will require you to uninstall one version and install the other version. You

must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid

loss of your data.

PROCESSOR

Intel® 3rd Generation Core™ i7 Processors

Intel® Core™ i7-3770S

Up to 3.9 GHz Max. Turbo Frequency (3.1 GHz base frequency), 8 MB cache, 4 cores, 8 threads

Intel HD Graphics 4000

Intel Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i5 Processors

Intel® Core™ i5-3570S

Up to 3.8 GHz Max. Turbo Frequency (3.1 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 2500

Intel Stable Image Platform Program (SIPP)

Intel® Core™ i5-3475S

Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 4000

Intel Stable Image Platform Program (SIPP)

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 5

Intel® Core™ i5-3470S

Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 2500

Intel Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i3 Processors

Intel® Core™ i3-3240

3.4 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Intel® Core™ i3-3225

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 4000

Intel® Core™ i3-3220

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Intel® Core™ i3-3210

3.2 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel® 3

Generation Pentium® Processors

Intel® Pentium® G2120

3.1 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Pentium® G2020

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® Pentium® G2010

2.8 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® 2

Generation Pentium® Processors

Intel® Pentium® G870

3.10 GHz base frequency , 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Intel® Pentium® G860

3.00 GHz base frequency , 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 6

Intel® Pentium® G645

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Pentium® G640

2.80 GHz base frequency , 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Intel® 3rd Generation Celeron® Processors

Intel® Celeron® G1620

2.7 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® Celeron® G1610

2.6 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® 2nd Generation Celeron® Processors

Intel® Celeron® G555

2.7 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Celeron® G550

2.60 GHz base frequency , 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Intel® Celeron® G540

2.50 GHz base frequency , 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Intel® Celeron® G460

1.80 GHz base frequency, 1.5 MB cache, 1 core, 2 threads

Intel HD Graphics

Intel® Celeron® G465

1.90 GHz base frequency, 1.5 MB cache, 1 core, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

CHIPSET

Intel® H61 Express

SMBIOS

System Management BIOS, previously known as DMI BIOS, is used to store system management information.

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 7

GRAPHICS

Integrated (depends on processor)

Intel HD Graphics: Basic, 2000, 2500, or 4000

Models with Intel Core i3/i5/i7 processors include HD 2000, 2500, or 4000 graphics. Models with Pentium or Celeron processors

include HD graphics. Please see specific processors for graphics configuration.

DISPLAY

20" diagonal TN widescreen WLED backlit anti-glare LCD; optional integrated 1.3 MP webcam & single non-array microphone;

maximum resolution of 1600 x 900

Display Panel

Type

TN (Twisted Nematic) LED Backlit LCD

Viewable image area

(horizontal & vertical)

442.8(H) x 249.075(V) [mm]

Screen opening

(H x V)

446.8(H)×253.2(V) [mm]

Resolution

1600 × 900

Aspect ratio

16:9

Contrast ratio

(typical)

1000:1

Brightness

(typical)

250 nits (cd/m

)

Viewing angle

(typical)

85/85/80/80 (L/R/U/D)

Pixel pitch

0.27675(H) x 0.27675(V) [mm]

Backlight lamp life

(to half brightness)

30,000 hours minimum

Color support

Over 16 million colors (through FRM)

Color gamut

(typical)

72%

Anti-glare

Yes

Default color temperature

Warm (6500K)

NOTE:

All performance specifications represent the typical specifications provided

by HP's component manufacturers; actual performance may vary either higher or

lower.

Supported Display Modes & Resolutions

1600 x 900

1440 x 900

1366 x 768

1360 x 768

1280 x 800

1280 x 768

1280 x 720

1280 x 600

1152 x 864

1024 x 768

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 8

800 x 600

Adjustable Tilt Stand/Tilt Angle

-5º to +25º to the vertical plane

STORAGE

SATA Hard Drive

250 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV

500 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV

1 TB, 7200 rpm, SATA 6.0 Gb/s, SMART IV

Solid State Drive

120 GB, SATA, Solid State Drive

128 GB, SATA, Solid State Drive

160 GB, SATA, Solid State Drive

Self-Encrypting Drive

500 GB, SATA, Self-Encrypting Drive

Self-Encrypting Solid State Drive

256 GB, SATA, Self-Encrypting Solid State Drive

Optical Disc Drive

Slim Tray-load SATA DVD-ROM

Slim Tray-load SATA SuperMulti DVD Writer

No included ODD

Media Card Reader

HP 6-in-1

Supports Secure Digital (SD, SDHC), MultiMedia Card (MMC), xD-Picture Card, Memory Stick, Memory Stick Pro

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 9

MEMORY

Type

Non-ECC, DDR3 SDRAM, 1600 MHz, SODIMM (runs at 1333 MHz due to chipset)

Maximum

16 GB

# of Slots

204-pin supporting dual-channel memory

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE:

Full availability of 4 GB or more of memory requires a 64-bit operating system. With Windows 32-bit operating systems,

the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to

system resource requirements.

NETWORKING/COMMUNICATIONS

Ethernet (RJ-45)

Integrated Realtek RTL8111F GbE 10/100/1000

With Wake-on-LAN

NOTE:

The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and

does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and

network infrastructure is required.

Wireless

Intel 802.11 a/b/g/n wireless 6205 PCIe minicard (optional)

Up to 300 mbps data rate

HP 802.11 b/g/n wireless PCIe minicard (optional)

Up to 300 mbps data rate

HP 802.11 a/b/g/n wireless PCIe minicard with Bluetooth Combo (optional)

Up to 300 mbps data rate

Bluetooth 4.0 compliant

Works with a wide range of Bluetooth devices

QuickSpecs

HP Compaq Pro 4300 All-in-One PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14287 Worldwide — Version 16 — May 14, 2013

Page 10

This manual suits for next models

Table of contents

Other Compaq Desktop manuals

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Technical manual

Compaq

Compaq Presario SR1500 - Desktop PC User manual

Compaq

Compaq ProLiant DL380 Original instructions

Compaq

Compaq 239158-999 - Mini Tower - Power Supply 250... Guide

Compaq

Compaq d338 - Microtower Desktop PC User manual

Compaq

Compaq Presario S6000 - Desktop PC Installation instructions

Compaq

Compaq SR5410F - Presario - 1 GB RAM How to use

Compaq

Compaq dx1000 - Microtower PC User manual

Compaq

Compaq 517212-001 User manual

Compaq

Compaq 3600 Specification sheet

Compaq

Compaq AlphaServer ES40 Quick start guide

Compaq

Compaq Deskpro 2000 Series User manual

Compaq

Compaq CQ2300 - Desktop PC Use and maintenance manual

Compaq

Compaq 3052 - LaserJet All-in-One B/W Laser How to use

Compaq

Compaq Presario CQ3100 - Desktop PC Use and maintenance manual

Compaq

Compaq Compaq dx2390 Microtower Operating and maintenance manual

Compaq

Compaq dc7800 - Convertible Minitower PC User instructions

Compaq

Compaq Microcom 6000 Manual

Compaq

Compaq Presario 6000 Series User manual

Compaq

Compaq Deskpro 4000N - Desktop PC User manual

Compaq

Compaq Pavilion Slimline s3000 - Desktop PC User manual

Compaq

Compaq Deskpro EN Series User manual

Compaq

Compaq Presario SR5000 - Desktop PC How to use

Compaq

Compaq Deskpro 4000N - Desktop PC User manual

Popular Desktop manuals by other brands

HP m9060n - Pavilion - Elite Quick setup

Asus

Asus E210 Series user guide

Dell

Dell Inspiron 600m quick start

Dell

Dell Inspiron 3662 Service manual

TotalFlow

TotalFlow uFLO user manual

HP Presario SV7000 - Desktop PC manual

HP ProDesk 400 G5 Maintenance and service guide

Logitech

Logitech MK320 quick start guide

Dell

Dell XPS 730 H2C Service manual

Sony

Sony Vaio Series operating instructions

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer quick start

Alto

Alto MD 250 instruction manual

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series user manual

Sony

Sony VAIO VGX-TP1 Series user guide

Asus

Asus Eee Box B204 user manual

Dell

Dell Optiplex 9010 All In One owner's manual
