Upgrade Guide 3

Upgrading and Replacing Hardware

This guide describes how to upgrade or replace hardware

components, such as memory, hard drive, optical drive, processor,

system board, battery, and power supply.

If you want to find out about accessories available for your e-pc, refer

to the following Web site:

http://www.compaq.com/products/desktops/options/index.html

General Precautions

Before upgrading or replacing components, be sure to carefully read

all of the applicable instructions, cautions, and warnings in this guide.

ÅWARNING: To reduce the risk of personal injury from electrical shock

and/or hot surfaces, be sure to disconnect the power cord from the wall

outlet, and allow the internal system components to cool before touching.

ÄCAUTION: Static electricity can damage the electronic components of

the personal computer or optional equipment. Before beginning these

procedures, ensure that you are discharged of static electricity by briefly

touching a grounded metal object.

Opening the e-pc

1. Exit all software applications, shut down the operating system

software, turn off the personal computer and any external devices,

then disconnect the power cord from the power outlet.

2. Unlock the e-pc and remove the port control system (if fitted).

305513-001.bookPage3Tuesday,August20,20024:35PM

4Upgrade Guide

Upgrading and Replacing Hardware

3. Disconnect all cables from the computer.

4. Push the two green latches inward.

5. Slide out the chassis from the enclosure.

305513-001.bookPage4Tuesday,August20,20024:35PM

Upgrade Guide 5

Upgrading and Replacing Hardware

Internal Components

Hard Drive

You can replace hard drive with a

larger one

One Front-Access Device Shelf

CD-ROM drive, CD-RW drive or DVD drive

Main Memory Modules:

(266MHz DDR SDRAM)

2 sockets for 128 MB, 256 MB, 512

MB or 1GB modules up to 2 GB

maximum

Switch block

One Front-Access Device Shelf

CD-ROM drive, CD-RW drive or DVD drive

305513-001.bookPage5Tuesday,August20,20024:35PM

6Upgrade Guide

Upgrading and Replacing Hardware

Upgrading or Replacing Memory

✎Use only memory modules provided for your e-pc model. The use of

other memory modules is not supported. For information about

supported accessories, connect to http://www.compaq.com. 32 MB

and 64 MB modules are not supported. Install 128 MB, 256 MB,

512 MB or 1 GB non-ECC DDR SDRAM modules.

1. Open the e-pc as shown in “Opening the e-pc” on page 3.

2. Lift up the hard drive retaining bracket.

3. Slide out the drive tray to gain access to the memory modules.

memory modules

305513-001.bookPage6Tuesday,August20,20024:35PM

Upgrade Guide 7

Upgrading and Replacing Hardware

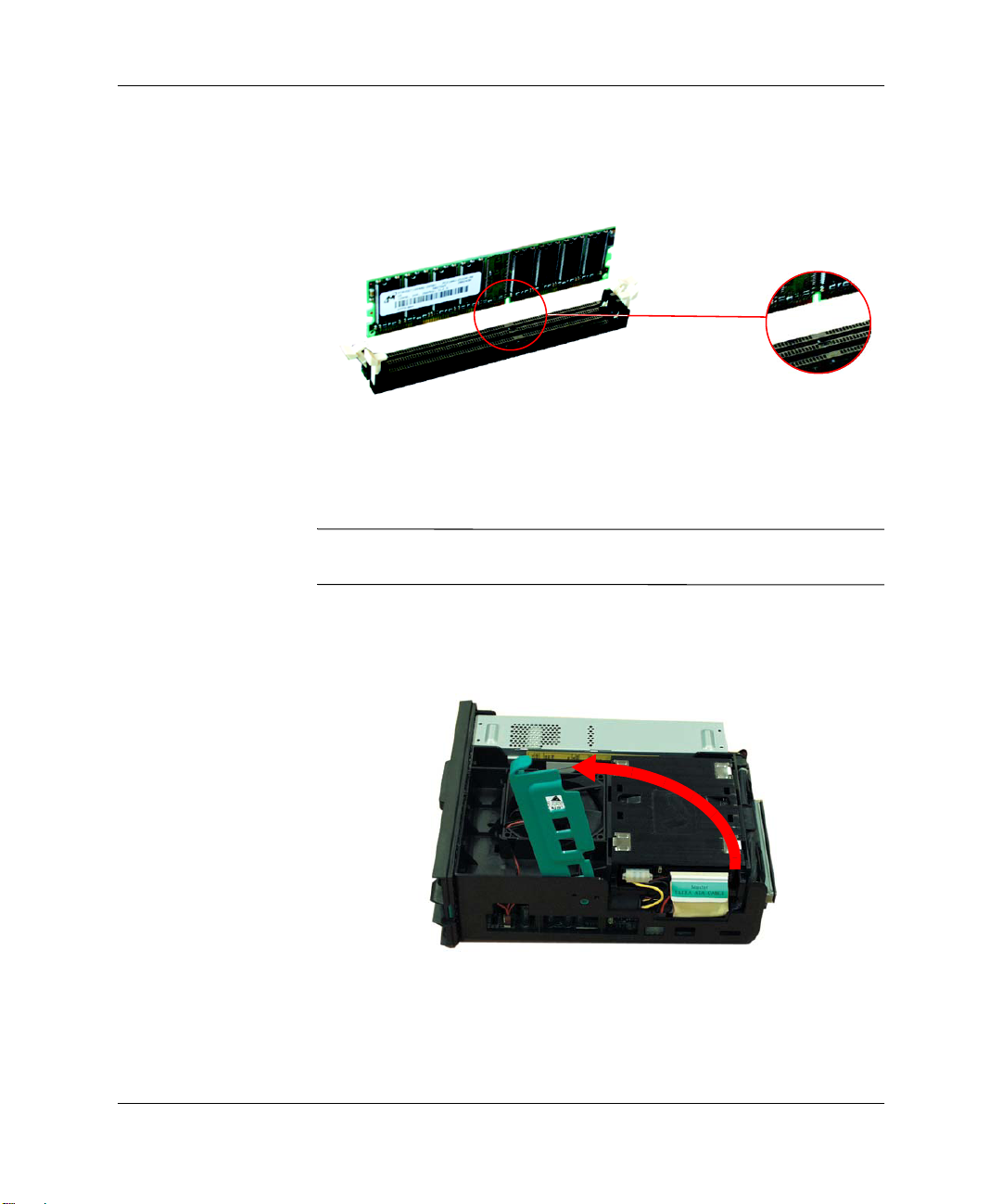

4. There are two memory sockets. Align the notches on the bottom

of the module with the corresponding marks on the socket and

push it firmly into place. The clips close automatically.

5. Replace the chassis in the enclosure.

Replacing the Hard Drive

ÅWARNING: For your safety, disconnect the power cord and all external

cables.

1. Open the e-pc as shown in “Opening the e-pc” on page 3.

2. Lift up the hard drive retaining bracket.

305513-001.bookPage7Tuesday,August20,20024:35PM
