Commell P2LXB User manual

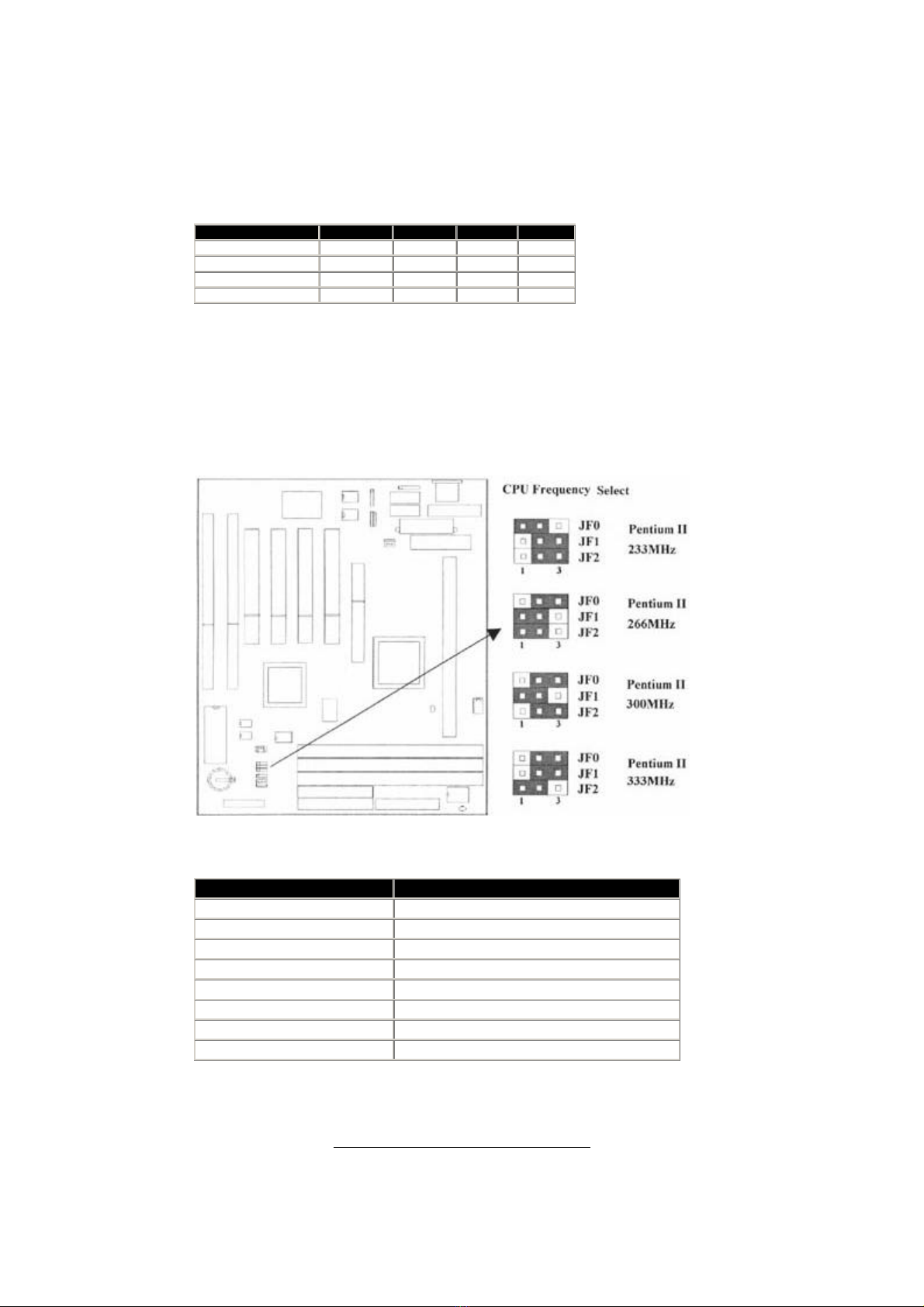

Quick Installation Chart

For your convenience, this chart lists all the CPUs supported by P2LXB and

their corresponding jumper setting.

CPU Model Ratio JF0 JF1 JF2

233/66 3.5x 1-22-32-3

266/66 4.0x 2-31-21-2

300/66 4.5x 2-31-22-3

333/66 5.0x 2-32-31-2

***We support the over specification operation, please see session 3.4.16 for

more information.

***The Ratio of some latest CPUs are fixed by Intel, such as Celeron

366,400...etc. You can ignore the three jumpers if you have this CPU on

board and it will be atuo detected by motherboard. Please check with the

CPU manufacturer or vendor for the CPU Ratio information.

Panel Connectors

JFRNT1 Connector Function

GREEN LED Suspend Mode LED

PWR LED Power LED

KEYLOCK Keylock Switch

SPKR Speaker

RESET Reset Switch

IDE LED HDD LED

PWR BTN ATX Power Button Connector

SMI S/W Sleep Switch

P2LXB

Motherboard User's Manual

Product Name: P2LXB

Manual Revision: English, 1.1

Trademarks

Intel and Pentium II are trademarks of Intel Corporation

Award is a trademark of Award Software International Inc.

MS-DOS, Windows 95, Windows 98 and Windows NT are registered trademarks of Microsoft

Corporation

Novell is a trademark of Novell Corporation

All other brand and product names are trademarks or registered trademarks of their

respective companies.

Table of Contents

Chapter 1. Introduction

1.1 Product Overview

1.2 Specifications

1.3 Content

1.4 System Board Layout

Chapter 2. Hardware Setup

2.1 Installation Procedure

2.1.1 Jumper Settings

2.1.2 Clearing the CMOS

2.1.3 CPU Voltage Setting

2.1.4 CPU Frequency Selection

2.2 Installation of CPU

2.3 Installation of Memory

2.3.1 Installation of 168-pin DIMM

2.3.2 Removal of 168-pin DIMM

2.3.3 Memory Configuration

2.4 I/O Connections/Panel Connections

2.4.1 ATX Power Connector,AT Power Connector

2.4.2 Chassis & CPU Fan Connectors

2.4.3 Infrared Connector

2.4.4 Wake-up on LAN Connector

2.4.5 Creative's SB_LINK Sound Connector

2.4.6 Floppy Disk Drive Connector

2.4.7 Primary/Secondary IDE Connector

2.4.8 PS/2 Mouse Port

2.4.9 Serial Port

2.4.10 Printer Port

2.4.11 USB Connectors

2.4.12 Panel Connection

Chapter 3. BIOS Setup

3.1 CMOS Setup Utility

3.2 Standard CMOS Setup..

3.3 BIOS Features Setup

3.4 Chipset Features Setup

3.5 Power Management Setup

3.6 PNP/PCI Configuration Setup

3.7 Integrated Peripherals

3.8 Load BIOS Defaults

3.9 Load Setup Defaults

3.10 Supervisor/User Password

3.11 IDE HDD Auto Detection

3.12 Exit CMOS Setup Utility

Chapter 1. Introduction

1.1 Product Overview

Thank you for purchasing the P2LXB motherboard. This motherboard utilizes

Intel's latest technology, namely 440LX AGPset chipset. We have conducted

a motherboard compatibility test with a variety of hardware and software,

such as CPUs, memory, display cards, CD ROMs, Novell, MS Office....etc

and compliance with Year 2000.

We have set high standards on our quality control, with absolute confidence,

we believe this product is the wisest choice.

This manual is composed of three sections. The first section is the

introduction of this motherboard, and the second section explains the proper

procedure to setup the motherboard, the third section provides information on

how to setup the CMOS.

Features:

-Support Desktop Management Interface (DMI) through

BIOS.

-Support Accelerated Graphics Port (AGP) cards for high

performance.

-Modem Remote Ring On.

-Wake up on LAN.

-RTC Wake Up Alarm: Program the date/time to wake up

your system.

-CPU Thermal Protection: Warning when the CPU

temperature is too high (optional).

-CPU & System Voltage Monitoring (optional).

-CPU & Chassis fan speed monitoring (optional).

-Support Advanced Configuration Power Interface (ACPI).

-BIOS Green feature function, and Plug & Play Flash ROM.

1.2 Specifications

CPU:-

Supports Intel Celeron, Pentium II with 66 FSB

Processors.

Chipset:-

Intel 440LX AGPset chipset

DIMM:-

Supports 3.3V EDO or SDRAM in 3 168-

pin banks,each

bank consists of 1x168-pin 64-bit DIMM socket, which

can support memory sizes of 8/16/32/64/128 MB

modules.

Supports up to a maximum of 384 MB with SDRAM &

768 MB with EDO system memory.

IDE:-

Dual channel PIO and PCI Bus Master IDE ports

support up to 4 EIDE devices for HDD or CD-ROM

Supports PIO Mode 4 with data transfer rate up to 14

MB/Sec

Supports Ultra DMA 33 (UDMA) with data transfer rate

up to 33 MB/Sec

BIOS:-

Award BIOS V4.51 with built-in Anti-

Virus, DMI support,

and green function (Plug-and-Play BIOS)

Supports CD-ROM, SCSI, and LS120/ZIP boot up

I/O Devices:-

One FDD control port supports two of the 5.25" or 3.5"

floppy drives up to 2.88 MB.

Two high-speed 16550 UART compatible serial ports

One parallel ports with ECP/ EPP compatibility.

One PS/2 mouse port

IR Port:-

One IrDA/ASKIR compatible Infrared interface port.

(Cable optional)

USB Ports:-

Two Universal Serial Bus (USB) ports support up to 127

peripheral devices.

Power Connector:-

Supports AT & ATX Power supply.

Supports Modem remote Ring-On function when using

ATX power supply.

Supports software power off function

Supports RTC Wake-Up.

Supports Wake up on LAN.

Others:-

Supports System Monitor function (optional)

Supports Creative’s Sound Blaster 16 compatibility for

real-mode DOS games.

Expansion Slots:-

Four 32-bit PCI expansion slots

Two 16-bit ISA expansion slots

One 32-bit AGP expansion slot

Operating System:-

Supports Windows 95/98, Windows NT, MS-DOS V.

6.22, OS/2, Novell, Unix, SCO UNIX.....

Dimension:-

220 mm x 250 mm Baby AT Form factor

1.3 Content

The P2LXB motherboard box contains the following items:

-One P2LXB Motherboard

-One IDE Ribbon Cable

-One Floppy Ribbon Cable

-A Set of Serial Ribbon Cable

-A Parallel Port and A PS/2 Mouse Port

-One Retention mechanism

-One Driver CD

-User's Manual & Quick Installation Chart

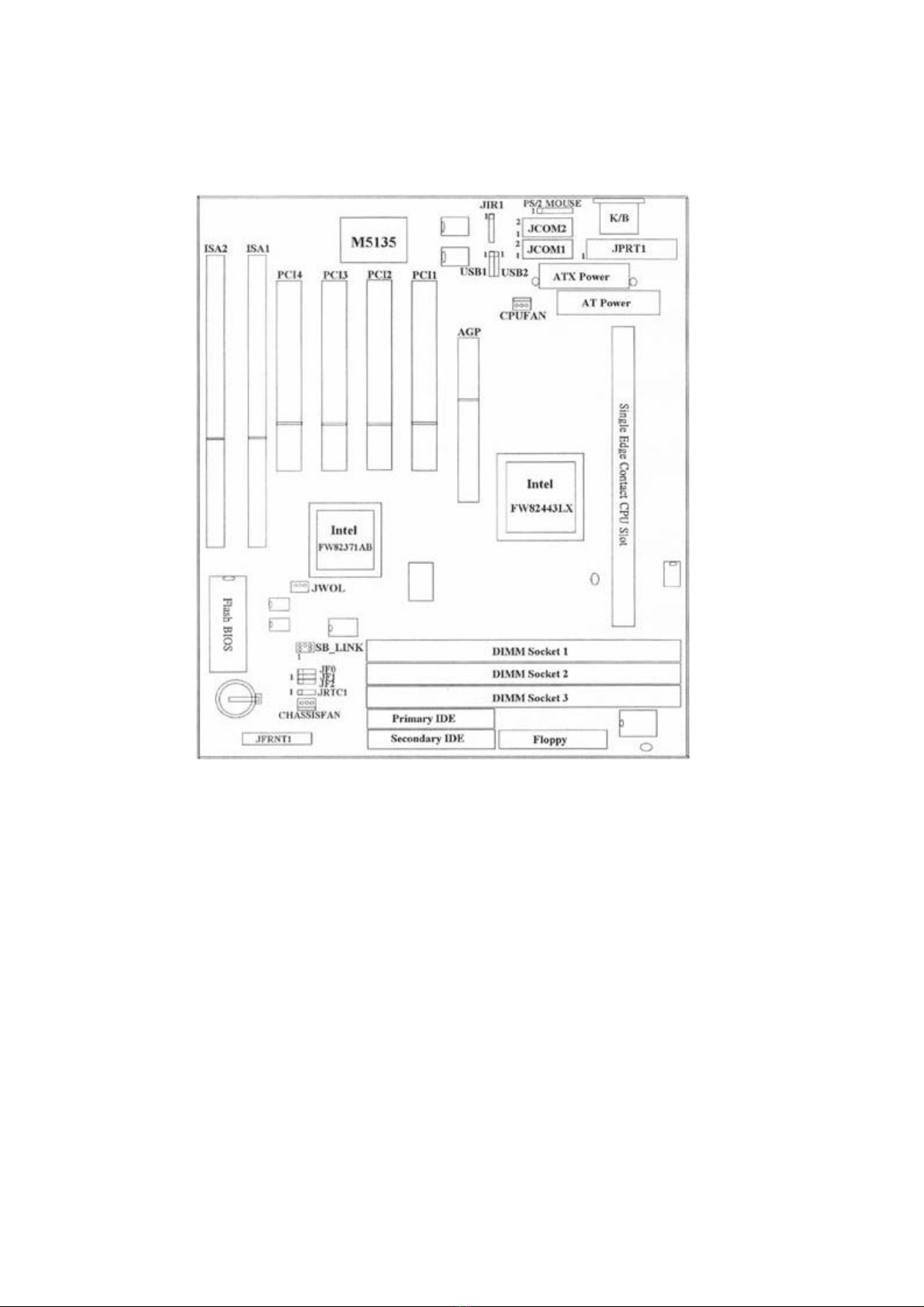

1.4 MotherBoard Layout

Chapter 2. Hardware Setup

2.1 Installation Procedure

1. Jumper settings (BIOS and CPU)

2. Installation of CPU

3. Installation of Memory

4. I/O Connections & Panel Connections

2.1.1 Jumper Settings

In this manual , (1-2) represents the first and second pins of the jumper.

(2-3) represents the second and third pins of the jumper. On the

motherboard, you will see two sets of jumpers with different color jumper

caps:

Yellow Jumper Caps: Sets the Function of Flash CMOS

JRTC1

Green Jumper Caps: Sets the type and speed of CPU

JF0, JF1, JF2

WARNING: Electronic parts are Static sensitive. To prevent damage to the

computer and its parts please take the following measures.

-Work on a surface such as concrete, linoleum or hard wood floor.

-Ground your self with either a properly installed grounding strap or by

touching a major electrical appliance long enough to discharge the static.

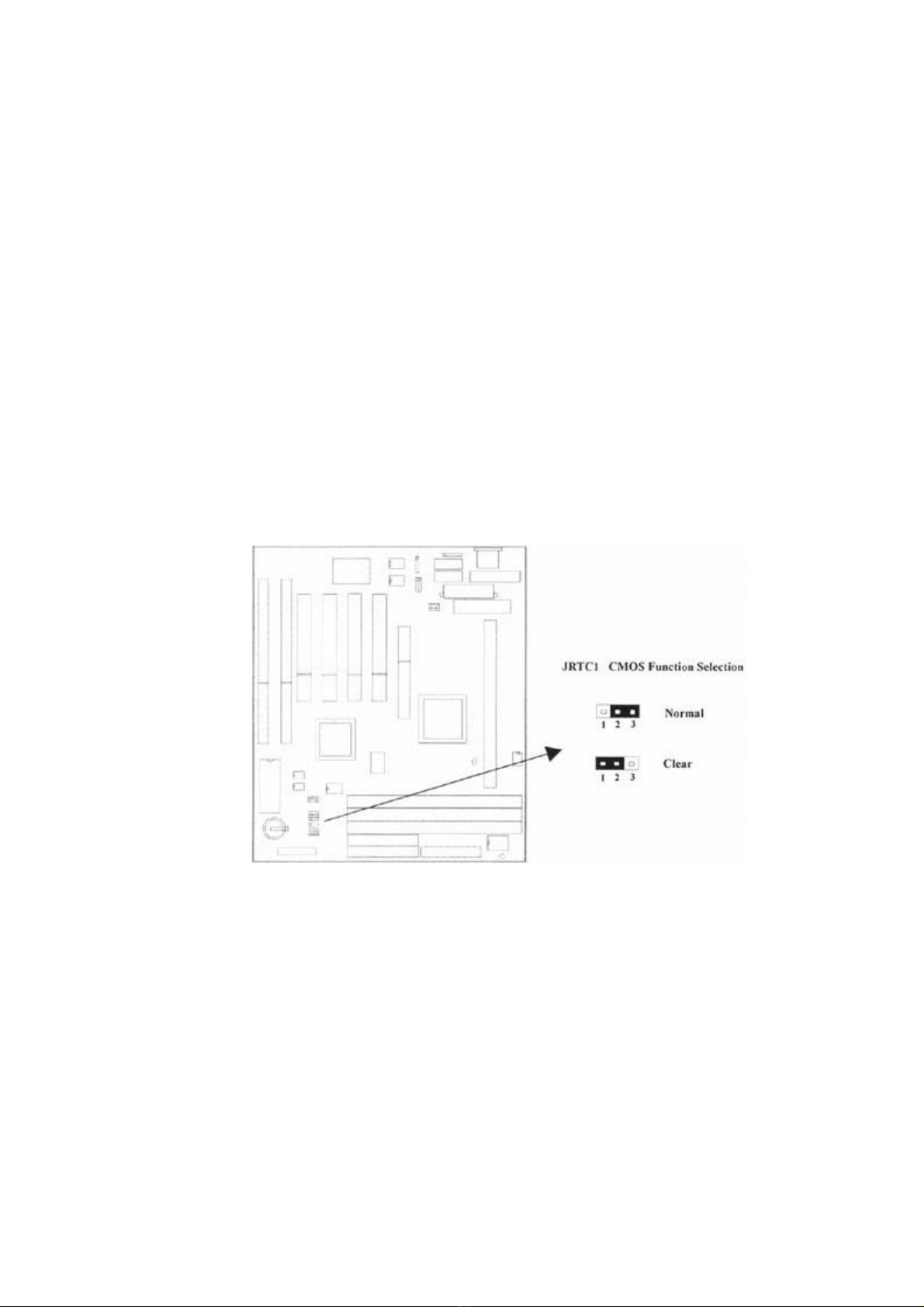

2.1.2 Clearing the CMOS（Yellow Jumper Caps）

JRTC1: CMOS Function Selection

1-2:Clear data

2-3:Normal Operation(Default Setting)

How to Clear the CMOS Setting

1. Turn off the power.

2. Remove power cable from power connector .

3. Remove Yellow Jumper Cap from JRTC1(2-3)and put on

JRTC1(1-2)to remove the CMOS setting.

4. Remove Yellow Jumper Cap from JRTC1(1-2)and put on

JRTC1(2-3).

5. Connect power cable back to power connector .

6. Turn on the power.

7. While the system reboots, press <DEL> key to set the

BIOS setup.

2.1.3 CPU Voltage Setting

The motherboard supports Pentium II VID function, the CPU core voltage is

automatically detected, the range is from 1.3V to 3.5V.

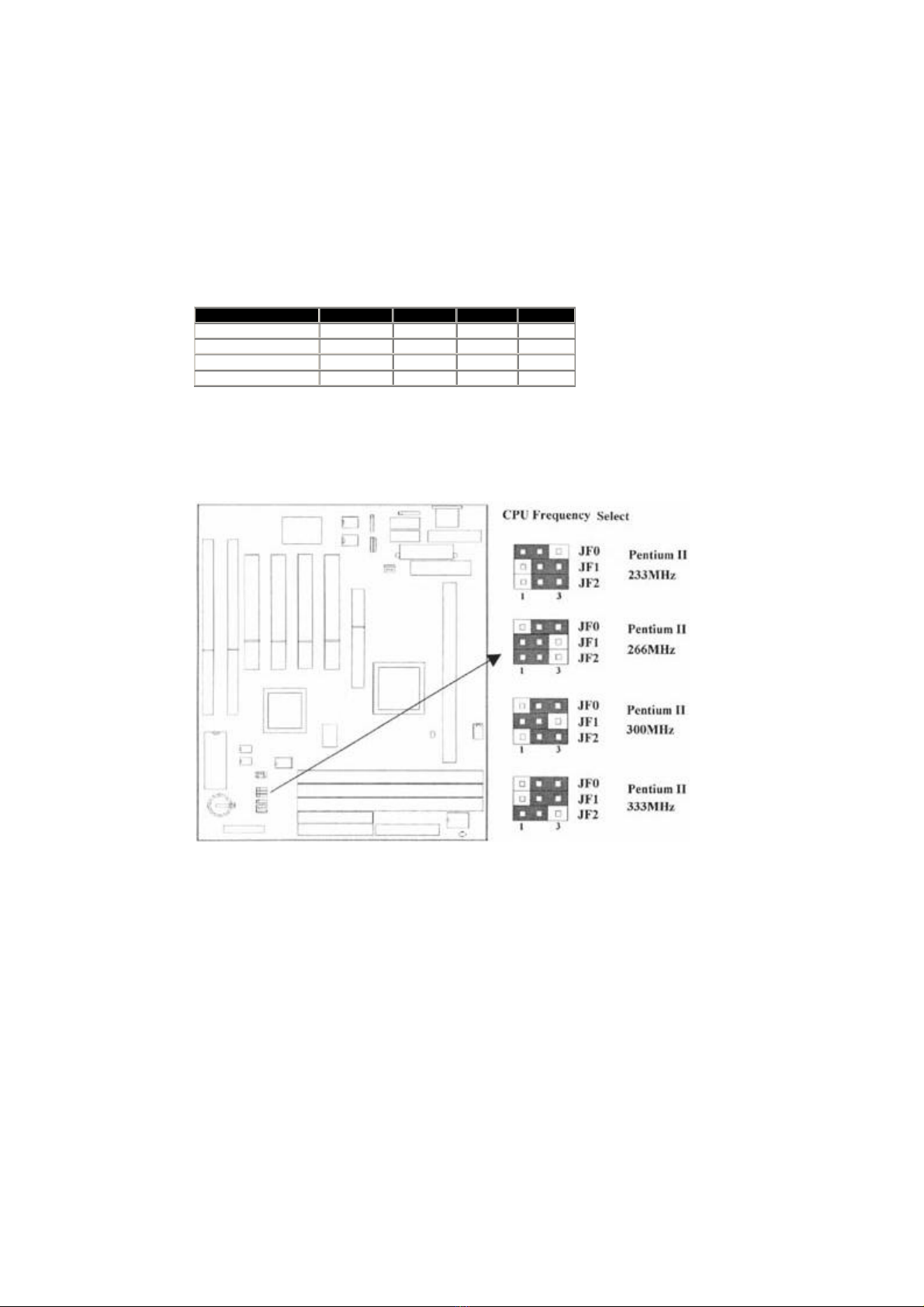

2.1.4 CPU Frequency Selection

CPU Model Ratio JF0 JF1 JF2

233/66 3.5x 1-22-32-3

266/66 4.0x 2-31-21-2

300/66 4.5x 2-31-22-3

333/66 5.0x 2-32-31-2

The Ratio of some latest CPUs are fixed by Intel, such as Celeron 366,400...etc. You can

ignore the three jumpers if you have this CPU on board and it will be auto detected by

motherboard. Please check with the CPU manufacturer or vendor for the CPU Ratio

information.

2.2 Installation of CPU

The motherboard provides a Single Edge Contact(SEC)slot for a Pentium II

processor packaged in an SEC cartridge. Follow these steps to install

Pentium II CPU:

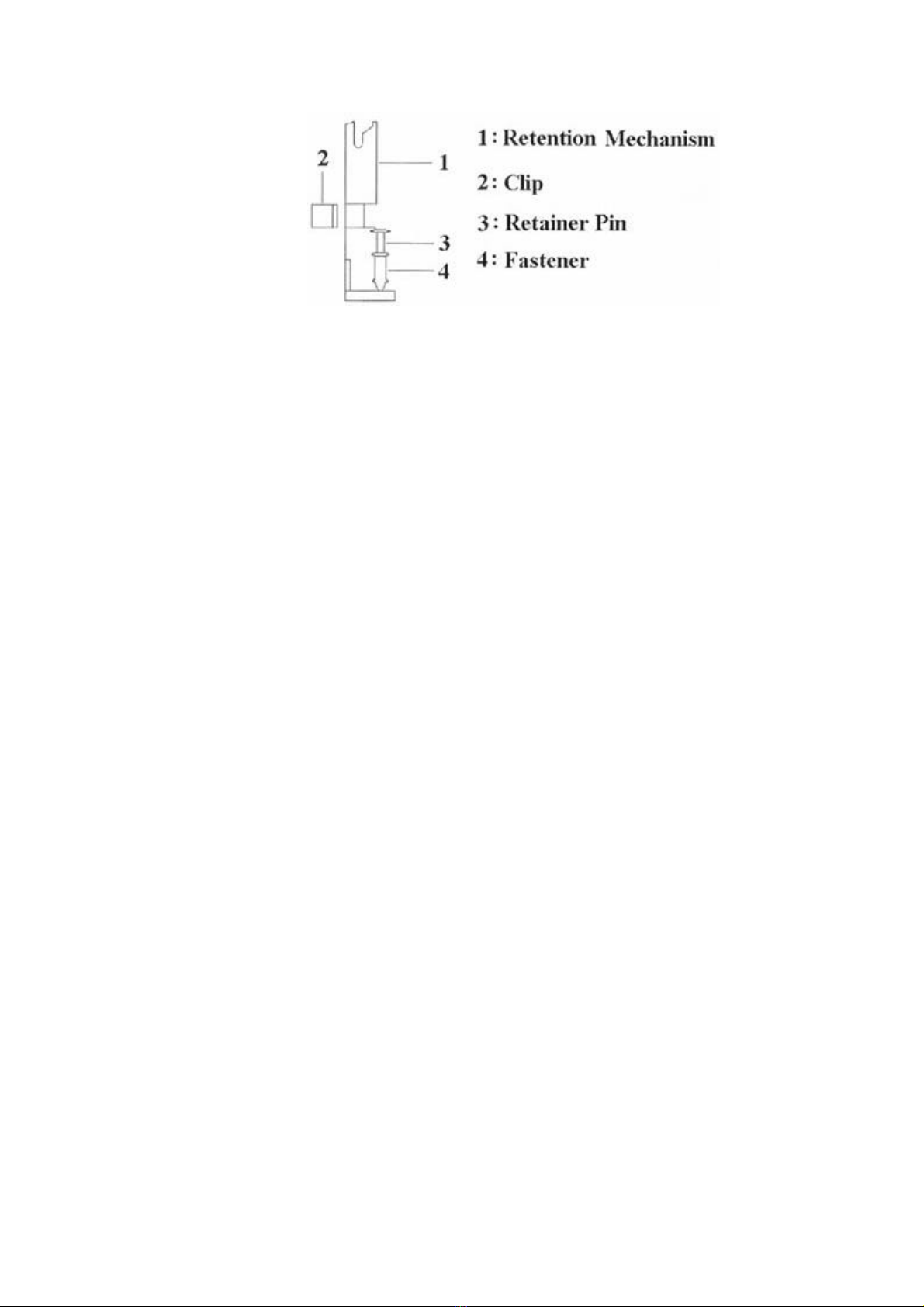

Mount the Universal Retention Mechanism (URM) & Insert the Pentium II

CPU: ( The illustration is just for reference )

This URM was designed to accommodate 3 types of CPU Form Factor.

( SECC, SECCII & SEPP ). For Example : Pentium II & Celeron family.

Note: Please put a soft pad under M/B before the installation of URM.

Installation for SECC CPU :

1. Leave space below each mounting hole for the fastener to

protrude through the hole.

2. Position URM on the M/B next to the slot1 connector.

3. Push down retainer pin into respective fastener to secure

URM onto the M/B.

4. Push CPU into URM to contact with slot1.

5. Make sure latching portion of CPU engaged with windows

ledge of URM.

Installation for SECC II or SEPP CPU :

1. Same as step (1) of SECC.

2. Same as step (2) of SECC.

3. Same as step (3) of SECC.

4. Same as step (4) of SECC.

5. Snap in 2 clips into side windows of URM to secure SEPP

CPU.

If there is a fan on the CPU, Please plug in the fan cable to the three pin fan

connector on the motherboard (CPUFAN).

2.3 Installation of Memory

P2LXB motherboard has 3x168-pin 64-bit Dual Inline Memory

Module(DIMM)sockets divided into 3 banks. You can install 3.3V Extended

Data Output(EDO)or Unbuffered Synchronous DRAM(SDRAM)memory. This

will increase the system reliability.

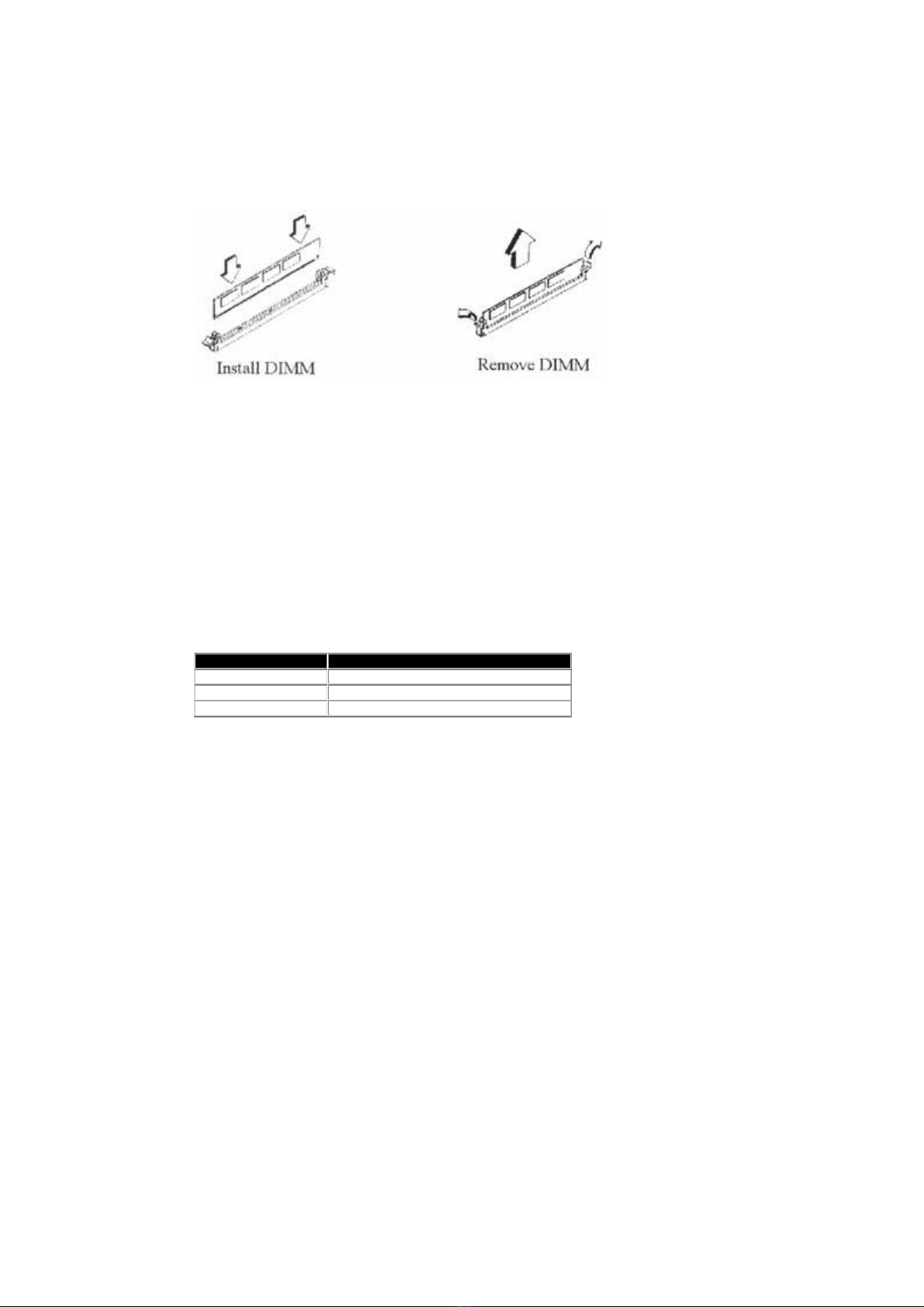

2.3.1 Installation of 168-pin DIMM (Dual Inline Memory Module)

1. Before inserting the DIMM, make sure the pin1 of the DIMM matches with

the pin1 on the DIMM socket.

2. Insert DIMM into the DIMM sockets at a 90-degree angle and press down.

2.3.2 Removal of 168-pin DIMM

1. Press the holding clips on both sides of the socket outward to release the

DIMM.

2. Gently pull the DIMM out of the socket.

2.3.3 Memory Configuration

There is no jumper setting required for the memory size or type. It is

automatically detected by the system BIOS, and the total memory size is to

add them together.

DIMM Socket DIMM Modules

DIMM1 EDO/SDRAM 8, 16, 32, 64, 128MB

DIMM2 EDO/SDRAM 8, 16, 32, 64, 128MB

DIMM3 EDO/SDRAM 8, 16, 32, 64, 128MB

2.4 I/O Connections/Panel Connections

I/O Connections

ATXPWR ATX Power Connector

ATPWR AT Power Connector

CHASSISFAN Chassis Fan Connector

CPUFAN CPU Fan Connector

JIR1 Infrared Connector (Cable optional))

JWOL Wake up on LAN connector

SB_LINK

For link with Creative's Sound7 Blaster 16

JFLP1 Floppy Disk Drive Connector

IDE1, 2 Primary/ Secondary IDE Connectors

PS2 MOUSE PS/2 Mouse Port

JKB1 AT Keyboard Connector

JCOM1, 2 Serial Ports 1 & 2

JPRT1 Printer Port

USB1, 2 USB Connector

2.4.1 ATX Power Connector (20-pin ATXPWR), AT Power Connector (12-pin ATPWR)

Table of contents

Other Commell Motherboard manuals

Commell

Commell LE-37N User manual

Commell

Commell LV-67PNX User manual

Commell

Commell LE-575 User manual

Commell

Commell LE-379 User manual

Commell

Commell LP-172-G User manual

Commell

Commell LP-172 User manual

Commell

Commell LV-67N-G User manual

Commell

Commell FS-977 User manual

Commell

Commell LE-37C User manual

Commell

Commell Mini-ITX Motherboard LV-671 User manual

Commell

Commell ETB-ITX1 User manual

Commell

Commell LV-668 User manual

Commell

Commell P3WA Series User manual

Commell

Commell LV-602 User manual

Commell

Commell P3WMA Series User manual

Commell

Commell Pico-ITX LP-171 User manual

Commell

Commell AS-C76 User manual

Commell

Commell P4ELA User manual

Commell

Commell LP-177 User manual

Commell

Commell LS-378 User manual

Commell

Commell LV-67L User manual

Commell

Commell LV-67R7 User manual

Commell

Commell LV-667 User manual

Commell

Commell LV-67P User manual

Popular Motherboard manuals by other brands

DFI

DFI SD170 user manual

ASROCK

ASROCK ROMED8-2T user manual

Asus

Asus P2L97A user manual

Winmate

Winmate IC70 user manual

Asus

Asus MES-B user manual

Grantech

Grantech SYS8F377VGGA-3OMN user manual

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR user guide

Gigabyte

Gigabyte GA-9IVDT user manual

Texas Instruments

Texas Instruments ADS8372EVM user guide

IBT Technologies

IBT Technologies MB860 user manual

Nvidia

Nvidia TEGRA DG-04927-001_V01 user guide

Biostar

Biostar M7VIT Bravo Description

Intel

Intel D33217CK specification

Asus

Asus F1A55-M LX PLUS R2.0 user manual

EPC

EPC EPC9147C quick start guide

Asus

Asus EX-B760M-V5 D4 quick start guide

EPOX

EPOX MU-8KHA0010 user manual

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 user guide
