Commell FS-A72 User manual

FS-A72

PICMG1.3 Full-size CPU Card

User’s Manual

Edition: 1.2

2014/05/14

FS-A72User’sManual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT.

FS-A72User’sManual

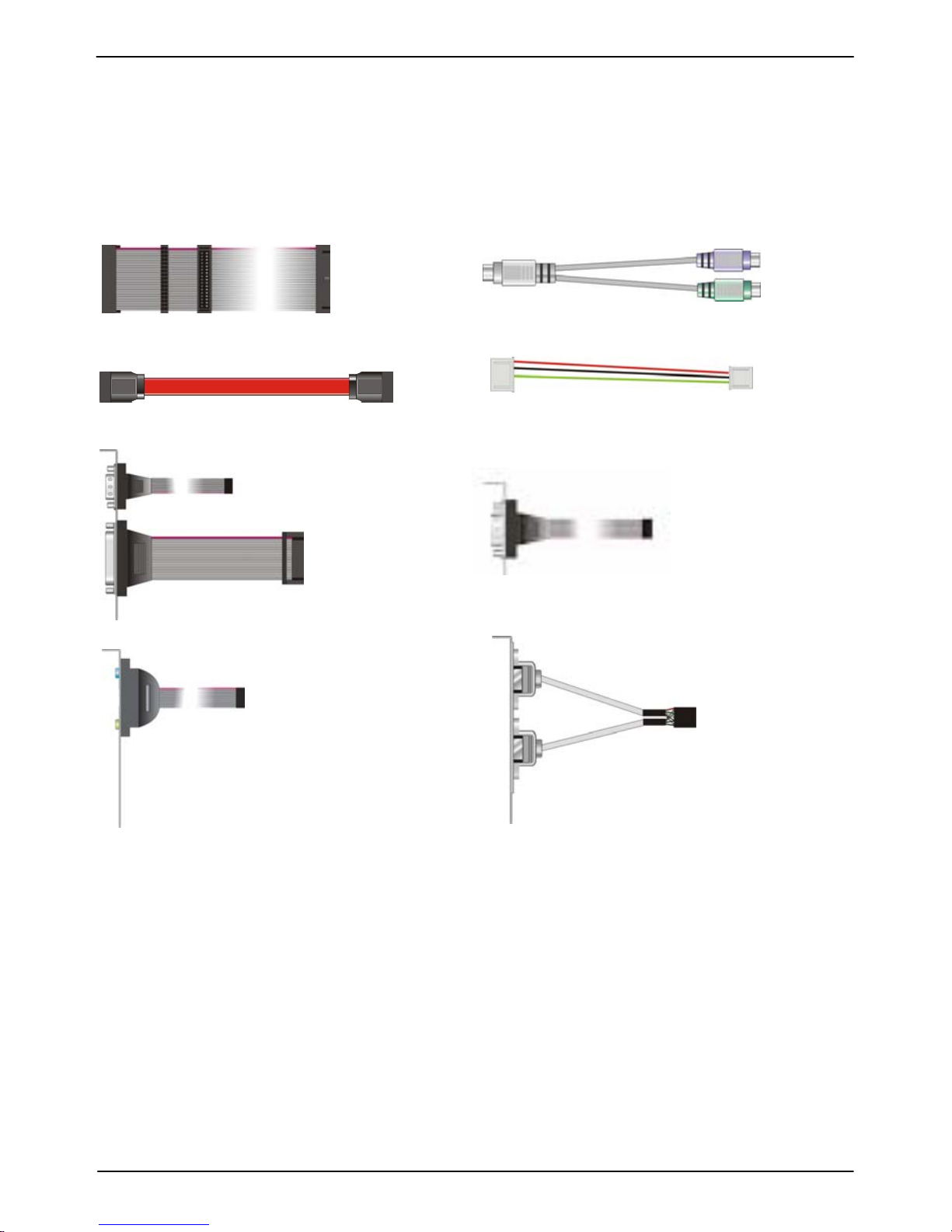

Packing List

Please check package component before you use our products.

Hardware:

FS-A72 PICMG1.3 Full-size CPU Card motherboard x 1

Cable Kit:

PS/2 Keyboard & Mouse Cable x 1

(OALPS2/MKN)/ (1040551)

Floppy flat Cable x 1

(OALFD)/ (1040095)

SATA-L Cable x 2

(OALSATA-L)/ (1040142) 4-pin to 3-pin ATX cable x 1

(OAL-ATX-C)/ (1040184)

DB25 & DB9 cable x 1

(OAL1S1P)/ (140041)

COM Port Cable x 1 (FS-A70G2-Only)

(OAL2SIP)/ (1040191)

Audio Port Cable x 1

(OALPJ-HD)/ (1040120) USB Cable x 2

(OALUSBA-1)/ (1040172)

Other Accessories:

Divers CD (including User’s Manual) x 1

FS-A72User’sManual

Index

Chapter1 <Introduction>............................................................7

1.1 <Product Overview> ......................................................................7

1.2 <Product Specification>.................................................................8

1.3 <Block Diagram>.........................................................................10

1.4 <Mechanical Drawing >...............................................................11

Chapter 2 <Hardware Setup>.................................................12

2.1 <Connector Location>..................................................................12

2.2 <Jumper Reference>.....................................................................13

2.3 <Connector Reference>................................................................14

2.3.1 <Internal Connectors> ..............................................................14

2.3.2 <External Connectors> .............................................................14

2.4 <CPU and Memory Setup>..........................................................15

2.4.1 <CPU installation>...................................................................15

2.4.2 <Memory installation>..............................................................16

2.5 <CMOS Setup>............................................................................18

2.6 <Serial ATA installation> .............................................................19

2.7 <Floppy Installation>...................................................................20

2.8 <LAN installation>.......................................................................20

2.9 <Onboard Display Interface>.......................................................21

2.9.1 <Analog Display>....................................................................21

2.10 <Audio Installation>...................................................................22

2.11 <GPIO and SMBUS interface>..................................................24

2.12 <USB Installation>.....................................................................25

2.13 <Power and Fan Installation>.....................................................26

2.14 <Serial Port>...............................................................................28

2.15 <Switch and Indicator>..............................................................31

Chapter 3 <System Configuration>.......................................33

3.1 <SATA configuration>..................................................................33

FS-A72User’sManual

3.2 <SATA RAID Configuration>......................................................34

3.3 <Audio Configuration>................................................................38

3.4 <Video Memory Setup>...............................................................39

Chapter 4 <BIOS Setup>.........................................................41

Appendix A <I/O Port Pin Assignment>................................43

A.1 <Serial ATA Port>........................................................................43

A.2<Floppy Port>...............................................................................43

A.3 <IrDA Port>.................................................................................44

A.4 <Serial Port>................................................................................44

A.5 <VGA Port>.................................................................................45

A.6 <LAN Port>.................................................................................45

A.7 <Parallel Port>.............................................................................46

Appedix B <System Resources>...........................................47

B.1 <I/O Port Address Map>..............................................................47

B.2 <Memory Address Map>.............................................................49

B.3 <System IRQ Resources>............................................................50

Appedix C <Flash BIOS>.........................................................51

C.1 <BIOS Auto Flash Tool>.............................................................51

C.2 <Flash Method>...........................................................................51

Appendix D <Programming GPIO’s>....................................52

Appendix E <Watch Dog timer Setting >..............................53

Contact Information...................................................................54

FS-A72User’sManual

(This Page is Left for Blank)

FS-A72User’sManual

Chapter1 <Introduction>

1.1 <Product Overview>

FS-A72 is the Full-size single board computer with last Intel desktop technology with

PICMG1.3 form factor. Based on Intel®Q45 and ICH10DO, the board integrates a new

Core 2 Quad / Core 2 Duo / Celeron processor 775-pin socket, DDR3 memory slot, Intel®

Graphic Media Accelerator 4500 technology, Serial ATA II with RAID function for a powerful

desktop system.

Intel®LGA775 processor

The Intel® Core 2 Quad / Core 2 Duo / Celeron processor now comes with a new form

factor with 775-pin PLGA package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache,

for 65nm and 45nm manufacturing technology, the PLGA processor without pin header on

solder side can make user installing the processor on the socket easier.

Intel®Q45 and ICH10DO chipset

The Intel Q45 integrates DDR3 800/1066MHz for memory, and Graphic Media Accelerator

(GMA) 4500 technology for new graphic engine. It can provide up to 1024MB of frame

buffer when you install over 1GB of system memory. The ICH10DO integrates with up to 8

USB2.0 interfaces, and serial ATA II interface with RAID function.

FS-A72User’sManual

1.2 <Product Specification>

General Specification

Form Factor PICMG1.3 Full-size CPU Card motherboard

CPU Intel® Core™ 2 Quad / Core™ 2 Duo / Celeron® processor

With LGA775 socket

Package type: PLGA 775

Front side bus: 800/1066/1333MHZ (200/266/333MHz x 4)

Memory 2 x 240-pin DDR3 800/1066MHz SDRAM up to 4GB

Unbufferred, none-ECC memory supported only

Chipset Intel® Q45 (Northbridge) and ICH10DO (Southbridge)

BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.

of timeout value

Real Time Clock Intel® ICH10DO built-in RTC with lithium battery

Serial ATAII Intel® ICH10DO integrates 6 Serial ATA II interface

RAID 0, 1,5,10 Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel® 82801HDO( ICH10DO) with Winbond® W83627DHG

Controller

Serial Port Five RS-232 and one RS232/422/485 serial ports

USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Floppy Port One Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

Interface

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel® Q45 GMA4500 (Graphic Memory Controller Hub)

Frame Buffer Up to 1024MB shared with system memory

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

FS-A72User’sManual

Ethernet Interface

Controller Two Intel 82574L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

Auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Two External RJ45 connectors with LED on rear I/O panel

Audio Interface

Chipset Intel® ICH10DO with Realtek ALC888HD Audio

Intel High Definition Audio compliance

Interface 2 channels sound output

Connector Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN

Expansive Interface

PCI-Express One X16 and one X4 or four X1 on PICMG 1.3 Interface

PCI Four PCI bus master on PICMG 1.3 Interface

Power and Environment

Power

Requirement +5V, +12 DC input & 5VSB Requirement

Dimension 338 (L) x 126 (H) mm

Temperature Operating within 0 ~ 60P

C (32 ~ 140P

Storage within –20 ~ 85P

C (-4 ~ 185P

Ordering Code

FS-A72G Intel® Core™ 2 Quad, DDRIII, VGA, USB2.0, Mini-PCI, PCI,

COM Port, FDD, HD Audio, SATA, IrDA, 1 x Gigabit LAN

Support Four X1 & One X16 PCI Express interface

FS-A72G2 Same as above with secondary Gigabit LAN

FS-A72FG Intel® Core™ 2 Quad, DDRIII, VGA, USB2.0, Mini-PCI, PCI,

COM Port, FDD, HD Audio, SATA, IrDA, 1 x Gigabit LAN

Support One X4 & One X16 PCI Express interface

FS-A72FG2 Same as above with secondary Gigabit LAN

OHS-1U775S 1U CPU Cooler for LGA 775 with Backplane

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

FS-A72User’sManual

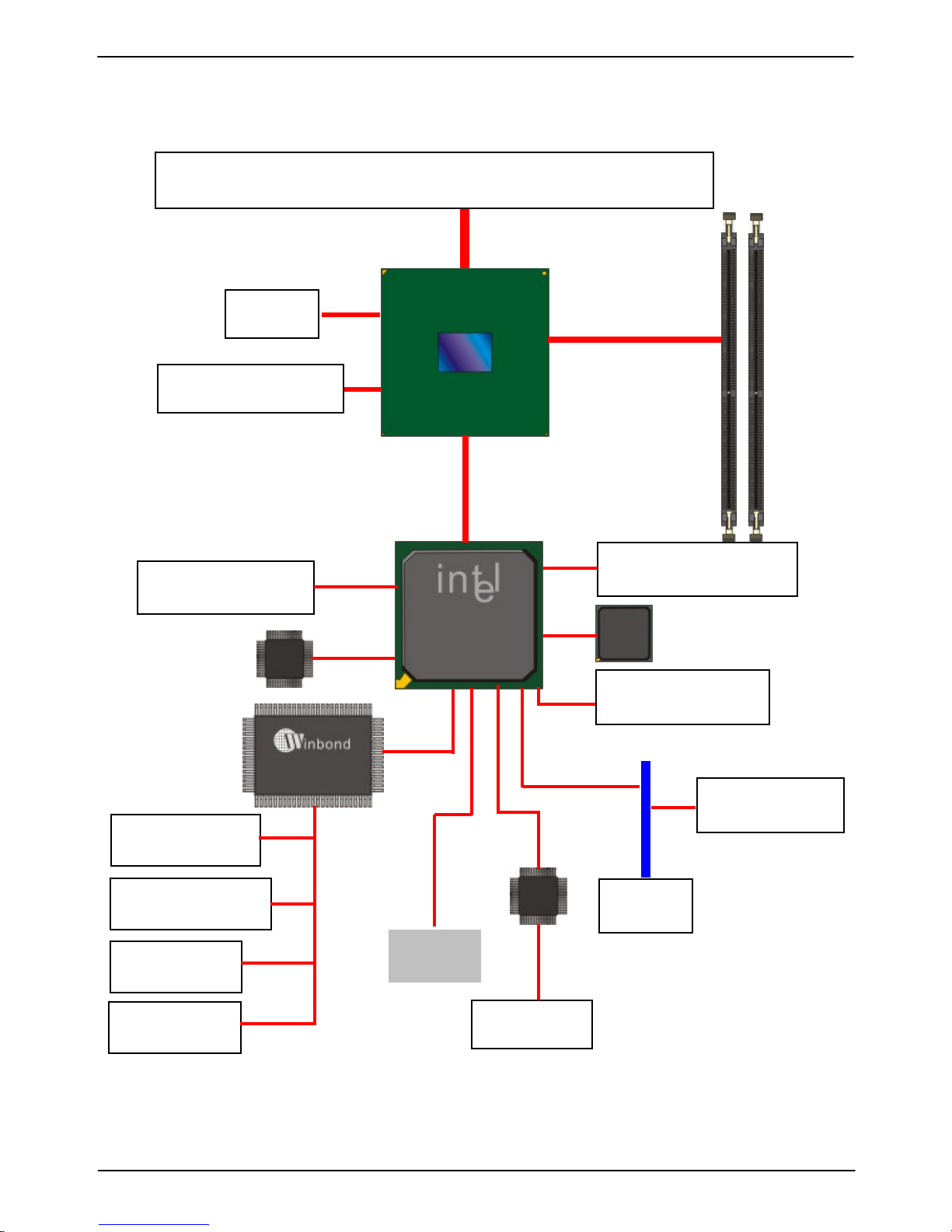

1.3 <Block Diagram>

Intel®Core™ 2 Quad / Core™ 2 Due/ Celeron®processor

Intel Q45 2 x 240-pin DDR3

800/1066MHz up

to 4GB

PCI bus

2 x Serial ports

1 x Floppy port

8-bit GPIO

8 x USB2.0 ports

4 x PCI Slot

HD Audio ICH10DO

6 x Serial ATAII ports

Intel 82574L

2 x GLAN

IrDA

BIOS

SPI

COM3/4/5/6

CRT

4 PCI-Express x1

PCI-Express x16
