DataMan®300 Series

Quick Reference Guide

2020 April14

Revision: 6.1.6SR2.5

Precautions

WARNING: LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2

LASER PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS

MAY CAUSE SERIOUS INJURY

lCAUTION - Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radiation

exposure.

lDo not attempt to service or repair this product -- return it to Cognex for

service.

lDo not permit anyone other than Cognex Corporation to service, repair, or

adjust this product.

lDo not attempt to open or modify this device except as described in this

document.

lDo not direct or reflect laser light toward people or reflective objects.

lDo not operate this device if it is damaged or if the covers or seals are

missing or damaged.

lIP protection is ensured only when all connectors are attached to cables or

shielded by a sealing cap.

This Laser Product is designated as Class 2 during all procedures of operation.

Wavelength 650 nm

Laser Power for classification < 1mW

Beam Diameter < 3mm at aperture

Divergence < 1.5 mrad

Product Overview

1Laser aimer

2 Illumination LED clusters

3 External illumination mounting point

4 Mounting holes (M3 x 5mm)

5Trigger button

6Power

7Train status

8Read/no-read indicator

9Network

10 Error

11 Peak meter

12 Tuning button

13 Ethernet

14 External light control

15 Power, I/O, and RS232

DataMan 300 Accessories

LENS OPTIONS ANDCOVERS

10.3 mm M12 lens with locking

10.3 mm IR M12 lens with locking

DM300-LENS-10

DM300-LENS-10-IR

Liquid lens module and pre-focused 10.3 mm or 10.3

mm IR M12 lens with wrench

DM300-LENS-10LL

DM300-LENS-10LL-IR

19 mm liquid lens module DM300-LENS-19LL

16 mm M12 lens with locking without built-in IR

blocking filter

DM300-LENS-16

24 mm F6 liquid lens module with built-in IR blocking

filter

DM360-LENS-24LL

25 mm M12 lens with lens spacer and hex wrench (also

requires Extension kit)

DM300-LENS-25

Extension kit DM300-EXT

DM500 C-Mount cover (use with HPIA) DM500-CMTLC-000

DM500 Lens cover extender DM500-LNSEXT-000

Blue,

red,

green,

orange bandpass filters

CKR-BP470

CKR-BP635

CKR-BP525

CKR-BP590

Clear lens cover DM300-CLCOV

Clear lens cover with white LED illumination

(RiskGroup Exempt acc. IEC 62471)

DM300-CLCOV-WHI

Diffuse lens cover with red LED illumination,

with blue LED illumination,

with IR LED illumination,

Polarizer lens cover with red LED illumination

(RiskGroup Exempt acc. IEC 62471)

DM300-DLCOV-RE

DM300-DLCOV-BL

DM300-DLCOV-IR

DM300-PLCOV-RE

Diffuse lens cover, red illumination (assembled), ESD

safe

(RiskGroup Exempt acc. IEC 62471)

DM300-DLCOV-RE-ESD

Red LED high-powered integrated light, 10.3 mm lens

(RiskGroup Red LED Exempt acc. IEC 62471, RiskGroup Green

LED Aim er Exem pt acc. IEC 62 471)

DM360-HPIL-RE

Polarized red LED high-powered integrated light, ESD

safe, 10.3 mm lens

(RiskGroup Red LED Exempt acc. IEC 62471, RiskGroup Green

LED Aim er Exem pt acc. IEC 62 471)

DM360-HPIL-RE-P

White LED high-powered integrated light, 10.3 mm lens

(RiskGroup White LED low riskacc. IEC 62471, RiskGroup Green

LED Aim er Exem pt acc. IEC 62 471)

DM360-HPIL-WHI

Red LED high-powered integrated light, 24 mm lens

(RiskGroup Red LED Exem pt acc. IEC 62471)

DMLT-HPIL-RE

Polarized red LED high-powered integrated light, 24 mm

lens

(RiskGroup Green LED Aimer Exempt acc. IEC 62471)

DMLT-HPIL-RE-P

White LED high-powered integrated light, 24 mm lens

(RiskGroup White LED low riskacc. IEC 62471, RiskGroup Green

LED Aim er Exem pt acc. IEC 62 471)

DMLT-HPIL-WHI

C-Mount cover for C-Mount lenses DM300-CMCOV

Short C-Mount cover for C-Mount lenses DM300-CMCOV-SH

EXTERNAL LIGHTS (RED LED) ANDHIGHPOWERILLUMINATIONS

Ring Light CLRR-R7030G1CLR

Back light CLRB-F100100G1

Coaxial (DOAL) light CLRO-K5050G1

Spot light CLRS-P14G1

Dark-field light CLRD-D120G1

HPIA, Red narrow DM30X-HPIA3-625

HPIA, Red wide DM30X-HPIA3-625-W

HPIA, Red narrow with polarizer DM30X-HPIA3-625P

HPIA, Red wide with polarizer DM30X-HPIA3-625P-W

HPIA, White narrow DM30X-HPIA3-WHI

HPIA,White wide DM30X-HPIA3-WHI-W

HPIA, Blue narrow DM30X-HPIA3-470

HPIA, Blue wide DM30X-HPIA3-470-W

HPIA, Infrared narrow DM30X-HPIA3-IR

HPIA, Infrared wide DM30X-HPIA3-IR-W

Red narrow DM30X-HPIA-625

Red wide DM30X-HPIA-625-W

Red narrow with polarizer DM30X-HPIA-625P

White narrow DM30X-HPIA-WHI

White wide DM30X-HPIA-WHI-W

Blue narrow DM30X-HPIA-470

Blue wide DM30X-HPIA-470-W

Infrared narrow DM30X-HPIA-IR

Infrared wide DM30X-HPIA-IR-W

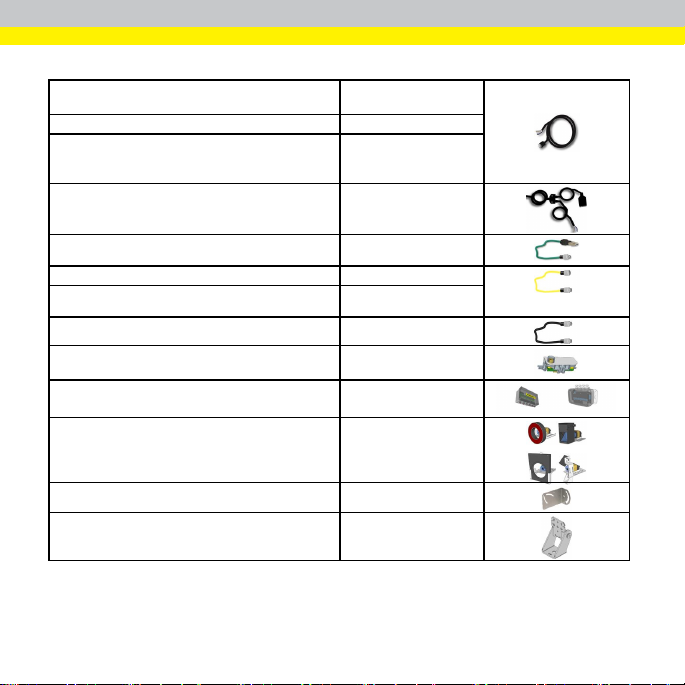

OTHER

Connection cable 24V, I/O, RS-232 (y straight/angled, xx

specifies length)

CCB-M12x12Fly-xx

Connection cable 24V, I/O, RS-232 CCBL-05-01

Power and I/O breakout cable, M12-12, straight, xx

specifies length: 5m, 10m, 15m,

angled, xx specifies length: 5m, 10m, 15m

CCB-PWRIO- xx

CCB-PWRIO-xxR

Connection cable RS-232 CCB-M12xDB9Y-05

Ethernet M12 to RJ45 cable (y=1: straight / y=6: angled,

x-xx specifies length)

CCB-84901-y00x-xx

External light cable (xxx specifies length) CCB-M12x4MS-xxx

Bar light cable (xxx specifies length: 300, 500, 1000,

2000 mm)

IVSL-5PM12-Jxxx

I/O extension cable, 5m straight CKR-200-CBL-EXT

Laser aimer (use with HPIA) DM300-AIMER-00

Connection module (4 or 1 camera)

(xx can be US, EU, UK or JP) DMA-CCM-4X-xx or

DMA-CCM-1-xx

External light mounting brackets (xx specifies light type)

(may get used in combination with DM100-PIVOTM-00

or DM500-BRKT-000 if pivoting is required)

DM300-ELMB-xx

Universal Mounting Bracket DM100-UBRK-000

Pivot Mounting Bracket DM100-PIVOTM-00

Dimensions

A S-Mount (M12)Lens version

B C-Mount Lens version

Field of View and Reading Distances

Note: Due to tolerances, ranges can vary by +/- 5 % from unit to unit.

10.3 mm lens (green) 16 mm lens (red) 25 mm lens (blue)

inner: DM300 inner: DM300 inner: DM300

outer: DM302,DM303 outer: DM302,DM303 outer: DM302,DM303

Device Distances in mm/2D min. code 10.3 mm

lens

Distances in mm/1D min. code 10.3 mm lens

DM300,DM302 0-75 5 MIL 0-215 7 MIL

0-210 10 MIL 0-409 13 MIL

0-374 20MIL 0-500 18 MIL

DM303 20-110 5 MIL 20-350 7 MIL

15-325 10 MIL 25-735 13 MIL

10-580 20 MIL 25-840 18 MIL

Device Distances in mm/2D min. code 16 mm lens Distances in mm/1D min. code 16 mm lens

DM300,DM302 59-72 2 MIL 60-125 2 MIL

55-207 4 MIL 55-270 4 MIL

49-295 8 MIL 56-400 6 MIL

DM303 35-190 5 MIL 45-400 7 MIL

30-420 10 MIL 45-495 13 MIL

25-500 20 MIL 45-540 18 MIL

Device Distances in mm/2D min. code 25 mm lens Distances in mm/1D min. code 25 mm lens

DM300,DM302 100-155 2 MIL 95-155 2 MIL

95-350 4 MIL 92-350 4 MIL

90-470 8 MIL 88-380 6 MIL

DM303 95-155 2 MIL 95-155 2 MIL

90-350 4 MIL 92-360 4 MIL

88-385 8 MIL 90-390 6 MIL
