2. Generally. Empire Cold
We congratulate to your choice of a Coffee Queen coffee machine.
Please read this manual before you take the machine into operation for the first time.
Alwayskeepthismanualwithinreachfortheuser!
Empire cold
- making drinks cup by cup
- 4 choices of drinks + cold water
- 2 - 4 ingredients canisters,
- electronicallytemperaturecontrolled
- adjustabledrinkstrenght
- clockfunctions
Facts:
Height 620 mm
Width 310mm
Depth 490mm
Electricity 230V / 170 W Chillerunit
Refrigerator HFC-134a
Water connection ½”outside thread
4.
3. Overview of components , front Empire Cold
Outlet/ drinks
Strenght of drinks
++ or - -
Choices
of drinks
Drip tray
Drip tray insert
Key switch
(cupandjug
choice)
Display
Door lock
Chute
Ingredients
canister
3. Overview of components , mixer system Empire Cold
5.
ON/OFF-
switch
Steam trap
Mixing bowl
Outlet pipe
Empire cold: 4 canisters.
Canister: Width Depth Height Volume/litre; Cups/filling
Icecoffee 67 225 200 1,15 45
Icechocolate 67 225 200 1,15 32
Icelemon 67 225 200 1,15 83
Icepeach 67 225 200 1,15
3. Overview of components , cooling water Empire Cold
6.
Fan
Cooling unit
Compressor Starting capacitor Thermostat
Condencer
Dryer
Water IN
Water
OUT
Pull out unit
7.
ON / OFF
switch
4. Service. Installation and start Empire Cold
1. Locate the brewer on a flat Connect the electrical plug to a separate
levelandwaterproofsurface. groundedwallsocket
Grounded wall socket
230V 10A
OBSERVE!
Make sure there is a space behind the machine
for free flow of air.
( minimum 10cm ).
2. Connect attached water tube to cold water with an R 1/2”.
Makesurethatthewaterhosenotarekinkedanywherewhenmachineis
pushedintoplace.
Pleaseflushthewatertubebeforeconnectingtomachine,thistoavoidany
particles to damage theinletvalve.
3. Openthewaterinlet.
4. TurnontheON-OFFswitchinsidethedoor.
Nowthecoolerwillstartingup.
After approx. 15 minutes machine
are ready to use.
5. Close door.
8.
(A).
4. Service. Installation and start Empire Cold
6. Fill canisters with ingredients.
Takeout(thistoavoidunnecesseryspillage
inthemachine)ingredientcanistersandfill
them withingredients.
1. Turnupchute.
2. Lift up canister and pull out.
3. Lift off lid and fill canister with
ingredients.
7. When placing the ingredient canisters;
Makesurethattheoutletpipeson the ingredient canisters are touching the
steam traps (A).
9.
5. Operation; Making a drink in a glass or mug Empire Cold
1.
1. Place a glass or a mug in the centre of the cup holder.
2. The strenght has a standard setting,
ifyou wish to increase or decrease it,
do as follows. if not continue to point 3.
Stronger drink;
Increase by pushing + or++ for 5% or 10%
alternative
Weaker drink;
Decrease by pushing - or -- for 5% or 10%
(the indication lamp will go up or down
depending of choice).
3. Chooseamountofdrink.
The display will show; ”Please wait”.
4. Waituntil the lightoncupandthetext
”Please wait” has been turned off before you take
thecup.
6. Enjoyyourdrink.
2.
3.
10.

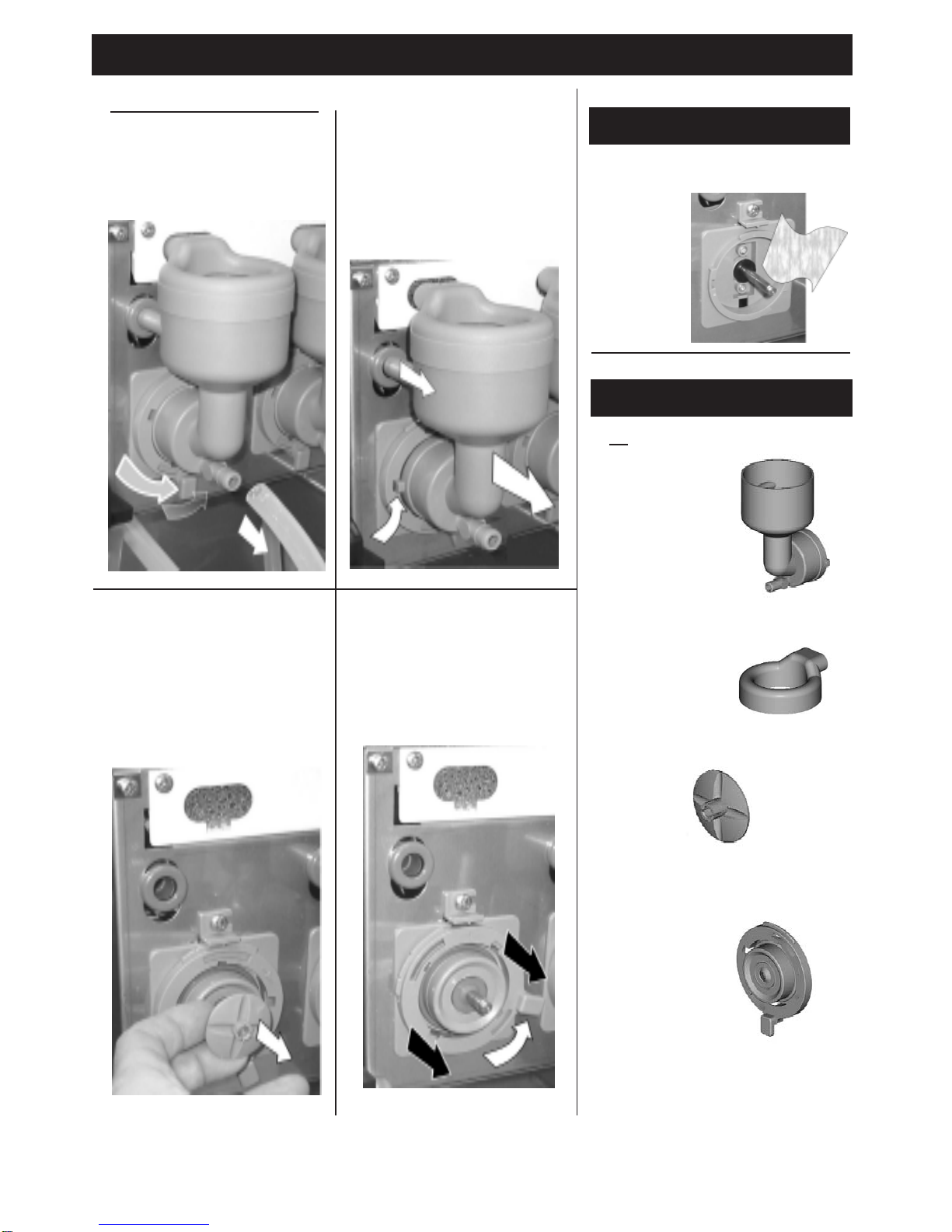

6. CLEANING: Weekly cleaning Empire Cold
(D)
Dismantle : Mixer system
1.
Loosenoutlethose(A) and
turnlockknob(B)
anti-clockwise.
3.
Loosen whipper (D) pull
whipperstraight out from the
machine.
(E)
(A)
(B) (C)
Cleaning
Wash these parts:
.6.
A. Mixerbowl
B. Steam trap
C. Whipper
D. Assembly plate
Make sure this parts are dry
before use
2.
Loosenmixerbowl.
Pullapart(C).
4.
Turnlock knobanti-
clockwise.(E) untilit stops
5. Clean with a wet rag and
droughtdrily.
