CLIVET DUCT-SM 2 User manual

Change living home

Duct-SL 2

Duct-SM 2

MIDDLE STATIC PRESSURE DUCT TYPE

Nominal cooling capacity

from 2,6 kW to 16,1 kW

INSTALLATION AND OPERATING MANUAL

R-32

Series S.ID2+MC2-Y from 35M to 160T

DUCT-SM 2 (for MONOsplit systems):

DUCT-SL 2 (for LIGHT Commercial systems):

Series ID2-XY from 27M to 53M

Accessories .................................................................. 04

a. Indoor Unit Parts ................................................... 07

b. Indoor Unit Installation Instructions ....... 08

Safety Precautions ........................................... 05

Outdoor Unit Installation ......................... 19

a. Outdoor Unit Installation Instructions ...... 19

b. Outdoor Unit Types and Speciﬁcations .... 20

c. Notes on Drilling Hole in Wall .................... 21

Drainpipe Installation ............................... 22

Table of Contents

Installation Manual

Indoor Unit Installation .................................. 07

Installation Overview ................................... 06

IMPORTANT NOTE:

Read this manual carefully before installing or operating your new air

conditioning unit. Make sure to save this manual for future reference.

Refrigerant Piping Connection....................... 24

A. Notes on Pipe Length and Elevation .............. 24

B. Refrigerant Piping Connection Instructions ...26

Wiring.............................................................. 28

a. Outdoor Unit Wiring .................... 28

b. Indoor Unit Wiring ....................... 29

c. Power Speciﬁcations ................... 31

Air Evacuation............................................................. 33

a. Evacuation Instructions ...................................... 33

b. Note on Adding Refrigerant .......................... 34

Test Run....................................................................................................................... 35

MC MC

European Disposal Guidelines .......................................................... 36

Information Servicing .................................................................................

.................................................................................

Caution: Risk of re

(R32/R290 refrigerant)

Technical information

Wiring diagrams at the end of the manual

Accessories 1

Optional accessories

There are two types of remote controls: wired and wireless.

Select a remote controller based on customer preferences and requirements and install in an

appropriate place.

Refer to catalogues and technical literature for guidance on selecting a suitable remote controller.

•

The air conditioning system comes with the following accessories. Use all of the installation parts

and accessories to install the air conditioner. Improper installation may result in water leakage,

electrical shock and re, or equipment failure.

Connecting wire for display (2m)

Cord protection rubber ring

QUANTITY

SHAPENAME

Soundproof / insulation sheath 2

Tubing & Fittings

Others

Installation and operating manual 1

Drain joint (some models)

Seal ring (some models)

Drainpipe Fittings

(for cooling & heating)

Seal sponge (some models)

EMC Magnetic Ring

(some models)

Magnetic ring

(wrap the electric wires S1 & S2 ( P & Q & E )

around the magnetic ring twice)

Magnetic ring

(Hitch on the connective cable between the indoor

unit and outdoor unit after installation.)

Orice (some models) 1

1(on some models)

S1&S2(P&Q&E)

Display panel

*Just for testing purposes only 1(on some models-

KJR-120G,KJR-120H)

Safety Precautions 2

Read Safety Precautions Before Installation

Incorrect installation due to ignoring instructions can cause serious damage or injury.

The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION.

Failure to observe a warning may result in death. The appliance must be installed in

accordance with national regulations.

Failure to observe a caution may result in injury or equipment damage.

WARNING

CAUTION

WARNING

• Carefully read the Safety Precautions before installation.

•In certain functional environments, such as kitchens, server rooms, etc., the use of specially

designed air-conditioning units is highly recommended.

• Only trained and certied technicians should install, repair and service this air

conditioning unit.

Improper installation may result in electrical shock, short circuit, leaks, ﬁre or other damage to

the equipment and personal property.

• Strictly follow the installation instructions set forth in this manual.

Improper installation may result in electrical shock, short circuit, leaks, ﬁre or other damage to

the equipment.

• Before you install the unit, consider strong winds, typhoons and earthquakes that might aect

your unit and locate it accordingly. Failure to do so could cause the equipment to fail.

• After installation, ensure there are no refrigerant leaks and that the unit is operating properly.

Refrigerant is both toxic and ﬂammable and poses a serious health and safety risk.

Note about Fluorinated Gases

This air-conditioning unit contains ﬂuorinated gases. For speciﬁc information on the type of gas

and the amount, please refer to the relevant label on the unit itself.

Installation, service, maintenance and repair of this unit must be performed by a certiﬁed

technician.

3. Product uninstallation and recycling must be performed by a certiﬁed technician.

If the system has a leak-detection system installed, it must be checked for leaks at least every 12

months.

When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.

Installation Overview 3

123

MC MC

Install the indoor unit

(Page 8)

INSTALLATION ORDER

Install the outdoor unit

(Page 19)

Install the drainpipe

(Page 21)

Evacuate the refrigeration system

(Page 33)

Connect the wires

(Page 28

Connect the refrigerant pipes

(Page 24)

Perform a test run

(Page 35)

Fig. 4.3

Air lter

Descending ventilation opening and mounted hook

Air lter

Electric control box

Table.4-1 (unit: mm/inch)

MODEL

(Btu/h)

Outline dimension

ABC

air outlet opening size

DEF

air return opening size

Size of mounted lug

53M 210/8.3 674/26.5880/34.6

70M 249/9.8 774/30.51100/43.3

105M 249/9.8 774/30.51360/53.5

140M/160M 300/11.8 874/34.41200/47.2

136/5.4 706/27.8600/23.6

175/6.9 926/36.5700/27.6

175/6.9 1186/46.7700/27.6

227/8.9 1044/41.1800/31.5

190/7.5

228/8.9

280/11

920/36.2782/30.8

1140/44.91001/39.4

1400/55.11261/49.6

1240/48.81101/43.3

508/20

598/23.5

697/27.4

27M/35M 200/7.9 506/19.9700/27.6 152/6 537/21.1450/17.7 186/7.3 741/29.2599/23.6

360/14.2

Fig. 4.6 Fig. 4.7

Original concrete bricks

Use an embedding screw bolt, crock, and stick

harness.(See Fig.4.6)

Steel Roof beam structure

Install and use the supporting steel angle.

(See Fig.4.7)

Fig. 4.4

Wood

Place the wood mounting across the roof beam,

then install the hanging screw bolts.(See Fig.4.4)

Wood mounting

Roof beam

Hanging screw bolts

Ceiling Fig. 4.5

New concrete bricks

Inlay or embed the screw bolts. (See Fig. 4.5)

(Blade shape insertion) (Slide insertion)

Steel bar

Embedding screw bolt

(Pipe hanging and embedding screw bolt)

Hanging screw bolt

Hanging

bolts

Supporting

steel angle

Air inlet dimensions

Indoor Unit Installation 4

Indoor Unit Parts

Fig. 4.1

Air outlet

Air inlet

Air filter(on some models)

Drain hose

Electric control cabinet

Refrigerant connecting pipe

WARNING

• Securely install the indoor unit on a structure

that can sustain its weight. If the structure is

too weak, the unit may fall causing personal

injury, unit and property damage, or even

death

•DO NOT install the indoor unit in a bathroom

or laundry room as excessive moisture can

short the unit and corrode the wiring.

CAUTION

• Install the indoor and outdoor units, cables

and wires at least 1m (3.2’) from televisions

or radios to prevent static or image

distortion. Depending on the appliances, a

1m (3.2’) distance may not be sufﬁcient.

• If the indoor unit is installed on a metal

part of the building, it must be grounded.

Indoor Unit Installation Instructions

Step 1: Select installation location

The indoor unit should be installed in a location

that meets the following requirements:



Enough room for installation and maintenance.

Enough room for the connecting pipe and

drainpipe.

The ceiling is horizontal and its structure can

sustain the weight of the indoor unit.

The air inlet and outlet are not impeded.

The airﬂow can ﬁll the entire room.

There is no direct radiation from heaters.

CAUTION

DO NOT install the unit in the following

locations:

Where oil drilling or fracking is taking place.

Coastal areas with high salt content in the air

Near geothermal activity and corrosive gas

Buildings that may experience power

uctuations

Enclosed spaces

Areas with strong electromagnetic waves

Areas that store ammable materials or gas

Rooms with high humidity, such as

bathrooms or laundry rooms

√

Safety Precautions

It is embeded installation.

√

Models with a cooling capacity of 9000Btu to

18000Btu only apply to one room.

√

Air outlet

Air inlet

Step 2: Hang indoor unit.

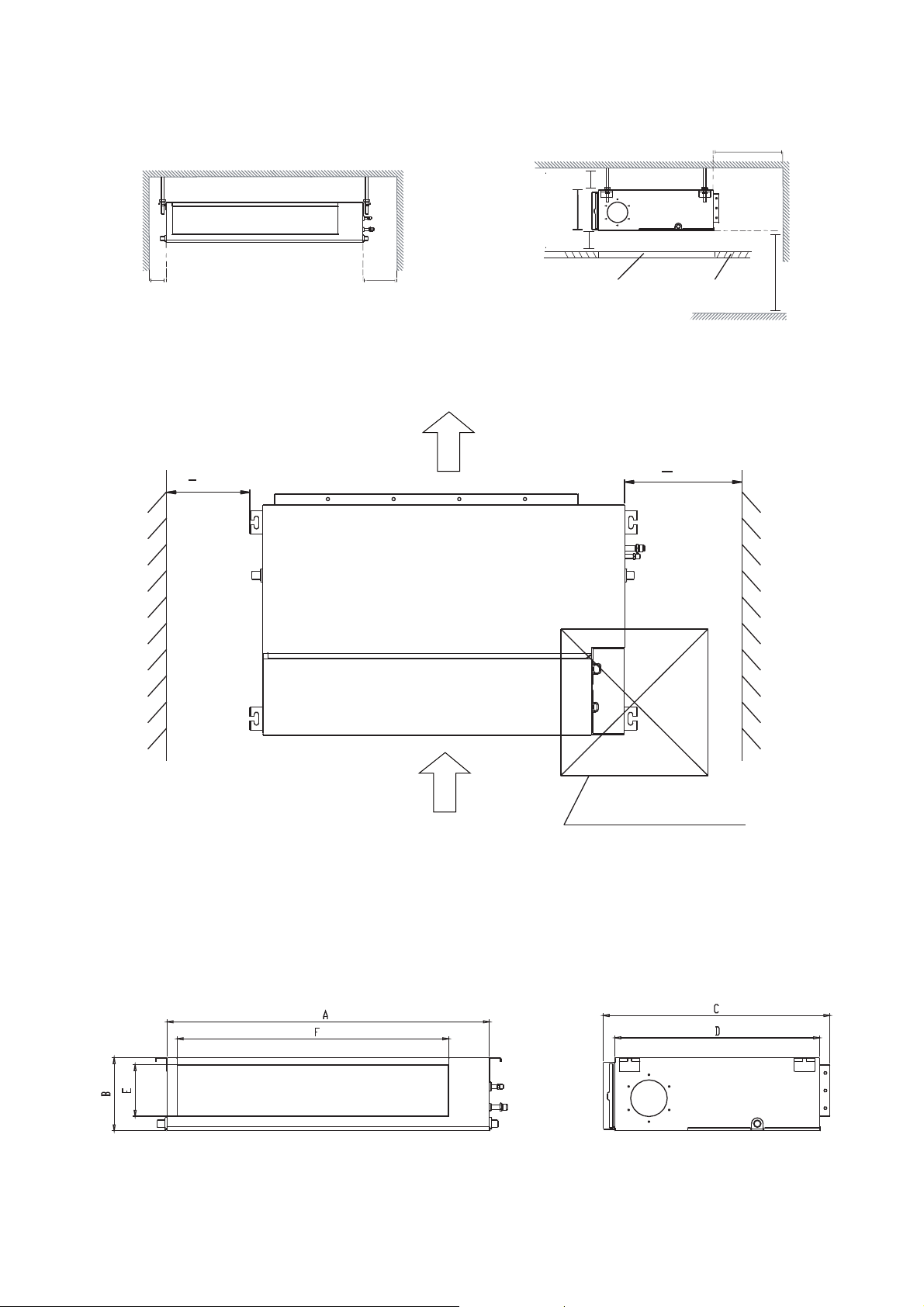

1. Please refer to the following diagrams to locate the four positioning screw bolt holes on the

ceiling. Be sure to mark the paces where you will drill ceiling hook holes.

Maintenance space

Installation place

Left

side

Right

side

Strong and durable ceiling

Indoor unit

>4in(10cm) >11.8in(30cm)

>0.8in(2cm)

>11.8in(30cm)

> 8.2in(250cm)

Floor

Service access Ceiling

(When no ceiling)

Fig. 4.2

Air outlet dimensions

e(20cm)

7.9in 11.8in

23.6inx23.6in (60cmx60cm)

checking orifice

e(30cm)

Fig. 4.10

Step 3: Duct and accessories installation

NOTE: 1. Do not place the connecting duct

weight on the indoor unit.

2. When connecting the duct, use an

nonammable canvas tie-in to prevent

vibrating.

3. Insulation foam must be wrapped outside the

duct to avoid condensate. An internal duct

underlayer can be added to reduce noise,

if the end-user requires.

1. Install the lter (optional) according to the size

of the air inlet.

5. Refer to the following static pressure guidelines

when installing the indoor unit.

Change the fan motor static pressure

according to external duct static pressure.

2. Install the canvas tie-in between the body and

the duct.

3. The air inlet and air outlet duct should be far

enough apart enough to a avoid air passage

short-circuit.

4. Connect the duct according to the following

diagram: Canvas tie-in Canvas tie-in

Air outlet

Isolation booth

checking orice

Air inlet

Air dust lter

Table.4-2

MODEL

(Btu/h)

Static Pressure

(Pa/in.wg)

0~100/0~0.4

53M

0~160/0~0.64

70M

0~160/0~0.64

105M

0~160/0~0.64

140M/160M

0~50/0~0.2

27M

0~50/0~0.2

35M

Cut o the roof beam.

Strengthen the point at which the cut

was made. Consolidate the roof beam.

Fig. 4.9

Screw nut

Washer

Hanging screw bolt

Overhang part

Shockproof cushion

NOTE:

Conrm the minimum drain tilt is 1/100

or more.

CAUTION

The unit body must be completely aligned with

the hole. Ensure that the unit and the hole are

the same size before moving on.

2. Install and t pipes and wires after you have

nished installing the main body.When

choosing where to start, determine the

direction of the pipes to be drawn out.

Especially in cases where there is a ceiling

involved, align the refrigerant pipes, drain

pipes, and indoor and outdoor lines with their

connection points before mounting the unit.

3. Install hanging screw bolts.

4. After you select an installation location,align

the refrigerant pipes, drain pipes, as well as

indoor and outdoor wires with their

connection points before mounting the unit.

5. Drill 4 holes 10cm (4”) deep at the ceiling

hook positions in the internal ceiling. Be sure

to hold the drill at a 90° angle to the ceiling.

6. Secure the bolt using the washers and nuts

provided.

7. Install the four suspension bolts.

8. Mount the indoor unit with at least two

people to lift and secure it. Insert suspension

bolts into the unit’s hanging holes. Fasten

them using the washers and nuts provided.

(See Fig. 4.8).

9. Mount the indoor unit onto the hanging

screw bolts with a block. Position the

indoor unit at using a level indicator to

prevent leaks. (See Fig. 4.9).

Fig. 4.8

This manual suits for next models

Table of contents

Other CLIVET Air Conditioner manuals

CLIVET

CLIVET Standing-SL 2 Reference manual

CLIVET

CLIVET SCHIARA 2 ME2-Y Series Reference manual

CLIVET

CLIVET WiSAN-YME 1 S 2.1 User manual

CLIVET

CLIVET Q4DN-2-XMi Series User manual

CLIVET

CLIVET MULTISplit HYDRO-M 80M User manual

CLIVET

CLIVET Box-SM 2 650x650 User manual

CLIVET

CLIVET CRISTALLO IM1-XY Series User manual

CLIVET

CLIVET CRC 242 Guide

CLIVET

CLIVET CEILING & FLOOR-SL 2 User manual

CLIVET

CLIVET ID2-XY 35M User manual

CLIVET

CLIVET CF Series Guide

CLIVET

CLIVET CASR-X Series User manual

CLIVET

CLIVET Cristallo Series User manual

CLIVET

CLIVET CLIVETPack2 CRH-XHE2 14.2 - 110.4 User manual

CLIVET

CLIVET EVH-X SPACE 2.1 Installation instructions

CLIVET

CLIVET MSAN-XMI 80M Series User manual

CLIVET

CLIVET ELFORoom2 003.0 Manual

CLIVET

CLIVET MKG-V300 Installation instructions

CLIVET

CLIVET MKG-V250 Installation instructions

CLIVET

CLIVET CRH-XHE2 14.2-44.4 User manual

CLIVET

CLIVET ELFOROOM 3 Manual

CLIVET

CLIVET Q4AN-2-XMi Series Reference manual

CLIVET

CLIVET Box-SL 2 Series User manual

CLIVET

CLIVET CPAN-XHE3 Manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
