CLIVET CEILING & FLOOR-SL 2 User manual

TECHNICAL MANUAL

LIGHT COMMERCIAL R32

CEILING & FLOOR-SL 2 70M-160M

2XWGRRUXQLW6/ 2 70M-160T

Note: for size 53M, see dedicated Technical Manual

18/01/2019

TM19A064GB-00

Table of Contents Page

1. Specifications ................................................................................................ 4

1. Model Reference

2. General Specifications

3. Dimensional Drawings

4. Centre of Gravity

5. Electrical Wiring Diagrams

6 Refrigerant Cycle Diagrams

7. Capacity Tables

8. Capacity Correction Factor for Height Difference

9. Noise Data

10. Electrical Characteristics

2. Product Features ........................................................................................... 65

1. Operation Modes and Functions

2. Remote Controller Functions

3. Installation .................................................................................................... 74

1. Installation Overview

2. Location Selection

3. Indoor Unit Installation

4. Outdoor Unit Installation

5. Drainage Pipe Installation

6. Refrigerant Pipe Installation

7. Vacuum Drying and Leakage checking

8. Additional Refrigerant Charge

Table of Contents Page

9. Engineering of Insulation

10. Engineering of Electrical Wiring

11. Test Operation

Contents

1. Model Reference....................................................................................................5

2. General Speciﬁcations...........................................................................................6

3. Dimensional Drawings ........................................................................................10

4. Centre of Gravity .................................................................................................13

5. Electrical Wiring Diagrams..................................................................................16

6 Refrigerant Cycle Diagrams ................................................................................30

7. Capacity Tables ....................................................................................................36

8. Capacity Correction Factor for Height Difference .............................................53

9. Noise Data............................................................................................................58

10. Electrical Characteristics......................................................................................64

Specifications

Speciﬁcations

Page 5 

1. Model Reference

Refer to the following table to determine the speciﬁc indoor and outdoor unit model number of your purchased

equipment.

Indoor Unit Model Outdoor Unit Model Capacity (Btu/h) Power Supply

1Φ, 220-240V~, 50Hz

IF2-XY 70M MC2-Y 70M 24K

IF2-XY 105M MC2-Y 105M 36K

IF2-XY 105M MC2-Y 105T 36K

3Φ, 380-410V~, 50Hz

IF2-XY 140M MC2-Y 140T 48K

IF2-XY 160M MC2-Y 160T 55K

Speciﬁcations

Page 6 

2. General Specifications

Indoor model IF2-XY 70M IF2-XY 105M

Outdoor model MC2-Y 70M MC2-Y 105M

Power supply (Indoor ) V- Ph-Hz 220~240-1-50 220~240-1-50

Power Supply (Outdoor)V-Ph-Hz 220~240-1-50 220~240-1-50

Max. input consumption W 2950 4700

Max. current A 13.5 21.5

Indoor fan motor

Model ZKFN-55-8-1 ZKFN-90-8-1

Qty 1 2

Insulation class E E

IP rating IPX4 IPX4

Input W 100.0 96.0

Capacitor uF / /

Speed(Hi/Mi/Lo) r/min 1200/1080/890 1200/1050/850

Indoor coil

Number of rows 3.0 3

Tube pitch(a)x row pitch(b) mm 21x13.37 21x13.37

Fin spacing mm 1.3 1.3

Fin type (code) Hydrophilic aluminum Hydrophilic aluminum

Tube outside dia.and type mm Φ7,Inner groove tube Φ7,Inner groove tube

Coil length x height x width mm 795x294x40.11 1300x294x40.11

Number of circuits 7 8

Indoor air ﬂow (Hi/Mi/Lo) m3/h 1208/1066/853 2160/1844/1431

ESP

Rated Pa / /

Range Pa / /

Indoor sound pressure level dB(A) 49/46/41 50/46/42

Indoor sound power level dB(A) 59 61

Indoor unit

Dimension(W*D*H) mm 1068x675x235 1650x675x235

Packing (W*D*H) mm 1145x755x313 1725x755x313

Net/Gross weight Kg 26.8/31.9 41.5/48

Design pressure MPa 4.2/1.5 4.2/1.5

Drainage water pipe diameter mm ODΦ25mm ODΦ25mm

Refrigerant piping Liquid side/ Gas side mm(inch) Φ9.52/Φ15.9(3/8"/5/8") Φ9.52/Φ15.9(3/8"/5/8")

Controller Remote contorl Remote contorl

Operation temperature °C 17-30 17-30

Room temperature

Cooling °C 17~32 17~32

Heating °C 0~30 0~30

Qty’per 20’ /40’ /40’HQ Indoor unit 102/220/252 72/147/167

Compressor

Model KTF235D22UMT KTF310D43UMT

Type ROTARY ROTARY

Brand GMCC GMCC

Capacity W 7650 10010

Input W 2065 2765

Rated current(RLA) A 9.4 5.38

Refrigerant oil/oil charge ml RB74A F/670 VG74/1000

Outdoor fan motor

Model ZKFN-50-8-2 ZKFN-120-8-2

Qty 1 1

Insulation class E E

IP rating IPX0 IPX4

Output W 115.0 150.0

Capacitor uF / /

Speed r/min 850 1050

Speciﬁcations

Page 7 

Outdoor coil

Number of rows 2.0 2.0

Tube pitch(a)x row pitch(b) mm 25.4x22 25.4x22

Fin spacing mm 1.4 1.3

Fin type (code) Hydrophilic aluminum Hydrophilic aluminum

Tube outside dia.and type mm Φ9.52,Inner groove tube Φ9.52,Inner groove tube

Coil length x height x width mm 730x660x44 995x762x44

Number of circuits 4 4

Outdoor air ﬂow m3/h 2700 4000

Outdoor sound pressure level dB(A) 59 63

Outdoor sound power level dB(A) 64 67

Throttle type EXV+Capillary EXV+Capillary

Outdoor unit

Dimension(W*D*H) mm 845x363x702 946x410x810

Packing (W*D*H) mm 965x395x765 1090x500x875

Net/Gross weight Kg 49.4/52.8 66.8/73.4

Refrigerant type

Type - R32 R32

GWP - 675 675

Charged quantity Kg 1.5 2.4

Design pressure MPa 4.2/1.5 4.2/1.5

Refrigerant piping

Liquid side/ Gas side mm(inch) Φ9.52/Φ15.9(3/8"/5/8") Φ9.52/Φ15.9(3/8"/5/8")

Max. refrigerant pipe length m 50 65

Max. difference in level m 25 30

Ambient temperature

Cooling °C -15~50 -15~50

Heating °C -15~24 -15~24

Qty’per 20’ /40’ /40’HQ Outdoor unit 102/215/216 44/96/144

Notes:

1) Capacities are based on the following conditions:

Cooling(T1): - Indoor Temperature 27°C(80.6°F) DB /19 °C(66.2°F) WB Heating: - Indoor Temperature 20°C(68°F) DB / 15°C(59°F) WB

-Outdoor Temperature 35 °C(95°F) DB /24 °C(75.2°F) WB -Outdoor Temperature 7°C(44.6°F) DB / 6°C(42.8°F) WB

-Interconnecting Piping Length 5m - Interconnecting Piping Length 5 m

- Level Difference of Zero. - Level Difference of Zero.

2) Capacities are Net Capacities.

3) Due to our policy of innovation some speciﬁcations may be changed without notiﬁcation.

Speciﬁcations

Page 8 

Indoor model IF2-XY 105M IF2-XY 140M IF2-XY 160M

Outdoor model MC2-Y 105T MC2-Y 140T MC2-Y 160T

Power supply (Indoor ) V- Ph-Hz 220~240-1-50 220~240-1-50 220~240-1-50

Power Supply (Outdoor)V-Ph-Hz 380~415-3-50 380~415-3-50 380~415-3-50

Max. input consumption W 5600 6200 7500

Max. current A 10.0 11.2 14

Indoor fan motor

Model ZKFN-90-8-1 ZKFN-90-8-1 ZKFN-160-8-1-2

Qty 2 2 2

Insulation class E E E

IP rating IPX4 IPX4 IPX0

Input W 96.0 96.0 90.0

Capacitor uF / / /

Speed(Hi/Mi/Lo) r/min 1200/1050/850 1300/1100/850 1350/1050/850

Indoor coil

Number of rows 3 3 3

Tube pitch(a)x row pitch(b) mm 21x13.37 21x13.37 21x13.37

Fin spacing mm 1.3 1.3 1.3

Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum

Tube outside dia.and type mm Φ7,Inner groove tube Φ7,Inner groove tube Φ7,Inner groove tube

Coil length x height x width mm 1300x294x40.11 1300x294x40.11 1300x294x40.11

Number of circuits 8 8 8

Indoor air ﬂow (Hi/Mi/Lo) m3/h 2160/1844/1431 2329/1930/1417 2454/1834/1426

ESP

Rated Pa / / /

Range Pa / / /

Indoor sound pressure level dB(A) 50/46/40 54/50/46 54/47/42

Indoor sound power level dB(A) 57 66 69

Indoor unit

Dimension(W*D*H) mm 1650x675x235 1650x675x235 1650x675x235

Packing (W*D*H) mm 1725x755x313 1725x755x313 1725x755x313

Net/Gross weight Kg 41.5/48 41.2/47.6 41.4/47.8

Design pressure MPa 4.2/1.5 4.2/1.5 4.2/1.5

Drainage water pipe diameter mm ODΦ25mm ODΦ25mm ODΦ25mm

Refrigerant piping Liquid side/ Gas side mm(inch) Φ9.52/Φ15.9(3/8"/5/8") Φ9.52/Φ15.9(3/8"/5/8") Φ9.52/Φ15.9(3/8"/5/8")

Controller Remote contorl Remote contorl Remote contorl

Operation temperature °C 17-30 17-30 17-30

Room temperature

Cooling °C 17~32 17~32 17~32

Heating °C 0~30 0~30 0~30

Qty’per 20’ /40’ /40’HQ Indoor unit 72/147/167 72/147/167 72/147/167

Compressor

Model KTF310D43UMT KTQ420D1UMU KTQ420D1UMU

Type ROTARY ROTARY ROTARY

Brand GMCC GMCC GMCC

Capacity W 10010 13700 13700

Input W 2765 3700 3700

Rated current(RLA) A 5.38 7.02 7.02

Refrigerant oil/oil charge ml VG74/1000 VG74/1400 VG74/1400

Outdoor fan motor

Model ZKFN-120-8-2 ZKFN-85-8-22 ZKFN-85-8-22-2

Qty 1 2 2

Insulation class E E E

IP rating IPX4 IPX4 IPX4

Output W 150.0 126.0 126.0

Capacitor uF / / /

Speed r/min 1050 850 850

Speciﬁcations

Page 9 

Outdoor coil

Number of rows 2.0 1.6 2.0

Tube pitch(a)x row pitch(b) mm 25.4x22 25.4x22 25.4x22

Fin spacing mm 1.3 1.4 1.4

Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum

Tube outside dia.and type mm Φ9.52,Inner groove tube Φ9.52,Inner groove tube Φ9.52,Inner groove tube

Coil length x height x width mm 995x762x44 990x1270x22+500x1270x22 990x1270x44

Number of circuits 4 8 8

Outdoor air ﬂow m3/h 4000 7500 7500

Outdoor sound pressure level dB(A) 61 66 65

Outdoor sound power level dB(A) 64 72 74

Throttle type EXV+Capillary EXV+Capillary EXV+Capillary

Outdoor unit

Dimension(W*D*H) mm 946x410x810 952x415x1333 952x415x1333

Packing (W*D*H) mm 1090x500x875 1095x495x1480 1095x495x1480

Net/Gross weight Kg 81.5/87.0 106.7/119.9 111.3/124.3

Refrigerant type

Type - R32 R32 R32

GWP - 675 675 675

Charged quantity Kg 2.4 2.8 2.95

Design pressure MPa 4.2/1.5 4.2/1.5 4.2/1.5

Refrigerant piping

Liquid side/ Gas side mm(inch) Φ9.52/Φ15.9(3/8"/5/8") Φ9.52/Φ15.9(3/8"/5/8") Φ9.52/Φ15.9(3/8"/5/8")

Max. refrigerant pipe length m 65 65 65

Max. difference in level m 30 30 30

Ambient temperature

Cooling °C -15~50 -15~50 -15~50

Heating °C -15~24 -15~24 -15~24

Qty’per 20’ /40’ /40’HQ Outdoor unit 44/96/144 22/48/48 22/48/48

Notes:

1) Capacities are based on the following conditions:

Cooling(T1): - Indoor Temperature 27°C(80.6°F) DB /19 °C(66.2°F) WB Heating: - Indoor Temperature 20°C(68°F) DB / 15°C(59°F) WB

-Outdoor Temperature 35 °C(95°F) DB /24 °C(75.2°F) WB -Outdoor Temperature 7°C(44.6°F) DB / 6°C(42.8°F) WB

-Interconnecting Piping Length 5m - Interconnecting Piping Length 5 m

- Level Difference of Zero. - Level Difference of Zero.

2) Capacities are Net Capacities.

3) Due to our policy of innovation some speciﬁcations may be changed without notiﬁcation.

Speciﬁcations

Page 10 

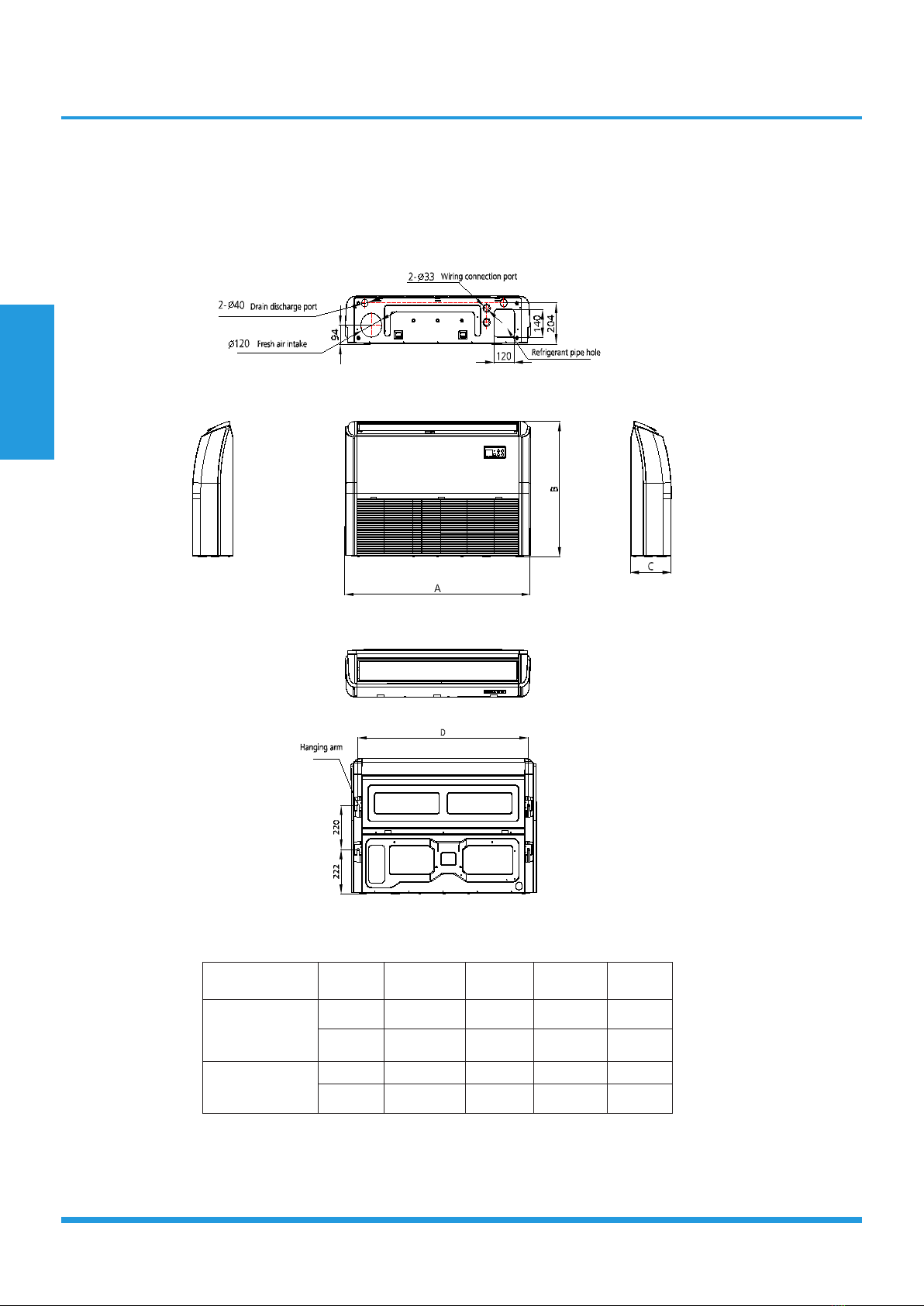

3. Dimensional Drawings

3.1 Indoor Unit

Model Unit A B C D

70M

mm 1068 675 235 983

inch 42.05 26.57 9.25 38.7

105M-160M mm 1650 675 235 1565

inch 64.96 26.57 9.25 61.61

This manual suits for next models

Table of contents

Other CLIVET Air Conditioner manuals

CLIVET

CLIVET Box-SL 2 Series User manual

CLIVET

CLIVET SCHIARA 2 ME2-Y Series Reference manual

CLIVET

CLIVET MKG-V300 Installation instructions

CLIVET

CLIVET CRISTALLO IM1-XY Series User manual

CLIVET

CLIVET EVH-X SPACE 2.1 Installation instructions

CLIVET

CLIVET MM2-Y Series Reference manual

CLIVET

CLIVET Box - SL 950x950 User manual

CLIVET

CLIVET Box-SL MC2-Y 70M User manual

CLIVET

CLIVET CAS Series User manual

CLIVET

CLIVET CRH-XHE2 14.2-44.4 User manual

CLIVET

CLIVET ELFOROOM 3 Manual

CLIVET

CLIVET DUCT-SM 2 User manual

CLIVET

CLIVET WSAN-YMi Series Reference manual

CLIVET

CLIVET DUCT-SL 2 Series User manual

CLIVET

CLIVET Cristallo Series User manual

CLIVET

CLIVET Q4AN-2-XMi Series Reference manual

CLIVET

CLIVET STELVIO MH1-Y Series Reference manual

CLIVET

CLIVET SCHIARA-SM IE1-XY Series User manual

CLIVET

CLIVET SCHIARA 2 Reference manual

CLIVET

CLIVET SCHIARA S.IE1+ME1-Y Series User manual

CLIVET

CLIVET Versatemp EQV-X Guide

CLIVET

CLIVET WSAT-2 Guide

CLIVET

CLIVET EVH-X SPACE 2.1 Installation instructions

CLIVET

CLIVET CASR-X Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
