ClimateRight CR2500ACH User manual
Installation Instructions
Version 01
CR2500ACH
CR5000ACH
Portable Heating and Air Conditioning Unit
2
INSTALLATION INSTRUCTIONS
REQUIRED TOOLS (NOT SUPPLIED)
·Electric Drill
·Pencil
·Tape Measure
·3-1/2”Bi-Metal Hole Saw (See picture at right)
·6 - #8 Wood Screws or equivalent size sheet metal screw and nut (Not supplied)
(Customer must choose and supply the screws based on the thickness and type material
being screwed into. See Figure 1 to help determine proper screw size. )
·Screwdriver to match screw heads

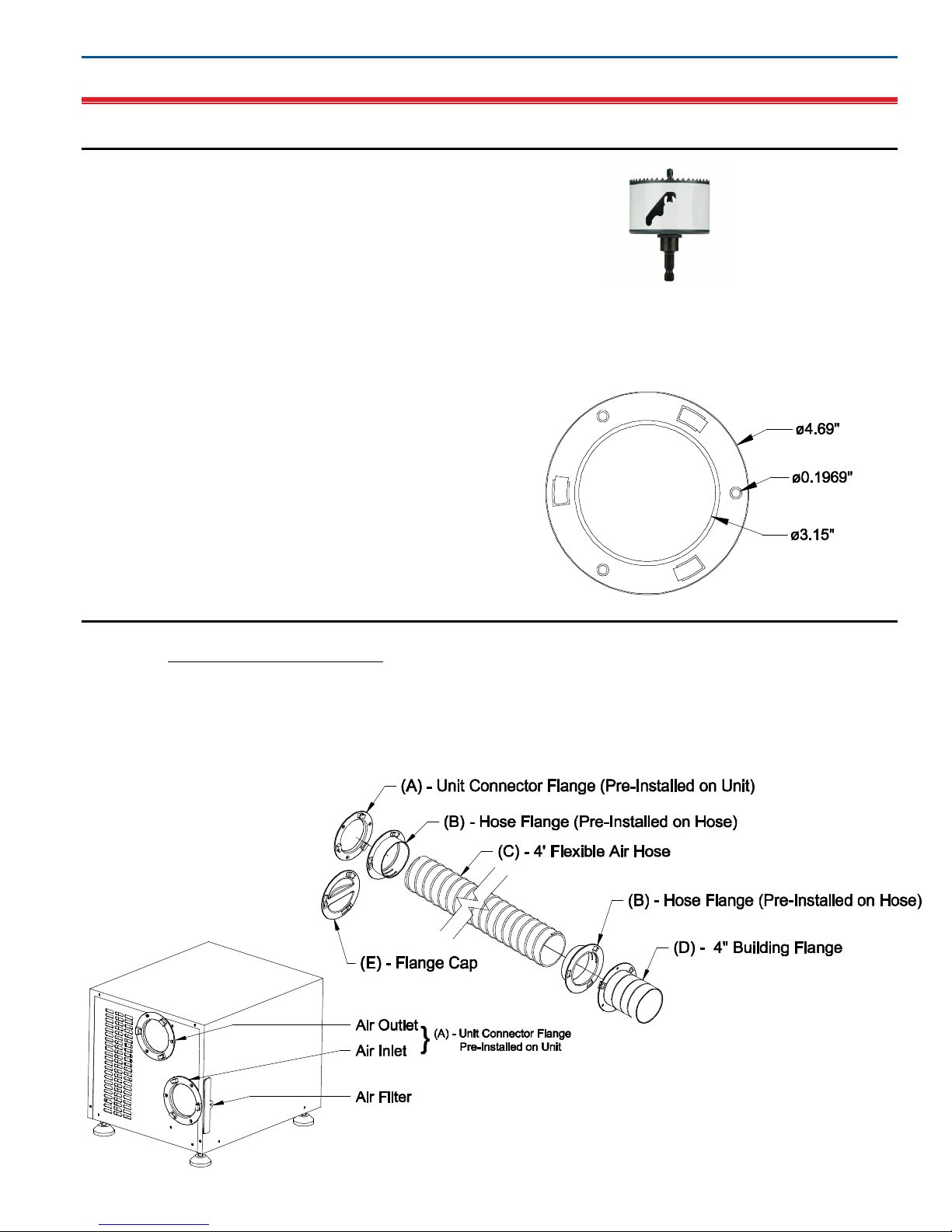

INCLUDED PARTS
Quick Connect Hose System
A. (2) Unit Connector Flanges (Pre-mounted to ClimateRight®)
B. (4) Hose Flanges (Pre-mounted to Hoses)
C. (2) 4’Flexible Air Hose
D. (2) 4”Building Flanges
E. (4) Flange Caps
Figure 1
Building Flange
3
INSTRUCTIONS

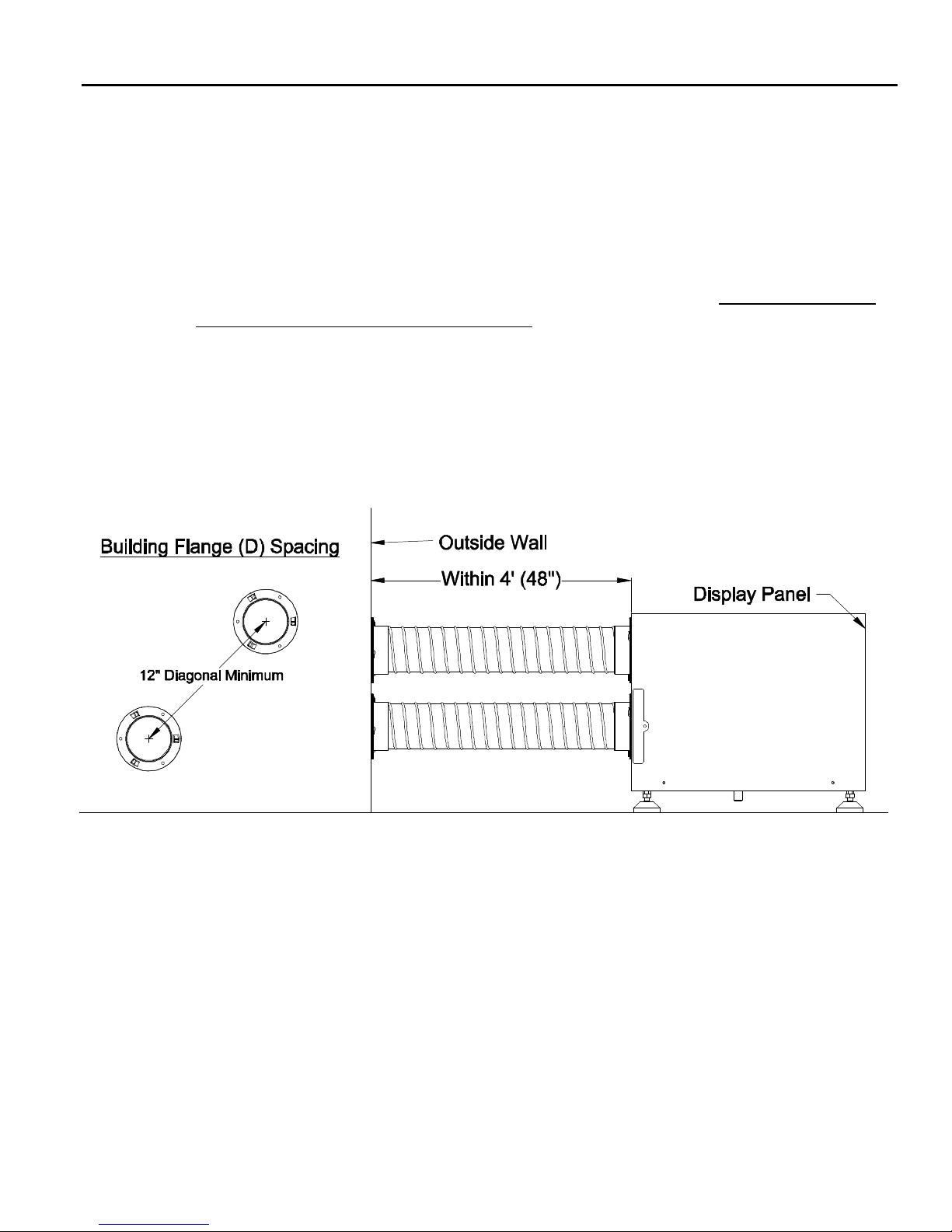

1. Choose a firm, flat and level location next to the structure. The unit must be within 4’(48”)
of the structure (closer, if there will be bends in the air hose) and 8’to a 120V power outlet.
The closer the unit is to the structure, the better the airflow will be. (See Figure 2.1)
2. Place the ClimateRight unit at the chosen location. Orient the unit with the Air Inlet and
Outlet toward the structure and the display panel away from the structure.
Note: It is important to face the control panel toward an area from which the remote
control will be used, but do not turn the unit so the air hoses will bend more than 90
degrees. This will degrade airflow and heating and cooling capacity. All control functions
will be performed from the remote control.
3. Before marking locations to drill the holes for the flanges, make sure there are no electrical
wires, pipes or obstructions of any type behind the proposed drilling locations.
4. Find a location where the first hole will be located. The hole locations should not be placed
where objects could block the air flow. Mark the first location with a pencil.
5. The second hole location must be spaced a minimum of 12”diagonally from the first hole
location. Mark this location with a pencil. (See Figure 2.2)
6. With no obstructions behind the marked locations, drill out the holes with the 3-1/2”hole
saw.
7. Once the holes have been drilled, insert a ClimateRight Building Flange (D).
Note: If the building flange is too long, it can be cut to length. The grooves on the flange
are spaced at 1”intervals.
8. If necessary, mark the screw hole locations with a pencil and drill pilot holes for the screws.
(For #8 wood screws use a 5/64”drill bit)
Figur
e 2
.1
Figur
e 2
.2
4
9. Take 3 screws and secure the Building Flange into the structure. Repeat steps 6-8 for the
second Building Flange (D).
10. The Air Hoses (C) and Hose Flanges (B) are pre-assembled at the factory. Take one of these
assemblies and extend the accordion style hose so it is long enough to reach the unit and
the structure.

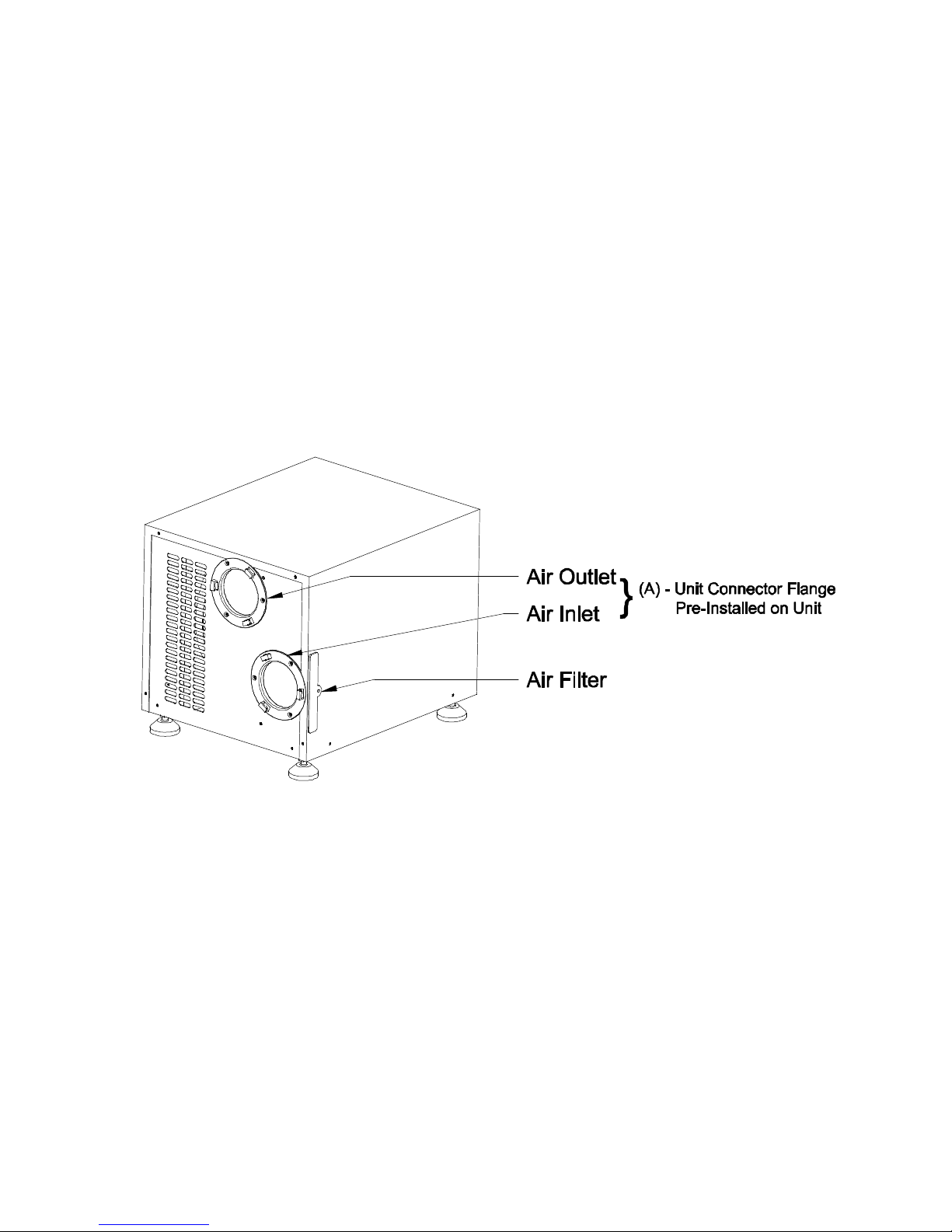

11. Mate the Hose Flange (B) to the ‘Air Outlet’Unit Connector Flange (A) (See Figure 3) that is
pre-installed on the unit. Turn the Hose Flange clockwise until they “click”together.
12. Take the other side of the Air Hose and Hose Flange and install it onto the higher Building
Flange (D).
13. Install the second Air Hose onto the ‘Air Inlet’by repeating steps 10 and 11.
14. Take the power cord and plug the unit into a GFCI protected receptacle or a receptacle with
a weatherproof (while-in-use) cover.
15. The ClimateRight unit is now ready for use.
Figur
e 3
is a registered trademark of ClimateRight, LLC.
©2014 ClimateRight, LLC.
CR2500ACH12S
CR
5
0
00ACH12S
On the Internet:
The most recent information about ClimateRight
can be found at www.climaterightair.com
Corporate Address:
ClimateRight, LLC.
808 Rhoads Ave
Columbus, OH 43205
