Clarke PSP195 Instruction Manual

OPERATION & MAINTENANCE

INSTRUCTIONS

GC0819 - ISS 1

ORIGINAL INSTRUCTIONS

PUDDLE PUMP

MODEL NO: PSP195

PART NO: 7239240

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Puddle Pump. The pump is of the

submersible type, designed for domestic use, with manual or automatic

operation. It is suitable for drying out basements subject to flooding and for

pumping drainage wells or rainwater collecting traps.

Due to its compact shape, it can be used as a portable pump for emergency

situations such as for drawing water from tanks or rivers, draining swimming

pools and fountains, excavations or underpasses. Also suitable for gardening

and general hobby activity.

This pump should not be used in swimming pools, ponds or hot tubs where

people are present, or for pumping hydrocarbons (petrol, diesel fuel,

combustible oils, solvents, etc.) in accordance with the accident-prevention

regulations in force.

It is not designed for continuous use, but over a limited period and should be

cleaned before putting away in storage. See the section “Maintenance”.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY INSTRUCTIONS

GENERAL

1. Read all instructions before use

and save these instructions for

future use.

2. An approved residual current

device (RCD) which has a

tripping current of less then 30mA

MUST be used for all operations.

3. The electrical supply must be the

same as that on the rating plate.

4. Always make sure that your

hands are dry when connecting

or disconnecting from the mains

supply.

5. Never pull the mains lead to

disconnect the pump from the

mains socket.

6. The mains plug must be kept

away from the water at all times.

7. Do not allow children or

unauthorised people to touch the

pump, cables or connections.

8. Disconnect the pump from the

mains supply when not in use.

9. Keep the mains lead away from

heat, oil and sharp edges.

10. If you have to use an extension

lead with this product it must be

designed for outdoor use and

incorporate a cable suitable for

use with Class I appliances.

11. Disconnect the pump from the

electrical supply and wear gloves

during servicing or maintenance.

PUMP SPECIFIC

1. Do not pump explosive /

flammable liquids or chemicals.

2. Never allow the pump to run dry

or operate out of the water.

3. Submersible pumps should always

be submerged and stored

vertically.

4. Disconnect the pump from the

mains supply before placing it

into or removing it from the water.

5. Always check the plug and cable

for damage before use.

6. Do not use the pump if

damaged. Refer to qualified

service personnel for repair.

7. Never carry or lower the pump by

the power cable. Always use the

handle or a rope tied securely to

the handle.

8. Never use the submersible pump

in a swimming pool when there

are people or animals in the pool.

9. Keep the pump clear of sediment

by standing it on a platform or

brick or suspending it at a suitable

depth.

10. Do not use the pump if the water

is liable to freeze, as this can

cause damage to the pump.

Remove the pump from the

water and store it in a frost free

location.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

These pumps MUST be fitted with a Residual Current Device (RCD), with a

rated residual operating current of no greater than 30mA. This is essential

when the pump is used for pumping swimming pools.

The mains lead must be connected to a standard 230 volt (50Hz) electrical

supply through an approved plug or a suitably fused isolator switch.

As the colours of the flexible cable of this appliance may not correspond with

the coloured markings identifying terminals in your plug proceed as follows:

• The BLUE wire must be

connected to the

terminal which is

marked N.

• The BROWN wire must

be connected to the

terminal which is

marked L.

• The YELLOW AND

GREEN wire must be

connected to the

terminal which is

marked E or .

In the event that the pump is hard-wired into the electrical system, it must be

carried out in accordance with IEE regulations.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INSTALLING THE PUMP

1. Remove all packaging and make sure that the pump has no visible

damage. Dispose of all packaging appropriately.

• The stepped hose adaptor supplied is

designed to be used for either screw type

hose connection or push fit.

2. Connect a suitable hose (not supplied) to the

adaptor.

• Suitable hoses are available from your local

Clarke dealer.

3. When push fitting the hose to the adaptor use

a jubilee clip to secure it.

4. Stand the pump upright on a flat surface in the

water that you want to drain.

5. Ensure the pump is positioned with adequate

space - recommended minimum base area of

20 x 20 cm and the maximum depth of any

installation - 7 metres. The pump is supplied with 10 metres of power cable.

6. Always raise and lower the pump using the lifting handle and a rope

attached to it if required. Never lift or lower the pump using the power

cable.

• The filter base inlet must be fully submerged before the pump is switched

on and the pump is standing vertical.

7. Connect the mains plug to the mains supply via a high sensitivity residual

current device (RCD) which has a tripping current of less then 30mA.

8. Switch the mains power supply on.

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE AND DO NOT

USE IF DAMAGED IN ANY WAY.

WARNING: THE WATER SEAL CONTAINS LUBRICANT WHICH IS NON-TOXIC

BUT WHICH MAY ALTER THE CHARACTERISTICS OF THE WATER IN THE CASE

OF PURE WATER, IF THE PUMP WERE TO DEVELOP ANY LEAKS.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

To operate the pump move the tab to the

required position for either Auto or Manual mode.

AUTOMATIC OPERATION (A)

To set the pump running automatically:

1. Move the tab until the indicator is positioned

on “A” (automatic).

• When the float reaches the ON level the

pump will start and will continue operating

until the float drops to the OFF level.

MANUAL OPERATION (M)

To manually start the pump:

1. Lift the tab until the indicator is positioned on

“M” (manual).

• The pump will run indefinately.

2. When the water level is down to 2-3 mm disconnect the pump from the

mains power suppy..

The pump is fitted with a thermal overload switch. If the pump overheats for

any reason, it will automatically switch OFF. Once the pump has cooled (at

least 5-10 minutes), it will automatically restart.

AFTER USE

If the temperature is lower than 0°C, ensure there is no residual water in the

pump which could freeze, causing cracks in the plastic parts.

If the pump has been used with substances that tend to form a deposit, or

with water containing chlorine, rinse it after use with a powerful jet of water in

order to avoid the formation of deposits which would reduce the

performance of the pump.

CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

This pump should require no maintenance other than regular cleaning. If the

pump shows signs of wear or damage contact your CLARKE dealer for advice.

CLEANING

1. Check the pump regularly to ensure the water

inlet is clear of leaves or other debris. If foreign

material has been drawn into the pump inlet,

further cleaning may be required.

CLEANING THE FILTER BASE AND IMPELLER

1. Switch off the power supply to the pump.

2. Remove the retaining screws securing the filter

base and lift the base away.

3. Clean the impeller and check that it can spin

freely.

4. Re-fit the filter base.

CLEANING THE FLOAT SWITCH

1. If a collection of foreign material is

impeding the movement of the

float switch it may be necessary

to clean it.

2. Position the control tab at “O” and

unclip the cover by pulling it away

from the pump body.

3. Remove any foreign material that

prevents the free movement of

the float.

4. Re-fit the cover.

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT

IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED,

ENSURE THE CIRCUIT BREAKER IS OPEN.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

If this does not solve your problem, please contact the CLARKE service

department. Do not attempt to repair the pump yourself. Repairs must be

carried out by your CLARKE dealer.

PROBLEM SOLUTION

PUMP WILL

NOT START

1. Make sure that the power is switched on.

2. Check fuse (consult an electrician if in doubt).

3. If extension lead is used, check connections (consult an

electrician if in doubt).

4. Internal thermal cut-out has not re-set. Leave for 5-10

minutes and try again.

5. The impeller may be jammed. Disconnect from the mains

supply and remove any objects that may be obstructing

the impeller.

6. Float switch may be jammed or prevented from moving.

7. Water level too low - float switch in OFF position - lift float

to check switch.

8. If the pump still fails to start, consult your CLARKE dealer

for advice.

PUMP WILL

START BUT NOT

PUMP

1. Check that the inlet is not blocked.

2. Check that the discharge tube is not clogged or

obstructed.

3. The head may be too great, i.e. you are trying to lift the

water too great a distance for the pump to cope with.

(“It is not designed for continuous use, but over a limited

period and should be cleaned before putting away in

storage. See the section “Maintenance”.” on page 2).

4. Air bubble in the pump, produced during the plunge.

Plunge the pump again, at an angle, and shake it whilst

lowering to remove any air trapped in the system.

5. Impeller may be damaged - Consult your CLARKE dealer.

PUMP WILL

NOT STOP

1. Float switch may be prevented from moving to the fully

down position.

2. Float switch may be faulty. Consult your CLARKE dealer

for advice.

PUMP STOPS

RUNNING

1. Thermal overload has operated. Leave for 5-10 minutes

and try again.

2. Pump has run dry or float switch has cut in.

3. A foreign object has jammed the impeller.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS DIAGRAM

1 Capacitor holder / connector 10 Impeller kit

2 Seal kit 11 Filter base

3 Motor screws & o-rings 12 Float switch cover

4 Handle c/w screws 13 Stepped adaptor / O-ring

5 Cover unit with power cable 14 Pump body kit

6 Capacitor 15 Control tab

7 Motor assembly 16 Float guide

8 O-Ring kit 17 Filter base screws

9 Floatswitch 18 Cover retaining screws

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

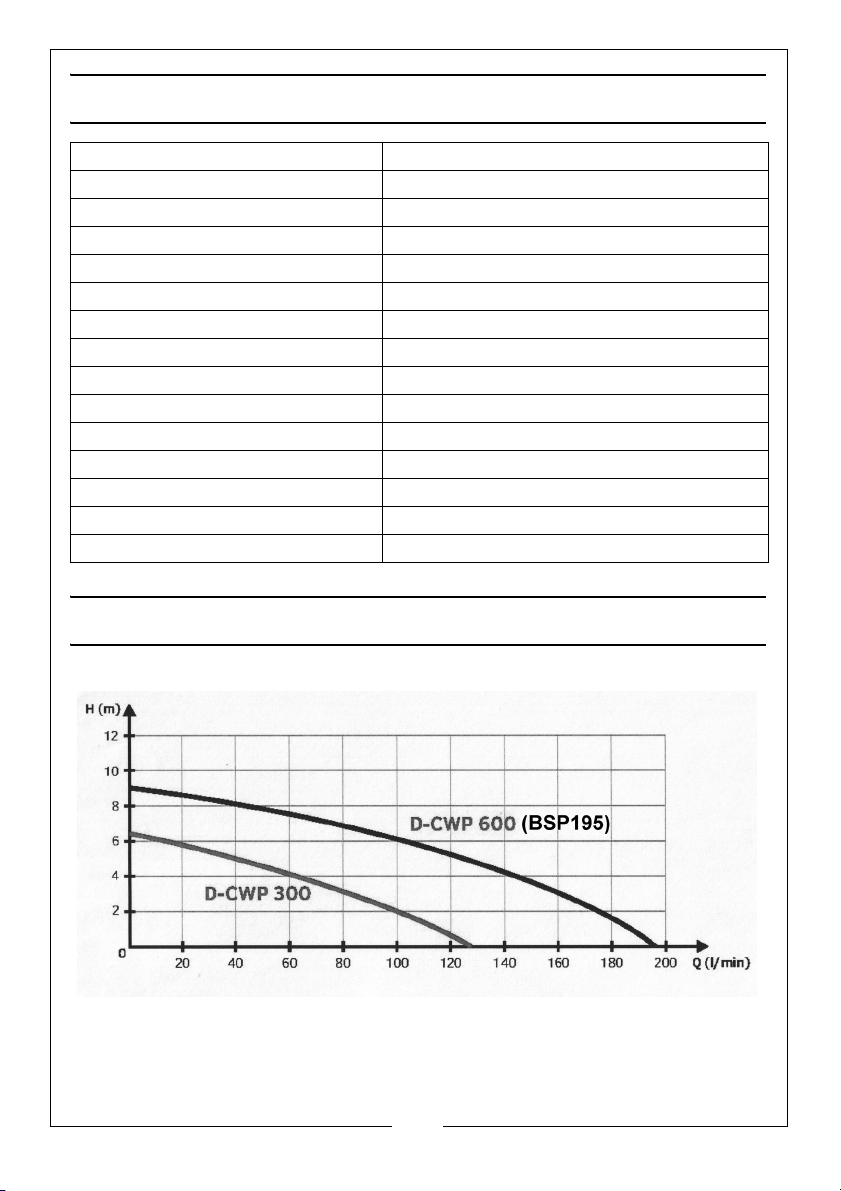

SPECIFICATIONS

PERFORMANCE CURVE

Dimensions (D x W x H) 225 x 185 x 335 mm (exc adaptor)

Weight 5.3 kg

Outlet Size 32 mm dia (male 1¼“ BSP)

Power supply 230v ~ 50 Hz

Rated power 665 W

Fuse Rating in BS plug 13 A

Cable length 10 m

IP Rating IP X8

Maximum delivery 195 L/min

Max. head 9 m

Max particle size 5 mm

Maximum depth 7 m

Residual water depth 2-3 mm

Minimum automatic starting depth 115 mm

Automatic stopping depth 45 mm

Table of contents

Other Clarke Water Pump manuals

Clarke

Clarke CBP900 Instruction Manual

Clarke

Clarke IVP13A Installation and operation manual

Clarke

Clarke PSV1A Instruction Manual

Clarke

Clarke CSV4A Instruction Manual

Clarke

Clarke PS75A Instruction Manual

Clarke

Clarke CPE15S Instruction Manual

Clarke

Clarke PSP105 Instruction Manual

Clarke

Clarke CBM100SS Instruction Manual

Clarke

Clarke CPCDP500 Instruction Manual

Clarke

Clarke PSV7A Instruction Manual

Clarke

Clarke DFT230 Instruction Manual

Clarke

Clarke CGP870 Instruction Manual

Clarke

Clarke CPE Series Instruction Manual

Clarke

Clarke Hippo 2A Manual

Clarke

Clarke DFT12 Instruction Manual

Clarke

Clarke PW80A Instruction Manual

Clarke

Clarke CBT1300SS Instruction Manual

Clarke

Clarke PW2 Installation and operation manual

Clarke

Clarke PSE1A Instruction Manual

Clarke

Clarke HIPPO Jr Installation and operation manual

Clarke

Clarke CWBP300 Instruction Manual

Clarke

Clarke HSEC651A Instruction Manual

Clarke

Clarke CU150 Installation and operation manual

Clarke

Clarke PSV5A Instruction Manual

Popular Water Pump manuals by other brands

Neptun

Neptun NPHW 5500 operating instructions

Sensidyne

Sensidyne Gilian BDX-II Operation & service manual

Draper

Draper 47808 instructions

Trolla

Trolla 12820 manual

Sunfab

Sunfab SVH Series installation guide

WilTec

WilTec 50740 Operation manual

Fieldmann

Fieldmann FVC 5015 EK user manual

Everbilt

Everbilt EFSUB5-122HD Use and care guide

Graco

Graco Husky 3300e manual

esotec

esotec 101018 operating manual

moyno

moyno 2000 CC Service manual

Becker

Becker BASIC VASF 2.80/1-0.AC230 operating instructions

Sykes AmeriPumps

Sykes AmeriPumps GP100M Operation and maintenance instructions

DUROMAX

DUROMAX XP WX Series user manual

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 operating instructions

Franklin Electric

Franklin Electric IPS Installation & operation manual

Xylem

Xylem e-1532 Series instruction manual

Milton Roy

Milton Roy PRIMEROYAL instruction manual
