Clarke CBT1300SS Instruction Manual

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC09/22

BOOSTER PUMP

MODEL NO: CBT1300SS

PART NO: 7238020

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Booster Pump. which is suitable for a

variety of applications involving the transfer of clean, cold water (up to a

maximum of 35oC) for domestic and gardening applications.

Please read this manual thoroughly and ensure you are familiar with all

aspects relating to your particular pump before its connection and use. This

will ensure the safe and proper installation of the pump and assist it in

providing a long, trouble free performance.

Please keep these instructions in a safe place for future reference.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

If disposing of this product or any damaged components, do not dispose of

with general waste. This product contains valuable raw materials. Metal

products should be taken to your local civic amenity site for recycling of metal

products.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SPECIFICATION

Model CBT1300SS

Maximum Delivery 90 L/min

Maximum Head 35 m (as set with pressure switch)

Operating Pressure 3.5 Bar

Ingress Protection Rating IPx5

Supply 230V ~ 50Hz

Rated Input Power 1350 W

Rated output Power 1050 W

Input current @ Maximum Head 5.42 A

Input current @ Maximum Flow 5.37 A

Tank Capacity 24 Litres

Tank rated pressure 8 Bar

Outlet Thread Size 1” BSP

Product weight 16.5 kg

Overall dimensions (L x W x H) 530 x 270 x 560 mm

Sound pressure level 56.47 dB LpA average

Sound Power Level 69.5 dB

Guaranteed sound power level 71.22 dB

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY PRECAUTIONS

Before using this product it is in your own interest to read and pay attention to

the following safety rules.

1. ALWAYS keep the working area clean and well lit. Floors should always be

kept clear. Cluttered or dark areas invite accidents.

2. NEVER over-reach. Keep your proper footing and balance at all times

when installing or maintaining the pump.

3. NEVER direct any water discharge towards electrical wiring or equipment.

4. ALWAYS thoroughly familiarise yourself with this pump & its operation, and

follow all instructions in this manual. Never allow persons unfamiliar with

these instructions to install or operate the pump.

5. ALWAYS ensure that the pump is properly installed to prevent it from moving

during operation and that the immediate area surrounding the pump is

kept clear.

6. ALWAYS maintain the pump with care and keep it clean for best / safest

performance.

7. NEVER modify this pump in any way. Use it only for the purpose for which it

is designed.

8. NEVER use for pumping flammable liquids or corrosive chemicals. This

pump is only designed to pump clean water.

9. ALWAYS have the pump serviced by your local dealer, using only identical

replacement parts. This will ensure the safety of the pump is maintained.

The use of non standard parts could be hazardous.

10. NEVER use this product if any part is damaged. Have it inspected and

repaired by your local Clarke dealer. Always turn the pump off before

carrying out any maintenance.

11. NEVER allow the pump to run dry.

WARNING: ALWAYS CONNECT THE PUMP TO AN EARTHED POWER SUPPLY

VIA AN RCD.

CAUTION: THIS PUMP IS NOT A SUBMERSIBLE PUMP. ON NO ACCOUNT

SHOULD IT EVER BE IMMERSED IN WATER.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

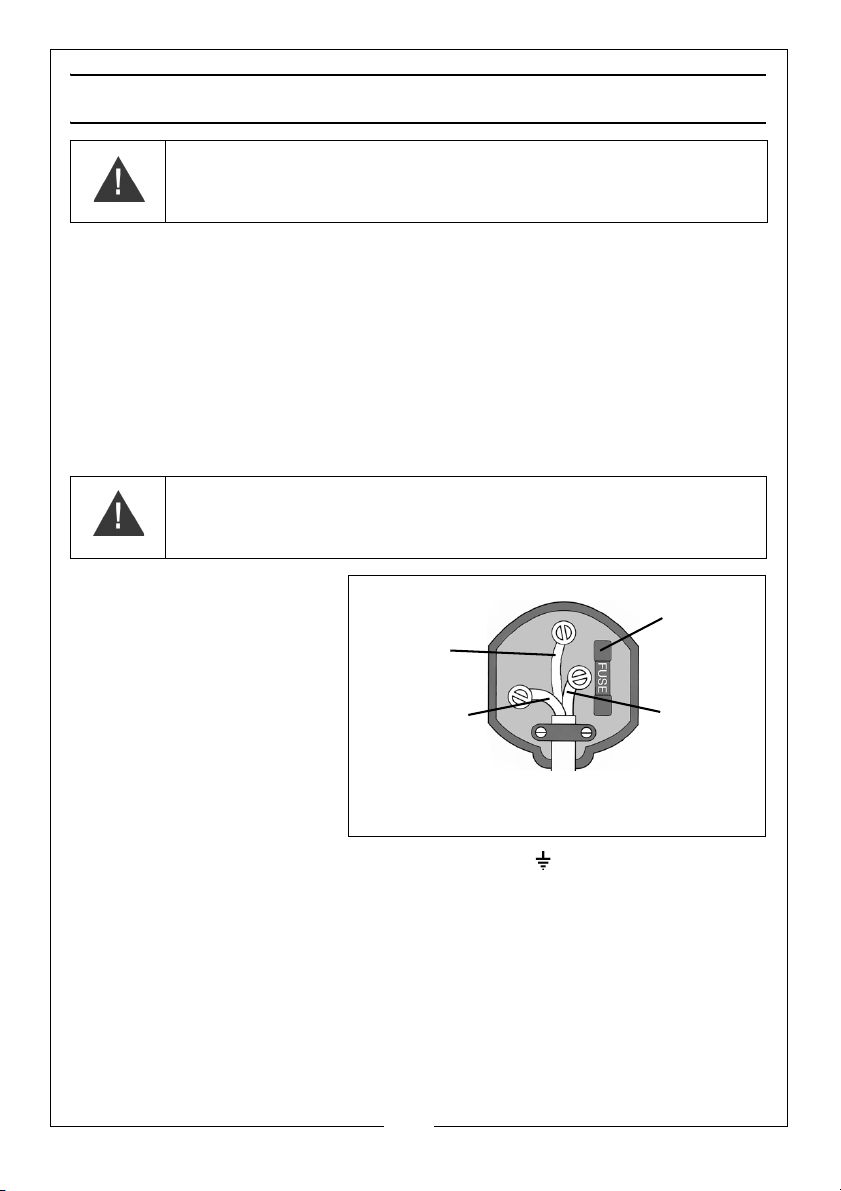

ELECTRICAL INSTALLATION

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug or a suitably fused isolator switch.

This product may be fitted with a non-rewireable plug. If it is necessary to

change the fuse in the plug, the fuse cover must be refitted. If the fuse cover

becomes lost or damaged, the plug must not be used until a suitable

replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

The colours of the wires in

the power cable must

agree with the markings on

the plug.

• Connect the BLUE wire

to the terminal

marked N.

• Connect the BROWN

wire to the terminal

marked L.

• Connect the YELLOW

AND GREEN wire to the terminal marked E or .

AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING

CURRENT OF LESS THAN 30 mA MUST BE USED.

If you are not sure consult a qualified electrician.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INSTALLATION OF THE PUMP

IMPORTANT: The pump MUST NOT be connected to the mains power supply

until all hose/pipe installations are completed.

These notes are for guidance on how to achieve a proper working system. If

any part of the system is to be connected to the mains water supply, ensure

that you comply with your local water authority regulations.

INSTALLATION LAYOUT

The pump must always be installed and operated in a horizontal position using

the fixing holes in the base to secure the pump firmly in its operating position.

Ensure that there is adequate air circulation around the motor.

Avoid situations where there is the risk

of water coming into contact with

the outside of the pump. Neither the

motor or the terminal box are

designed to be waterproof.

Typical pipework connections are

shown.

The suction lift i.e. the vertical

distance between the water level

and the pump, should not exceed

the distance specified for your pump.

Where the pump is to be a

permanent fixture the fittings to the

pump MUST be flexible, i.e. a short piece of hose should be inserted between

any rigid metal pipework and the pump.

To prevent unnecessary strain or possible distortion to the pump, ensure that

adequate support is provided to the hoses and/or pipes. Remember they will

be considerably heavier when filled with water.

PIPELINE FITTINGS REQUIRED

Because of the variety of possible installations, no plumbing accessories are

supplied as standard with your pump. However, accessories designed

specifically for this range of pumps are available from your CLARKE dealer.

The performance of your pump will be effected by the diameter of the inlet

pipe - any restriction will greatly reduce the flow. We recommend that you use

a diameter which is as large as practicable with a suitable reducer for

connection to the 1” BSP inlet adapter. The discharge hose should be

attached to the outlet adapter (not supplied).

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

A 1” BSP hose adapter will be required for connection

to the inlet and outlet port. These are available from

your CLARKE dealer.

A foot valve and filter should be fitted to the lower

end of the suction hose as illustrated, so as to help

retain water in the suction system and to prevent the

possibility of large foreign bodies arriving at the

pump/cartridge filter.

A gate valve may be installed in-line on the outlet

side of the pump which can be set as required to

regulate the flow of water. Do not place any such

restriction on the suction side of the pump unless it is

an isolator valve in a gravity fed system.

THE INLET FILTER

An inlet filter is supplied with the

CBT1300SS pump. The filter bowl is

transparent, allowing a visual check

as to the condition of the filter

cartridge. The filter cartridge is a

washable net type with a rated

filtration of 60 microns, suitable for the

efficient removal of suspended

particles such as sand.

The filter is NOT designed to filter mud,

sludge etc and should hang vertically

when installed.

PREPARATION FOR USE

THE PRESSURE VESSEL

This unit operates as a booster pump

by utilising an air chamber with a

pressure regulator switch to provide a

constant pressure at the outlet. The

pump will automatically cut in when

the water pressure reduces to 1.4 Bar

and cut out when the pressure

reaches 3.5 Bar.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

These pressures are factory set but can be adjusted using the plastic screw on

the pressure switch. The pump may continue to operate for a short while after

the supply valve is turned off until the cut-out pressure is reached.

In order for the system to operate

correctly it is necessary to pressurise

the air chamber to 3.5 Bar (50psi),

which is carried out as follows:.

Unscrew the protective cap on the

end of the air chamber to reveal the

air valve and use an air line or foot

pump to charge the pressure vessel

to the specified pressure.

Check the air pressure gauge until

satisfied and replace the protective cap when completed. This procedure

MUST be carried out before connecting to the water supply.

PRIMING THE PUMP

When suction lift is used to draw water into the pump it is essential that all

connections and hoses are completely air tight or the system will not work.

Although the pump is a ‘self priming’

type, it is still necessary to completely

fill the inlet side of the pump with

water before being started for the

first time or if the system has been

drained for maintenance/repair. This

is carried out as follows:-

1. Remove the small filler plug on the

top of the pump chamber and fill

the pump with water until all air is

expelled.

NOTE: If a filter is fitted to your pump it is recommended that you remove

the brass plug on top and fill the filter bowl with water.

2. Adjust any valves which may be fitted to the outlet side of the pump so as

to ensure as great a flow as possible.

3. Switch on the pump and check for leaks. Water should quickly start to flow

through the system. If, depending upon the suction depth, water does not

flow, check to ensure:

• The inlet pipe is secure and free from defects. Even a pin hole could

prevent the pump from drawing water efficiently. This is the most

common problem encountered when operating water pumps.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The pump body has been primed correctly and is completely filled

with water.

NOTE: If the pump is gravity or pressure fed, priming will not be

necessary, as the pressure of water will purge the system of air.

It is essential that all connections and hoses are completely air tight or the

system will not work.

The pump should never be operated

with any delivery valve completely

closed.

The pressure gauge should be

monitored after initial operation to

ensure the pressure switch is

operating within the set parameters.

If the gauge rises above the switch’s

pre-set value, switch the pump off

and reset the switch.

CARE AND MAINTENANCE

Protect the pump and pipework from freezing as the formation of ice may

cause serious damage.

The only maintenance required is a regular inspection to ensure that debris is

not blocking the passage of water through the pump. Should sand, chemical

or other contaminants come into contact with the pump, flush through with

cold clean water as soon as possible.

Periodically unscrew the filter bowl and clean out the cartridge and interior of

any debris collected.

If you suspect the pump is blocked by debris etc, disconnect it from the power

supply and back-flush to clear any blockage using a garden hose.

• You will need to disconnect the outlet hose to do this.

Always keep the pump in a clean condition, checking regularly for loose

fastenings or a damaged power cable etc.

The pump should not be taken apart by the user if overhaul is required, but

should be taken to your nearest CLARKE dealer for repair.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

Problem Cause Solution

Pump does not run. Thermal protection has

been activated.

If the motor has over-

heated, wait for it to cool

down before trying

again.

Faulty power connection Insert plug securely.

No mains supply. Check fused power

supply and replace fuse

if necessary (check fuse

rating). Check circuit

breaker.

Impeller seized/blocked Disconnect pump from

power supply.

Investigate cause and

clear blockage

Pump fails to prime Air leaks through suction

hose joints (damaged

hose or damaged

clamp.)

Repair connections/

replace hose as

necessary.

Blocked inlet hose Check pipeline for block-

age. Check any inlet

valve fitted is fully open.

Pump runs but gives poor

output

Congested material

inside pump

Clean out & backflush

pump.

Suction or delivery line

obstructed.

Remove obstruction and

ensure there are no kinks

in delivery line.

Inlet pipe leakage. Check inlet pipe and

connector for leaks.

Tighten as required.

Air leaks through

damaged seal.

Renew seal.

Impeller damaged and

making poor seal.

Return to your CLARKE

dealer for repair.

Impeller / mechanical

seal is badly worn.

Return to your CLARKE

dealer for repair.

This manual suits for next models

Table of contents

Other Clarke Water Pump manuals

Clarke

Clarke STP12 Instruction Manual

Clarke

Clarke PF75 Instruction Manual

Clarke

Clarke CM1 Installation and operation manual

Clarke

Clarke SWP900A Instruction Manual

Clarke

Clarke CVPW Quick guide

Clarke

Clarke DWP210A Instruction Manual

Clarke

Clarke CSE400A Instruction Manual

Clarke

Clarke CPE30A1 Instruction Manual

Clarke

Clarke HSE120 Installation and operation manual

Clarke

Clarke Hippo4A Instruction Manual

Clarke

Clarke PSV3A Instruction Manual

Clarke

Clarke CPP3000B User manual

Clarke

Clarke PW2 Instruction Manual

Clarke

Clarke DWP400A Instruction Manual

Clarke

Clarke CPCDP500 Instruction Manual

Clarke

Clarke PSP105 Instruction Manual

Clarke

Clarke CSV1A Instruction Manual

Clarke

Clarke HIPPO-3 Manual

Clarke

Clarke SPE800 Instruction Manual

Clarke

Clarke PS75A Instruction Manual

Clarke

Clarke CPPRSS User manual

Clarke

Clarke DW50 Instruction Manual

Clarke

Clarke HSE Series Installation and operation manual

Clarke

Clarke DW75 Instruction Manual

Popular Water Pump manuals by other brands

Neptun

Neptun NPHW 5500 operating instructions

Sensidyne

Sensidyne Gilian BDX-II Operation & service manual

Draper

Draper 47808 instructions

Trolla

Trolla 12820 manual

Sunfab

Sunfab SVH Series installation guide

WilTec

WilTec 50740 Operation manual

Fieldmann

Fieldmann FVC 5015 EK user manual

Everbilt

Everbilt EFSUB5-122HD Use and care guide

Graco

Graco Husky 3300e manual

esotec

esotec 101018 operating manual

moyno

moyno 2000 CC Service manual

Becker

Becker BASIC VASF 2.80/1-0.AC230 operating instructions

Sykes AmeriPumps

Sykes AmeriPumps GP100M Operation and maintenance instructions

DUROMAX

DUROMAX XP WX Series user manual

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 operating instructions

Franklin Electric

Franklin Electric IPS Installation & operation manual

Xylem

Xylem e-1532 Series instruction manual

Milton Roy

Milton Roy PRIMEROYAL instruction manual
