Clarke LVP1A Instruction Manual
DIRTY WATER PUMP
DIRTY WATER PUMP
MODEL No: LVP1A
Part No: 7260065
OPERATION & MAINTENANCE
INSTRUCTIONS
LS1109
2
INTRODUCTION
• Thank you for purchasing this CLARKE dirty water pump.
• This pump is designed for pumping dirty water only, that is water containing
solids in suspension.
It is NOT designed for pumping slurry, sludge, mud or
heavily polluted water, or any water containing chemicals or other
acidic contaminants including salt water.
GUARANTEE
• This product is guaranteed against faulty manufacture for a period of 12 months.
Please keep your receipt as proof of purchase.
• This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
• Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
• This guarantee does not effect your statutory rights.
RECOMMENDED USES
The recommended uses for this pump are:
• Drainage after flooding
• The transfer of liquids
• Drainage of containers
• Taking water from wells and shafts
Liquids that CAN be pumped:
• Dirty water - That is water containing solids in suspension,
• Swimming pool water
Note: After pumping chlorinated water or other liquids containing
additives, the pump should be rinsed with clean water.
• Soapy water
Liquids that MUST NOT be pumped are:
• Corrosive substances including salt water
• Combustible or explosive substances (petrol, thinners etc.)
• Fats, oils or salts
• Waste from toilets or urinals
• Slurry, sludge, mud or heavily polluted water, or any water containing chemicals
Note: After pumping dirty water or other liquids the pump should be
rinsed with clean water
3
CONTENTS
Introduction .................................................................................................... 2
Guarantee ..................................................................................................... 2
Recommended uses ..................................................................................... 2
Contents ......................................................................................................... 3
Specifications ................................................................................................. 3
For your own safety ....................................................................................... 4
Electrical connections .................................................................................. 5
Parts identification ........................................................................................ 6
Preparation .................................................................................................... 7
Using the pump .............................................................................................. 8
Cleaning and maintenance ...................................................................... 9
Troubleshooting.............................................................................................. 10

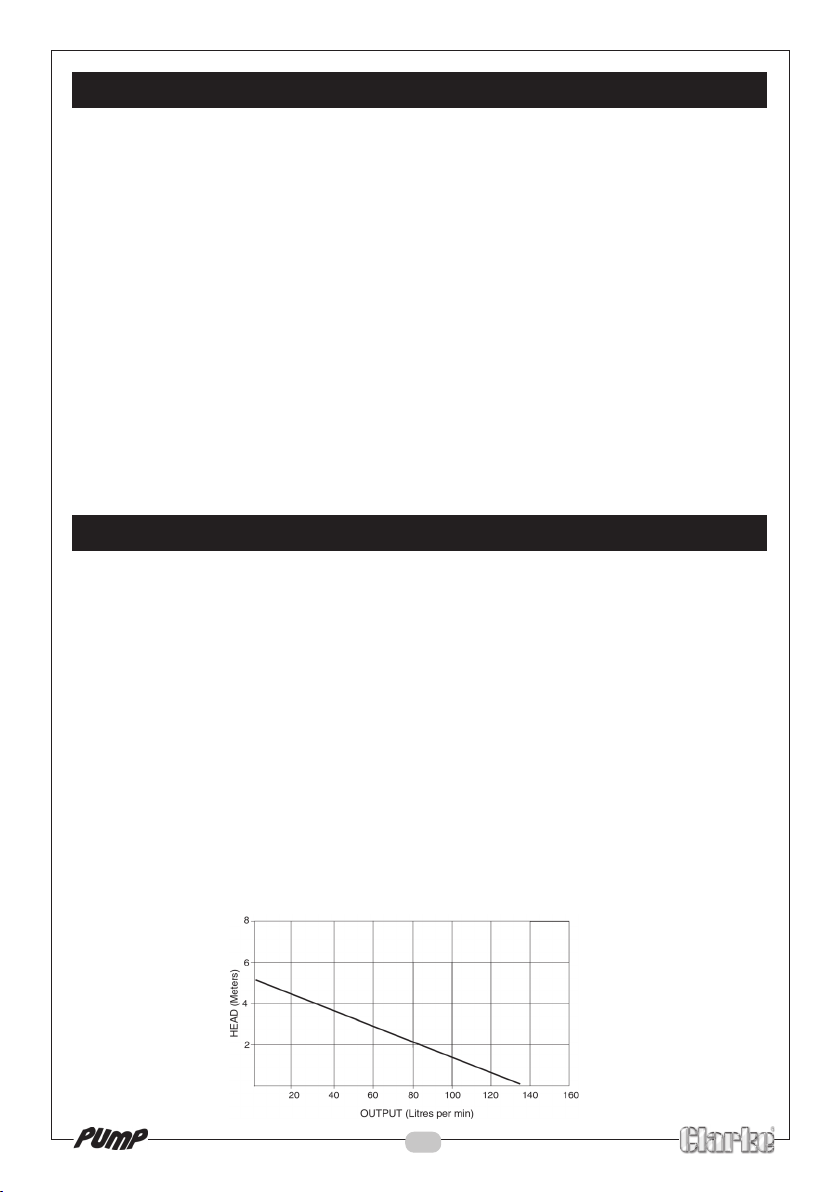

SPECIFICATIONS
Motor .......................................................... 230V 50Hz
Motor Output ............................................ 350W
Head Max .................................................. 5 m
Maximum Imersion Depth ....................... 5 m
Maximim Flow Rate .................................. 135 l/min
Outlet Size .................................................. 25 mm / 32 mm
Dimensions ( L x W x H ) ............................ 220 x 148 x 328 mm
Duty Cycle ................................................. S1
Maximum Solid Body Diameter ............... 30 mm
Part Number .............................................. 7260065
4
FOR YOUR OWN SAFETY
KEEP CHILDREN AWAY
• Do not allow children to touch the pump, cables or connections.
USE A RESIDUAL CURRENT DEVICE:
• The pump must be connected to a high sensitivity residual current device
(RCD) which has a tripping current of less than 30mA.
STORAGE
• When not in use, the pump should be stored in a dry, secure place out of the
reach of children.
WATER TEMPERATURE
• Do not use the pump if the water is liable to freeze, as this can cause damage
to the pump.
MAINS SUPPLY
• Disconnect the pump from the mains supply when not in use.
REPAIRS
• Have the pump repaired by a qualified person.
DO NOT ABUSE THE MAINS LEAD
• Never carry the pump by the mains lead.
• Never pull the mains lead to disconnect the pump from the mains socket.
• Keep the mains lead away from heat, oil and sharp edges.
• Always check the plug, mains cable and float switch cable for damage before
use. Do not use the pump if damaged. Refer to qualified service personnel for
repair.
• If you have to use an extension lead with this product, it must be designed for
outdoor use and incorporate a cable suitable for use with Class I appliances.
• Do not lower the pump using the mains lead, Always use the handle with a
rope or cord attached if necessary,.
DO NOT ABUSE THE FLOAT SWITCH
• Do not lift the pump by the mains or float switch cables.
5
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an
approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
WARNING! THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with
the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the flexible lead of this appliance may not correspond with the coloured
markings identifying terminals in your plug proceed as follows:
• Connect GREEN & YELLOW wire to terminal marked with a letter “E” or Earth
symbol “ ” or coloured GREEN or GREEN & YELLOW.
• Connect BROWN wire to terminal marked with a letter “L” or coloured RED.
• Connect BLUE wire to terminal marked with a letter “N” or coloured BLACK.
If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non-
rewireable) please note:
1 The plug must be thrown away if it is cut from the electric cable. There is a danger of
electric shock if it is inserted into a mains power socket.
2 Never use the plug without the fuse cover fitted.
3 When replacing a detachable fuse carrier, ensure the correct replacement is used
(as indicated by marking or colour code).
4 Replacement fuse covers can be obtained from your local dealer or most electrical
stockists.
FUSE RATING
The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.
We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
6

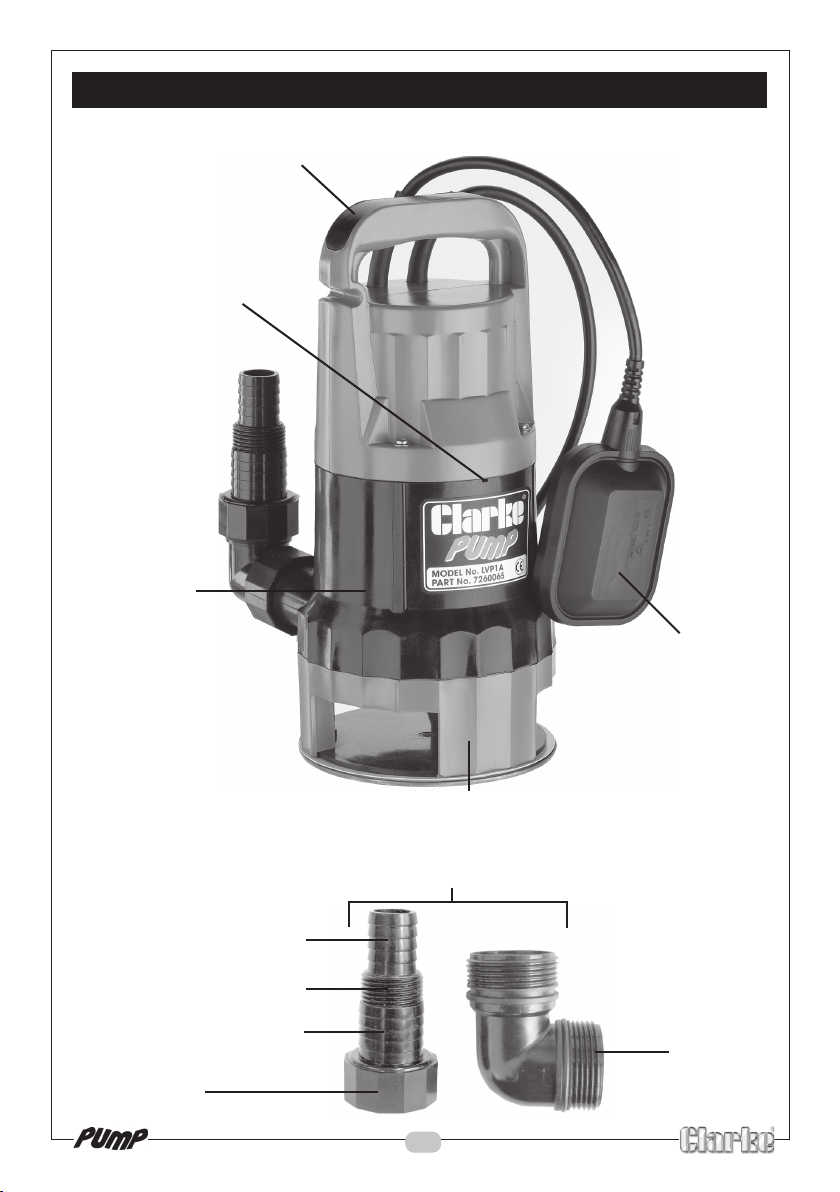

PARTS IDENTIFICATION
Handle
Pump
Base
Float
Switch
Elbow
Multi Hose
Adaptor
May be supplied fitted to the pump
1” Hose
1” BSP
1¼” Hose
Air Bleed Valve
7
PREPARATION
CONNECTING THE MULTI HOSE ADAPTOR
WARNING!
DISCONNECTED THE PUMP FROM THE MAINS POWER SUPPLY BEFORE
CONNECTING THE MULTI HOSE ADAPTOR
1 Fit the elbow adaptor to the pump outlet
as shown in the diagram opposite.
2 Screw the multi hose adaptor onto the
elbow,
• The multi hose adaptor is capable of
accepting 1” and 1¼” hoses and a 1”
BSB Thread.
3 Simply cut the multi hose connector to the
required size and attach a suitable hose
using with a worm drive clip.
• For maximum efficiency, we strongly
recommend that you connect a 1¼”
diameter hose to the multi hose
adapter,
• Alternatively, you may remove the multi
adapter altogether, and screw on a 1¼”
BSP hose adapter
The pump is completely submersible, and should be placed in a vertical position, on a
solid flat surface, Placing the pump on a couple of house bricks if required.
SUITABLE HOSES, and SPARE/REPLACEMENT MULTI HOSE ADAPTERS ARE
AVAILABLE FROM YOUR CLARKE DEALER
Elbow
1” Hose
1” BSP
1¼” Hose
8
USING THE PUMP
CAUTION!
CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS
DAMAGED IN ANY WAY
1 Place the pump on a flat surface in the area that you want to drain.
• If there is sediment in the operating area, the pump should be placed on
house bricks, or similar.
• Ensure the pump is positioned with adequate space so that the movement of
the float switch is not restricted - recommended minimum area of 40 x 40cm
• ALWAYS raise and lower the pump using a rope attached to the lifting handle.
• Take all necessary precautions as described on page 4 before plugging in, and
switching ON.
WARNING!
NEVER CARRY THE PUMP USING THE MAINS POWER CABLE. DAMAGE TO
ELECTRICAL CABLES CAN BE DANGEROUS. ALWAYS USE THE HANDLE WHEN
MOVING THE PUMP.
2 Connect the mains plug to a high sensitivity residual current device (RCD) which
has a tripping current of less then 30mA.
3 Switch the mains power supply on,
• The pump incorporates a float switch, which automatically switches the pump
ON when the water is above a pre-determined level.
4 The pump will begin to drain water.
• As the water level falls, so will the float switch, until it stops the pump.
5 When the pumping is finished, disconnect the pump from the mains power supply
• The pump is fitted with a thermal cut out to protect the motor from
overheating. If the thermal cut out activates, the motor will automatically
switch back on when it has cooled down sufficiently.
CAUTION!
DO NOT ALLOW THE PUMP TO RUN DRY.
9
CLEANING AND MAINTENANCE
WARNING!
MAKE SURE THAT THE PUMP IS DISCONNECTED FROM THE MAINS SUPPLY
BEFORE CLEANING, OR PERFORMING ANY MAINTENANCE.
• With the exception of replacing the impeller, these pumps should require no
maintenance other than regular cleaning. If the pump starts to show signs of
wear or damage, contact your CLARKE dealer for advice.
• Do not attempt any other repairs to the pump, any other repairs must be
carried out by your CLARKE dealer, or contact the CLARKE Service Department,
on 020 8988 7400.
• Check the pump regularly to ensure the base is clear of leaves or other debris.
Replacing the Impeller
1 Remove the 3 screws on the base cover and pull off the base cover.
2 Remove the 3 screws from the impeller cover, and remove the impeller cover.
3 Use a 13mm spanner to remove the nut.
4 Remove the impeller from the shaft.
5 Replace with a new impeller and lock it in place using the nut removed in step 3.
6 Replace the impeller cover and then replace the base cover.
12
34
10
TROUBLE SHOOTING
MELBORP ESUACELBABORP
.tratstonlliwpmuP .noitisopFFOnihctiwstaolf-wolootlevelretaW
ro,llawedistsniagademmajebyam
hctiwstaolF
.gnivommorfdetneverp
tontubtratslliwpmuP
.pmup
.dekcolbtonsiesabehttahtkcehC
daehehT.detcurtsb
orodeggolcebutegrahcsiD
ehttfilotgniyrterauoy.e.i,taergootebyam
epocotpmupehtrofecnatsidataergootretaw
.
)3egaptrahcnoitacificepseeS(.htiw
.egnulpehtgniruddecudorp,pmupehtnikcolriA
tiekahsdna,elgnanata,niagap
mupehtegnulP
ehtnideppartriaynaevomerotgnirewoltslihw
.metsys
.rellepmIehtecalpeR-degamadebyamrellepmI
.p
otstonlliwpmuP ehtotgnivommorfdetneverpebyamhctiwstaolF
.noitisopnwodylluf
EKRALCruoytlusnoC.ytluafebyam
hctiwstaolF
.ecivdarofrelaed
.gninnurspotspmuP noitidnocsihtfI.detareposahdaolrevolamrehT
.esuacehtetagit
sevni,stsisrep
.nitucsahhctiwstaolfro,yrdnursahpmuP
.rellepmiehtdemmajsahtcejbongierofA
For spare parts and service, please contact your nearest dealer,
or CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
PARTS & SERVICE CONTACTS
This manual suits for next models
1
Table of contents
Other Clarke Water Pump manuals
Clarke
Clarke PSV3A Installation and operation manual
Clarke
Clarke PSV1A Instruction Manual
Clarke
Clarke PSV7A Instruction Manual
Clarke
Clarke HSE120 Installation and operation manual
Clarke
Clarke HIPPO 2 Instruction Manual
Clarke
Clarke Hippo4A Instruction Manual
Clarke
Clarke CBT1300SS Instruction Manual
Clarke
Clarke DWP300A Instruction Manual
Clarke
Clarke GSE1 Instruction Manual
Clarke
Clarke CBM100SS Installation and operation manual
Clarke
Clarke CDDFTP User manual
Clarke
Clarke TAM101 Installation and operation manual
Clarke
Clarke CWBP300 Instruction Manual
Clarke
Clarke CPP3000B User manual
Clarke
Clarke PF75A Instruction Manual
Clarke
Clarke FP150 User manual
Clarke
Clarke DFT230 Instruction Manual
Clarke
Clarke PS75 Instruction Manual
Clarke
Clarke CU150 Installation and operation manual
Clarke
Clarke CM1 Installation and operation manual
Popular Water Pump manuals by other brands
Sykes AmeriPumps
Sykes AmeriPumps GP100M Operation and maintenance instructions
DUROMAX
DUROMAX XP WX Series user manual
BRINKMANN PUMPS
BRINKMANN PUMPS SBF550 operating instructions
Franklin Electric
Franklin Electric IPS Installation & operation manual
Xylem
Xylem e-1532 Series instruction manual
Milton Roy
Milton Roy PRIMEROYAL instruction manual
