Celestion CDX1-1731 User manual

100

120

140

160

20

40

60

80

60

80

100

120

20

40

60

80

General Specifications

Power rating (AES, W rms)............................................. 75

Nominal impedance (

Ω

) ................................................. .8

Sensitivity (dB) ............................................................110

Frequency range (Hz) ....................................1200-20,000

Recommended min crossover (12dB/oct, Hz).............. 2200

Voice coil diameter (mm/in) ...................................44.5/1.0

Magnet type.................................................... Neodymium

Diaphragm material .............................................PETP film

Mounting Information

Minimum Width (mm/in) ........................................82/3.23

Maximum Width (mm/in) ....................................88.5/3.48

Depth (mm/in) ......................................................55/2..17

Fitting...........................................Screw (35mm, 1.38in dia)

Throat exit (mm/in) .............................................. 25.4/1.0

Unit weight (kg/lb)................................................ 0.65/1.4

Packed Dimensions & Weight

Single pack size W x D x H (mm) ........................90x90x60

.................................................................... /3.5x3.5x2.4

Single pack weight (kg) .............................................1.0/2.2

Professional Loudspeakers

Your Global Driver Solutions Partner

Celestion International Ltd, Claydon Business Park, Great Blakenham, Ipswich IP6 ONL, UK

+44 (0)1473 835300 [email protected] www.celestionprofessional.com

Celestion adopts a progressive policy and reserve the right to alter drive unit specifications and/or appearance without prior notice 08/05

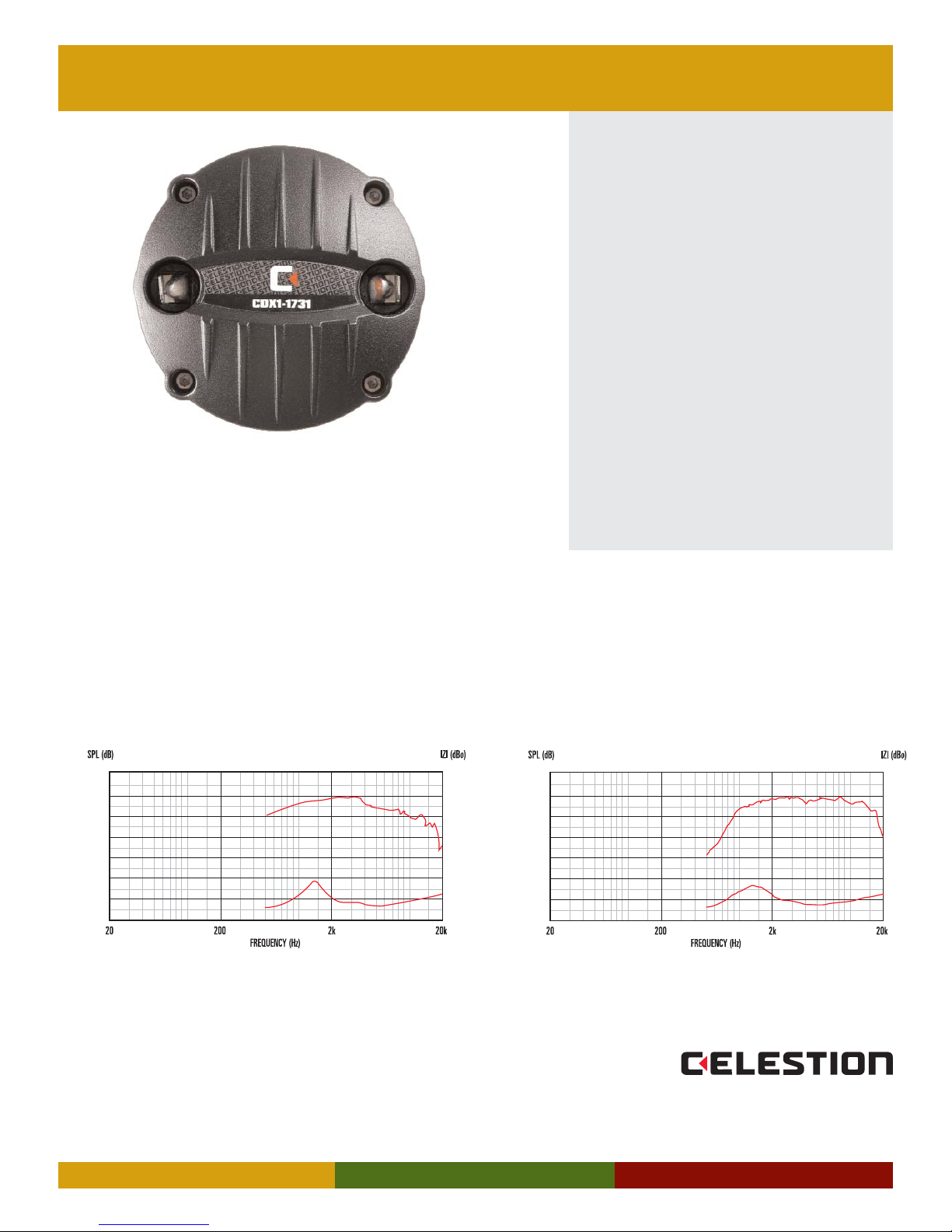

CDX1-1731 Compression Driver

• 75Wrms continuous power handling and 110dB sensitivity

• Neodymium magnet compression driver with 1.75” voice coil

• Designed with Sound Castle™ clamping to ensure uniform

pressure on diaphragm assembly for reduced acoustic distortion

• Advanced Finite Element Analysis (FEA) tools used to create a very

light weight, high powered 1” exit compression driver

• Field repairable

Frequency Response and Impedance Curves

Measured - Exponential Horn 90º x 40º radiation patternMeasured - Plane Wave Tube
