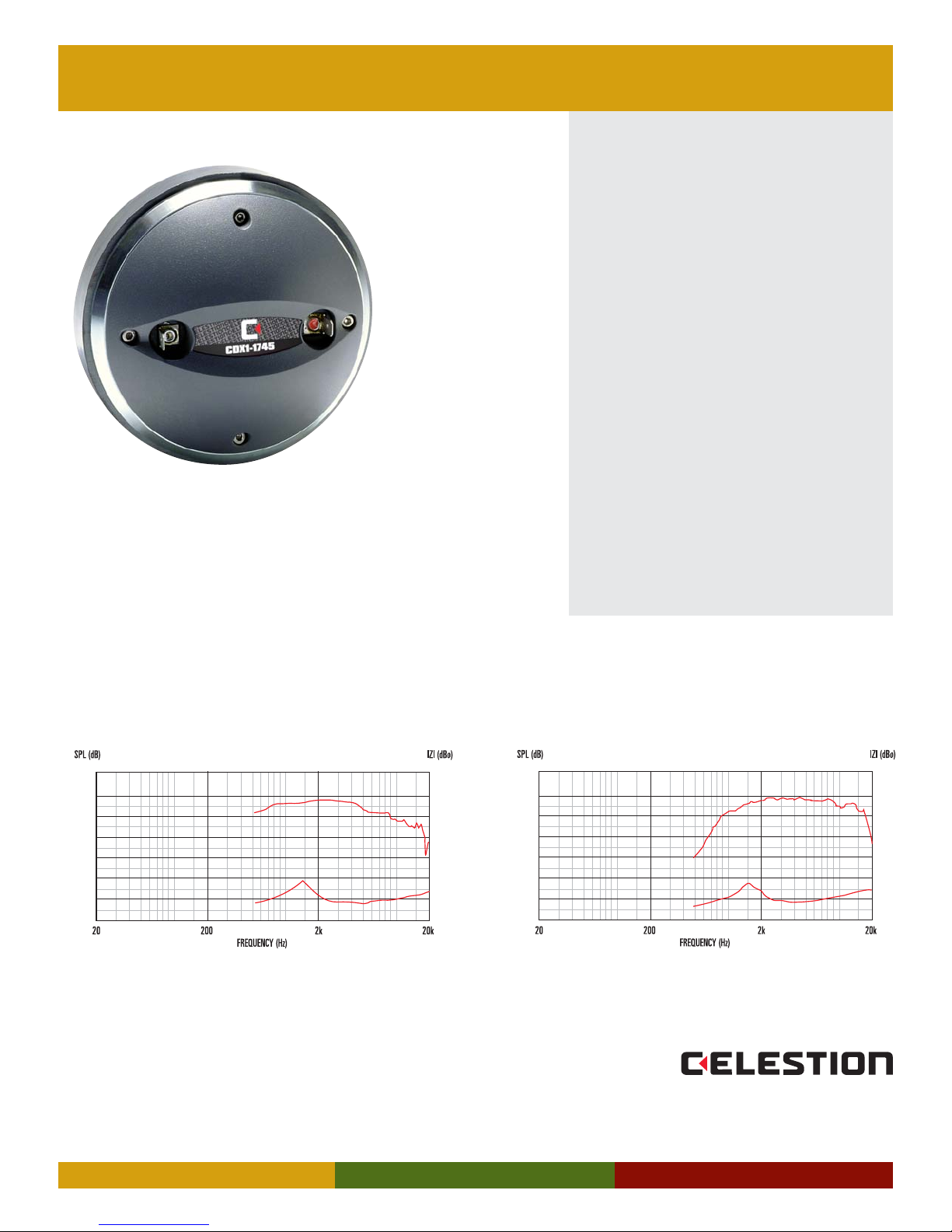

CDX1-1745

General Specifications

Power rating (AES, W rms) ........................................... 75

Nominal impedance (

Ω

) ............................................ 8/16

Frequency range (Hz) ..................................... 1200-20000

Sensitivity (dB) ............................................................ 110

Minimum crossover (Hz)........................................... 2200*

Voice coil diameter (mm/in)................................ 44.5/1.75

Diaphragm material ............................................ PETP film

Magnet material ...................................................... Ferrite

Mounting Information

Width (mm/in)....................................................... 120/4.7

Depth (mm/in) ........................................................ 56/2.2

Weight (kg/lb)........................................................ 2.3/5.1

Fitting .. Flange (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)

Throat exit (mm/in) ................................................. 25.4/1

Packed Dimensions & Weight

Single pack size W x D x H (mm/in).............140 x 170 x 70

................................................................ /5.5 x 6.7 x 2.8

Single pack weight (kg/lb) ........................................ 3/6.6

Multi pack (6) size W x D x H (mm/in) ............ 430 x 370 x 90

............................................................ /16.9 x 14.6 x 3.5

Multi pack (6) weight (kg/lb) .................................... 14/31

* A lower frequency can be used at the

manufacturer's discretion

• 75Wrms continuous power handling (AES standard) and 110dB

sensitivity

• Sound Castle

TM

clamping ensures even pressure on diaphragm

assembly for reduced distortion and superior mid band response

• Finite Element Analysis (FEA) used to optimise both magnet

assembly and acoustic design

• Flange mounted, field repairable

100

120

140

160

20

40

60

80

60

80

100

120

20

40

60

80

Frequency Response and Impedance Curves

Measured - Exponential Horn 90º x 40º radiation patternMeasured - Plane Wave Tube
