Installation, Use and Maintenance
2
Important
Make sure that this instruction booklet is read thoroughly and
understood before attempting to install or operate this hob. The
instructions are provided in the interest of your safety.
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note we
reserve he right to invalidate the guarantee supplied with this produtc
following incorrect installationg or misue of the appliance.
•It is a legal requirement that all gas appliances are installed by
qualified personnel only in accordance with current legislation. It is
your responsibility to ensure compliance with the law.
•Repairs or servicing of this product must only be carried out by an
authorised service agent using approved parts.
•No attempt must be made to modify this appliance under any
circumstances.
•Cooking appliances can become very hot in use - Please keep
children and pets away from them.
•Do not allow children to operate or play with any part of the
appliance.
•Do not use unstable pans and ensure that the handle is positioned
away from the edge of the worktop.
•In the interest of safety and hygiene, ensure the hob is kept clean.
• This appliance is designed for domestic use only. Commercial use
will invalidate the warranty.
• Do not cover the hob or place combustible materials on or near the
surface even when the hob is not in use.
• Do not fill deep fat frying containers more than one third full and
NEVER leave unattended.
3
• Before cleaning the hob, switch o at the mains.
• When cooking is finished, switch o controls and allow to cool.
• These appliances are not intended for use by persons with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their
safety.
• If the power cable is damaged it must be replaced by an authorised
service agent or qualified person only.
• Do not immerse the appliance or power cable in water or any liquid.
• The gas regulator must comply with EN1 6129 or EN 12864 and local
code. Make sure of the outlet pressure before connecting the gas
regutor to the product.
• The flexible hose must comply with the approval standard and the
local code.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
4
EU Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
safety (LVD) and Electromagnetic interference compatibility (EMC).
Parts intended to come into contact with food conform to 1935/2004/
EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Please note:
•Gas hobs become hot and remain hot during and immediately after
use. Do not touch the pan stands, burners or hob spill tray until the
appliance has been allowed to cool.
•Keep children away from the appliance when in use.
•After use, please ensure that the gas taps are in the ‘O” position.
•Ensure that the appliance is correctly adjusted for the type of gas
available before installation.
•The use of a gas appliance produces heat and humidity in the room
in which it is installed. Ensure that the room is well ventilated, either
5
Using Your Hob
Gas burners:
Gas flow to the burners is controlled by the control knobs (5, 6, 7 and 8 on

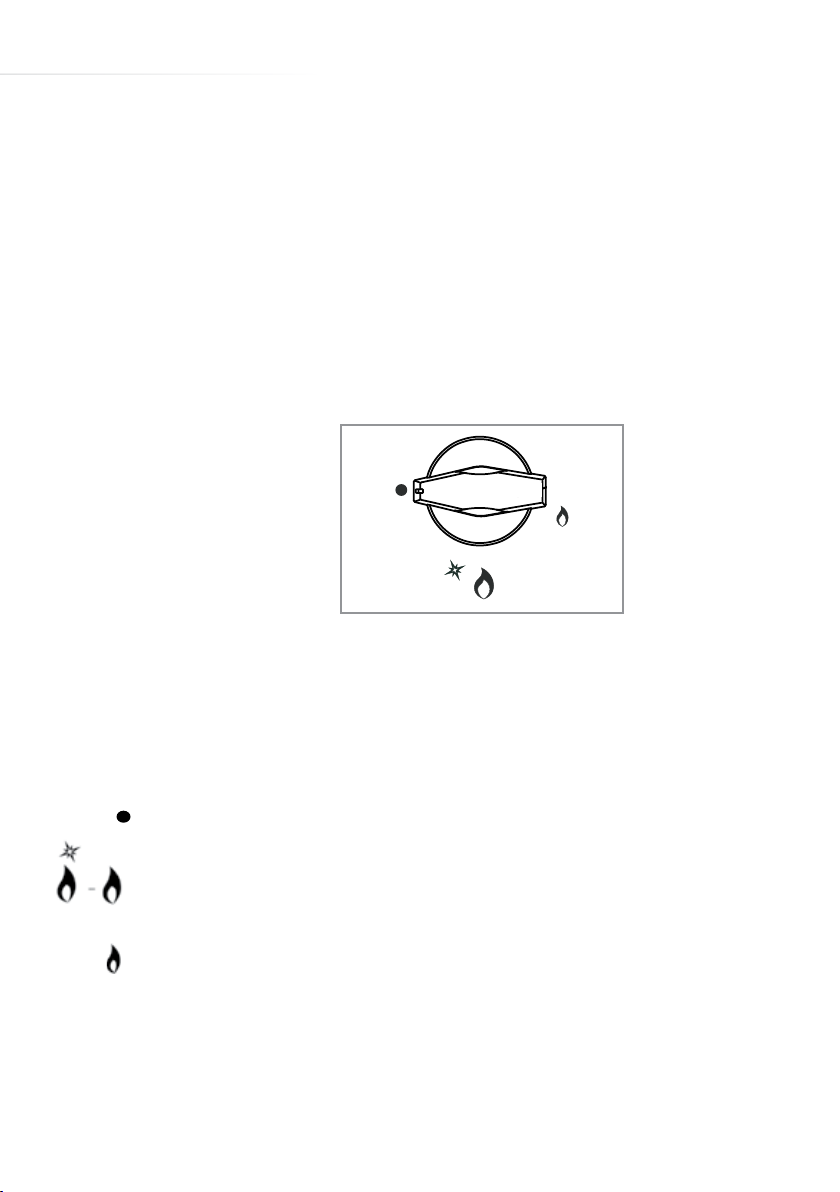

the diagrams on pages 6 & 7). There are 3 positions shown on the control
panel. Turning the control knob to the positions shown below achieves the
following:
Closed (OFF position)
Maximum position: Provides fast boiling function
Minimum position: Provides simmer function
The burners can be set to the desired position by turning the control
knobs through the adjustment range in an
anti-clockwise direction.
Fig. 1
by the use of natural ventilation outlets (e.g. windows) or a ducted
extractor.
•This hob (Class 3) has been designed for use only as a cooking
appliance. Any other use (e.g. heating rooms) should be considered
incorrect and potentially dangerous.
•These instructions are valid only for the countries of destination, the
symbols of which appear the appliance.
6
HG6150
Fig. 2
HG6250 & HG6350
Fig. 3
33
3
3
2
1
4
4
5 6 7 8
5
8
7
6
7

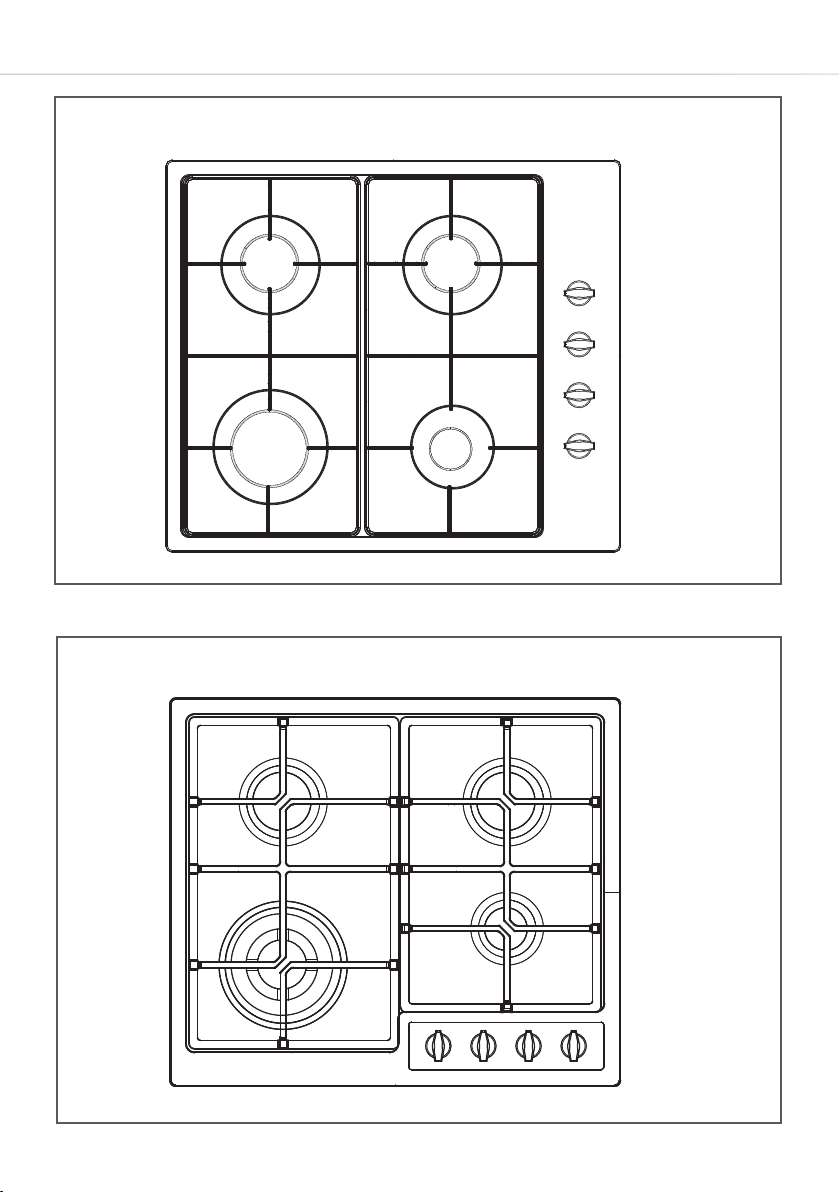

Key to Figs 2 & 3
Gas burners:
1. Triple burner 3.8kW
2. Rapid burner 3.0kW
3. Semi-Rapid burner 1.75kW
4. Auxiliary burner 1.0kW
Control panel:
5. Front left burner control knob
6. Back left burner control knob
7. Back right burner control knob
8. Front right burner control knob
These appliances are class 3
8
Igniting the Burners
The hob is fitted with a flame failure
device. Flame failure devices operate
by shutting o the supply of gas to the
burner in the event that the flame is
extinguished accidentally.
To ignite the burners, follow these
instructions:

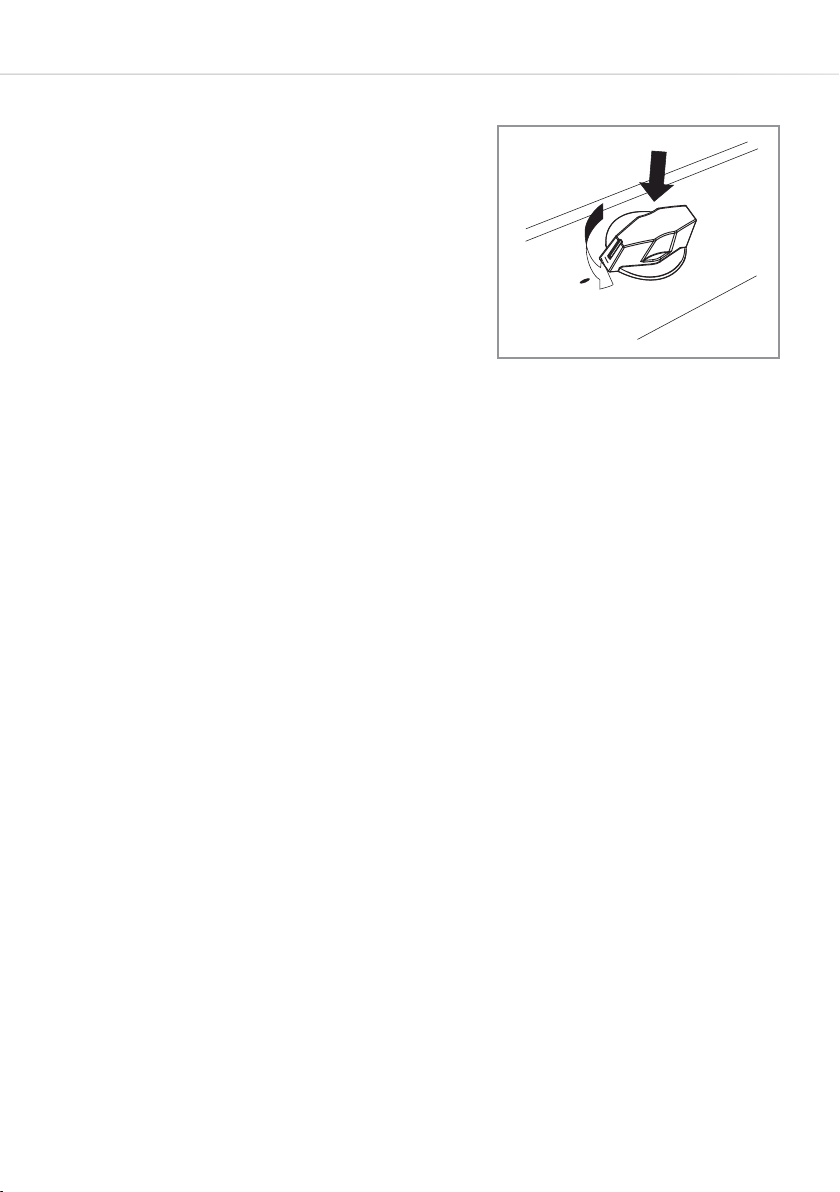

1. Lightly press the control knob down and turn the knob anti-
clockwise to the maximum position. Firmly press and hold down
the control knob to begin the ignition process (a clicking sound
will be heard). Hold down the control knob for a few seconds after
ignition to allow the safety device to detect that the burner is lit.
2.Once the burner is lit, adjust the burner power to the required
position.
Please note:
• The ignition device should not be operated for more than 15
seconds.
• If a burner does not ignite, or turns o accidentally, turn the
control knob to the ‘o’ position, and wait for one minute before
attempting to reignite the burner.
• If the burner does not ignite, repeat the ignition process with the
burner at the minimum position.
Fig. 4
9
Fig. 5
Burner Size Minimum Pan Diameter (cm) Maximum Pan Diameter (cm)
Auxiliary 10 14
Semi-Rapid 16 18
Rapid * 20 22
Triple ** 24 26
Wok - 36
Ecient Use of Your Hob
The hob is equipped with burners of dierent sizes, designed to

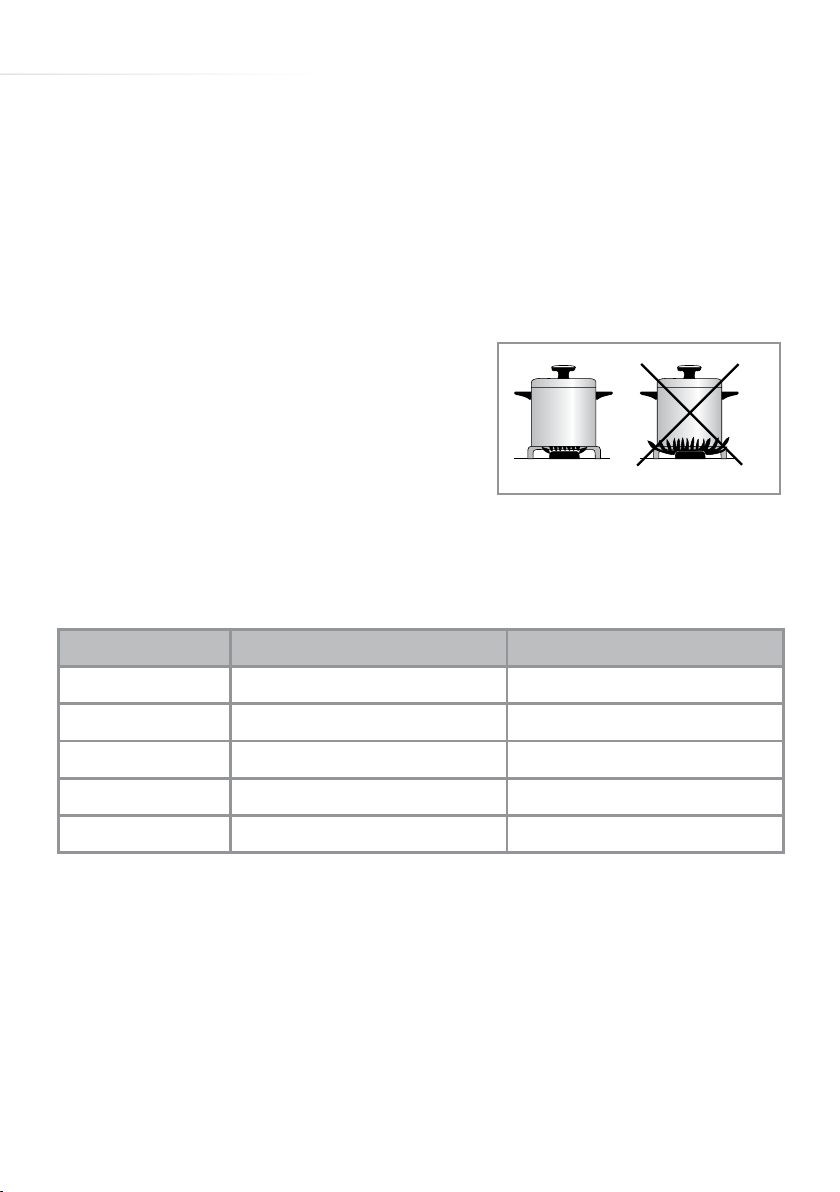

accommodate most shapes and sizes of pan. For best results,
only use pans with flat bottoms and choose an appropriate burner
depending on the size of the pan. The most ecient use of the hob is
shown below, where the pan and burner are correctly chosen.
Ensure that the pans do not overlap the
edge of the pan stand, or cover the
control panel.
The table below shows the sizes of pan that should be used with each
burner:
* HG6150 only
** HG6250 & HG6350 only
10
Correct Use of the Optional Wok Pan
Adaptor (HG6350 Only)

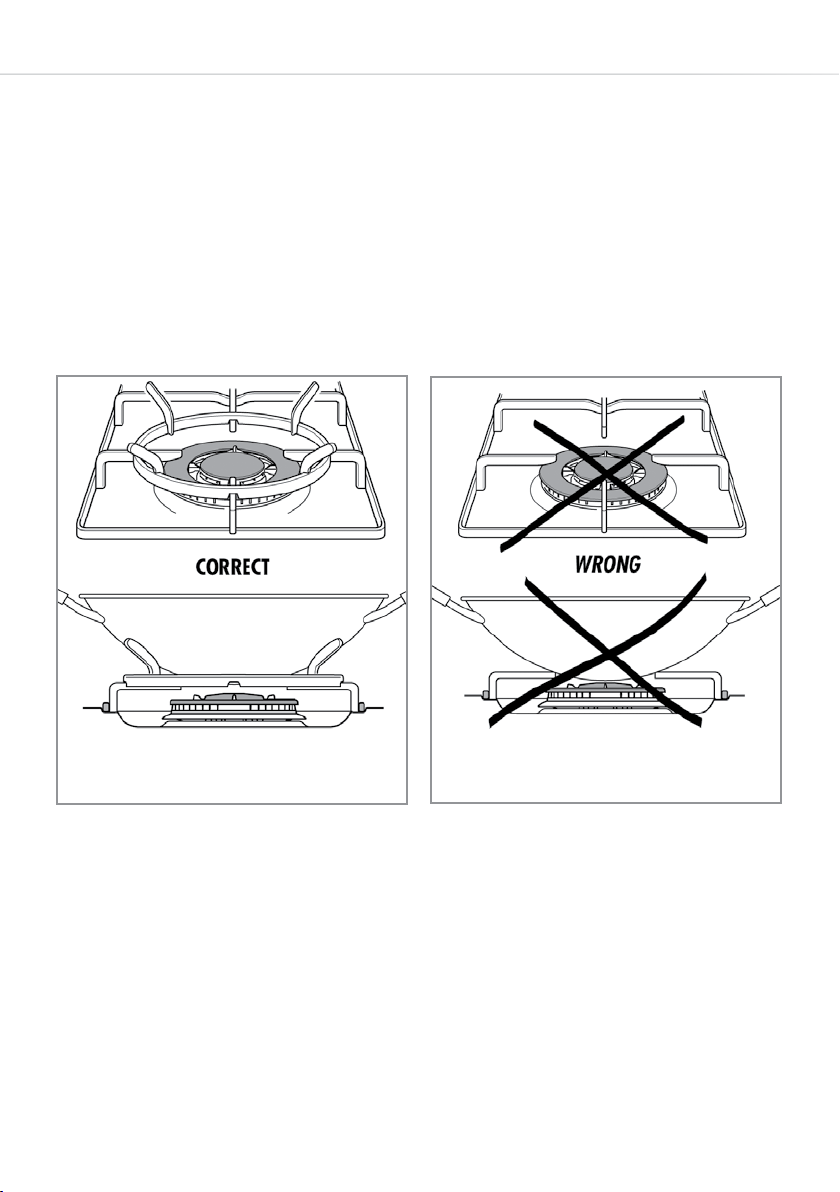

The wok pan adaptor is a special stand that is designed to be fitted
over the triple ring burner to give support to round bottomed woks.
When using a wok, always place the wok pan adaptor in position over
the pan support on the triple ring burner as shown in Fig.6.
IMPORTANT:
• The wok pan adaptor (Fig. 6) must be placed over the pan support
on the triple ring burner.
• Do not use the wok pan adaptor for standard flat bottomed pans.
Fig.5 Fig.4
Fig. 6 Fig. 7
