Miele KM 360 G User manual

Installation instructions

Gas-hobs

KM 360 / KM 360-1

KM 361

KM 362 / KM 362-1

KM 363

To avoid the risk of accident

or damage to the appliance

it is essential to read these

instructions before installing

or using it.

M.-Nr. 05 827 671

WO This appliance can be used in countries other than those specified on

the appliance. It is, however, set up for connection to the gas and electricity

supplies in the countries specified. For use in other countries please contact

the Miele spare parts or customer service department in your country.

DDas Gerät ist auch für den Gebrauch in anderen als auf dem Gerät

angegebenen Bestimmungsländer zugelassen. Die landesspezifische

Ausführung und die Anschlussart des Gerätes haben wesentlichen Einfluss auf

den einwandfreien und sicheren Betrieb. Für den Betrieb in einem anderen als

auf dem Gerät angegebenen Bestimmungsland wenden Sie sich bitte an den

für das Land zuständigen Kundendienst.

EEl aparato está autorizado para el uso en países diferentes a los países de

destino indicados. La ejecución específica para cada país y el tipo de

conexión del aparato influyen de forma decisiva en el funcionamiento correcto

y seguro. Para el funcionamiento en un país diferente al país de destino

indicado en el aparato, consulte al Servicio Post-venta autorizado para el país.

FCet appareil est également homologué dans des pays différents de ceux

mentionnés sur l'appareil. Pour que l'appareil fonctionne parfaitement et en

toute sécurité, il est important de disposer de l'exécution spécifique au pays et

du type de raccordement approprié. Pour le fonctionnement dans un pays

autre que celui spécifié sur l'appareil, veuillez vous adresser au service

après-vente du pays où sera installé l'appareil.

IL'apparecchio può essere usato anche in paesi diversi da quello indicato

sull'apparecchio stesso. Tuttavia, le varianti specifiche di un determinato paese

e il tipo di allacciamento alla rete hanno un'importanza fondamentale per il suo

sicuro e corretto funzionamento. Per questo se si vuole usare l'apparecchio in

un paese diverso rivolgersi al servizio di assistenza tecnica Miele del paese in

cui si intende usarlo.

MHet apparaat is ook toegelaten voor gebruik in andere landen dan de landen

die op het apparaat vermeld staan. De specifieke uitvoering en de aansluitwijze

zijn van groot belang voor het goed en veilig functioneren. Neem daarom

contact op met de Technische Dienst van de fabrikant in uw land als u het

apparaat in een land wilt gebruiken dat niet op het apparaat vermeld staat.

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Appliance dimensions and worktop cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

KM 360 / KM 362 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

KM 360-1 / KM 362-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

KM 361 / KM 363 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Safety clearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Building in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Fixing the support brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Nominal Rating Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Conversion to another type of gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Jet table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Changing the jets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing the main jets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing the low setting jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

After conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Contents

Building in

Fit wall units and the cooker hood

before fitting the appliance, to avoid

damaging it.

The veneer or laminate coatings of

worktops (or adjacent kitchen

units) must be treated with 100 °C heat

resistant adhesive which will not

dissolve or distort.

The worktop upstand must be heat

resistant.

Ideally the hobs should be installed

with plenty of space on either side.

There may by a wall at the rear and a

wall or tall units at one side. On the

other side, however, no unit or divider

should stand higher than the hob.

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans, aircraft

etc. However it may be suitable for

such usage subject to a risk

assessment of the installation being

carried out by a suitably qualified

engineer.

Due to the heat radiated by the hob

and to allow cooking fumes to

dissipate it is essential that a

minimum safety distance aof

100 mm is maintained between the

worktop cut-out and adjacent

kitchen units. There must be a

minimum safety distance of 50 mm

between the appliance and a back

wall.

recommended

not recommended

not allowed

Warning and Safety instructions

As a minimum 20 m3space is

required where the appliance is

installed, and a door or window which

can be opened to the outside air.

Using the gas hob can cause heat

and moisture to build up in the

kitchen. Ensure that the room is well

ventilated; open a door or window or

provide a mechanical means of

ventilation, by installing a cooker hood,

for example.

The hob may be installed above a

Miele oven, if the work-top is at

least 40 mm thick.

The gas hob must not be installed

next to an electric fryer, as the gas

flames could ignite fat in the fryer. It is

essential to maintain a minimum

distance of 300 mm between these two

appliances.

A hob may not be built in over a

washing machine, tumble dryer,

dishwasher, fridge, fridge-freezer or

freezer. The high radiant temperatures

which are sometimes generated by the

hob could damage such appliances.

Safety distance above appliances

A minimum safety distance bmust be

maintained between the hob and the

cooker hood above it. See the

manufacturer’s operating and

installation instructions for details. For

any flammable objects, e.g utensil rails,

wall units etc. a minimum safety

distance of at least 760 mm should be

maintained between it and the hob

below.

All dimensions in this instruction booklet

are given in mm.

Keep these instructions in a safe place

and pass them on to any future owner

of the appliance.

Warning and Safety instructions

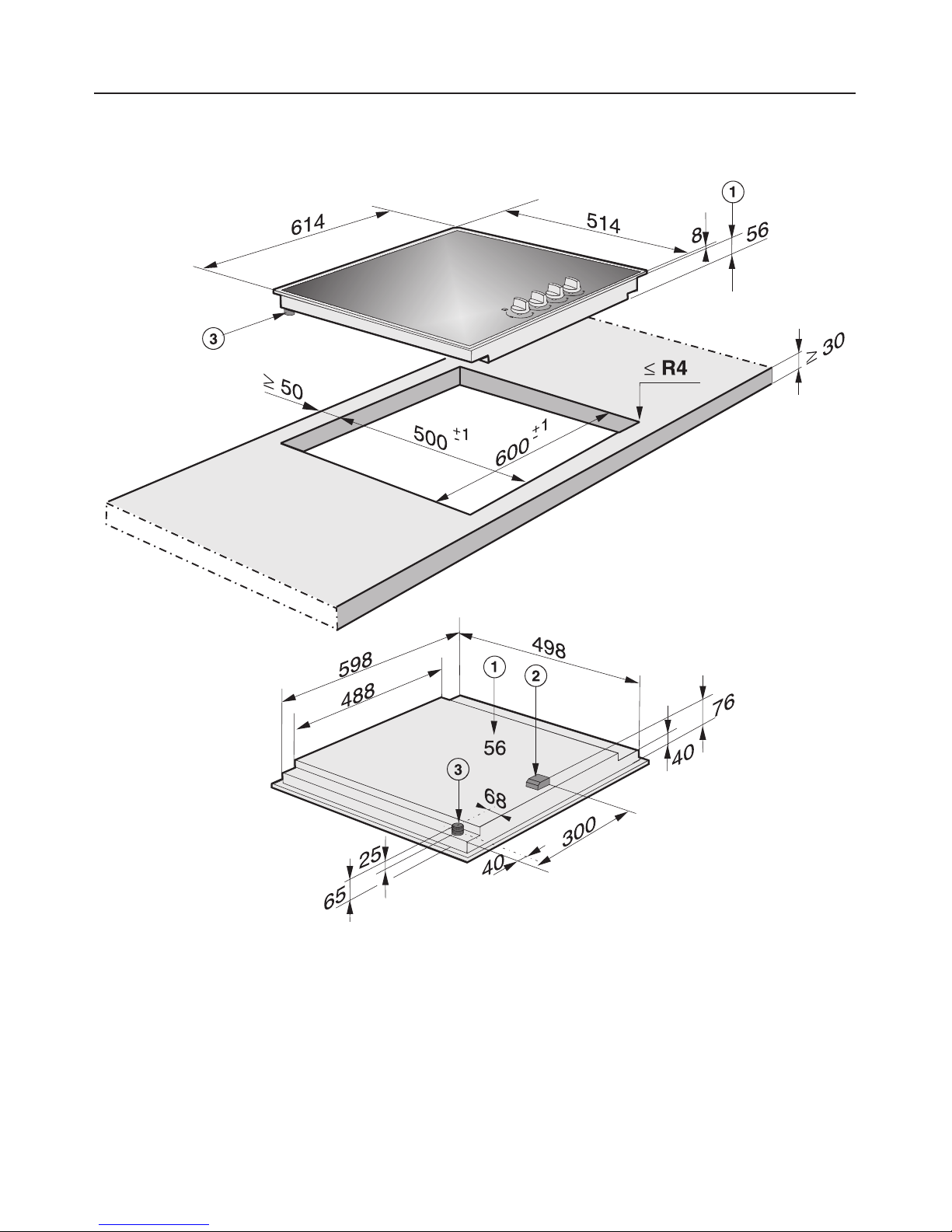

KM 360 / KM 362

Appliance dimensions and worktop cut-out

aBuilding-in height

bConnection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

^Make the worktop cut-out following the dimensions shown above.

Remember to maintain a minimum safety distance of 50 mm between the hob

and the back wall and 100 mm to the right or left of the hob. See Warning and

Safety instructions.

^Seal the cut surfaces with a suitable sealant to avoid swelling caused by

moisture.

The materials used must be heat resistant.

If during installation the corners of the frame are not flush with the worktop

surface, the corner radius, Max R4 can be carefully scribed to suit.

Appliance dimensions and worktop cut-out

KM 360-1 / KM 362-1

Appliance dimensions and worktop cut-out

aBuilding-in height

bConnection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

^Make the worktop cut-out following the dimensions shown above.

Remember to maintain a minimum safety distance of 50 mm between the hob

and the back wall and 100 mm to the right or left of the hob. See Warning and

Safety instructions.

^Seal the cut surfaces with a suitable sealant to avoid swelling caused by

moisture.

The materials used must be heat resistant.

If during installation the corners of the frame are not flush with the worktop

surface, the corner radius, Max R4 can be carefully scribed to suit.

Appliance dimensions and worktop cut-out

KM 361 / KM 363

Appliance dimensions and worktop cut-out
