Carrier TP-WEM01 User manual
TP--WEM01
CarrierrCôr™ Thermostat
AC/HP Wi-FirThermostat
Performance™ Series
Installation Instructions
A14493
NOTE: Read the entire instruction manual before starting the installation.
TABLE OF CONTENTS
PAGE
SAFETY CONSIDERATIONS 1.................................
INTRODUCTION 2...........................................
INSTALLATION CONSIDERATIONS 2..........................
INSTALLATION 3............................................
Step 1. Power Off System 9.....................................
Step 2. Remove Existing Thermostat 10...........................
Step 3. Attach Backplate to Wall 11..............................
Step 4. Connect the Wiring 14...................................
Step 5. Power On System 16....................................
FEATURES 17...............................................
TROUBLESHOOTING 17......................................
WIRING DIAGRAMS 18.......................................
1
SAFETY CONSIDERATIONS
Read and follow manufacturer instructions carefully. Follow all local
electrical codes during installation. All wiring must conform to local
and national electrical codes. Improper wiring or installation may
damage thermostat. Recognize safety information. This is the
safety----alert symbol. When you see this symbol on the equipment and
in the instruction manual, be alert to the potential for personal injury.
Understand the signal words DANGER,WARNING,and
CAUTION. These words are used with the safety----alert symbol.
DANGER identifies the most serious hazards which will result in
severe personal injury or death. WARNING signifies a hazard which
could result in personal injury or death. CAUTION is used to identify
unsafe practices which may result in minor personal injury or product
and property damage. NOTE is used to highlight suggestions which
will result in enhanced installation, reliability, or operation.
2
INTRODUCTION
The CarrierrCôrtthermostat is a wall--mounted, low--voltage
thermostat which maintains room temperature by controlling the
operation of a heating and/or air conditioning system, both heat pump
and air conditioner models. Your Côr thermostat has a color touch
screen and interface similar to that used in smart phones. A variety of
features are provided including remote access through web and mobile
apps, separate heating and cooling setpoints, auto changeover, keypad
lockout, backlighting, and built--in installer test. Programing features
allow each day to be independently programmed in half an hour
increments with four preset periods (Home, Away, Sleep, Wake) and
up to six additional custom profile periods. For operational details,
consult the online Owner’s Manual for the specifics at
www.Carrier.com/homecomfort.
INSTALLATION CONSIDERATIONS
Power
This thermostat is powered by 24VAC through the C terminal and thus
most applications require a minimum of 5 thermostat wires. Provision
is made for separate heating and cooling transformers via separable Rc
and Rh terminals which are internally jumpered unless both Rc and Rh
are utilized. Internal jumper is controlled by a relay after the thermostat
senses whether Rc and/or Rh wires are connected to the terminal
block.
3
INSTALLATION
Installation Notes:
dThe maximum wire size to be used in the installation is
22AWG (0.50mm2) with 0.8mm insulation
dNo part of the control should be installed directly outdoors or
in a cabinet outdoors
dThe control assembly base should be mounted before wires are
attached
Thermostat location:
dApproximately 5 ft. (1.5m) from floor.
dClose to or in a frequently used room, preferably on an inside
partitioning wall.
dOn a section of wall without pipes or duct work.
Thermostat should NOT be mounted:
dClose to a window, on an outside wall, or next to a door lead-
ing to the outside.
dExposed to direct light or heat from the sun, a lamp, fireplace,
or near other temperature--radiating objects which could cause
a false reading.
4
dClose to or in direct airflow from supply registers and return--
air registers.
dIn areas with poor air circulation, such as behind a door or in
an alcove.
Compatible Systems
Your Carrier Côr thermostat works with most centralized residential
heating and cooling systems.
Heating: up to 2 stages
Cooling: up to 2 stages
Heat pumps: 1 or 2 stages + 1 or 2 stages auxiliary heat (Intelligent
heat staging capable)
Gas, oil, electric
Hybrid HeatrDual Fuel systems
Geothermal systems
Accessories: Humidifier, dehumidifier, or ventilator
5
Terminal Descriptions
GFan
Rc Cool transformer
Rh Heat transformer
O/B Heat pump reversing valve
Y/Y1 Used for first stage of conventional A/C or first
stage of heat pump compressor
Y2 Used for second stage of conventional A/C or
second stage of heat pump compressor
WW1, W2: Used for 1 -- 2 stages of conventional
heat or 1 -- 2 stages of electric auxiliary heat (3
stages -- Intelligent heat staging configuration)
C24VAC common
ACC Accessory (+/--): Used for dehumidifiers,
humidifiers, ventilators, HRVs or ERVs
This thermostat is designed for 24VAC with a 2A maximum current.
Do not connect it to line (high) voltage or millivolt systems.
6
Items Included In Box
A14494

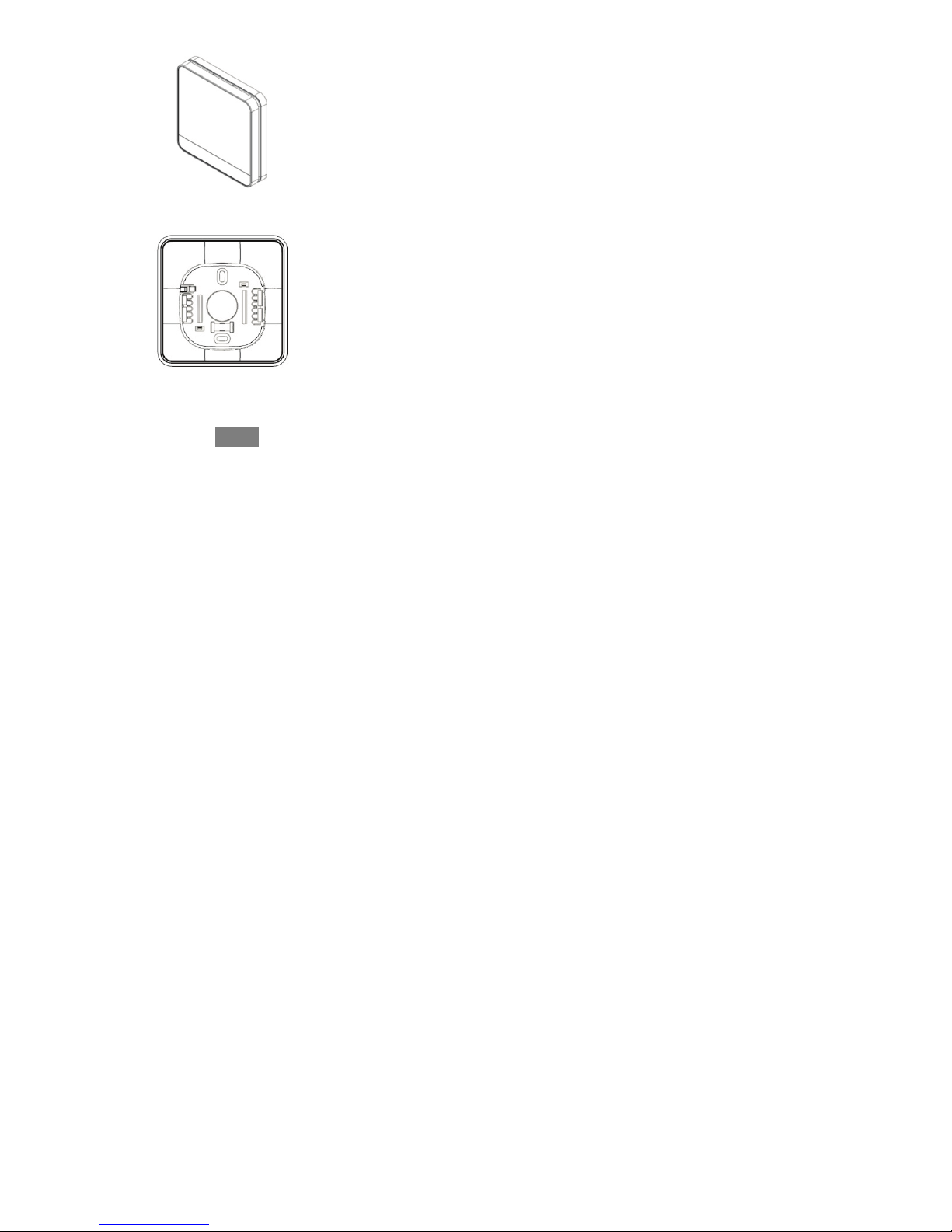

Fig. 1 -- Carrier CôrrThermostat
A14495
Fig. 2 -- Small Backplate
NOTE: The Mounting Plate (center) is removable for both backplates.
7
Items Included In Box (Cont.)
A14496

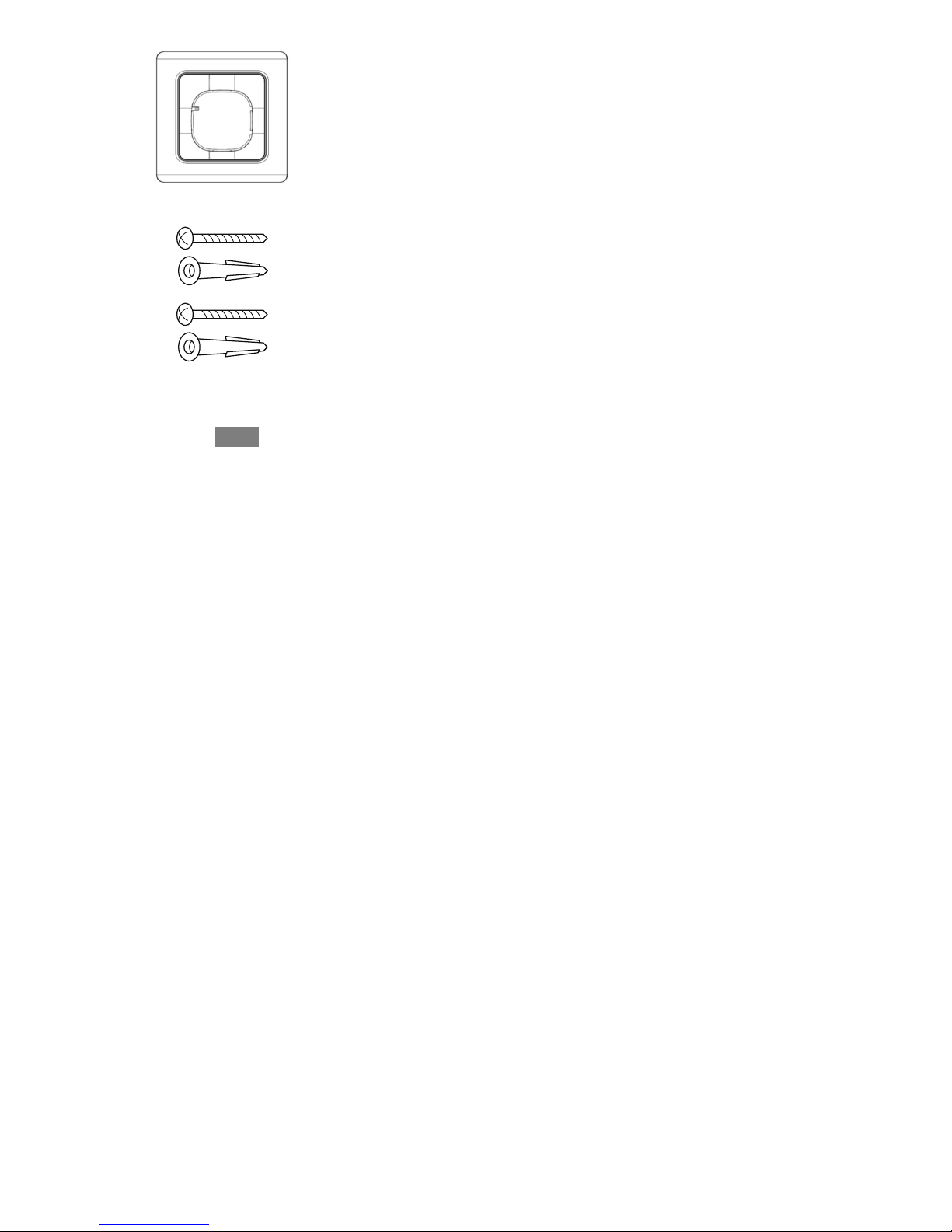

Fig. 3 -- Large Backplate
A14497
Fig. 4 -- Screws and Anchors
