Carrier Infinity Control Home Assembly instructions

Turn to the Experts7

Your decision to choose the

Carrier Infinity TM Control puts

you in a select group of home-

owners who understand the

value of precise comfort control

and appreciate the simplicity

of an easy-to-use, intuitive,

user interface.

We sincerely appreciate you

putting your trust in Carrier.

Carrier has been delivering

the finest indoor comfort

equipment since 1904. Your

new Infinity Control offers yet

another example of the high

quality comfort technology for

which we are recognized.

Please take a few moments to

review this manual...set up a

comfort schedule that makes

sense for your lifestyle...then

relax and enjoy the comfort!

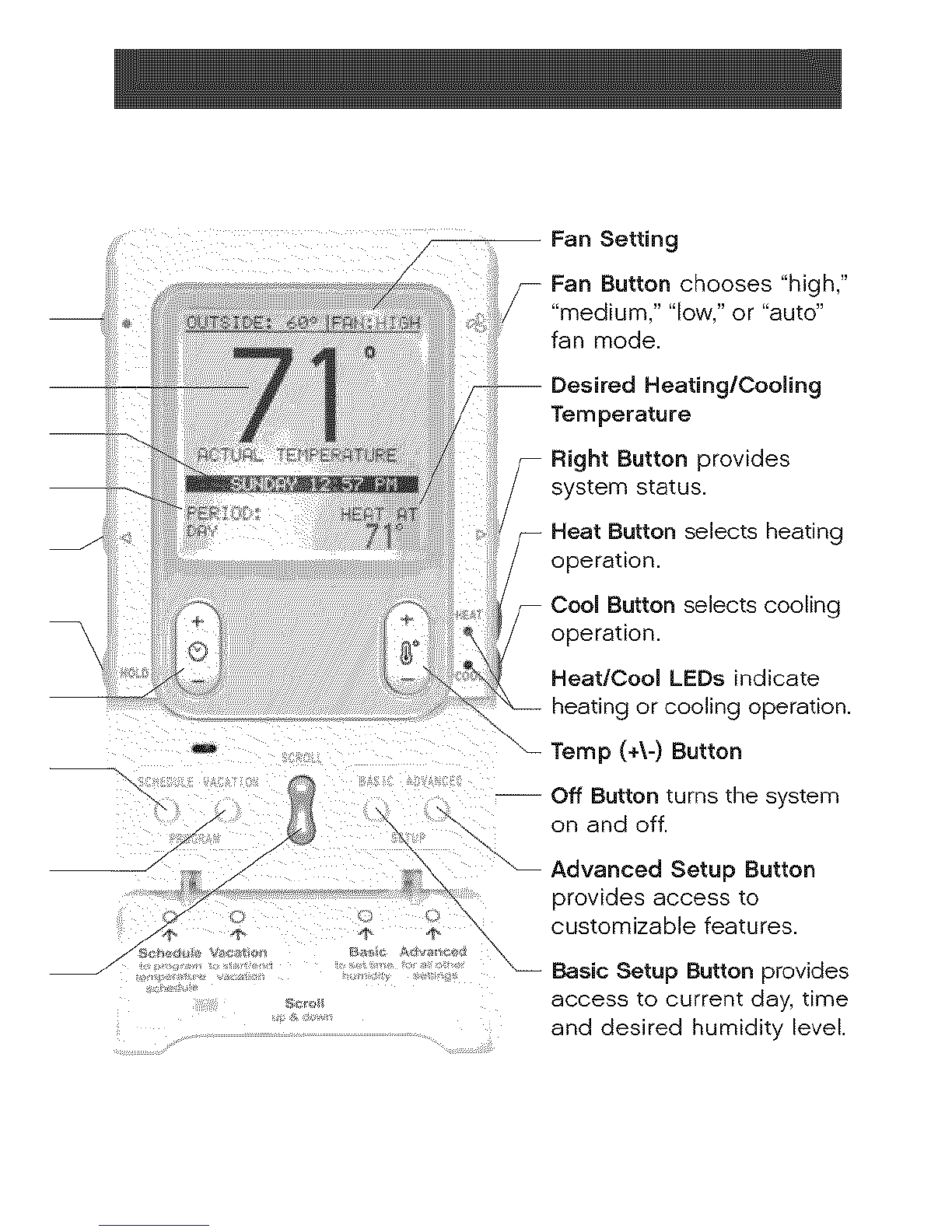

Temperature/Humidity Button

displays current indoor humidity __

or outside temperature.

Room Temperature

Day & Time

Time Period displays the com-

fort schedule's active period.

Left Button provides accessory

status.

Hold Button maintains desired

temperature indefinitely.

Time (+\-) Button

Schedule Button used to

access and exit the comfort

schedule.

Vacation Button

activates/deactivates vacation --

comfort settings.

Scroll Button used to move

up and down the screen

during scheduling and setup.

Desired Heating/Cooling

Temperature

Right Button provides

system status.

Heat Button selects heating

operation.

Button selects cooling

operation.

Heat/Cool LEDs indicate

heating or cooling operation.

Temp (+\-) Button

Off Button turns the system

on and off.

Advanced Setup Button

provides access to

customizable features.

Basic Setup Button provides

access to current day, time

and desired humidity level.

QUICKGUIDEINSTRUCTIONS...2

BASIC SETUP .................. 6

Set Day. Time & Humidity ...... 6

NORMAL OPERATION .......... 7

Turn System On/Off ............ 7

Heating ...................... 7

Auxiliary Heat ................. 7

Emergency Heat .............. 7

Cooling ...................... 8

Auto ....................... 9

Adjust Current Temperature ...9

Adjust Heating Temperature .9

Adjust Cooling Temperature 10

Adjust Fan Speed ............ 10

Hold Current Temperature .... 10

Vacation Function & Settings. J1

Check System Status

(Right Button) .................... 12

Accessory Status (Left Button) 12

Resetting Accessory Usage

Indicator ..................... 13

Accessory Maintenance Pop-Up

Messages ...................... 13

Service Pop-Up Messages ..... 14

Keyboard Lock-out ........... 15

PROGRAMMABLE FEATURES,

SETUP & OPERATION .......... 16

Backlighting .................. 16

Determining YourComfort

Schedule ........................ 16

Programming Your Comfort

Schedule ..................... 17

One Schedule for All Days .... 18

Weekdays Schedule .......... 19

Weekend Schedule .......... 20

Daily Schedule ............... 21

Copying a Schedule ......... 22

Programming Fan Speed .... 23

VENTILATION FEATURES,

SETUP & OPERATION .......... 24

Fresh Air Ventilation .......... 24

ADVANCED SETUP ............ 25

Accessory Maintenance

Reminders ................... 25

Lighting ...................... 26

Heating Humidity ............ 27

Cooling Humidity ............ 28

Vacation .................... 29

GLOSSARY ................... 31

This guide provides the basic operations for setting up and

operating your Infinity TM Control

3 Adjust the highlighted HOUR setting

using the TIME (+b) button.

4 Press SCROLL to highlight MINUTE.

Set Day, Time &Desired Humidity

1 Flip down the door at the base of the __

Infinity TM Control. _INUTE'_a' "30"_

ViONDAY

2 Press the BAS'C button. HUMIDITY

ImmmDDDO

I_RESS BASIC TO EXIT

5Adjust the MINUTE setting using the TIME (+\-) button.

6 Press SCROLL to highlight DAY:

7 Adjust the current DAY setting, using the TIME (+\-) button,

unt the correct day is displayed.

8 Press SCROLL to highlight HUMIDITY.

9 Press the red HEAT button to set the heating humidity

10 Adiust the desired heating humidity using either (+\-)

button

11 Press the blue COOL button to set the cooling humidity.

12 Adjust the desired cooling humidity using either (+\-)

button

13 Press BASIC or close the door to exit.

Adjust Heating Temperature

1 Press the red dEAT button. Heating is confirmed when the

red LED adjacent to the red HEAT button is lit.

2 Use the TEMP (+\-) button to select your desired temperature.

which will be displayed on the lower right. An override time will

be displayed on the ower left. Please note an override time will

not appear if programming qas been turned off.

3 You can change the override time in 15-minute increments by

pressing the TIME (+\-) sutton until the desired override time is

selected. OUTSIDE:55° IFAN:AUTO

- OR -I _o

Press the HOLD button to override the

schedule indefinitely.

Adjust Cooling Temperature I_E_,OD .E_;T

1 Press the blue COOL button. Cooling is confirmed when

the blue LED adjacent to the blue CL button is lit.

2 Use the TEMP (4-) button to select your desired tempera-

ture. which will be displayed on the lower right. An override

_ime will be displayed on the lower left. Please note an

override time will not appear if programming qas been

turned off.

3 You can change the override time to 15-minute increments

by pressing the TIME (+\-) button until the desired override

time is selected.

- OR -

Press the HOLD button to override the schedule indefinitely.

Quick Programming nstructions

These instructions will guide you through creatin 9one comfort

schedule that will repeat every cloy. For more details on pro-

gromming, or to create customized schedules for the week.

weekend,or eoch doy. refer to PROGRAMMABLE FEATURES.

SETUP & OPERATION on pages 16-23 of this monuoL

One Schedule for All Days

1 Flip down the door at the bottom of the

control.

2 Press the SCHEDULE button.

3 Press either "(he LEFT or RIGHT button

repeatedly until 'ALLDAYS" is displayed.

ALLDAYS I

ERIOD TIME lIT CL

_VENIpNG 6;155Pp 770 77

WEEKDAYS [_

4 The WAKE time period will be highlighted. Set the start time

for this time period using the TIME (+/-) button

5 Press the red HEAT button. Heating temperature will begin

flashing.

6 Set the heating temperature using the TEMP (+\-) button.

7 Press the blue COOL button. Cooling temperature will

begin flashing.

8 Set the cooling temperature using the TEMP (+\-) button.

9 Set the remaining periods. "DAY." "EVENING." AND "SLEEP"

by using the SCROLL button to select a time period, then

follow steps 5 - 9 to select temperature and time settings.

10 Exit the scheduling mode by either closin 9 the door or

pressing the SCHEDULE button.

Pop-up Messages

Your Infinity TM Control provides important and useful maintenance

and service rerr qders via pop-up messages on the display.

Accessory Maintenance Reminders: An accessory reminder lets

you know when it's time for maintenance of your air filter, humidifier

pad. UV lamp or ventilaton When an accessory reminder pop-up

message appears, perform the accessory maintenance yourself

OR contact your dealer/contractor.

Service Reminders: When a service reminder pop-up message

appears, contact your dealer/contracton

See ACCESSORY MAINTENANCE OR SERVICE POP-UP MESSAGES

on page 13 - 14 in this manual for additional information on service

and maintenance rem nders.

SetDay,Time&DesiredHumidity

1FlipdownthedooratthebaseoftheInfinity TM Control.

2 Press the BASIC button.

CURRENT TIME/DAY

3 Adjust the highlighted HOUR setting ,, _ -,

using the TIME (+\-) button. MINUTE : 30

DAY : MONDAY

4 Press SCROLL to highlight MINUTE. SETHUM_OFY

5 Adjust the MINUTE setting using the TIME IlililililBBBB

L H

(+\-) button, p_EssBASIOTOEXIT

6 Press SCROLL to highlight DAY.

7 Adjust the current DAY setting, using the TIME (+\-) button,

until the correct day is displayed.

8 Press SCROLL to highlight HUMIDITY.

9 Press the red HEAT button to set the heating humidity.

10 Adjust the desired heating humidity using either (+/-) button.

11 Press the blue COOL button to set the cooling humidity.

12 Adjust the desired cooling humidity using either (+/-) button.

13 If a ventilator has been installed, press scroll to highlight

FRESH AIR.

14 Adjust your desired FRESH AIR setting using the TEMP (+/-)

button. For a description of fresh air settings, see FRESH AIR

VENTILATION on page 24 in this manual.

15 Press the BASIC button to exit.

-OR -

If you need to readjust one of your settings, use the SCROLL

button to highlight the desired setting, then make your changes.

16 Close the door.

NOTE: You con exit ot ony time. When exiting, you will be

prompted to sove chonges if you hove mode ony Select"YES"

to sove your chonges, "NO" to revert bock to previous settings.

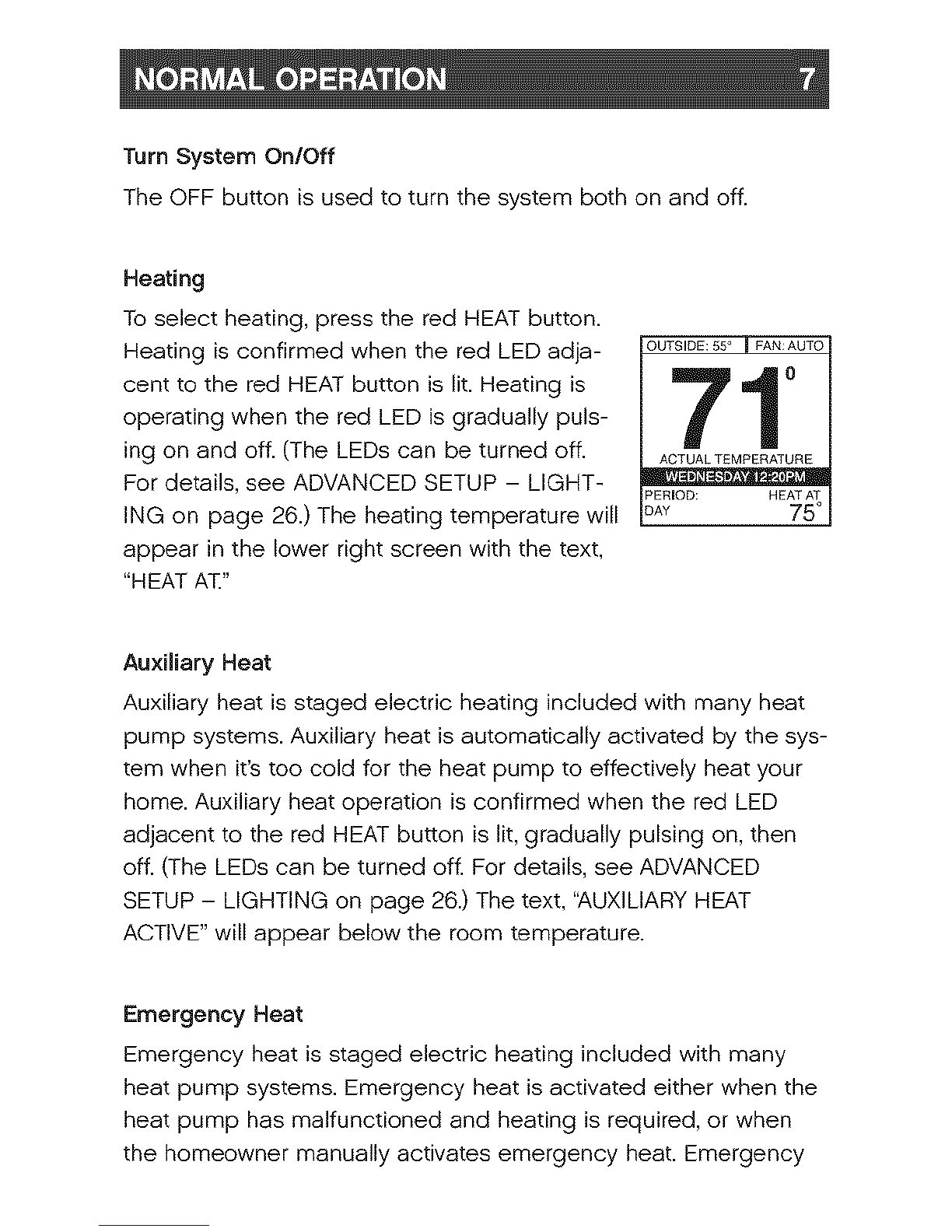

Turn System On/Off

The OFF button is used to turn the system both on and off.

Heating

To select heating, press the red HEAT button.

Heating is confirmed when the red LED adja-

cent to the red HEAT button is lit. Heating is

operating when the red LED is gradually puls-

ing on and off. (The LEDs can be turned off.

For details, see ADVANCED SETUP - LIGHT-

ING on page 26.) The heating temperature will

appear in the lower right screen with the text,

"HEAT AT."

OUTSIDE: 55_ _ FAN:AUTO

71°

ACTUAL TEMPERATURE

PERIOD; HEAT AT

DAY 75 °

AuxiEary Heat

Auxiliary heat is staged electric heating included with many heat

pump systems. Auxiliary heat is automatically activated by the sys-

tem when it's too cold for the heat pump to effectively heat your

home. Auxiliary heat operation is confirmed when the red LED

adjacent to the red HEAT button is lit, gradually pulsing on, then

off. (The LEDs can be turned off. For details, see ADVANCED

SETUP - LIGHTING on page 26.) The text, "AUXILIARY HEAT

ACTIVE" will appear below the room temperature.

Emergency Heat

Emergency heat is staged electric heating included with many

heat pump systems. Emergency heat is activated either when the

heat pump has malfunctioned and heating is required, or when

the homeowner manually activates emergency heat. Emergency

Other manuals for Infinity Control Home

Table of contents

Other Carrier Thermostat manuals

Carrier

Carrier Performance EDGE User manual

Carrier

Carrier 33CS Instructions and recipes

Carrier

Carrier AQUAZONE 50QE900 User manual

Carrier

Carrier 49004DP21 Parts list manual

Carrier

Carrier Performance TP-PAC Operation manual

Carrier

Carrier Infinity SYSTXCCITW01 User manual

Carrier

Carrier Performance Non-Programmable ADGE User manual

Carrier

Carrier TSTATBBPB501 User manual

Carrier

Carrier Comfort Pro User manual

Carrier

Carrier Cor User manual

Carrier

Carrier 5+2 DAY PROGRAMMABLEDIGITAL THERMOSTAT User manual

Carrier

Carrier KSACN1001AAA User manual

Carrier

Carrier TSTATCCPF701 User manual

Carrier

Carrier TSTATCCPRF01 Guide

Carrier

Carrier CRC2 - NTC User manual

Carrier

Carrier Comfort Touch-n-Go User manual

Carrier

Carrier 33CS User manual

Carrier

Carrier Aquazone 50QE900-NPWS User manual

Carrier

Carrier N-MC-FC Operational manual

Carrier

Carrier 52M Performance Series User manual

Carrier

Carrier TC-PBO01-BLK User manual

Carrier

Carrier Performance Edger Thermidistat Control... User manual

Carrier

Carrier TSTAT User manual

Carrier

Carrier TB-NAC User manual

Popular Thermostat manuals by other brands

EWELLY

EWELLY EW-181 manual

Prolon

Prolon T1100 Hardware guide

Computherm

Computherm Q20 operating instructions

Heatmiser

Heatmiser neoStat user manual

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA user manual

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat user manual

Saswell

Saswell SAS920XWHB-7-S-RF User manual and warranty card

Aircalo

Aircalo TFP1-ET85P2 operating manual

Honeywell

Honeywell CM721 user manual

Lennox

Lennox iHarmony Zone Thermostat Installation and setup guide

Gemtech

Gemtech GT7000 Operation

Rollei

Rollei Smartes 45000 manual

Sinope

Sinope TH1300RF user guide

Honeywell

Honeywell RLV4305 owner's guide

Honeywell

Honeywell Prestige 2.0 THX9421 manual

NuTone

NuTone NTBZ48 Installation & operation guide

Stelpro

Stelpro MAESTRO ASMT402AD user guide

Honeywell

Honeywell T6811 quick guide
