Carrier Performance EDGE User manual

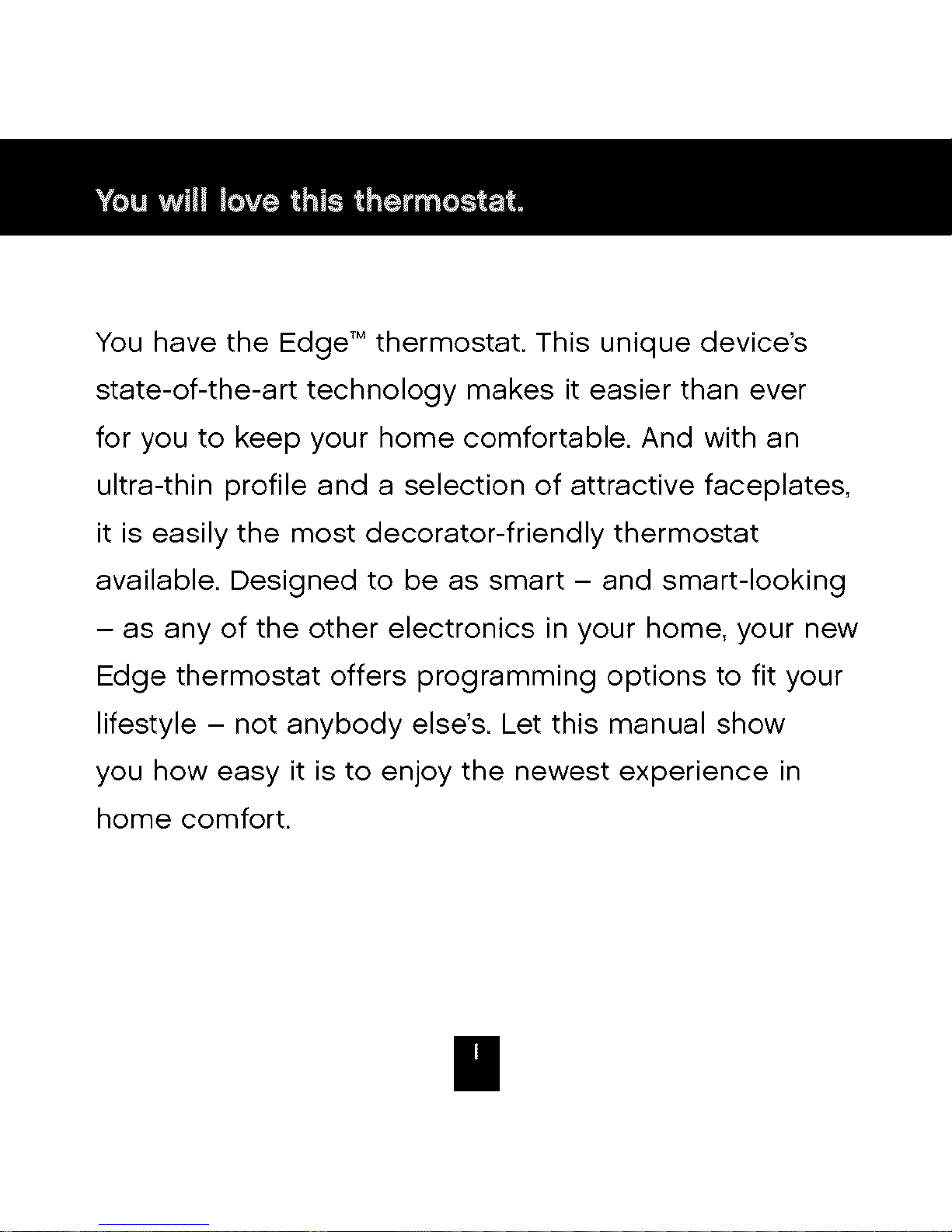

You have the Edge TMthermostat. This unique device's

state-of-the-art technology makes it easier than ever

for you to keep your home comfortable. And with an

ultra-thin profile and a selection of attractive faceplates,

it is easily the most decorator-friendly thermostat

available. Designed to be as smart - and smart-looking

- as any of the other electronics in your home, your new

Edge thermostat offers programming options to fit your

lifestyle - not anybody else's. Let this manual show

you how easy it is to enjoy the newest experience in

home comfort.

Button Identification .............................................. 6

On-screen Indicators ............................................. 8

Quick Start

Setting the time and date .................................... 10

Setting the temperatures for heating and cooling ............. 12

Holding the temperature ..................................... 14

Using the EXP - Edgd MExpansion Port - to program the thermostat . .15

Programming the Thermostat

Determining your programming schedule ..................... 16

Setting up your schedule when all days of the week will follow

the same schedule .......................................... 21

Setting up your schedule when all days of the week won't follow

the same schedule .......................................... 23

Using the programmable fan ................................ 26

Programming a vacation schedule ........................... 27

Activating your vacation program ........................ 28

Operating the Thermostat

Using the thermostat to turn the heating and cooling system off . .30

Usingthefan................................................ 31

Changingthehumiditylevel................................. 32

Usingnormalhumidify.................................. 32

Usingautohumidify..................................... 33

Howtoturnoffthehumidifyordehumidifyfeature........ 34

Usingemergencyheat(heatpumpsystemsonly)............. 35

AdvancedProgrammingOptions

Advancedprogrammingdisplaycodeschart................. 36

Clearingtheresetreminders................................. 37

ChangingfromFahrenheittoCelsius......................... 39

Adjustingorturningoffthecontinuousbacklighting........... 40

Keypadlockout............................................. 42

Unlockingthekeypad................................... 43

Changingfromprogrammabletononprogrammable......... 44

Changingthenumberofprogrammingperiods............... 46

Turningontheprogrammablefanfeature.................... 47

Turningoffthedaylightsavingstimefeature.................. 48

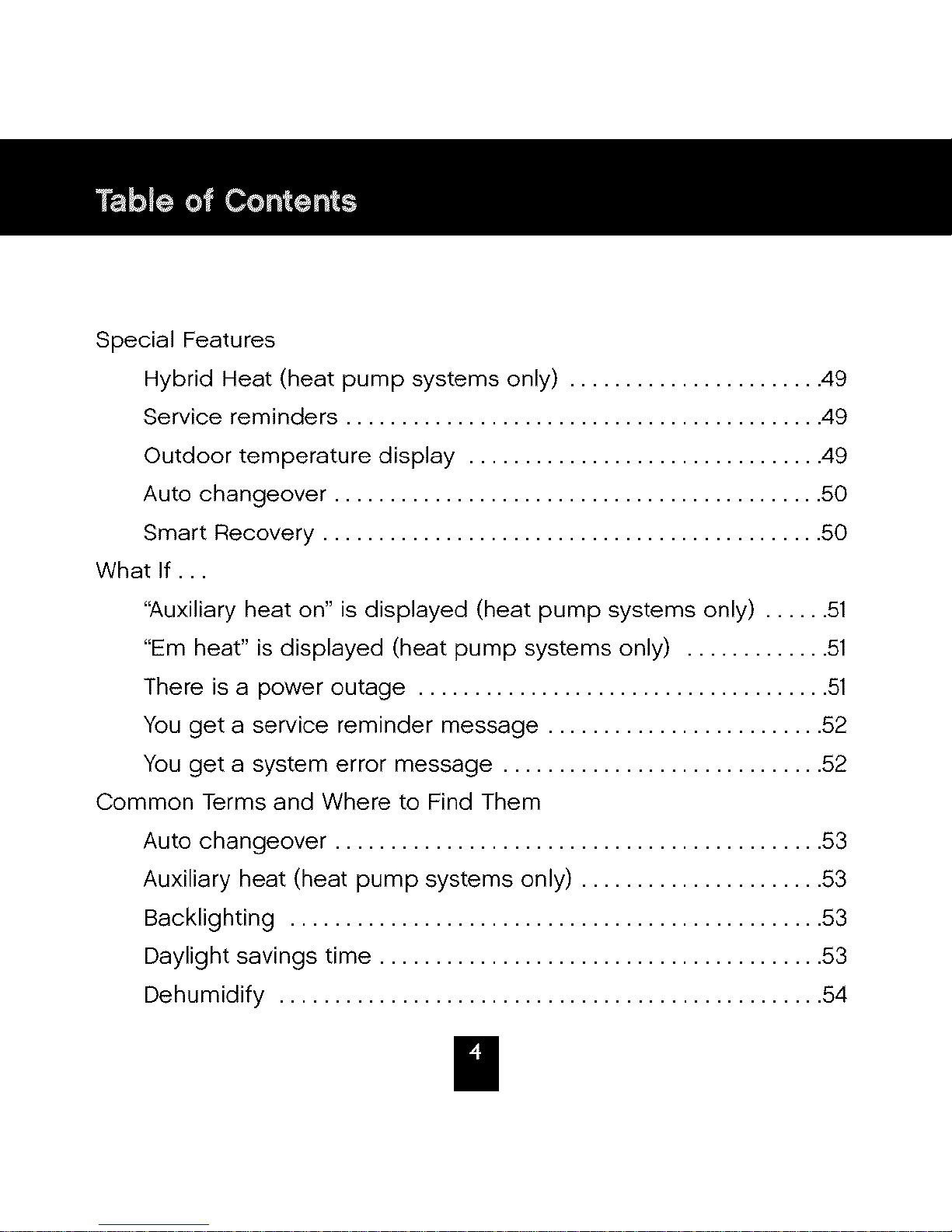

Special Features

Hybrid Heat (heat pump systems only) ....................... 49

Service reminders ........................................... 49

Outdoor temperature display ................................ 49

Auto changeover ............................................ 50

Smart Recovery ............................................. 50

What If...

"Auxiliary heat on" is displayed (heat pump systems only) ...... 51

"Em heat" is displayed (heat pump systems only) ............. 51

There is a power outage ..................................... 51

You get a service reminder message ......................... 52

You get a system error message ............................. 52

Common Terms and Where to Find Them

Auto changeover ............................................ 53

Auxiliary heat (heat pump systems only) ...................... 53

Backlighting ................................................ 53

Daylight savings time ........................................ 53

Dehumidify ................................................. 54

Emergency heat (heat pump systems only) ................... 54

EXP - Edge TMExpansion Port ................................ 54

Hold ........................................................ 54

Hybrid Heat ................................................. 54

Humidify .................................................... 55

Mode ....................................................... 55

Override .................................................... 55

Programmable fan .......................................... 55

Service reminders ........................................... 56

Smart Recovery ............................................. 56

Temporary hold ............................................. 56

Time period ................................................ 56

Warranty ........................................................ 58

scheduJe fan ( mode

SET

SCHEDULE

FAN

Qi MODE

DONE

ODOWN

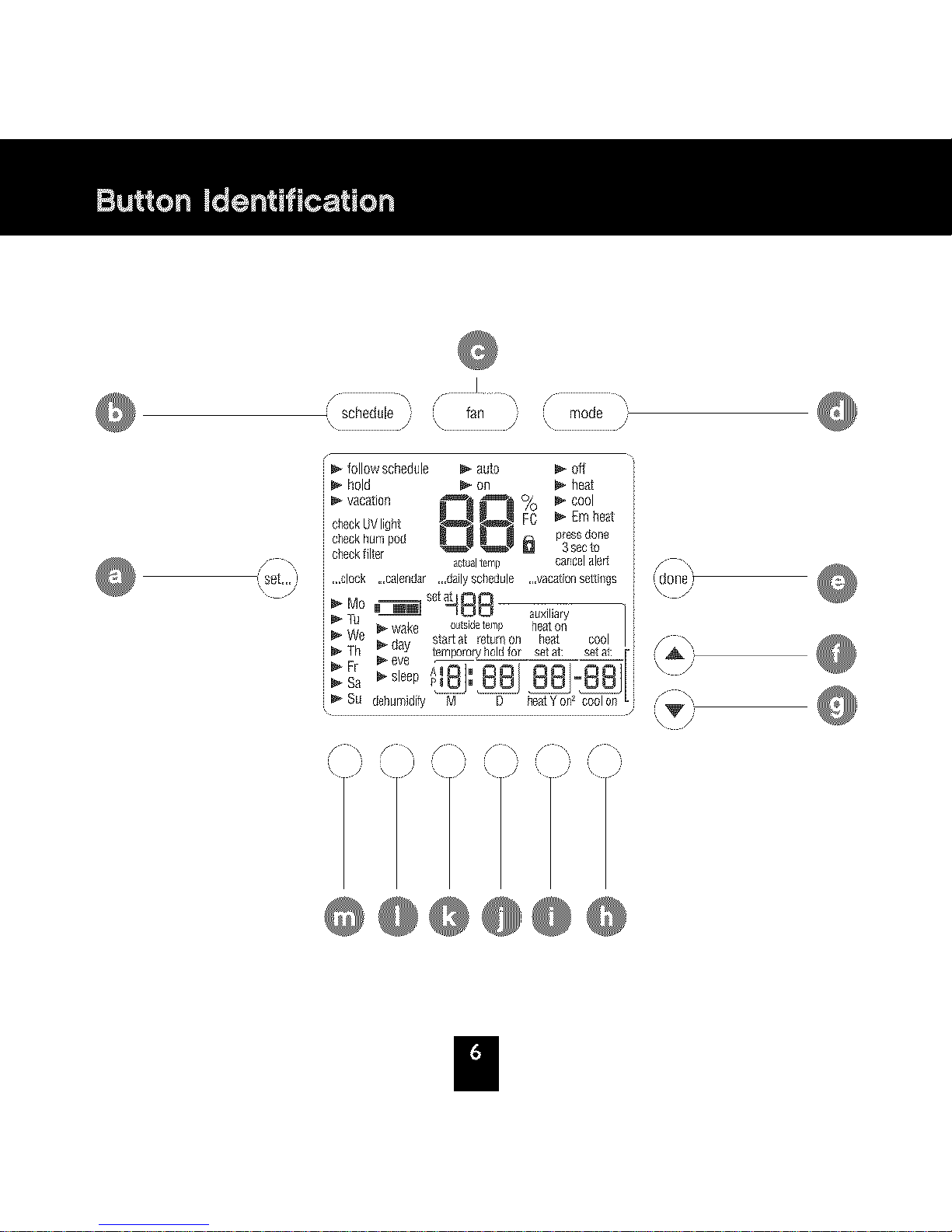

"SOFT" BUTTON

Enters the programming schedule, adjusts the clock, changes calendar, etc.

Choose follow schedule, hold, or vacation

Selects whether the fan operates continuously (on) or only when needed for

heating or cooling (auto)

Selects whether thermostat is set for heating, cooling, emergency heat, or

auto (heat and cool as needed), or off

Saves settings when completing a set-up or programming step

Adjusts the currently chosen value (temperature, clock, calendar, etc.)

Selects the on-screen indicator directly above the button for adjustment

_- fomlowschedume

hold

vacation

checkUVlight

checkhumpod

checkfilter actualtemp

,.,clock ,,,calendar.,.dallyschedule ,.,vacation

__ setatjl

@@@@@@@@@

1. Day of the week

2. Battery strength

3. Programming option; indicates which settings are being adjusted

4. Filter, UV lamp, humidifier pad reminders

5. Current temperature

6. Current program routine - follow scheduled programming, hold current settings,

run vacation program

21 Fan mode - on or auto

81 Current system mode - heating, cooling, emergency heat, heat/cool (auto), off

9. Indicates humidify or dehumidify settings

10. F/C - Fahrenheit or Celsius

11. Advanced programming indicators

12. Keypad is locked (no padlock means unlocked)

13. Programming option; indicates which settings are being adjusted

14. System is in auxiliary (supplemental) mode

15. Selected cooling set point; cooling on

16. Selected heating set point; heating on (the 2 indicates second stage of heating

or cooling is active)

171 Beating setpolnt

18. Year part of the date

19. Vacation schedule return date

20. Day part of the date

21. Length of time for temporary temperature hold

22. Month part of the date

23. Outdoor temperature; also displays other information during programming

24. Indicates whether setting humidify or dehumidify preferences

25. Time period start

26. Period of the day
