Carrier 33CS450-01 User manual

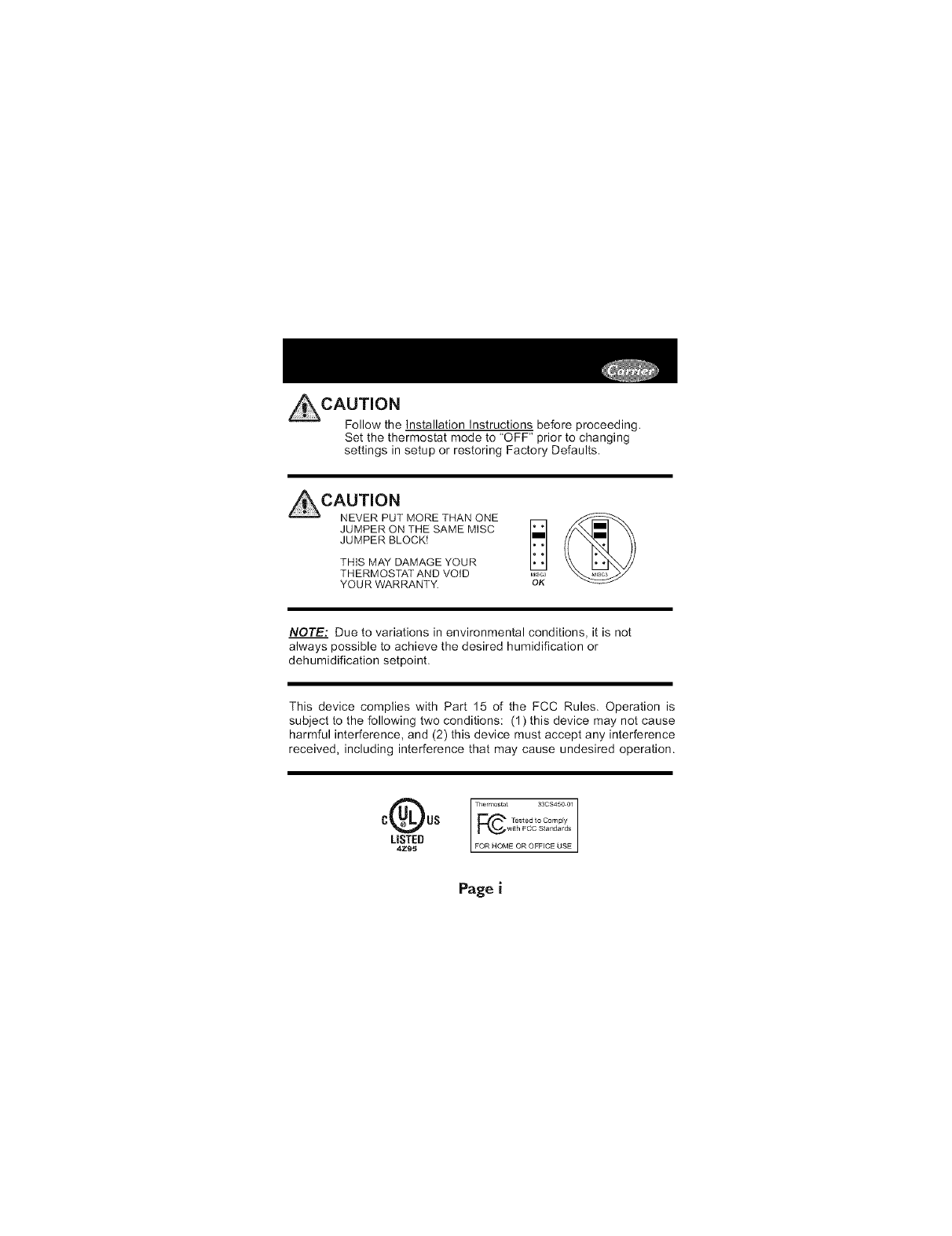

CAUTION

Follow the Installation Instructions before proceeding.

Set the thermostat mode to "OFF" prior to changing

settings in setup or restoring Factory Defaults.

CAUTION

NEVER PUTMORE THAN ONE r_

JUMPER ON THE SAME MISC I:_:1

JUMPER BLOCK!

THIS MAY DAMAGE YOUR

THERMOSTATAND VOID .,s_

YOUR WARRANTY. OK

NOTE: Due to variations in environmental conditions, it is not

always possible to achieve the desired humidification or

dehumidification setpoint.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

O Thermostat 3368450 01

CUS F_ Tested to Complywith FCC Standards

LISTED FORHOMEoRomcEuse

4Z95

Pagei

_,,_'ar,mmm"m'm E,'!

[,_

IIn

Page iii

Proper installation of the thermostat will be

accomplished by following these step by step

instructions, If you are unsure about any of these

steps, call a qualified technician for assistance,

Assemble tools

Flat Blade Wire cutter

Screwdriver & Stripper

.............] Make sure your Heater/Air Conditioner is working

' 1 properly before beginning installation of the

thermostat.

Carefully unpack the thermostat. Save the screws,

: : bracket, and nstructons.

Turn off the power to the Heating/Air Conditioning

system at the man fuse pane. Most res dent a

systems have a separate breaker for disconnecting

power to the furnace.

Page I. I

Removethecoveroftheoldthermostat.

Ifitdoesnotcomeoffeasilycheckforscrews.

Loosenthescrewsholdingthethermostat

baseorsubbasetothewall,andliftaway.

Disconnectthewiresfromtheoldthermostat.

Tapetheendsofthewiresasyoudisconnect

them,andmarkthemwiththeletterofthe

terminalforeasyreconnectiontothenew

thermostat.

Keeptheoldthermostatforreferencepurposes

untilyournewthermostatisfunctioningproperly.

Page 2. I

Section 3 Contents:

aConfiguring the Jumpers ........ 3.2

Explanation of Jumper

Settings .................................. 3.3

Page 3. I

Conj'7_ullng the/umpers

For additional flexibility, your thermostat has three configurable

outputs. These outputs are designed to have different functions /

depending on how the jumpers are set (below).

Each output, labeled MISC1, MISC2, and MISC3 may be set for one

of the six choices available.

In the diagram below, the MISC3 jumper has been set for HUM*

(humidification) operation, the MISC2 jumper has been set for

DEHUM* (dehumidification) operation, and the MISC1 jumper has

been set for PROG (programmable) operation.

-w

PROG--

HUM--

DEHUM--

ECON--

MISC3 MISC2 MISC1 bNLY)

_The Humidity Module (sold separately) must

be installed to operate a humidification

and/or dehumidification system.

CAUTION

NEVER PUT MORE THAN

ONE JUMPER ON THE SAME

MISC JUMPER BLOCK!

DOING SO MAY DAMA GE

YOUR THERMOSTAT AND

VOID THE WARRANTX MISC3

Page 3.2

Explanation o ]ump Se ing5

W3 JUMPER SETTING

If thejumper for MISC1, MISC2, or MISC3 is set to W3, the corresponding MISC

screw terminal on the backplate will control a third stage of heat,

W3 M ULT]-STAGE OPERAT]ON EXPLA]NED - SECT]ON 13 of the Owner's

Manual

The 3rd Stage of Heat is turned on when:

(A) The 1st and 2rid stages have been on for the time required (steps 27

and 28, page 13.6). ]t is adjustable from 0-60 minutes and the default

And is two minutes,

(B) The temperature from the setpoint is equal to or greater than: the set-

point plus the 1st stage deadband (step #24, 13.5), plus the 2nd stage

deadband (step #25, 13.5) plus the 3rd stage deadband (step #26,

13.5). This 3rd stage deadband is adjustable from 0-10 degrees and

the default is two degrees

"°"°° 4! coo,,oo

IL_Deadbar'd,_L,gead bar'd,J jDeadbar' jDead bar'dl2ea dbar'dl I

(ad I 0 1 (ad I 0 1 (ad I 1_ (adl f_) I 0 10 ) [

3rd Stage 2nd Slage 1si S3age Heat COOl 1si S3age 2nd S3age

turnon iurn on iurn on Setpoint Setpolnt iurn on iurn on

_DECREASEmLTEMPERATUREJ--INCREASE_

PROG JUMPER SETTING

If the jumper for MISC1, MISC2, or MISC3 is set to PROG the corresponding MISC screw

terminal on the backplate will con trol a pilo t relay or o ther accessory,

PROGRAMMABLE OUTPUT - SECTION 14 of the Owner's Manual

This jumper setting allows the M]SC outputs to control a pilot relay by time,

temperature, or a signal from the ]nternet/Phone, The foilowing are three

possible scenarios:

By Time: A device that requires a start and stop time An example

of this would be an exterior tighting system that needed to be

energized every day between the hours of 8pm and 1am,

By Temperature: An exhaust fan that needs to energize whenever

the temperature from RS2 rises above 90 degrees F

By Remote: Remotely arming a security system through the web or phone

Page 3.3

Explanation of ]umwr Settings ¢_o.tt._d_

HUM JUMPER SETTING

If the jumper for MISC1, MISC2, or MISC3 is set to HUM, the corresponding MISC screw

terminal on the backplate will control a humidification system,

HUMIDIFICATION OPERATION - SECTION 9 of the Owner's Manual

If your HVAC unit is equipped with a humidification system and the Humidity

Module (sold separately) has been installed, the thermostat will provide power

to the MISC1, MISC2, or MISC3 terminal of the thermostat when the humidity in

the home falls below the humidity setpoint you have chosen. The value for this

setpoint ranges from 0% to 60%. If no humidity is desired or if a humidification

system has not been installed, set the value to OFR

DEHUM JUMPER SETTING

If the jumper for MISC1, MISC2, or MISC3 is set to DEHUM, the corresponding MISC screw

terminal on the backplate will be connected to the dehumidification terminal of a furnace board.

NOTE: Not all furnaces have a dehumidification terminal,

DEHUMIDIFICATION OPERATION - SECTION 10 of the Owners Manual

If your HVAC unit is equipped with a dehumidification system the thermostat will

operate in one of two ways,

1) Normally Closed (NC): The thermostat wifl de-energize the MISC1, MISC2,

or MISC3 terminal of the thermostat (this MISC terminal is connected to the

DEHUM terminal on your furnace) to allow the fan to run in low speed when

the humidity in the home is above the dehumidify setpeint you have chosen

and there is a call for 1st stage cooling

2) Normally Open (NO): The thermostat will energize the MISC1, MISC2, or

MISC3 terminal of the thermostat (this MISC terminal is connected to the

DEHUM terminal on your furnace) to allow the fan to run in tow speed when

the humidity in the home is above the dehumidify setpoint you have chosen

and there is a call for 1st stage cooling

Page 3.4
