Canon PIXMA MG5220 Series User manual

<< Previous Next >>

Obtaining Your Network Key

PIXMA MG5220

Windows OS

<< Previous Next >>

Obtaining Your Network Key

PIXMA MG5220

Windows OS

Introduction

Download the Canon PIXMA Wireless Setup Assistant

Using the Canon PIXMA Wireless Setup Assistant

TroubleShooting

Introduction

If you are unable to proceed to the next step after any of the following screens are

displayed when inputting the wireless LAN settings, you may be able to retrieve the

access point name / network name (SSID), or the network key (WEP key / passphrase)

using the Canon PIXMA Wireless Setup Assistant.

<< Previous Next >>

Note : The Wireless Setup Assistant is supported on the following operating systems only:

•Windows XP SP3 or later

•Windows XP x64 Edition SP3 or later

•Vista (32 & 64 bit)

•Windows 7 (32 & 64 bit)

Download the Canon PIXMA Wireless

Setup Assistant

<< Previous Next >>

Step One

Go to the Drivers & Software link for

the MG5220.

Choose your Operating System (OS)

in the Select OS dropdown list

Step Two

In the Software section, click the link

for the Canon PIXMA Wireless Setup

Assistant (Windows).

In the example below the link is

CanonAPChkTool_win210en.exe.*

The link name may vary by Operating System

Download the Canon PIXMA Wireless

Setup Assistant

<< Previous Next >>

Step Three

On the next screen, read the

information and instructions and

click I Agree - Begin Download

Choose to "Save" the file.

Important: Write down the file

name and the location to where the

file is being saved.

Using the Canon PIXMA Wireless

Setup Assistant:

<< Previous Next >>

Step One

Display the window for selecting

access point using the buttons on

the printer.

Please refer to the Getting Started

Guide if you are unable to display

the below window on the LCD

screen.

Using the Canon PIXMA Wireless

Setup Assistant:

<< Previous Next >>

Step Two

Double-click the file you

downloaded.

This will create a folder of the same

name as the file and this folder will

be in the same location.

Step Three

Open the folder and double-click the

CNMNPHLP.EXE file.

Example

Using the Canon PIXMA Wireless

Setup Assistant:

<< Previous Next >>

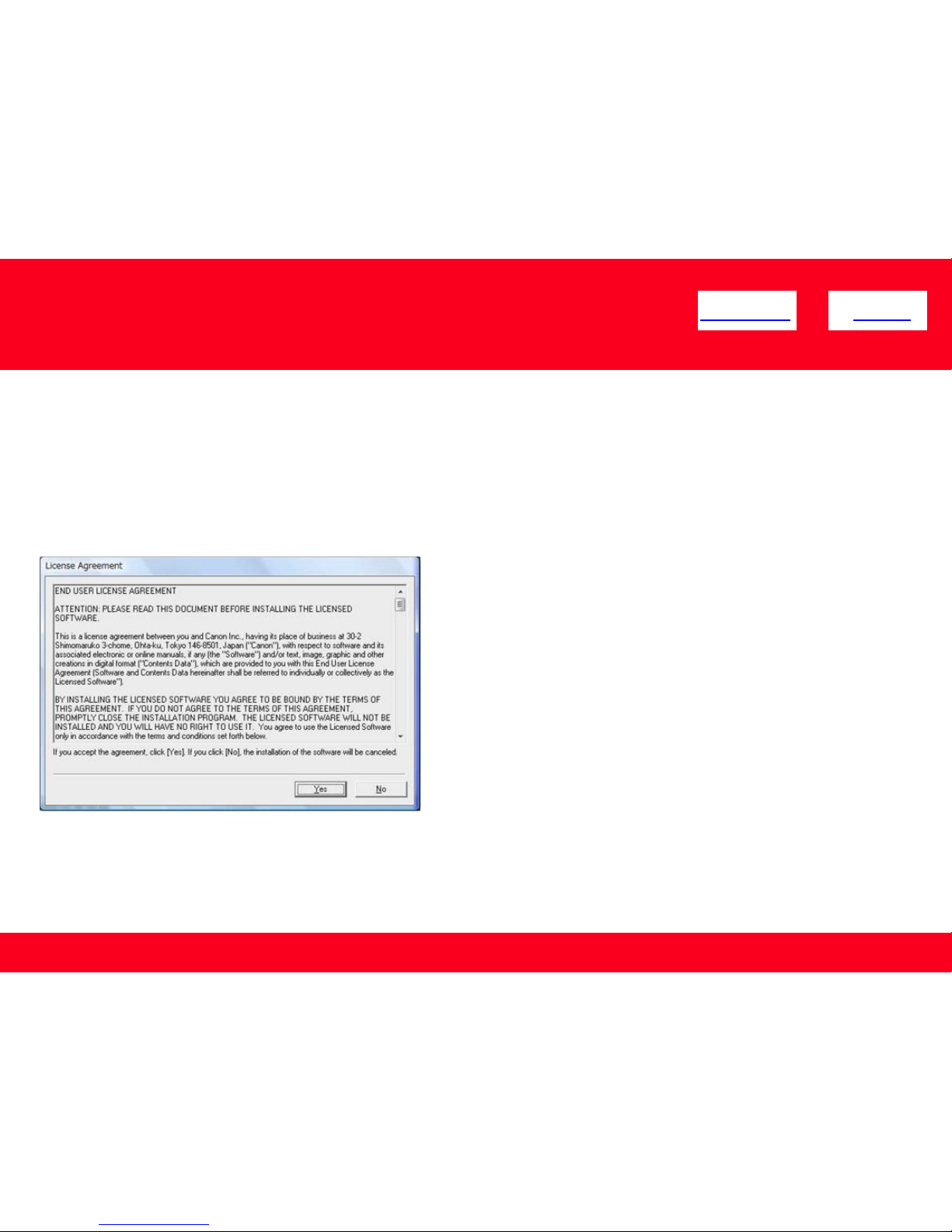

Step Four

Read the License Agreement, and

then click Yes when you accept the

agreement.

Using the Canon PIXMA Wireless

Setup Assistant:

<< Previous Next >>

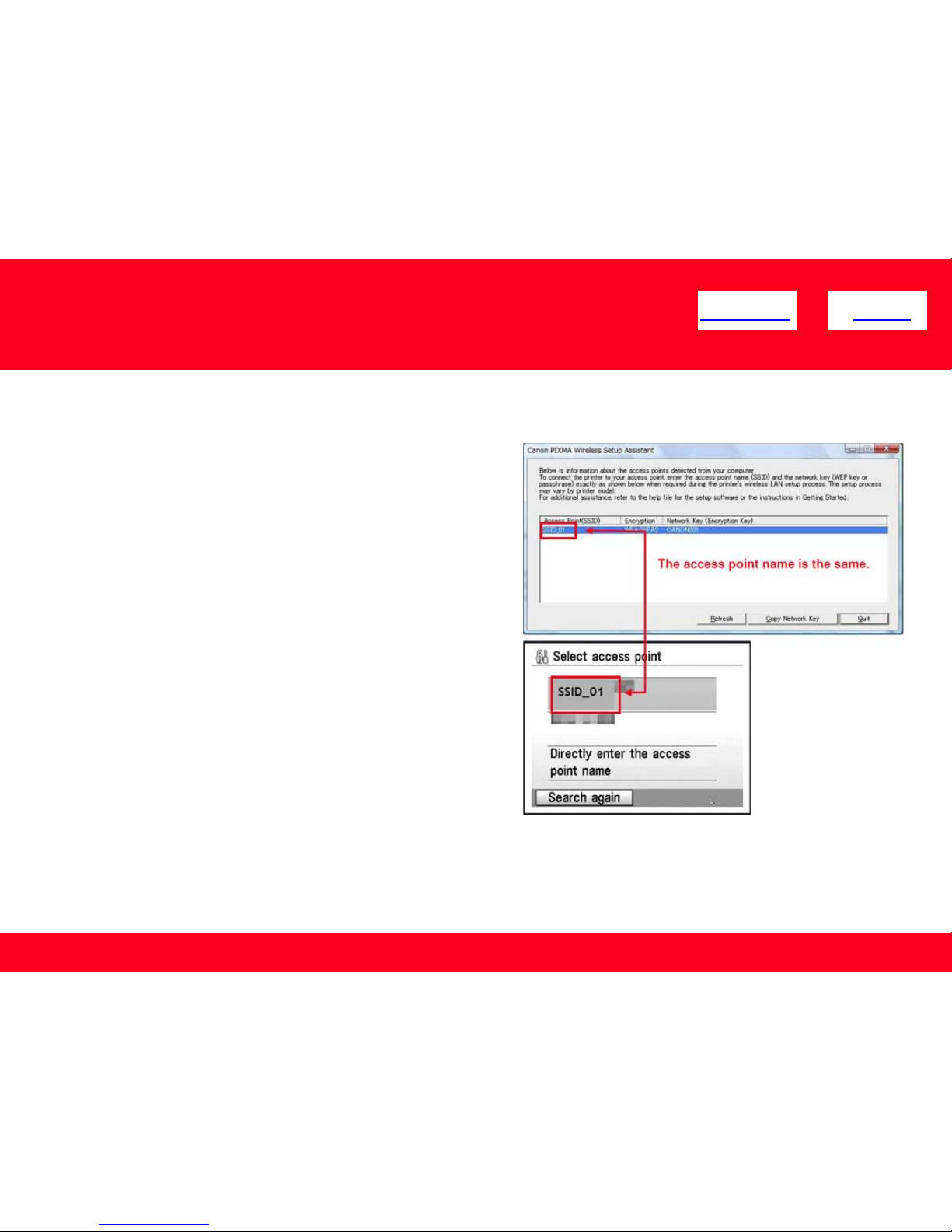

Step Five

The tool "Canon PIXMA Wireless

Setup Assistant" is launched.

Confirm that the same access point

names are listed in the following

window as the ones in the Access

Points window displayed on the

printer unit (Step One).

Then, write down the Network Key

of the access point.

NOTE: The Network Key may be

displayed with text of the letters A

to F (base 16 number). Write the

number down as-is.

Using the Canon PIXMA Wireless

Setup Assistant:

<< Previous Next >>

Step Six

1. In the window for selecting

access point of the printer

unit, select the access point

specified in step 4, then press

the OK button.

2. press the right function button

(below Enter / edit). Enter the

network Key or Passphrase.

3. When finished entering the

Network Key, press the Left

function button (below Done)

•

4. Press the OK button to connect

to the access point.
