Preface

Shipping Materials

Thank you for purchasing a Canon Bubble Jet Printer.

Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon

Authorized Dealer or Sales Representative.



Printer



Setup Software & User’s Guide CD-ROM



Quick Start Guide



Print Head



6 Ink Tanks

* Cables should be purchased separately according to your computer. For details on cable type and

specifications, refer to page 3.

Introduction

This Quick Start Guide uses the following symbols to indicate important information. Always observe the

instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect

operation of the equipment. These must be observed for safe operation.

Instructions that, if ignored, could result in personal injury or material damage caused by incorrect

operation of the equipment. These must be observed for safe operation.

Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid

personal injury or damage to the printer.

Trademark Notices

•Canon

is a registered trademark of Canon Inc.

•BJ

™

is a trademark of Canon Inc.

•Microsoft

and Windows

are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other

countries.

• All other trademarks and registered trademarks appearing in this Quick Start Guide are the property of

their respective owners.

without the express written permission.

Setting Up

1 Preparing the Printer

Place the printer on a flat surface.

Remove the tape and the shipping

material from the printer as shown.

The tape position is subject to change.

Attach the paper rest to the sheet

feeder.

Lower and pull out the output tray as

shown.

paper rest

output tray

2 Connecting the Printer to the Computer

Use a USB cable.

Follow the steps below to install the printer driver

correctly.

Ensure the printer and the computer are

switched off.

Connect the cable.

• If your computer has an earth connection, make sure that this is attached.

• If you do not intend to use the printer for a long period of time, unplug the power cord from the

power outlet after turning off the printer.

Recommended: Canon or other computer

manufacturer cable, up to 2 meters in length.

If the Add New Hardware Wizard or Found New Hardware

Wizard screen appears when carrying out the following

operations, click Cancel and turn off the computer.

3 Installing the Print Head

• Never attempt to plug the power cord into the power outlet or unplug the power cord when your

hands are wet.

• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy

objects on the power cord.

• Never use any power supply other than the standard power supply available in the country of

purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.

• Always push the plug all the way into the power outlet.





Installing the Print Head

Plug the printer in.

Turn on the printer. Do NOT turn on the

computer yet.

The POWER lamp flashes and the printer begins to

operate. Wait until the POWER lamp remains fully lit.

Open the front cover.

Remove the tape.

Raise the lock lever.

Do not touch internal parts other than the lock lever.

Remove the protective cap from the

print head.

Place the print head in the holder.

Lock the print head into place by

lowering the lever.

Do not touch the lock lever once the print head has been

installed.





Installing the Ink Tanks

• For safety reasons, store ink tanks out of the reach of small children.

• Do not drop or shake ink tanks.

Take out the yellow ink tank.

Pull the orange tape in the direction of

the arrow and remove the clear film.

• Do not touch the print

head nozzles or

electrical contacts.

• Do not attempt to

reattach the protective

cap once it has been

removed.

Be careful not to touch any parts inside the printer.

electrical

contacts

print head

nozzles

Hold the ink tank as shown in the

diagram and remove the protective cap.

Insert the yellow ink tank into the right-

hand slot. Press the top until it clicks

into place.

Use the same procedure to install the

other ink tanks in their appropriate slots.

Check the labels to make sure that each tank is in the

correct position.

Close the front cover.

Wait until the POWER lamp remains fully lit (about 60

seconds).

• Do not squeeze the sides of

the ink tanks as this may

cause the ink to leak out and

stain your clothes and hands.

• Do not touch the ink port.

• Do not attempt to reattach the

protective cap once it has

been removed.

• Only install the ink tanks in the positions specified

by the labels.

• If ink tanks are not installed in the right position,

colors will not be printed correctly. Immediately

reinstall the tank in the correct position and carry

out print head cleaning. For details, refer to the

User’s Guide.

protective cap

ink port

Black Photo

Cyan


Magenta

Cyan Magenta

Yellow

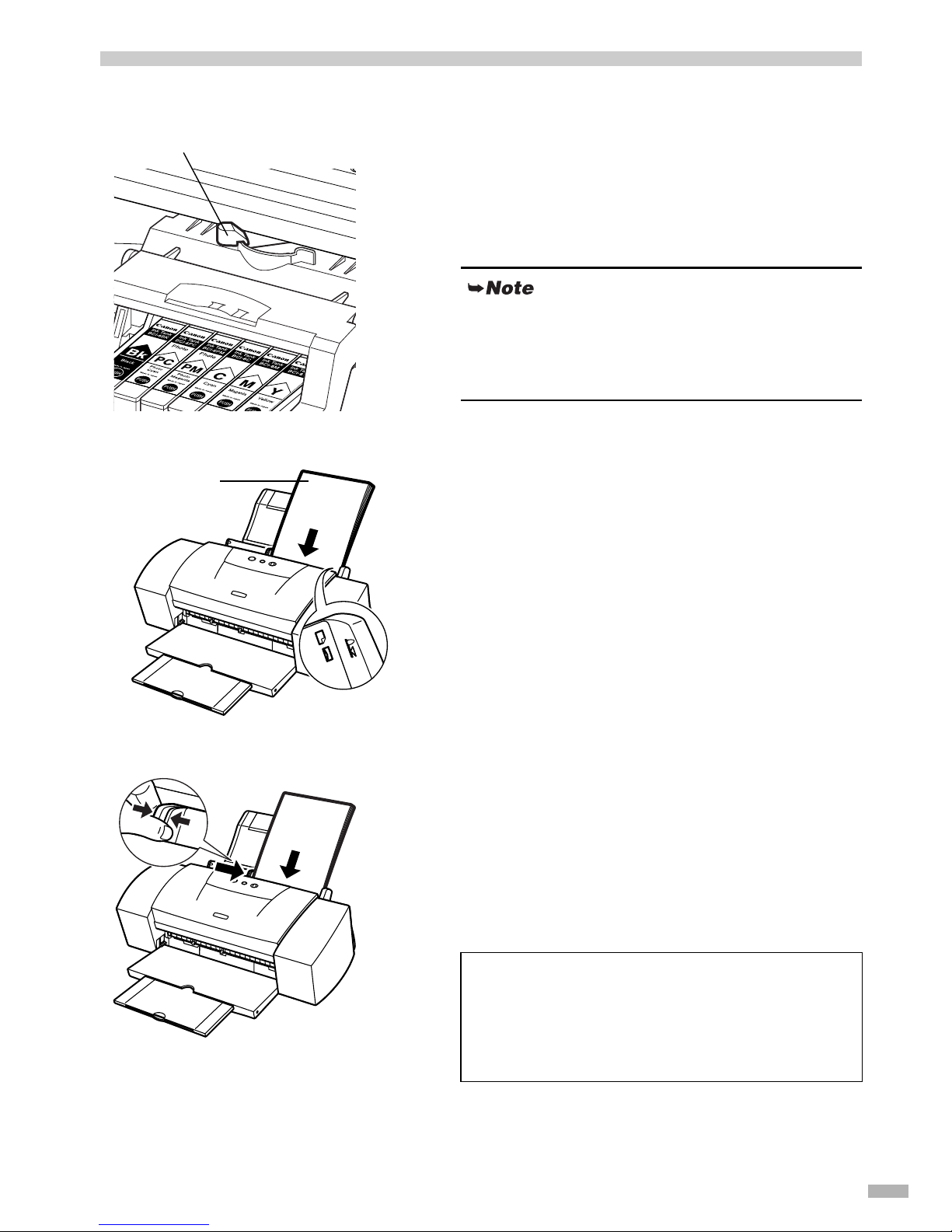

4 Loading Paper





Loading A4 (Letter) Size Plain Paper

Open the front cover.

Move the paper thickness lever at the

top of the print head holder to the left

position. Close the front cover.

Load the paper, aligning it with the right

side of the sheet feeder.

You can load up to 100 sheets of plain paper. Do not

exceed this limit. After printing, do not stack more than

40 sheets in the paper output tray.

Press the paper guide and slide it

against the left side of the stack of

paper.

Set the paper thickness lever to the left when using

plain paper, to the right when using thick paper.

Refer to the User’s Guide for information on loading

envelopes and other media.

You now need to install the printer driver:

Windows: Go to page 8

Mac OS 8.6 - 9.x: Go to page 10

Mac OS X: Go to page 12

paper thickness lever

print side

5 Installing the Printer Driver





Installing the Printer Driver – Windows

Ensure the printer and computer are

switched off.

Turn on the computer and start

Windows. If any applications

automatically run, quit them.

Disable any virus detection programs.

Do NOT turn the printer on at this stage.

• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be

correctly installed.

• The screens below refer to Windows XP installation. Screen may differ depending on the operating

system you are using.

• When installing the printer driver in Windows XP or Windows 2000, log on to the system as a

member of the Administrators group.

If the following screen appears automatically, click

Cancel

and follow steps 1 to 7 to install the printer

driver.

Special Notes for Windows 98 or Windows Me USB Users

Click

Cancel

to quit the screen and turn off the printer. Next, remove and replace the USB cable

connected to your computer.

OFF
