Canon PIXMA G4010 Series User manual

Trưc tiên đc Thông tin an ton v quan trng

(ph lc).

Baca Keamanan dan Informasi Penting

(lampiran) terlebih dahulu.

Hưng dn bt đu





Mari Memulai

Read Safety and Important Information

(addendum) rst.



Getting Started

Lp đt My in .........................................................................................trang 1

Kt ni vi my tnh v smartphone/my tnh bng ................................ trang 4

Memasang Pencetak ......................................................................... halaman 1

Menghubungkan dengan Komputer dan Ponsel Pintar/Tablet .......... halaman 4

Cch gi My in Đon phim gii thch

 ..................................................................................... 

 ......................................

Cara Memegang Pencetak Video Penjelasan

Installing the Printer ................................................................................. page 1

Connecting with Computer and Smartphone/Tablet ................................ page 4

 

How to Hold Printer Explanatory Movies

ENGLISH

1. Checking Included Items

□ Power cord

□ Safety and Important Information

□ Getting Started (this manual)

□ Setup CD-ROM for

Windows PC

□ Cartridge

□ Ink bottle

□ Modular cable

2. Removing Packing

Materials

1 Remove the packing materials (such as orange

tape) from outside the printer.

2 aOpen the scanning unit / cover.

bRemove the orange tape and the protective

material and discard them.

3. Installing the Cartridge

1 Open the cartridge locking cover.

2 Take out the C (color) cartridge from the package

and remove the label.

3 Remove the protective tape.

Do not touch.

4 Insert the C (color) cartridge on the left.

Do not bump it against the

surrounding parts.

5 Repeat steps 2 to 4 to insert the B (black)

cartridge on the right.

6 Close the cartridge locking cover and push it

down.

7 Press down both joint buttons.

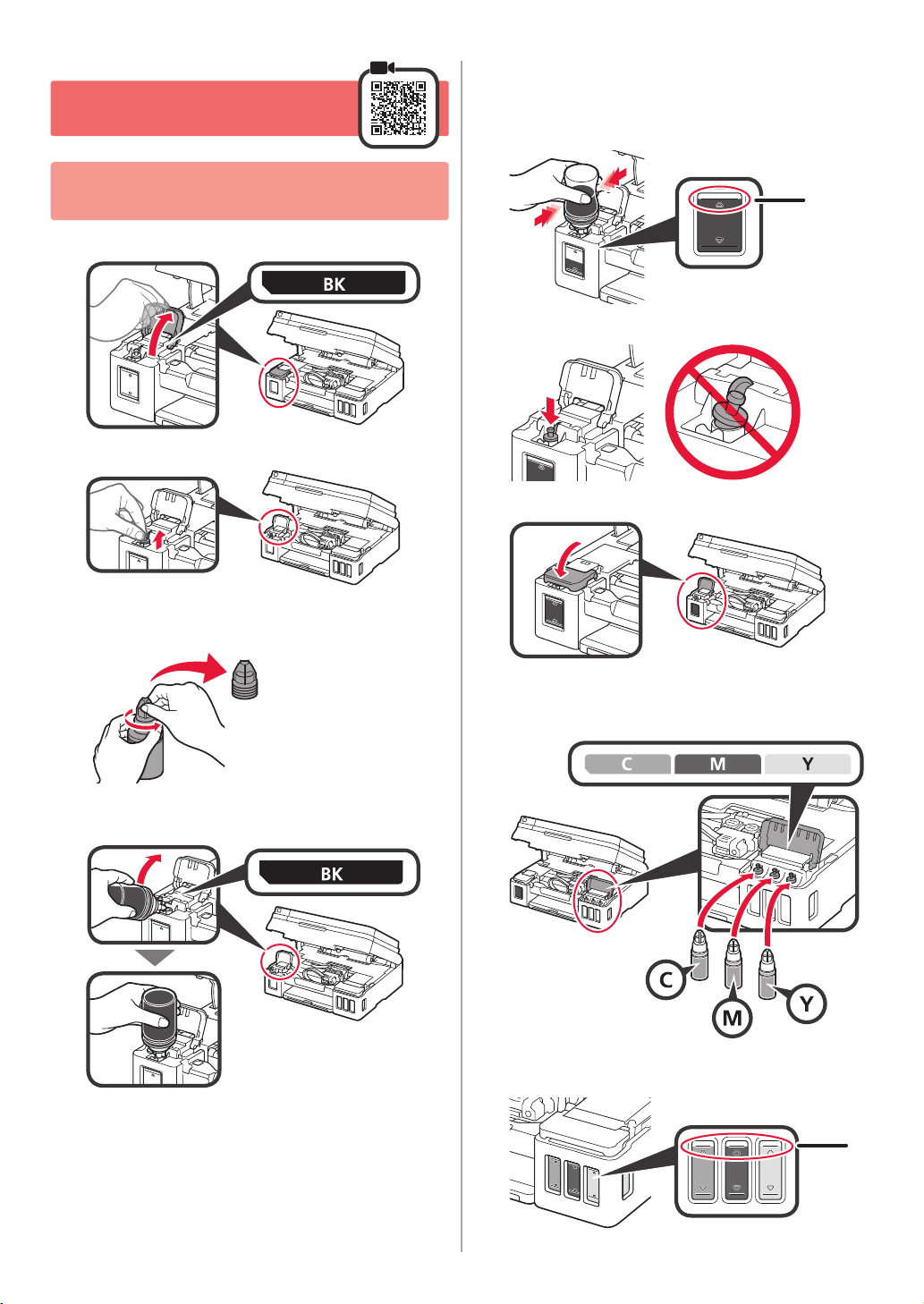

4. Pouring Ink

This product requires careful handling of ink. Ink may

splatter when the ink tanks are lled with ink. If ink gets

on your clothes or belongings, it may not come off.

1 Open the ink tank cover.

2 Grab and remove the tank cap of the ink tank.

3 Hold the ink bottle upright and remove the bottle

cap.

4 Insert the nozzle of the ink bottle into the inlet and

stand the ink bottle upside down.

5 Pour all ink into the ink tank.

Conrm that the ink has been lled to the upper

limit line (A).

(A)

6 Replace the tank cap securely.

7 Close the ink tank cover.

8 Repeat steps 1 to 7 to pour all ink into the

corresponding ink tanks on the right according to

the label.

Conrm that the ink has been lled to the upper

limit line (A).

(A)

ENGLISH

9 Close the scanning unit / cover.

5. Turning on Printer

1 Connect the power cord.

Back

Do not connect any cables except the power cord

yet.

2 Press the ON button.

3 When the following screen appears, use the [

and ] buttons to select a language, and then

press the OK button.

4 If the following screen appears, select your country

or region, and then press the OK button.

5 Conrm that all the ink tanks have ink in them.

6 Select Yes with the [ and ] buttons, and then

press the OK button.

7-A. Connecting to Computer

macOSWindows

You need a connection setup for each computer. Proceed with the setup from step 1 for each computer.

1 Start the setup le for either method or method .

Downloading from the Internet

aOpen a web browser ( etc.) on your computer.

bInput the following URL and access the Canon

website.

cSelect Set Up.

dInput the model name of your printer and click OK.

You can select a model name from the list.

eClick Setup.

The procedures for Windows and macOS are shown

below. If you are using a computer with an OS other

than Windows or macOS, such as a Chrome OS, do

the setup according to the on-screen instructions.

fClick Download and download the setup le.

gExecute the downloaded le.

Proceed to step on the next page to

continue.

6. Preparing for Connection

1 Press the OK button.

Preparing the ink starts.

This takes about 5 to 6 minutes. Proceed to the next

step.

2 Check that the following screen appears.

From here on, proceed to a step according to how you use

the printer.

• To use the printer by connecting only to a computer

or both to a computer and smartphone

"7-A. Connecting to Computer"

• To use the printer by connecting only to a

smartphone

"7-B. Connecting to Smartphone" on page 6

To use the printer without connecting to

a computer or smartphone

aPress the Stop button on the printer.

bIn the connection method selection screen, use the

[and ] buttons to select Do not connect, and

then press the OK button.

cUse the [ and ] buttons to select Yes, and then

press the OK button.

dWait until the following screen appears.

The setup is now complete.

To continue fax setup, proceed to page

ENGLISH

Using Setup CD-ROM (Windows Only)

aLoad the Setup CD-ROM in your computer.

■ When using Windows 10 or Windows 8.1:

bWhen the following message appears on the right

side of your computer screen, click it.

cIf the following screen appears, click Run

Msetup4.exe.

dIf the User Account Control dialog box appears,

click Yes.

When This Message Does Not Appear (or Has

Disappeared)

1. Click File Explorer on the taskbar.

2. Click This PC on the left side of the opened window.

3. Double-click the CD-ROM icon on the right side of

the window.

If the contents of the CD-ROM appear, double-click

Msetup4.exe.

4. Proceed to step d.

■ When using Windows 7:

b When the AutoPlay screen appears, click Run

Msetup4.exe.

c If the User Account Control dialog box appears,

click Continue.

When AutoPlay Screen Does Not Appear

1. Click Computer from the start menu.

2. Double-click the CD-ROM icon on the right side of

the opened window.

If the contents of the CD-ROM appear, double-click

Msetup4.exe.

Proceed to step to continue.

2 Click Start Setup. If the following screen appears, click Exit.

Follow the on-screen

instructions to proceed

with the setup.

The setup is complete when the following screen appears on the printer's screen. You

can print from your computer.

To continue fax setup, proceed to page 8.

7-B. Connecting to Smartphone

iOS

Android

You need a connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.

• If you have a wireless router, connect your smartphone to the wireless router you want to connect to the printer.

* For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

: Search "Canon PRINT" in App Store.

: Search "Canon PRINT" in Google Play.

Or access the Canon website by scanning the QR code.

* You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly.

In that case, you may be charged depending on the contract with your service provider.

* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

2 Check the display on the printer.

The screen turns off when no operation is made for about 10 minutes. Press one of the buttons on the operation

panel (except for the ON button) to display the screen.

a Does the following screen appear?

b Does (the printer is connected to the network) appear on the screen displayed by pressing the

Copy button?

aTap the installed application

software.

bFollow the on-screen instructions to register the

printer.

cMake sure that the right

screen appears.

The connection with your smartphone is

now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading

Paper" on page 8.

To continue fax setup, proceed to page

Yes

No Yes (Proceed to .)

No (Proceed to .)

If appears, the printer cannot communicate by

wireless LAN connection. For details, access "http://ij.start.

canon" to see Frequently Asked Questions.

ENGLISH

Troubleshooting

Printer is not found from your smartphone.

aPress the Setup button on the printer. bUse the [ and ] buttons to select Wireless LAN

setup > Easy WL connect, and then press the

OK button.

cReturn to the operation of your smartphone.

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its

procedure.

aTap Settings on your smartphone's home screen,

and tap Canon_ij_XXXX in the Wi-Fi settings.

If Canon_ij_XXXX does not appear on the list, see

"Troubleshooting" below to operate the printer, and

then repeat step a.

bTap the installed application software.

cFollow the on-screen instructions to register the

printer.

Follow the on-screen instructions to proceed

with the setup.

If you select Auto Select Conn. Method

(recommended) on the connection method

selecting screen, the appropriate connection

method is selected automatically depending on

your environment.

dMake sure that the following screen appears.

aTap the installed application software.

bFollow the on-screen instructions to register the

printer.

If a message saying "Printer is not registered.

Perform printer setup?" does not appear, see

"Troubleshooting" below to operate the printer, and

then wait for a while until the message appears.

Follow the on-screen instructions to proceed

with the setup.

• The appropriate connection method is selected

depending on your environment.

• If two printer names appear on the Register

Printer screen as shown below, select A.

A) G4010 series (xxx.xxx.xxx.xxx)

B) Direct-xxxx-G4010series

cMake sure that the following screen appears.

The connection with your smartphone is now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading Paper" on page 8.

To continue fax setup, proceed to page 8.

1 Open the paper support and the paper support

extension.

2 Slide the right paper guide to the end.

3 Load paper with the print side facing up.

4 Slide the right paper guide to align it with the

side of the paper stack.

5 aPull out the paper output tray.

bOpen the output tray extension.

Loading Paper

■ Opening from the website

aAccess the Canon website.

bSelect Set Up.

cWhen the screen for selecting a model appears, input

the model name of your printer.

dSelect Making Fax Ready for Use.

■ Opening from the manual installed into your computer

The following is an example using Windows 10.

aClick the Start button.

bClick All apps > Canon G4010 series On-screen

Manual in this order, and then open the Basic

Manual.

cSelect Setting Up the FAX.

Using Fax Function

Before using the fax function, refer to Setting Up the FAX to set up the fax function of your printer. You can refer to

Setting Up the FAX by either of the following methods.

Table of contents

Languages:

Other Canon Printer manuals

Canon

Canon Color imageRUNNER LBP3460 User manual

Canon

Canon LBP674Cx User manual

Canon

Canon MAXIFY MB5020 User manual

Canon

Canon Oce VarioPrint 135 User manual

Canon

Canon Selphy CP1300 User manual

Canon

Canon PIXMA MX392 User instructions

Canon

Canon Color imageCLASS X LBP1333C User manual

Canon

Canon image Prograf iPF780 Series User manual

Canon

Canon imageclass LBP251dw User manual

Canon

Canon iPF6100 - imagePROGRAF Color Inkjet Printer User manual

Canon

Canon imagePROGRAF iPF8300S User guide

Canon

Canon Color imageCLASS LBP633Cdw User manual

Canon

Canon imageClass LBP6030w User manual

Canon

Canon TS3440 Setup guide

Canon

Canon PIXMA MX700 Series User manual

Canon

Canon g3000 series User manual

Canon

Canon S 530D User manual

Canon

Canon DR-4010C - imageFORMULA - Document Scanner User manual

Canon

Canon TS8200 Series User manual

Canon

Canon imagePROGRAF iPF780 User manual

Canon

Canon CP-200 User manual

Canon

Canon iPF6100 - imagePROGRAF Color Inkjet Printer User manual

Canon

Canon MG5100 series User manual

Canon

Canon PIXMA MX340 Series User manual

Popular Printer manuals by other brands

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso user guide

Kyocera

Kyocera FS-9530DN specification

Samsung

Samsung BIXOLON SRP-350plusF user manual

Dell

Dell Color Laser Printer 2130cn user guide

Tektronix

Tektronix Phaser 840 user guide

Epson

Epson ET-7750 Programming guide

Eltron

Eltron P210 Guide manual

Ricoh

Ricoh MD-P1 Service manual

Epson

Epson SC-F7100 series user guide

Epson

Epson Stylus C40UX Service manual

IRA3D

IRA3D POETRY4 Original instructions

Ricoh

Ricoh Aficio AP400 operating instructions

BIXOLON

BIXOLON SRP-352plusV user manual

Epson

Epson Stylus Photo PX700W Basic operation guide

Ricoh

Ricoh SP204SF user guide

Star Micronics

Star Micronics futurePRNT TSP100 Hardware manual

Epson

Epson TM-TM88V-i Technical reference guide
