Canon PCL PRINTER KIT-Jl Operating and maintenance manual

PCL PRINTER KIT-J1

Installation Procedure

PUB No.F-IM-6472-000 PRINTED IN JAPAN or CHINA

Follow the instructions herein when installing the PCL PRINTER KIT-J1 to its host

machine. E N G L I S H

All manuals and user guides at all-guides.com

all-guides.com

1.1 Checking components

1.1.1 Checking the Contents

F-1-1

[1] 32MB ROM 1 pc.

[2] 256MB RAM 1 pc.

[3] Screw (binding; M3x4) 1 pc.

[4] User software CD-ROM 1 pc.

[5] Release Note 1 pc.

[6] User's Manual CD-ROM 1 pc.

[1] [2] [3]

[4] [5] [6]

All manuals and user guides at all-guides.com

1.2 Installation procedure

1.2.1 Mounting to the

Host Machine

1) Turn off the main power switch, and disconnect the

power plug.

2) Remove the rear cover [1].

- 4 screws [2]

F-1-2

3) Remove the rear left cover [1].

- 3 screws [2]

F-1-3

4) If a Super G3 Fax Board-T1 is found, disconnect

the connector [1] of the IP-modem cable.

If an optional Super G3 Fax Board-T1 is found, the

SDRAM and the super capacitor remain powered to

back up the image memory (even after the main power

switch has been turned off and the power plug has

been disconnected).

Be sure to disconnect the IP modem cable before

removing the RAM.

F-1-4

5) Remove the RAM cover [1].

- 4 screws [2]

F-1-5

[1]

[2]

[1]

[2]

[1]

[2]

[1]

All manuals and user guides at all-guides.com

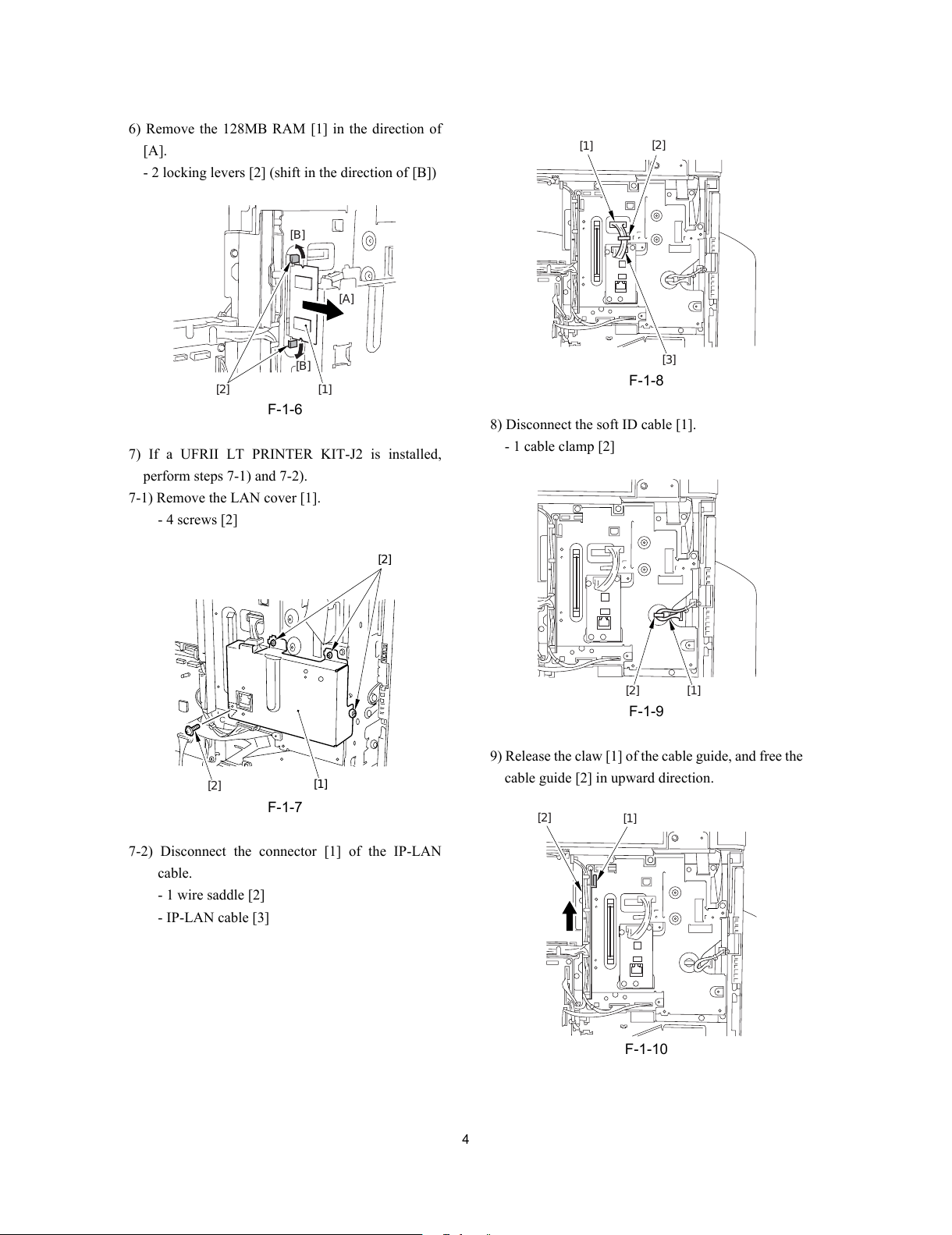

6) Remove the 128MB RAM [1] in the direction of

[A].

- 2 locking levers [2] (shift in the direction of [B])

F-1-6

7) If a UFRII LT PRINTER KIT-J2 is installed,

perform steps 7-1) and 7-2).

7-1) Remove the LAN cover [1].

- 4 screws [2]

F-1-7

7-2) Disconnect the connector [1] of the IP-LAN

cable.

- 1 wire saddle [2]

- IP-LAN cable [3]

F-1-8

8) Disconnect the soft ID cable [1].

- 1 cable clamp [2]

F-1-9

9) Release the claw [1] of the cable guide, and free the

cable guide [2] in upward direction.

F-1-10

[2] [1]

[B]

[A]

[2]

[1]

[2]

[1] [2]

[3]

[1]

[2]

[1]

[2]

All manuals and user guides at all-guides.com

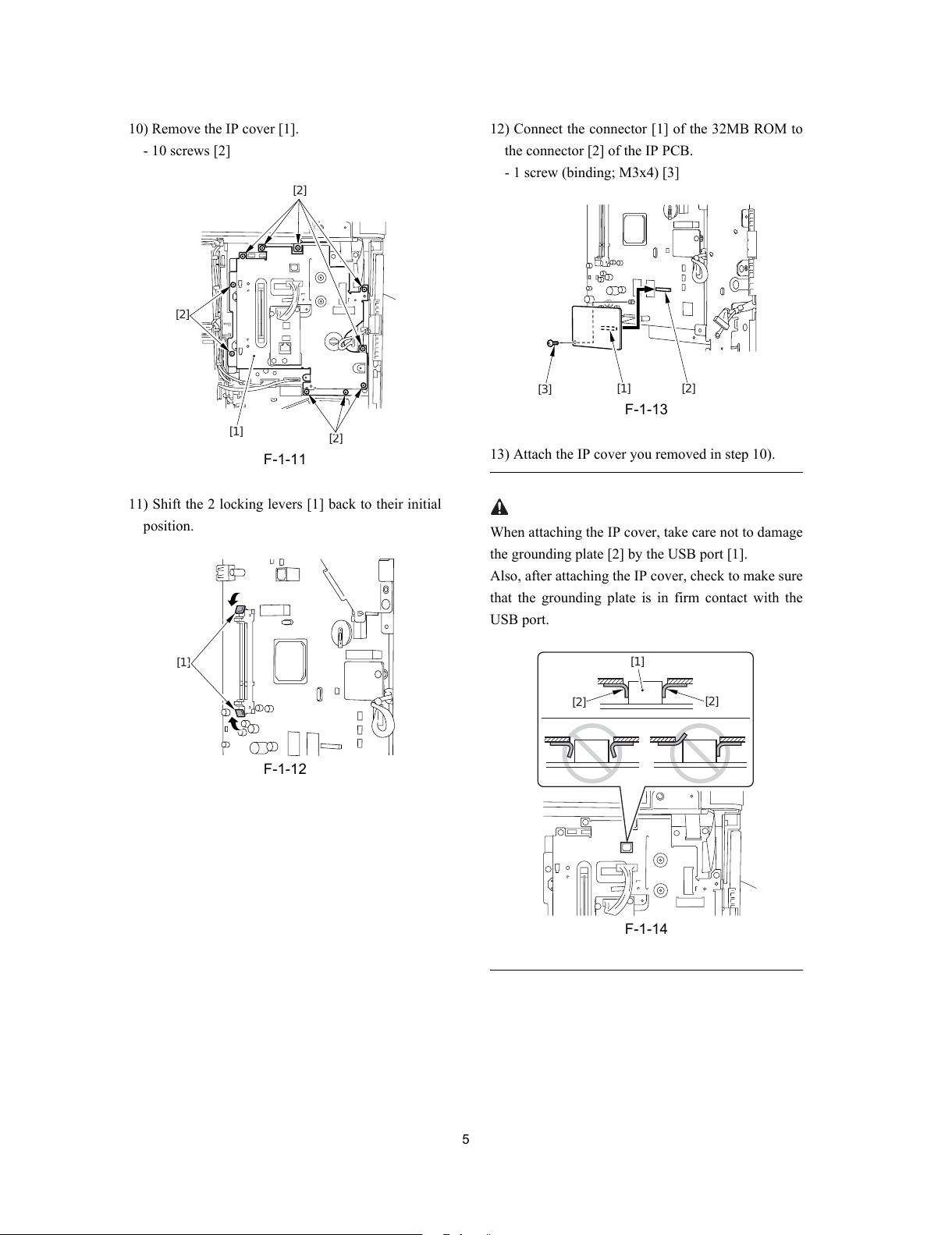

10) Remove the IP cover [1].

- 10 screws [2]

F-1-11

11) Shift the 2 locking levers [1] back to their initial

position.

F-1-12

12) Connect the connector [1] of the 32MB ROM to

the connector [2] of the IP PCB.

- 1 screw (binding; M3x4) [3]

F-1-13

13) Attach the IP cover you removed in step 10).

When attaching the IP cover, take care not to damage

the grounding plate [2] by the USB port [1].

Also, after attaching the IP cover, check to make sure

that the grounding plate is in firm contact with the

USB port.

F-1-14

[2]

[1]

[1] [2]

[3]

[1]

[2] [2]

All manuals and user guides at all-guides.com

14) Put all the parts that you have removed back in

place.

- cable guide

- soft ID cable

- IP-LAN cable (if a UFRII LT PRINTER KIT-J2

is mounted)

15) Attach the LAN cover removed in step 7-1).

(if a UFRII LT PRINTER KIT-J2 is mounted)

When attaching the LAN cover, take care not to

damage the grounding plate [2] by the LAN port [1].

Also, after attaching the LAN cover, check to make

sure that the grounding plate is in firm contact with the

LAN port.

F-1-15

16) Mount the 256MB RAM [1].

F-1-16

17) Put back the parts that have been removed.

- RAM cover

- the connector of the IP-modem cable (if a Super

G3 Fax Board-T1 is mounted)

- rear left cover

- rear cover

18) Connect the power plug, and turn on the main

power switch.

1.2.2 Checking the

Connection

When you have installed the kit, go through the

following to make sure that it is properly recognized:

1) Start service mode.

User Mode key > 2 > 8 > Use Mode key

In response, [#SSSW] appears.

2) Press [ ] 5 times. When [REPORT] has

appeared, press [OK].

3) Press [ ] once. When [REPORT OUTPUT]

has appeared, press [OK].

4) Press [ ] 5 times. When [SPEC LIST] has

appeared, press [OK].

5) See that a SPEC REPORT is printed out. Check to

be sure that 'PCL' is 'ON'.

[1]

[2] [2]

[1]
