Canon Ivy User manual

Mini Photo Printer

User Manual

CONTENTS

SAFETY INFORMATION

PACKAGE CONTENT

PRINTER SETUP

A) Charge Printer

B) Power On

C) Load Paper

INSTALLING APP

PARING MOBILE DEVICE

& CANON MINI PRINT

USER INTERFACE

Home Screen

Main Menu

Camera Mode

Photo Gallery

Printing Photos

Share Photos

Save/Delete Photos

Send to Mini Print

BATTERY CAUTION

SPECIFICATIONS

READ BEFORE USE

Please read the following instructions and

safety precautions before using the Printer.

For regulatory and additional safety information, refer

to the Regulation and Warranty Information sheet

included in your printer package contents.

WARNINGS

―

Disassembling the battery may cause leakage, explosion, damage or personal injury.

―

Do not use the printer if the battery or product has swelled.

―

Never expose the battery to high temperature, direct heat, or dispose by incineration.

―

Please do not disassemble

Please never disassemble this product. Should the printer fail,

please contact the dealer you purchased this product from or

Canon Service & Support at 1-800-652-2666 mentioned in warranty sheet.

―

Do not handle near Medical Electrical Equipment. Weak magnetism is emitted

by this product. Do not stand near implanted electronic devices, such as a

cardiac pacemaker. Please see your doctor if the printer does come close

to such a device.

SAFETY INFORMATION

ABOUT SYMBOLS

Symbols that, if ignored, could result in

accidental injury caused by improper

use of the equipment. These must be

observed for safe operation.

Instructions or content are important

and must be followed accordingly.

CAUTION

―

Printer operating and charging temperature

*When operating in extreme weather, the printer may not print.

Allow the printer temperature to adjust to recommended

operating temperature of 59º to 90ºF (15º to 32ºC). Try printing again.

For charging, please charge the printer at

recommended temperature of 59º to 90ºF (15º to 32ºC).

―

When using the product in environments of low humidity

*In a low humidity environment, the printer may build a static electricity charge.

*Take precaution before handling the printer.

―

Do not use or leave the product under direct sunlight.

Areas subject to rapid temperature changes, high humidity,

dust and dirt should also be avoided.

―

Use a soft, dry cloth to clean the product. Do not clean with

a damp cloth or volatile liquid such as paint thinner.

―

The printer should not be exposed to water (dripping or splashing)

and objects ﬁlled with liquids, such as vases, should not be placed on it.

―

The ventilation should not be impeded by covering the ventilation openings

with items such as newspapers, table-clothes, curtains etc.

―

Do not under any circumstances dismantle the printer. If the product is not

functioning properly, please contact Canon Service & Support at 1-800-652-2666.

―

Do not improperly dispose of the product such as in

an incinerator as it may cause personal injury or harm.

Please dispose of the product in accordance with local regulations.

SUPPLIED ITEMS

Quick Start GuideMini Photo Printer USB Cable Regulation and

Warranty

Information sheet

CANON ZINK™

Photo Paper

(10 sheets)

Mini Print

PACKAGE CONTENT

PRODUCT FEATURES

Power buttonPower LED light Top cover Paper output slot

Charging LED lightReset button Wristband eyelet USB port

(for charging)

Paper tray

STATUS - LED Indicator Light

•

White – Printer is powered on

•

White ﬂashing – Printing / Processing / Cooling

•

Red ﬂashing – No paper / Cover open / Paper jam /

Low battery / storage full / other errors

•

Red - Firmware updating

CHARGING - LED Indicator Light

•

Red - Charging

•

Green - Charge completed

•

Red & Green ﬂashing alternatively - Charging error

A) CHARGE PRINTER

PRINTER SETUP

(Low)

(Mid)

(Full)

①

②

③

Printer uses a built-in battery. Before using the printer,

fully charge the battery using the USB cable provided.

Insert the smaller end of the supplied USB cable into the Printer

and the other end into a chargeable USB adapter.

The charging LED light will turn red to indicate charging.

Once fully charged, the charging LED will turn green.

-- Operating time may vary depending on the battery status,

operational status and environment conditions.

Battery Status Icon (shown in App)

HANDLE THE USB CABLE WITH CARE WHILE CHARGING

―

Do not place any heavy objects on top of the cable.

―

Do not place the USB cable near heat.

―

Do not scratch, process or damage, screw or pull hard on the cable.

―

Do not plug or unplug the cable with wet hands.

―

Avoid too high/too low temperature or humid condition.

―

Please unplug the USB cable from power source after charged.

―

Please use supplied USB cable for charging.

B) POWER ON

Press and hold the Power button ( ) until the LED indicator

light turns on.

-- The LED indicator will ﬂash as the printer is powering on.

When the LED indicator turns to a steady white light, the

printer is ready to print.

①

②

①

③

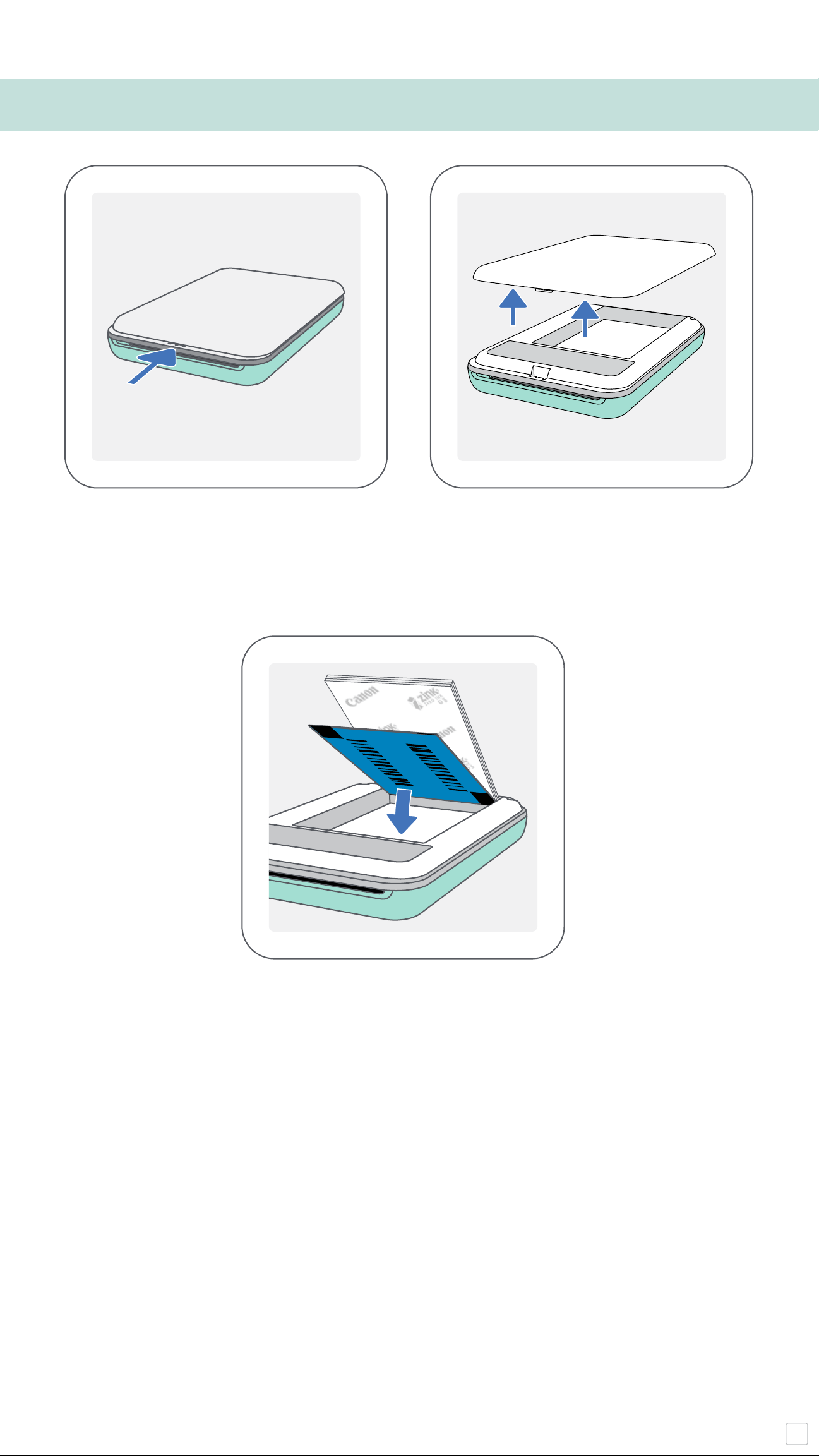

Remove the top cover by sliding it slightly forward and away from

the photo paper output slot. This will release the lid and allow you

to remove the top cover to insert paper.

C) LOAD PAPER

Place all 10 sheets of the photo paper and the one SMART SHEET™ into

the photo paper compartment.

-- Stack the photo paper on top of the blue SMART SHEET™ with

the white side (printing side) facing up. The blue barcode and the

photo paper logos should be facing down.

Place the top cover back onto the printer. It should click into place

when closed properly.

②Unpack the photo paper pack (10 sheets + blue SMART SHEET™).

-- Ensure the included SMART SHEET™ (blue card) is on the bottom

of the pack with the barcode facing down.

④

CAUTION

―

Do not insert more than 10 ZINK™ photo paper sheets and

1 SMART SHEET™ into the printer at a time to avoid paper jams or print errors.

―

Use Canon ZINK™ photo paper with the

printer to get the optimal print quality.

You may purchase additional photo papers within the

Canon Mini Print App by tapping "Buy Paper" in the main menu.

―

In case of a paper jam, do not pull the photo paper out.

Instead, turn the printer OFF and ON to automatically

eject the photo paper.

―

Do not pull the photo paper out of the printer during printing.

NOTE ON SMART SHEET™

―

The SMART SHEET™ will pass through the printer automatically

before the ﬁrst print job. It cleans and calibrates the printer

for the entire paper pack (10 sheets).

―

Use the SMART SHEET™ within each pack of

new photo paper for best printing quality.

―

Keep the SMART SHEET™ and only discard after you have

printed all 10 sheets of photo paper in the pack.

―

Using a SMART SHEET™ from another pouch may result in low quality.

NOTE ON PHOTO PAPER

―

Do not damage or bend the photo papers.

―

Ensure not to soil the photo paper when loading it into the printer.

―

Do not expose to direct sunlight or moisture.

―

Do not leave it in a place where the temperature or humidity

is out of the suggested conditions indicated on the pouch.

It may degrade the quality of the printed photo.
