Canon PIXMA MP970 User manual

Network Setup Guide

This manual contains the setup information required to use the machine over wired LAN.

If you use the machine with USB connection, refer to your setup sheet.

Introduction

To use the machine connected to a computer, you need to install the software called “MP Drivers” in

the computer.

The following two connection types are described in this manual.

Setting up for use over LAN

When the machine has not been connected to the

network, perform this setup to use the machine over LAN.

This setup procedure requires settings to be performed on

the machine and the computer.

Important

zA hub and LAN cable are required to connect this machine to a LAN. These must be purchased

separately.

zIf the installation and adjustment of the machine have not been finished, refer to your setup sheet to set

up the machine properly.

Note

zThe configuration and the type of the device vary depending on your network environment. For details,

refer to your device’s instruction manual or contact its manufacturer.

zIn an office setup, consult your network administrator.

Note

zTo set up the machine that is not yet connected to a LAN, connect the machine and the computer with a

USB cable.

zEven if the machine has been set up to be used with the USB connection, follow the setup procedure

described in this manual to connect the machine to a LAN for the first time.

Setting up an additional LAN-connected computer

When the machine has already been set up to connect to

the network using a computer, perform this setup to use

the machine from an additional computer over LAN. This

setup procedure only requires settings to be performed

on the additional computer.

Trademark Notices

z“Microsoft” is a registered trademark of Microsoft Corporation.

z“Windows” is a trademark of Microsoft Corporation, registered in the U.S. and other countries.

z“Windows Vista” is a trademark of Microsoft Corporation.

z“Macintosh” and “Mac” are trademarks of Apple Inc., registered in the U.S. and other countries.

Confirming the Network Environment

zTurn off the firewall function temporarily or change its setting. If you disable the firewall function,

disconnect your network from the Internet.

zMake sure that the configuration of computers, hubs, and other network devices is complete, and

computers can connect to the network.

Important

After setup is complete, turn back on any security functions you disabled for setup.

If you connect to a network that is not protected with security measures, there is a risk of disclosing data

such as your personal information to a third party.

Note

zFor information on the firewall function of your security software, refer to its instruction manual or

contact its manufacturer.

zIn an office setup, consult your network administrator.

zIf you are using Windows®

See “Setting Up the Machine and the Computer (Windows)” on page 4.

zIf you are using Macintosh®

See “Setting Up the Machine and the Computer (Macintosh)” on page 17.

Setting Up the Machine and the Computer

(Windows)

zBefore installing the MP Drivers, disable all anti-virus programs and automatically loading

programs.

zLog into a user account with the administrator privilege.

zA message asking for your confirmation to restart your computer may appear during the

installation process. If this message is displayed, follow the on-screen instructions and click OK.

The installation resumes from where it left off when your computer has been restarted. While

restarting, do not remove the Setup CD-ROM.

1 Installing the software

1Turn off the machine.

2Turn the computer on and start Windows.

Important

Depending on the country or region of purchase, the following two CD-ROMs are included in the package

for the Windows setup.

– Windows (CD-1)

– Windows (CD-2) Macintosh

In this case, insert the Setup CD-ROM “Windows (CD-1)” first to start the installation, and follow the on-

screen instructions to complete the installation.

Note

The screens below refer to Windows Vista™ operating system Ultimate Edition (hereafter referred to as

“Windows Vista”) installation. Screens may vary depending on the operating system you are using and

also depending on the country or region of purchase.

Note

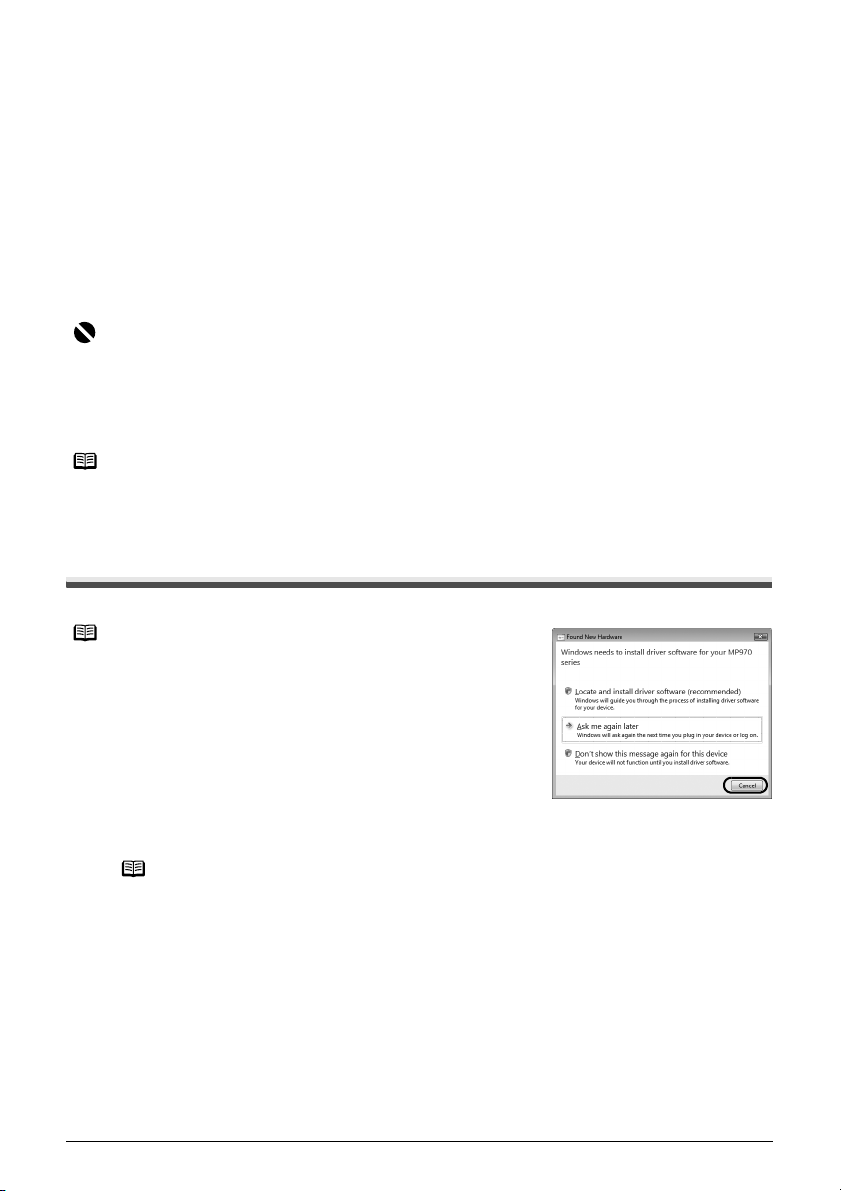

If the Found New Hardware or Found New Hardware Wizard

screen appears automatically during the installation process,

remove the USB cable connected to your computer. Click Cancel

to quit the screen. In Windows Vista, the screen may close

automatically when the USB cable is unplugged. Then turn off the

machine and proceed from step 3 to install the MP Drivers.

Note

Make sure that the Power lamp is turned off.

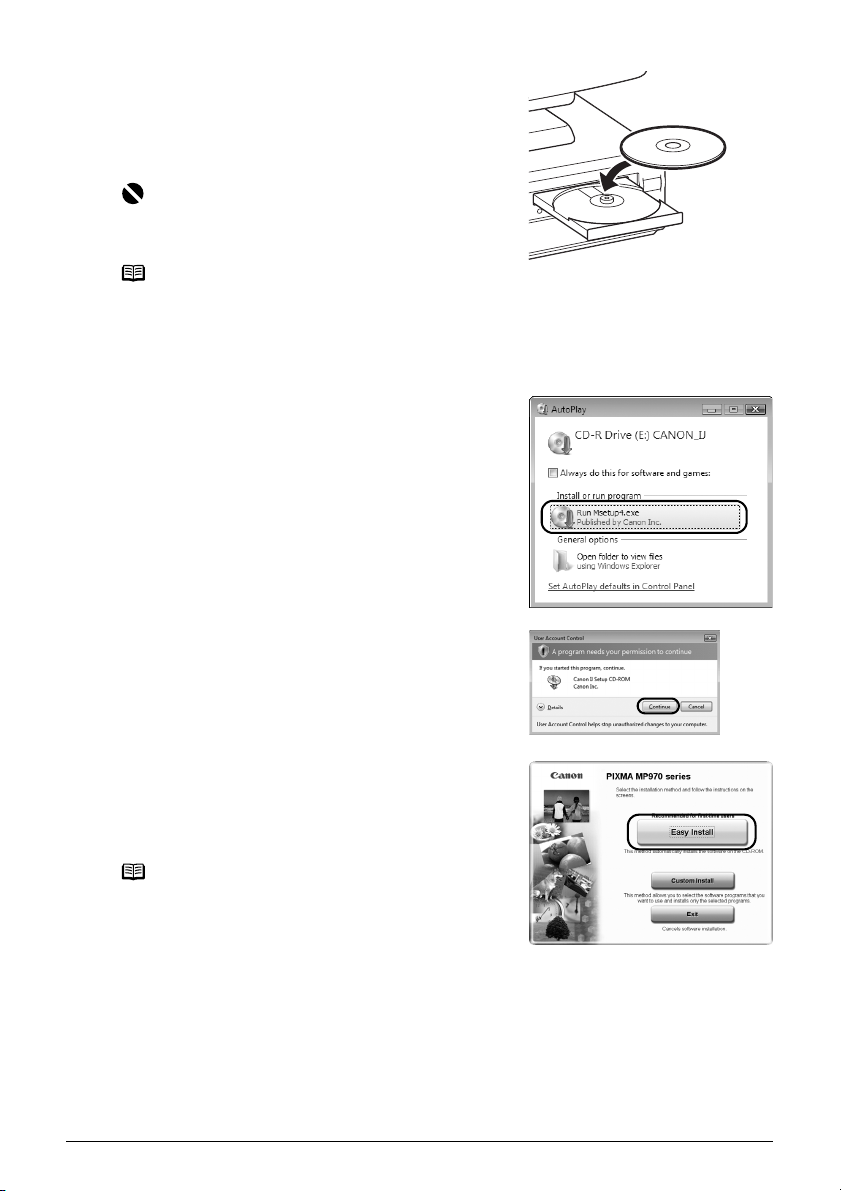

3Insert the Setup CD-ROM.

The setup program should run automatically.

In Windows Vista, go to step 4.

In Windows XP and Windows 2000, go to step 6.

4If the AutoPlay screen appears, click Run

Msetup4.exe.

5If the User Account Control screen appears,

click Continue.

If the same screen reappears in subsequent steps,

click Continue.

6When the screen shown on the right appears,

click Easy Install.

The MP Drivers, On-screen Manuals, and

application software are installed automatically.

Important

If two CD-ROMs are included in the package for the

Windows setup, insert the Setup CD-ROM “Windows

(CD-1)”.

Note

zIf the Select Language screen appears, select a

language, then click Next.

zIf the Select Your Place of Residence screen

appears, select your place of residence, then click

Next.

Note

If you want to select particular items to install, click

Custom Install and follow the on-screen instructions

to proceed with the installation.

7When the Easy Install screen appears,

confirm the contents, then click Install.

8Read the License Agreement carefully and

click Yes.

Installation of the MP Drivers, On-screen Manuals,

and application software will begin.

The software installation screen may appear during

the installation process. Follow the on-screen

instructions to install the software.

9Confirm the connection type.

The next procedure varies depending on how you

intend to connect the machine and the computer.

Note

zMove the cursor over items to display

explanations of each application.

zThe list of applications may vary depending on the

country or region of purchase.

Users in Asia

zScan Soft OmniPage SE can be installed only on

an English operating system.

See “2-A Setting up for use over LAN” on page 7.

See “2-B Setting up an additional LAN-connected computer”

on page 12.

To use a USB connection, refer to your setup sheet.

Setting up for use over LAN

Setting up an additional LAN-connected computer

2-A Setting up for use over LAN

This section describes how to set up the machine to be used over wired LAN, when the machine has

not been connected to the network. This setup procedure requires settings to be performed on the

machine and the computer.

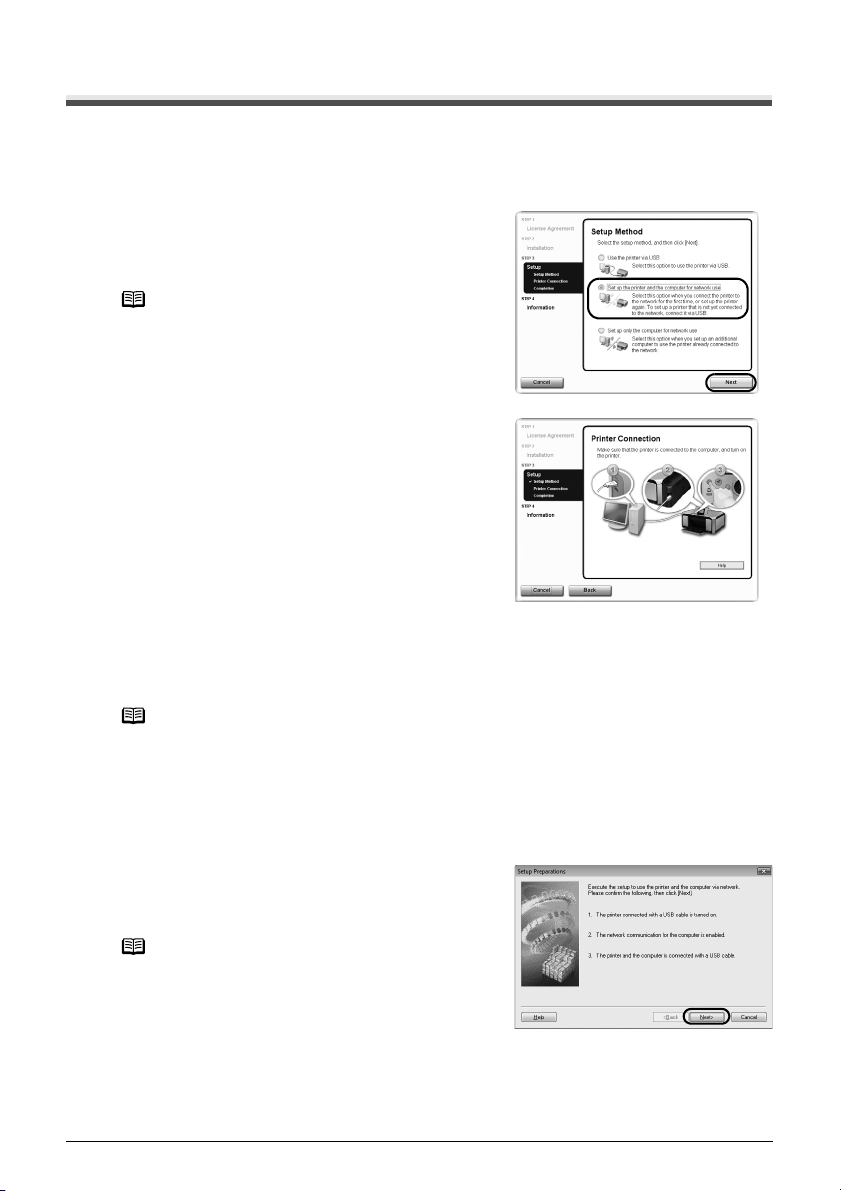

1On the Setup Method screen, select Set up

the printer and the computer for network

use, then click Next.

2When the Printer Connection screen

appears, connect the machine to the

computer with a USB cable, then turn on the

machine.

When the machine is turned on, the Power lamp

lights up blue. When the computer detects the

machine, the next screen will appear automatically.

When using Windows 2000:

When you connect the machine to the computer

with a USB cable, a message asking for your

confirmation to restart your computer is displayed.

Click Yes. Then when an error message is

displayed, click OK to proceed with the installation.

3When the Setup Preparations dialog box

appears, confirm that preparation is

complete, then click Next.

Note

If you select Use the printer via USB, the machine is

set up to be used with USB connection.

Note

zTo set up the machine that is not yet connected to a

LAN, connect the machine and the computer with a

USB cable.

zIf you cannot go to the next procedure after 3

minutes, refer to “Cannot Install the MP Drivers” in

“Troubleshooting” in the User’s Guide on-screen

manual.

Note

If the machine’s network settings are already

configured, the Setup Environment Confirmation

dialog box appears asking for your confirmation to use

the machine with the current settings. You can

proceed with the setup using the current network

settings. To do so, click Use it as is. To reconfigure the

network settings, click Reconfigure.

4When the Check Wired LAN Connection

dialog box appears, connect the machine to

the network devices such as hubs with a LAN

cable, then click Yes.

(A) Wired LAN connector

5Confirm that the setup program detects the

machine automatically.

The machine connected with the USB cable is

detected automatically via LAN connection.

In Windows Vista, go to step 7.

In Windows XP and Windows 2000, go to step 6.

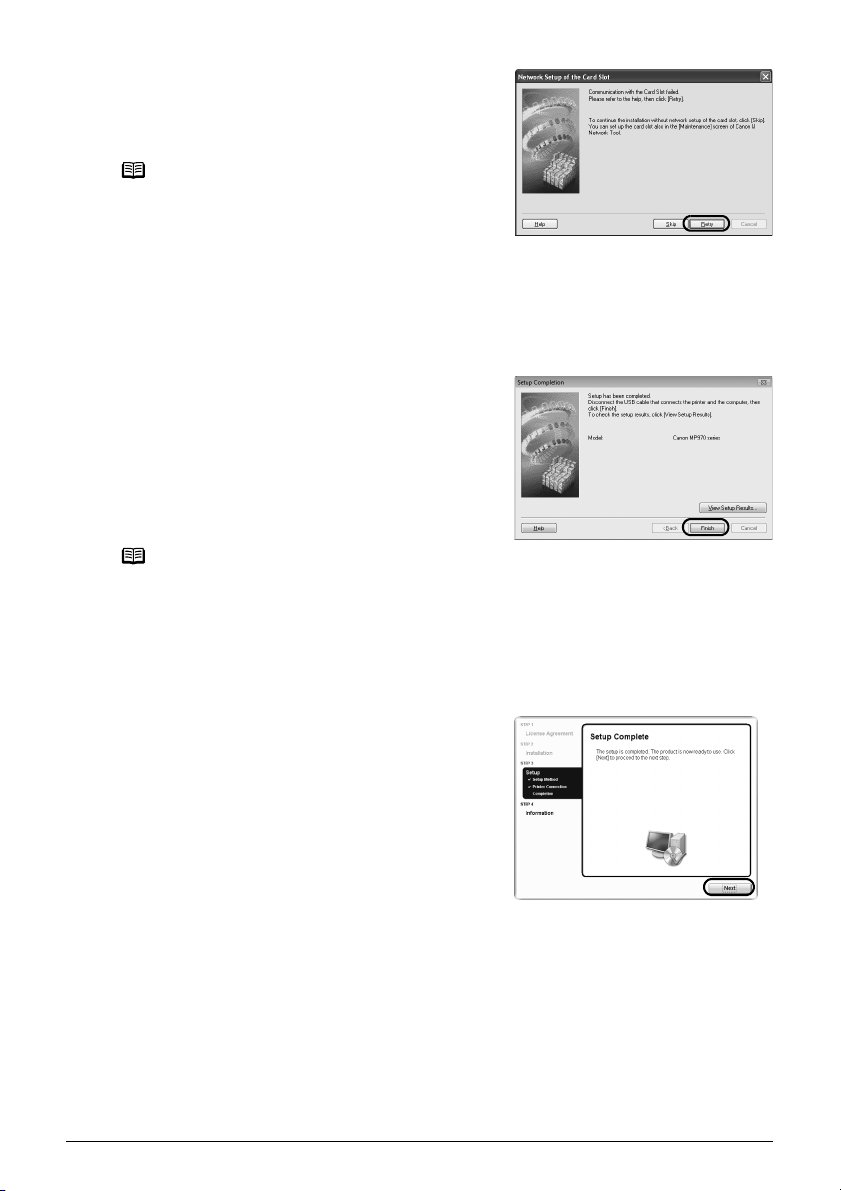

6When the Network Setup of the Card Slot

dialog box appears, specify the drive letter,

then click Next.

Note

The connection may vary depending on your network

environment.

Note

If the machine was not detected, the Set Printer IP

Address dialog box appears. Make sure of the

following, then click Connect.

zThe network devices such as hubs or routers are

turned on, and the machine and the computer are

connected to the network.

zThe machine is connected to the computer with the

USB cable.

zThe IP address to be set for the machine is

displayed on the Set Printer IP Address dialog

box. If it is different from the address you want to

set for the machine, enter the desired IP address

on the Set Printer IP Address dialog box.

(If the machine is turned off, the Set Printer IP

Address dialog box does not appear.)

If it still fails, see “The Set Printer IP Address dialog

box is displayed during setup” on page 29.

Note

The Card Slot of the machine must be mounted to

be used as the memory card drive of the LAN-

connected computer.

To write files to a memory card, set the Read/write

attribute setting under Device settings to LAN

enabled. If the setting is set to USB enabled, you

cannot access the network drive of the Card Slot.

(A)

If “Communication with the Card Slot failed.” is

displayed, click Retry. If it still fails, click Skip to

complete the setup. Then try the network setup of

the Card Slot using the Canon IJ Network Tool.

7When the Setup Completion dialog box

appears, remove the USB cable, then click

Finish.

The network connection between the machine and

the computer is now successfully established.

To confirm the setup results, click View Setup

Results.

8When the Setup Complete screen appears,

click Next.

Note

zIf “Cannot map any more drives, because all the

drive letters are assigned.” is displayed, click Skip

to complete the setup. After software installation is

complete, remove any drive letter and try the

network setup of the Card Slot again using the

Canon IJ Network Tool. For details, refer to “Using

the Card Slot over a Network” in the User’s Guide

on-screen manual.

zIf “The Card Slot is already mapped as Network

Drive to this computer.” is displayed, the Card Slot

is already set up. Click OK, then click Next.

Note

zTo change the port name, click View Setup

Results, then click Set Port Name on the

Setup Results dialog box. For details, refer to

“Changing the Port Name” in “Troubles When Using

the Machine over Network” in “Troubleshooting” of

the User’s Guide on-screen manual.

zIf “Unsafe Removal of Device” is displayed, click

OK.

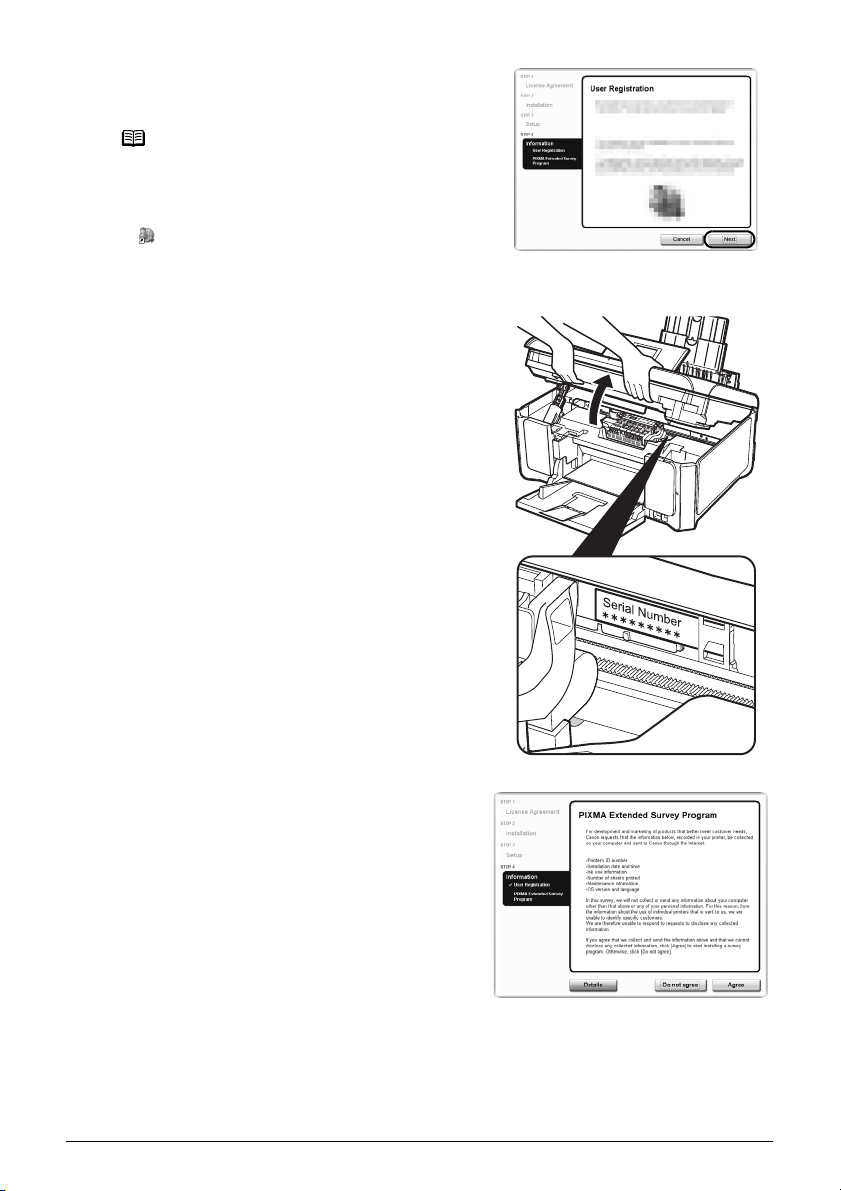

9When the User Registration screen

appears, click Next.

If your network is connected to the Internet, the

registration screen will appear. Follow on-screen

instructions to register your product. You will need

your product serial number, which is located on the

inside of the machine.

10 When the PIXMA Extended Survey

Program screen appears, confirm the

message.

We would appreciate it if you would take part in this

program regarding the use of Canon printers. If you

can agree, click Agree.

Note

zIt is required to connect to the Internet to register

your product. Turn on the firewall function before

connecting your network to the Internet.

zTo register later, click Cancel and go to step 10.

After software installation is complete, double-click

on the desktop.

zThe User Registration screen may not be

displayed depending on the country or region of

purchase.

Other manuals for PIXMA MP970

Table of contents

Other Canon All In One Printer manuals

Canon

Canon imageRUNNER 2200 User manual

Canon

Canon MF4010 Series Setup guide

Canon

Canon i-SENSYS MF6140dn User manual

Canon

Canon FaxPhone L120 Safety guide

Canon

Canon 1827B001 User manual

Canon

Canon FAXPHONE L80 Manual

Canon

Canon PIXMA MX372 User manual

Canon

Canon PIXMA TR4651 Setup guide

Canon

Canon 3744B002 User manual

Canon

Canon image runner 3025 User manual

Canon

Canon IMAGERUNNER 2525 Installation instructions

Canon

Canon Color imageCLASS MF8580Cdw User manual

Canon

Canon imageCLASS MF212w User manual

Canon

Canon IMAGERUNNER ADVANCE C5030 User manual

Canon

Canon Color imageRUNNER C5180 Series User manual

Canon

Canon MP980 series User manual

Canon

Canon ImageRUNNER C1335iF User manual

Canon

Canon ImageRunner 5050N User manual

Canon

Canon PIXMA MG5320 Series User manual

Canon

Canon imageRUNNER ADVANCE DX C477iZ User manual

Canon

Canon iR6020i User manual

Canon

Canon imageRunner 60 User manual

Canon

Canon PIXMA MG6320 User manual

Canon

Canon imageRUNNER ADVANCE 500iF User guide

Popular All In One Printer manuals by other brands

Triumph Adler

Triumph Adler DC 2016 Instruction handbook

Epson

Epson WorkForce WF-2510 Basic guide

Epson

Epson Stylus Scan 2000 Product information guide

Epson

Epson PictureMate Snap PM 240 Start here

Konica Minolta

Konica Minolta bizhub C35 user guide

Brother

Brother MFC-J430w user guide

Konica Minolta

Konica Minolta BIZHUB 558 Quick reference guide

Lexmark

Lexmark MX710 Series setup sheet

Brother

Brother MFC-9760 owner's manual

Lexmark

Lexmark XC8155 user guide

Lexmark

Lexmark X642E Service manual

Sharp

Sharp MX-2310U Start guide

Aficio

Aficio 200 manual

Ricoh

Ricoh Pro C900 Brochure & specs

Lexmark

Lexmark X925 Installation

Brother

Brother Business Smart MFC-J4510dw manual

Epson

Epson Stylus CX8400 Series Brochure & specs

Oce

Oce VarioLink 5022 user guide
