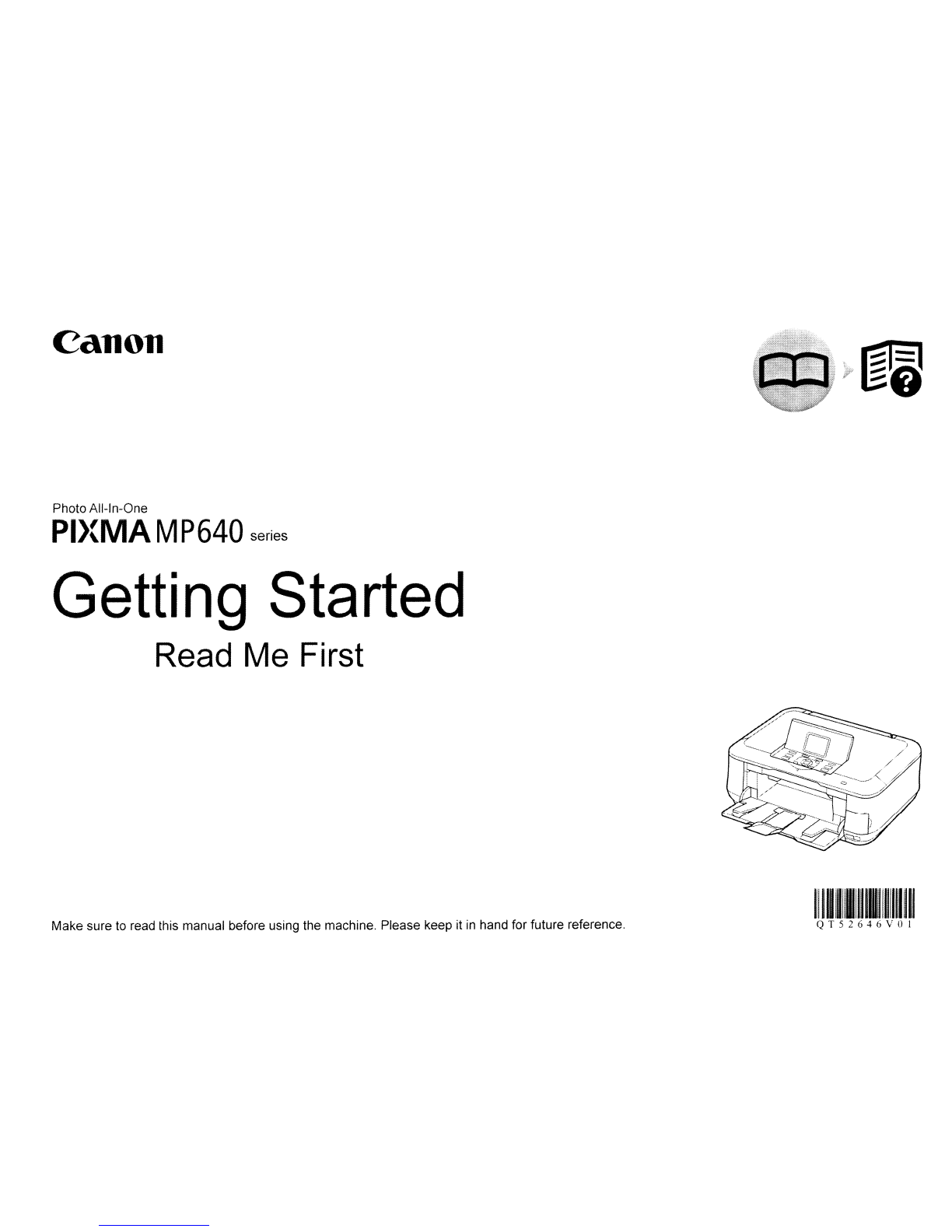

Canon PIXMA MP640 User manual
Canon
Photo All-in-One
PI}{MA
MP640
series
Getting
Started
Read Me First
Make sure to read this manual before using the machine. Please keep it
in
hand for future reference.
111~111111~111~1~1I111~111
QT52646VOI
•

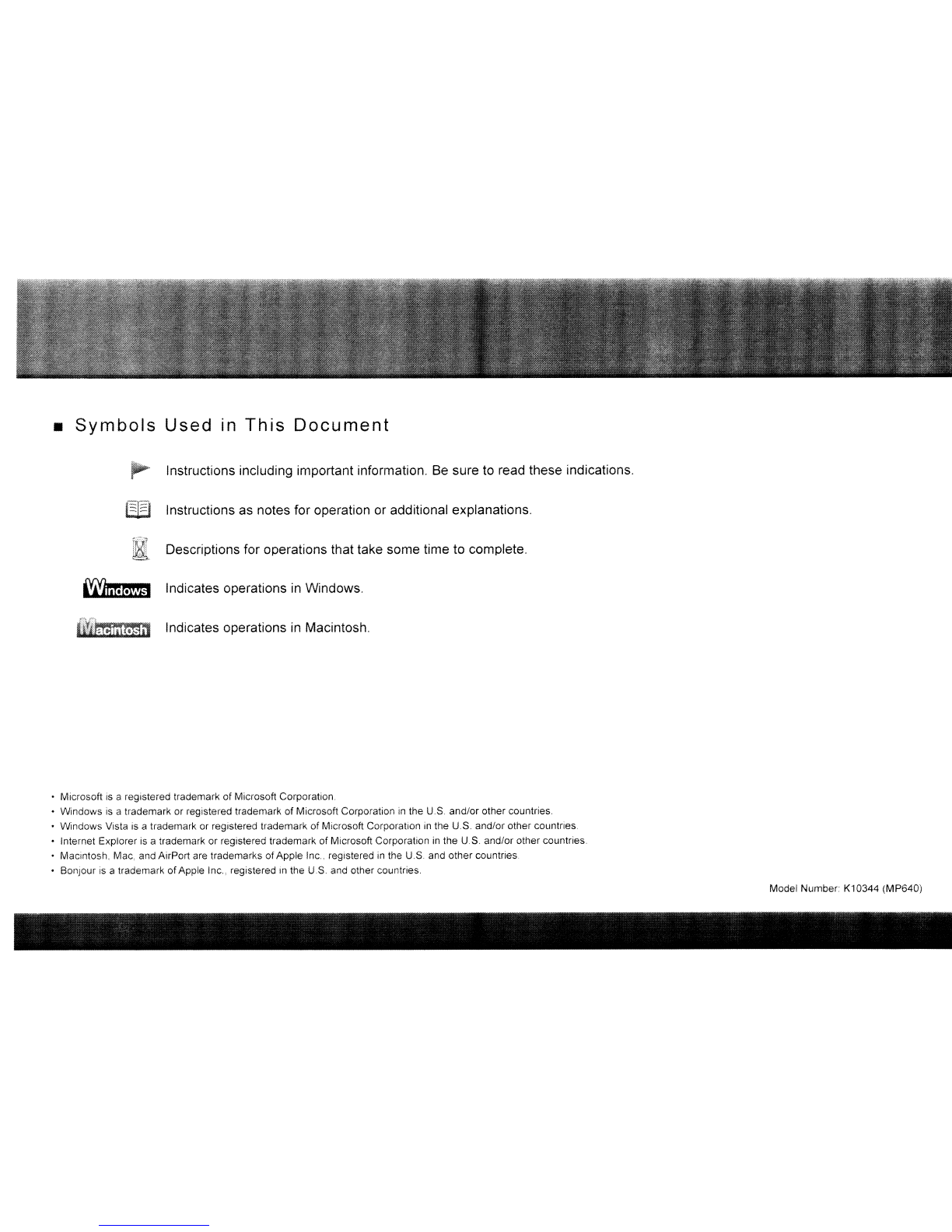

Symbols
Used
In
This
Document
Instructions including important information.
Be
sure to read these indications.
Instructions as notes for operation or additional explanations.
Descriptions for operations that take some time to complete.
~
~
Indicates operations
in
Windows.
Indicates operations
in
Macintosh.
•Microsoft
is
aregistered trademark of Microsoft Corporation
•Windows
is
atrademark or registered trademark of Microsoft Corporation
in
the U.S and/or other countries.
•Windows Vista
is
atrademar'k or registered trademark of Microsoft Corporation
in
the
US.
and/or other countries.
•Internet Explorer
is
atrademark or registered trademark of Microsoft Corporation
in
the U.S. and/or other countries
Macintosh, Mac, and AirPort are trademarks ofApple
Inc.
registered
in
the
US
and other countries
•Bonjour
is
atrademark ofApple Inc., registered
in
the
US
and other countries.
Model Number K10344 (MP640)
Preparation
2
Preparation
2
Connection
Types
2
Check
the
Included
Items.......... 3
Hardware
Setup.................................
4
Turn
the
Power
On
4
Install
the
Print
Head
5
Install
the
Ink
Tanks.... 8
Align
the
Print
Head
11
Select
Connection
Method
13
Select
Connection
Method
13
USB
Connection
14
Install
the
Software..
14
Network
Connection
20
Select
Connection
Type............................................... 20
Notes
on
Network
Connection
20
Wireless
Setup
22
Check
the
Information
for
Wireless
Connection
22
Wireless
Setup
Using
WPS (Wi-Fi
Protected
Setup)
..
26
Wired
Setup
29
Confirm
Connection
Status
32
Install
the
Software
34
Install
the
Software
(Registration)
41
Install
the
Software
(Information)
45
After
Installing the
Machine
47
Loading
Paper 47
Introduction
of
Manuals..
50
Solution
Menu..............................................................
51
Try
Using
the
Machine..
52
Print
Photos
from
a
Memory
Card
53
Try
Copying
56
Print
Photos
from
aComputer..
57
Reference
Information
58
Wireless
Setup
Using
WCN
(Windows
Connect
Now)
58
•
Connection
Types
Ethernet cable
Anetwork device (router, etc.) and Ethernet cable are
required.
Router, etc.
Wired
Connection
Access point or
wireless router
An access point or routerthat supportslEEE802.11
bIg
is
required: .
I
I
I
I
I
I
I
I
I
IWireless
I
IConnection
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
USB cable
AUSB cable is required.

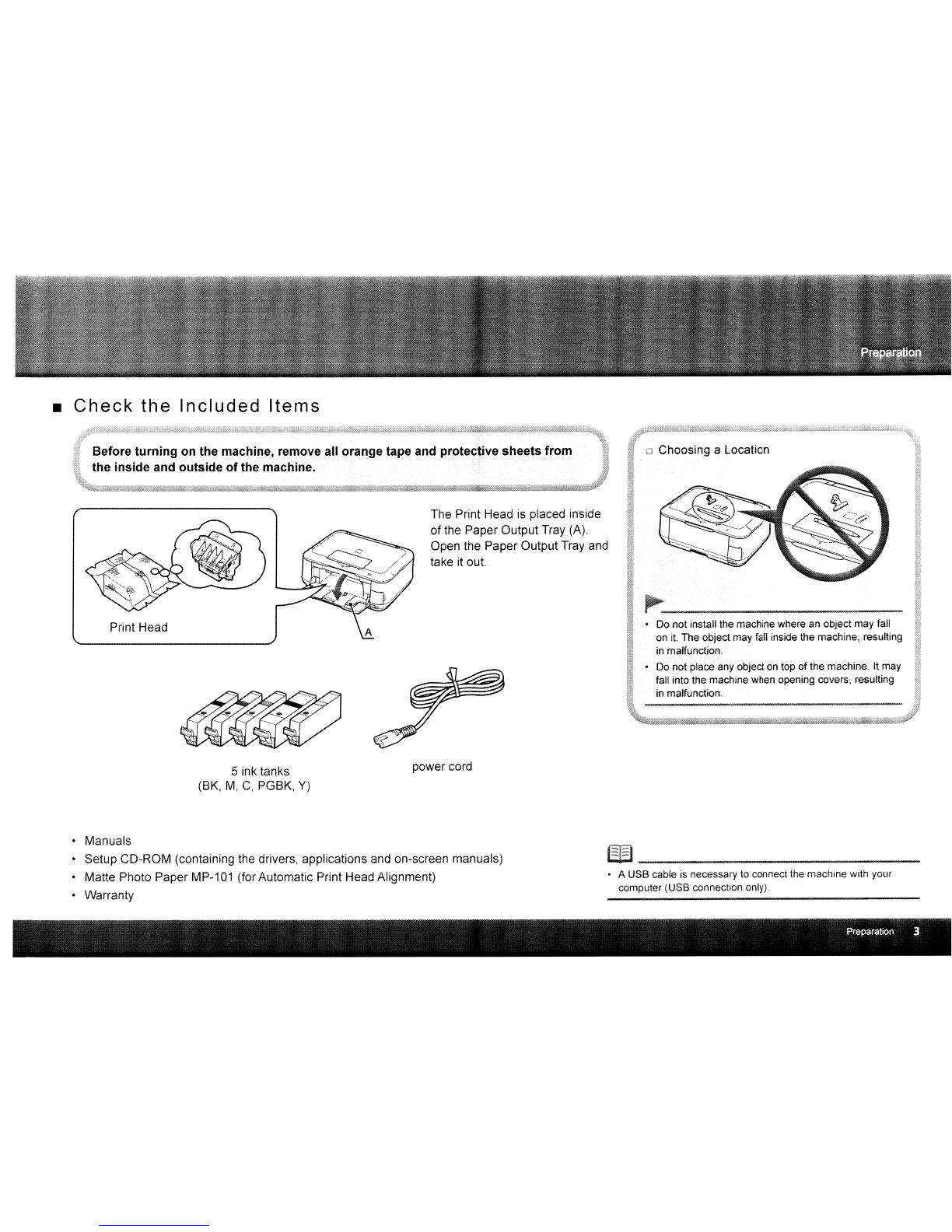

0.
2
PreparatIon
•
Check
the
Included
Items
[] Choosing aLocation
•Do not install the machine where an object may fall
on
it.
The object may fall inside the machine, resulting
in
malfunction.
•Do not place any object on top of the machine. It may
~~
fall into the machine when opening covers, resulting
in
malfunction.
JI-:
_
The Print Head is placed inside
of
the Paper Output Tray (A).
Open the Paper Output Tray and
take it out.
Print Head
Before turning on the machine, remove all orange tape and protective sheets from
the inside and outside of the machine.
5ink tanks
(BK,
M,
C,
PGBK, Y) power cord
•Manuals
•Setup CD-ROM (containing the drivers, applications and on-screen manuals)
•Matte Photo Paper MP-1
01
(forAutomatic Print Head Alignment)
•Warranty
~-----------
AUSB cable is necessary
to
connect the machine with your
computer (USB connection only).
Preparation
3

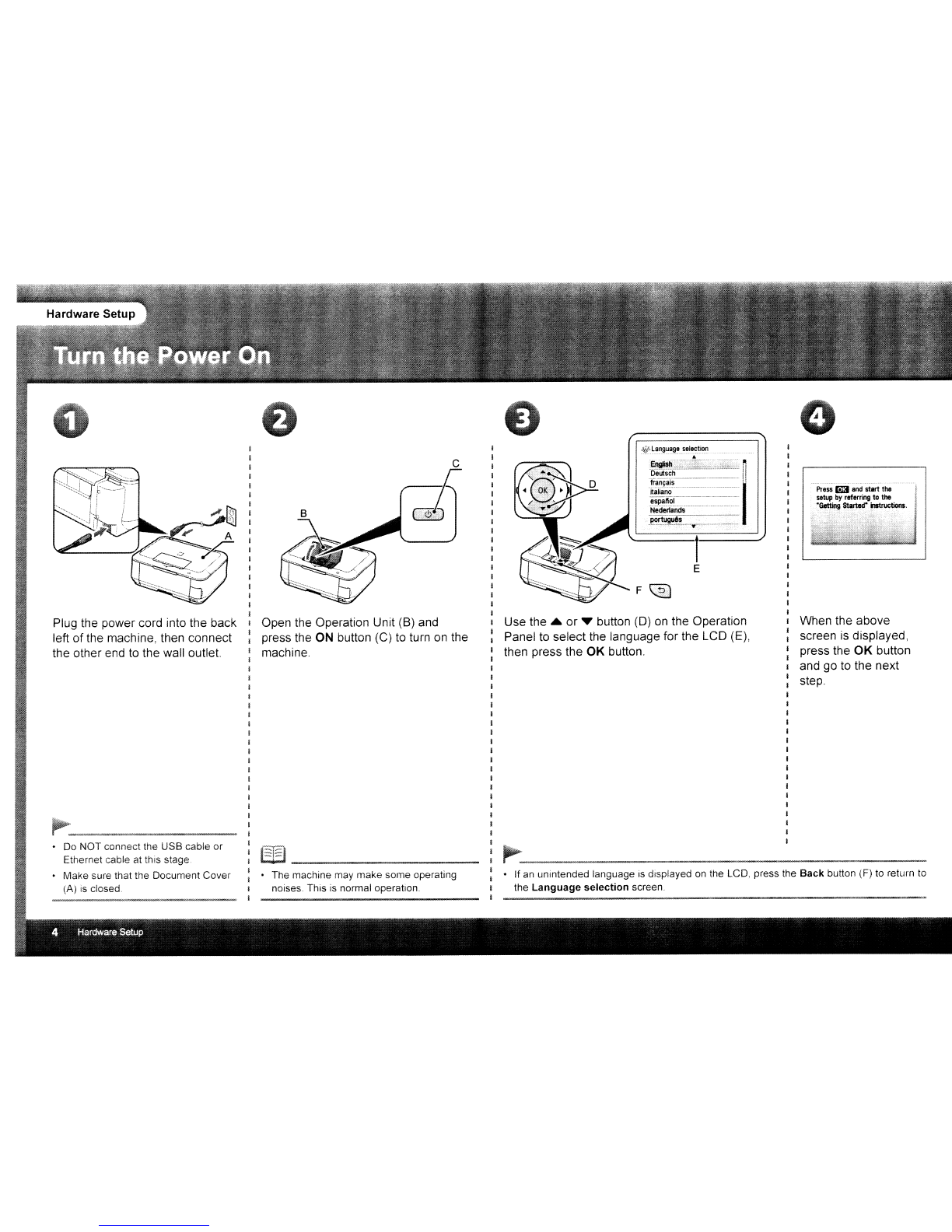

Plug the power cord into the back
left of the machine, then connect
the other end
to
the wall outlet.
Open the Operation Unit (8) and
press the ON button (C) to turn on the
machine.
Use
the"
or"
button (D)
on
the Operation
Panel to select the language for the LCD (E),
then press the OK button.
o
When the above
screen
is
displayed,
press the
OK
button
and go to the next
step.
~~.
------
Do NOT connect the USB cable
or
Ethernet cable at this stage.
Make sure that the Document Cover
(A) is closed.
: 4 Hardware Setup
@B
_
The machine may make some operating
noises. This is normal operation.
~----------------
•If an unintended language is displayed on the LCD, press the Back button (F) to return to
the Language selection screen
Make sure that the Print Head Holder
(D) moves
to
the installation position.
Open the Paper Output Tray (A), then lift the Scanning Unit (Cover) (8)
until it stops.
Close the Document
Cover
(C) and lift it with
the
Scanning Unit (Cover).
o
~--------
Handle the Print Head carefully.
Do
not
drop or apply excessive pressure
to
it.
~-----------------------
The Print Head Holder makes anoise as it moves. This
is
normal operation.
•Ifthe Print Head Holder does not move, make sure that the machine
is
turned
on.
,Hardware Setup 5
Eo
Firmly raise the Print Head Lock Lever (E) of the Print Head Holder until it
stops Remove the Print Head from the
silver package. Remove the orange protective cap.
Do not touch the Inside of the Print Head Holder (F). The machine may not print
properly if you touch
it
6
Hardware
Setup
~----------------
Do not touch the inside (G)
or
metal parts (H) of the Print Head. The machine may not print
properly if you touch them.
There may be some transparent or light blue ink on the inside of the bag the Print Head
comes
in,
or the inside of the protective cap -this has no effect on print quality. Be careful not
to get ink on yourself when handling these items.
•
Tilt the Print Head forward and set it
in
place as shown.
~---------------------
•Do not knock the Print Head against the sides of the holder
Install
in
awell-lit environment.
Lower the Print Head Lock Lever completely.
~---------
•Hold the Print Head Lock Lever firmly and lower it gently.
Once
yOLi
have installed the Print Head, do not remove
it unnecessarily.
Hardware
Setup
7
~
--------------
•Handle the ink tanks carefully. Do not drop
or
apply excessive pressure
to
them
•
If
the Scanning Unit (Cover)
is
left open for more
than 10 minutes, the Print Head Holder moves
to the
right
In this case, close and reopen the
Scanning Unit (Cover),
Be sure to use the supplied ink tanks,
Pull the orange tape (1)
in
the direction of the
arrow
to
peel
off
the protective film and remove
the film (2) completely,
While pressing down with your left thumb, twist
off
the orange protective cap (A) located
on
the bottom
of
the ink tank,
~-----------
Do not touch the electrical contacts (B) or open ink port (C)
on
the ink tank. The machine may not print properly if you
touch them,
•Do not push the sides of the ink tank: ink may splash.
8
Hardware
Setup
