Installing Your Multifunction

to Your Network for the First Time

PIXMA MG4220

Macintosh OS

<< Previous Next >>

Installing Your Multifunction

to Your Network for the First Time

PIXMA MG4220

Windows OS

Preparing to Connect My Multifunction to My Network 3

Network Requirements 3

Notes on Wireless Connection 4

Installing the Drivers 5

Preparing to Connect My Multifunction

To My Network << Previous Next >>

Network Requirements

Before connecting the machine to the network, make sure that configuration of the computer and access point or router is

complete, and that the computer is connected to the network.

Wireless Connection

Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that

configuration of the computer and access point or router is complete.

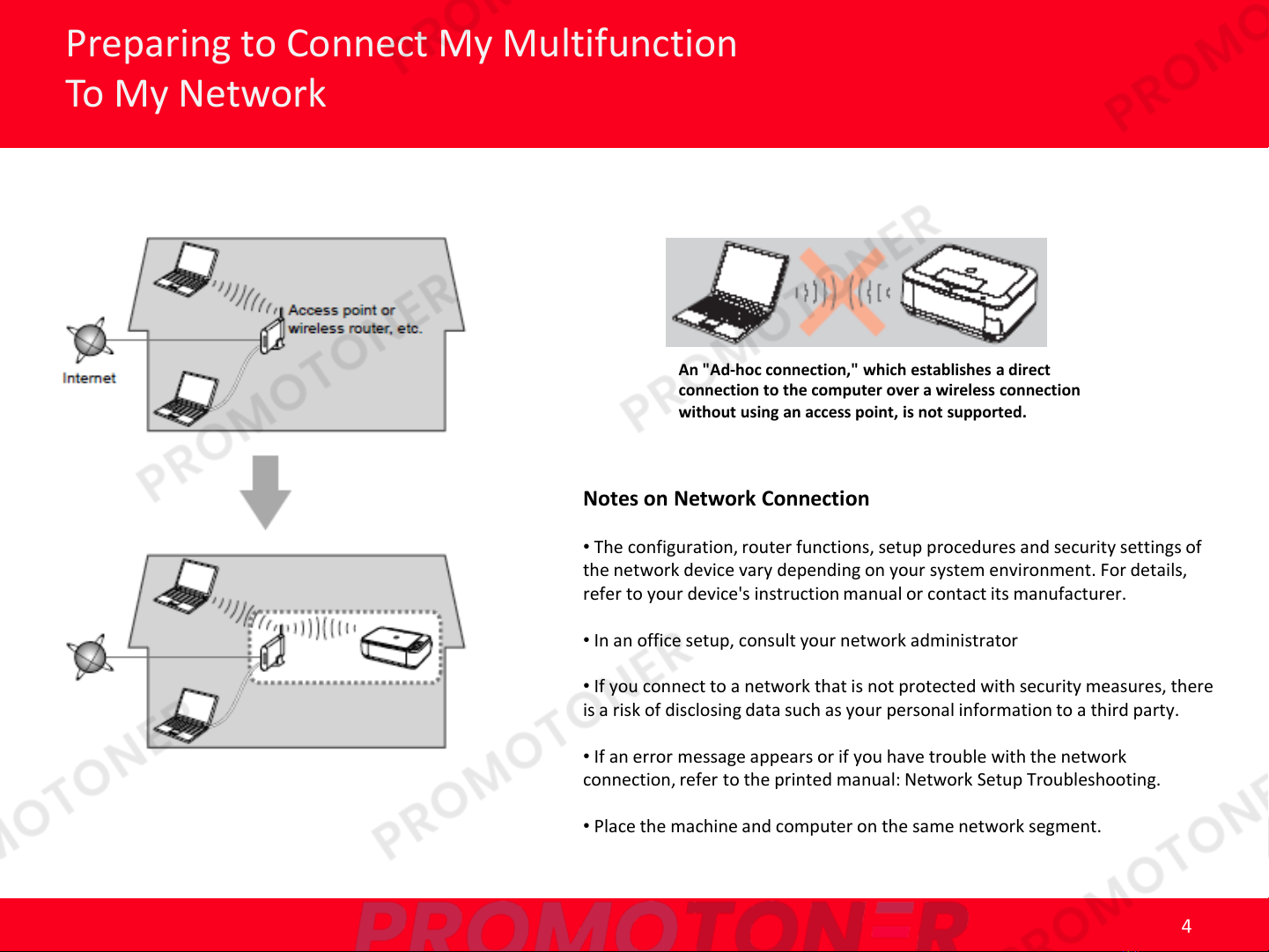

Preparing to Connect My Multifunction

To My Network << Previous Next >>

Notes on Network Connection

•The configuration, router functions, setup procedures and security settings of

the network device vary depending on your system environment. For details,

refer to your device's instruction manual or contact its manufacturer.

•In an office setup, consult your network administrator

•If you connect to a network that is not protected with security measures, there

is a risk of disclosing data such as your personal information to a third party.

•If an error message appears or if you have trouble with the network

connection, refer to the printed manual: Network Setup Troubleshooting.

•Place the machine and computer on the same network segment.

An "Ad-hoc connection," which establishes a direct

connection to the computer over a wireless connection

without using an access point, is not supported.

Software Installation

To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk.

(The installation time varies depending on the computer environment or the number of application software to be installed.)

Installing the Drivers & Software

IMPORTANT

•Log on as the administrator (or a member of the Administrators group).

•Quit all running applications before installation.

•Do not switch users during the installation process.

•Internet connection may be required during the installation. Connection fees may apply. Consult the internet service provider.

•It may be necessary to restart your computer during the installation process. Follow the on-screen instructions and do not remove the

Setup CD-ROM during restarting. The installation resumes once your computer has restarted.

•If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access

the network. If such a warning message appears, set the security software to always allow access.

<< Previous Next >>

Installing the PIXMA MG4220 on Your Wireless Network

If you are installing your printer on your network for the first time, a step-by-step walk through of the

wireless setup is built in to the installation routine of the software that shipped with your PIXMA.

Simply insert the Setup CD-ROM that came with your printer into your CD-ROM drive and proceed through

the easy to follow instructions. You’ll be printing wirelessly in no time. Be sure to select Wireless

Connection on the Connection Method Selection screen.

If you do not have or cannot use the provided CD-ROM, you can still install the printer on your wireless

network. Click here for instructions.

Installing the Drivers

<< Previous Next >>

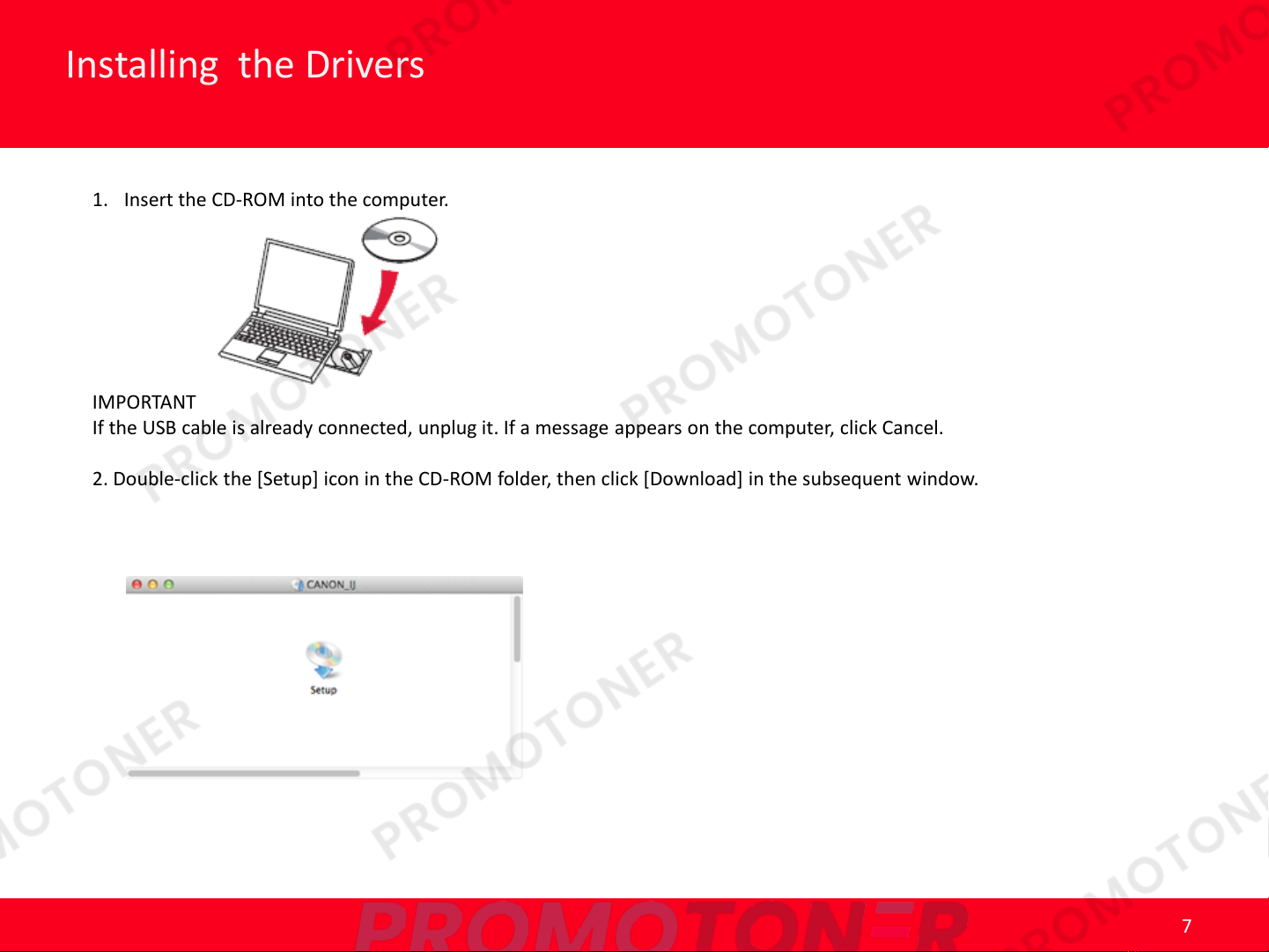

1. Insert the CD-ROM into the computer.

IMPORTANT

If the USB cable is already connected, unplug it. If a message appears on the computer, click Cancel.

2. Double-click the [Setup] icon in the CD-ROM folder, then click [Download] in the subsequent window.

Installing the Drivers

<< Previous Next >>

REFERENCE

•When the CD-ROM folder does not open automatically,

double-click the CD-ROM icon displayed on the desktop.

•The screen below is displayed while downloading.

Installing the Drivers

<< Previous Next >>

If you click [Cancel] while downloading, you will see the following screen.

- If you click [No], you will return to the screen displayed while downloading.

- If you click [Yes], the download is cancelled. In this case, the files under the download are deleted.

When the download fails, the screen below is displayed.

Click [OK], and you will go back to the screen for downloading in the procedure .

Installing the Drivers

<< Previous Next >>

3. When the download is complete, the screen below is displayed. Click [Next].

REFERENCE

Select "Save a file for setting up the software again to the download folder after the installation is complete," and the

file will be saved to the download folder.

Installing the Drivers
