CHAPTER 1

INTRODUCTION

The

MMAC-M5FNB™ Multi Media Access Center

offers

maximum ﬂexibility and convenience in the design and operation of

your network.The enclosure provides space for one

Repeater/Management Module and up to ﬁve Media Interface

Modules (MIM™); or, by removing one of the ﬁve MIMs, you can add a

second, load-sharing power supply module.

This manual is an installation and reference guide. It lists the

features and options of the MMAC-M5FNB and explains how to

install the fan tray, power supply(ies), and security bars.You should

read through this manual prior to using the MMAC-M5FNB to gain a

full understanding of the MMAC-M5FNB and its capabilities.

CAUTION:

Only qualiﬁed personnel should install or service this unit

and its modules!

1.1 USING THIS MANUAL

Chapter 1,

Introduction

, discusses the features and capabilities of

the MMAC-M5FNB.

Chapter 2,

Installation Requirements and Speciﬁcations

, lists

the location requirements that must be met before you install the

MMAC-M5FNB on your network.This chapter also includes some

MIM conﬁguration guidelines, environmental guidelines, and

operating speciﬁcations for the MMAC-M5FNB and related Power

Supply Modules (M5PSM™).

Chapter 3,

MMAC-M5FNB Setup

, contains instructions for rack

mounting your MMAC-M5FNB, inserting the fan tray, installing the

power supply(ies), installing the security bars, and powering up the

MMAC-M5FNB.

INTRODUCTION

Page 1-2

1.2 USING THE MMAC-M5FNB MANUAL SET

Other manuals have been developed for the Repeater/Management

modules and for each MIM that can be installed in your

MMAC-M5FNB. These manuals explain how to install the individual

modules into the MMAC-M5FNB, how to attach cable segments to the

modules, and how to test those segments after they have been

installed. Speciﬁcations for all modules are included in each manual.

Additional manuals have been developed on how to use Cabletron

Systems’ Network Control Management software packages.

Each manual in this set assumes that you have a general working

knowledge of Ethernet or IEEE 802.3, 802.5, or FDDI type data

communications networks and their physical layer components.

1.3 GETTING HELP

If you need additional support related to the MMAC-M5FNB, or if you

have any questions, comments, or suggestions related to this manual,

contact Cabletron Systems Technical Support. Before calling, please

have the following information ready:

• The product type (MMAC-M5FNB), and the product serial

number.The serial number is located on the front panel of the

MMAC, and the product type is on the fan tray label.

You can contact Cabletron Systems Technical Support Department by

any of the following methods:

By phone: Monday through Friday between

8 A.M. and 8 P.M. Eastern

Standard Time at (603) 332-9400.

By mail: Cabletron Systems, Inc.

PO Box 5005

Rochester, NH 03867-0505

By CompuServe

: GO CTRON from any ! prompt

INTRODUCTION

Page 1-3

By Internet mail: [email protected]

By FAX: (603) 337-3075

By BBS: (603) 335-3358 (4 lines available)

1.4 THE MMAC-M5FNB MULTI MEDIA ACCESS CENTER

The Cabletron Systems MMAC-M5FNB is a complete modular

approach to integrated networks.The MMAC-M5FNB supports Local

Area Networks compliant to IEEE 802.3, IEEE 802.5, and FDDI

standards. It also supports all of the Cabletron Systems Media

Interface Modules (MIMs).

A variety of IEEE 802.3, IEEE 802.5, and FDDI compliant media can

be connected to the MMAC-M5FNB, including shielded and

unshielded twisted pair, ﬁber optic cable, thick or thin coaxial cable,

and standard AUI transceiver cable. Each media type has a MIM

which, when installed into the MMAC-M5FNB, is compatible with all

other MIMs installed in that unit.You can have complete network

integration of a variety of media through a single source.

The MMAC-M5FNB is designed so that network expansions or

changes in media types can be done without bringing down the entire

network. In a matter of minutes, you can add, change, or replace

MIMs without turning off the MMAC-M5FNB or using any special

tools.This design also allows the MMAC-M5FNB to adapt to

ever-changing industry standards. Figure 1-1 (following page)

illustrates an MMAC-M5FNB equipped with a variety of MIM cards.

CAUTION:

Only qualiﬁed personnel should install or service this unit

and its modules!

INTRODUCTION

Page 1-4

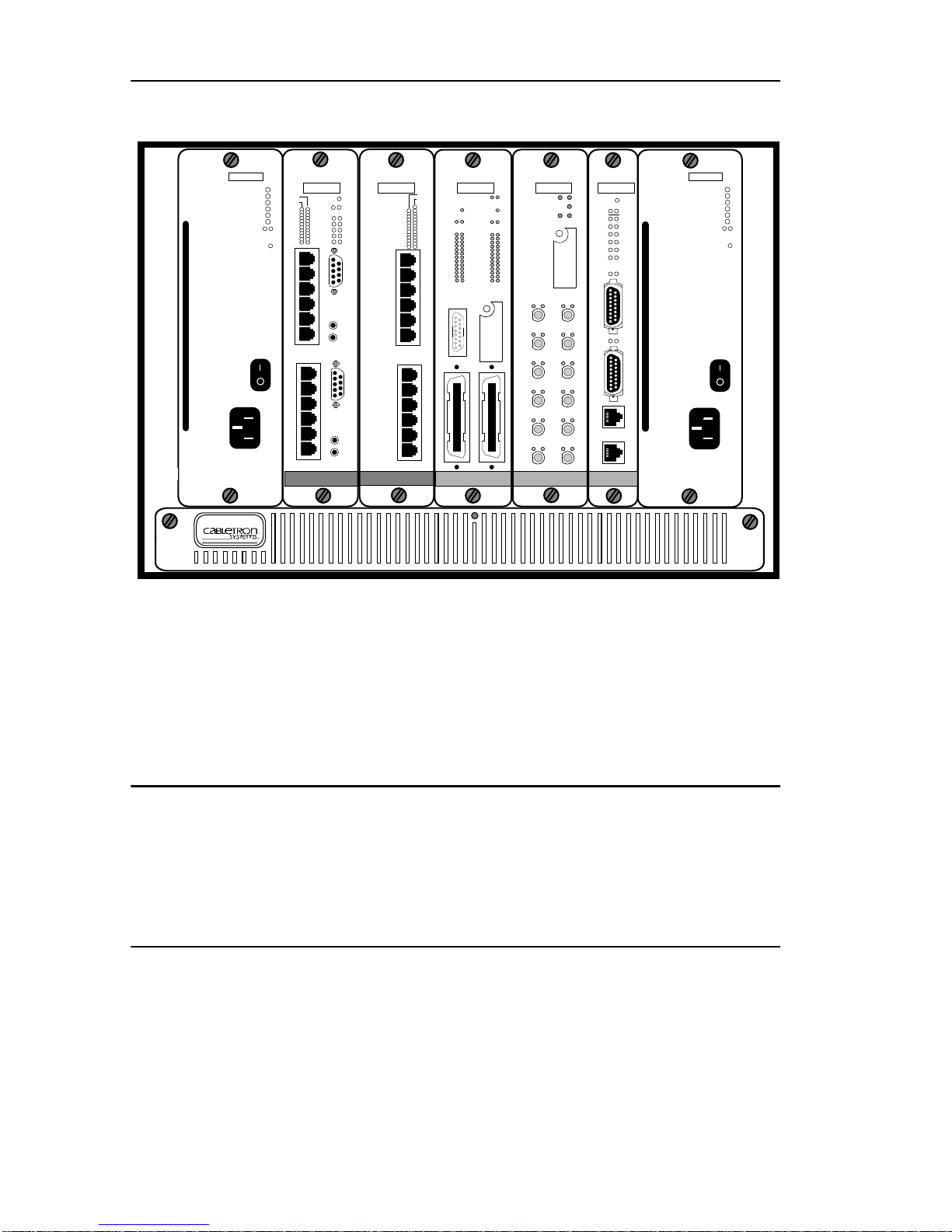

Figure 1-1. MMAC-M5FNB with Optional MIMs

1.5 MMAC-M5FNB FEATURES

Universal Power Supply

The MMAC-M5FNB power supply senses and automatically adjusts to

the input voltage and frequency. No additional adjustments are

necessary.

Built-in Power Supply Protection

The power supply module(s) automatically powers down under any of

the following conditions: thermal overload (thermal protection);

shorted output (over current, or short circuit protection); or excess

output voltage (over voltage protection).The power supply will

automatically recover when a thermal overload condition is corrected;

when an over current or over voltage condition is corrected, the power

POWER OK FAIL

FAULT

+5 VOLT TEST

-5 VOLT TEST

+12 VOLT TEST

-9 VOLT TEST

COMMON

POWER FAIL

MMAC-M5FNB

The Complete Networking Solution™

Multi Media Access Center

100-125V ~ 5A

220-250V ~ 3A

50/60Hz

100-125V ~ 5A

220-250V ~ 3A

50/60Hz

M5PSM

ACTIVE UTP

TOKEN RING

LNK

PEN

16MB MGMT

ERR

TRMIM-22A

16MB

TRMIM-4A

MGMT

ACTIVE UTP

TOKEN RING

ERR

RI RO

CRS16

WFLT

WRAP

FLNK

LNK

PEN

RCV POK

CLN

TPRMIM-36

10BASE-T

ETHERNET

RCV POK

ETHERNET

B C

CLN

CXRMIM

10BASE-2

ETHERNET

ETHERNET B C CLN

POK

RCV

POKRCV POKRCV

M5PSM

POWER OK FAIL

FAULT

+5 VOLT TEST

-5 VOLT TEST

+12 VOLT TEST

-9 VOLT TEST

COMMON

POWER FAIL

EMME

RESET

ON PWR

BOK

STBYA

STBYB

RCVA

RCVB

RCVC

RCVD

ERR

STBYC

STBYD

CLNA

CLNB

CLNC

CLND

PWR

ETHERNET

INTRODUCTION

Page 1-5

supply requires AC power cycling (turn power switch off, then on

again) to recover.A FAULT LED on the power supply module indicates

when an over current condition has occurred.

Note:

If you remove, then re-insert, the fan tray with no MIMs installed

in the chassis and the power on, you will have to turn each power

supply off, then on again to re-start.

Power OK Signal

The same signal that illuminates the Power OK LED on the power

supply module(s) will also alert the management module that the

power supply is functioning normally.

Power Factor Correction

The MMAC-M5PSM meets the EN60555-2 limits for power factor

correction, which may be required by utility companies in the near

future.

The power factor correction feature provides a number of advantages.

By improving this factor to meet the EN60555-2 limits, line noise and

peak current levels are dramatically reduced and the amount of power

available to the user is increased. Power factor correction also reduces

stress on fuses, circuit breakers, wall sockets, wiring, and

transformers.

Redundant Power with Current Sharing

The MMAC-M5FNB can operate with either one or two power supply

modules. If two MMAC-M5PSMs are installed, they share the power

load requirements of the installed MIMs; if one power supply fails,the

second automatically assumes the entire load.This ensures that your

network will remain operational until a replacement MMAC-M5PSM

can be installed.The two power supply modules use a current sharing

scheme such that each power supply provides 50% of the required load

(

5%, 5V output only) under all load conditions.

Table of contents

Other Cabletron Systems Network Hardware manuals

Cabletron Systems

Cabletron Systems SmartSwitch 6000 Programming manual

Cabletron Systems

Cabletron Systems Cabletron BRIM-F6 User manual

Cabletron Systems

Cabletron Systems MMAC-M8FNB User manual

Cabletron Systems

Cabletron Systems TPMIM-22 User manual

Cabletron Systems

Cabletron Systems EPIM-3PS User manual

Cabletron Systems

Cabletron Systems SSIM-T8-04 User manual

Cabletron Systems

Cabletron Systems TRBMIM User manual

Cabletron Systems

Cabletron Systems MMAC-5FNB User manual

Cabletron Systems

Cabletron Systems TRMIM-22 User manual

Cabletron Systems

Cabletron Systems VHSIM-G02 User manual

Cabletron Systems

Cabletron Systems MMAC-Plus 9E423-24 User manual

Cabletron Systems

Cabletron Systems NBR-220 User manual

Cabletron Systems

Cabletron Systems FE-100 User manual

Cabletron Systems

Cabletron Systems KBU64 Rackmount User manual

Cabletron Systems

Cabletron Systems 9F241-12 Technical document

Cabletron Systems

Cabletron Systems 9C300-1 Quick start guide

Cabletron Systems

Cabletron Systems ELS10-26 User manual

Cabletron Systems

Cabletron Systems CSMIM-T1 User manual

Cabletron Systems

Cabletron Systems FLIU-1 User manual

Cabletron Systems

Cabletron Systems BRIM-T6 User manual

Cabletron Systems

Cabletron Systems 6C105 Operation and maintenance manual

Cabletron Systems

Cabletron Systems MMAC-M3FNB User manual

Cabletron Systems

Cabletron Systems 3F00-01 User manual

Cabletron Systems

Cabletron Systems Netlink FRX4000 Operating manual

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide
