Cabletron Systems KBU64 Rackmount User manual

KBU64 Rackmount

User Manual

Fivemere Ltd. Cabletron Systems Ltd.

Fivemere House Network House

161 High Street Newbury Business Park

Aldershot London Road, Newbury

Hampshire, England Berkshire, England

GU11 1TT RG13 2PZ

Telephone: [44] (0)1635 580000

Fax: [44] (0)1635 44578

KBU64 RackmountUser Manual

80-10100001-09ii

Publication — 80-10100001-09

Publication Notice:

This manual has been compiled and checked for accuracy. However the

information contained in this manual does not constitute a warranty of

performance. Cabletron Systems Ltd. reserves the right to revise this

publication from time to time without notice. Cabletron Systems Ltd.

assumes no liability for losses incurred as a result of out of date or incorrect

information contained in this manual.

Proprietary Notice:

This document may not in whole or part be copied, photocopied, reproduced,

translated, or reduced to any electronic medium or machine-readable form

without prior consent from Cabletron Systems Ltd.

Approval Notice:

This equipment is approved for connection to all United Kingdom

telecommunications services, including British Telecom PLC, Hull City

Council and Mercury Communications, and is subject to the conditions set

out in these instructions for use.

All users of this equipment in the UK, Europe and USA must make

themselves familiar with the statutory instructions contained in Section 7.

Pan European Approval:

Where the Pan European Approval CE Mark ‘168X’ is applied to the product;

this approval is for connection of the ISDN and X.21 interfaces within the

European Community (EC).

Where an EC country requires approval for connection of the V35 or V24

Link ports to a PTO’s Digital Leased Circuit (DLC), this approval is necessary

in that country before connection to the DLC can be permitted.

Approval in non EC countries is subject to local regulations in force, please

contact your Technical Support for information.

EMC Directive:

This product has been designed for use in Commercial and Light Industrial

environments and tested to relevant EMC Standards as listed in the

European O.J. All testing was carried out using screened interconnection

cables. Should the equipment be used in a different environment the user

may need to take additional EMC precautions.

Acknowledgements: Kilostream™ is a trademark of British Telecom PLC.

Fivemere Ltd. is a subsidiary of Cabletron Systems Inc., USA.

KBU64 RackmountUser Manual

80-10100001-09 iii

History Sheet

80-10100001-09 Issued separately for the R/M

due to USA requirements 21 January 1998

KBU64 RackmountUser Manual

80-10100001-09iv

TABLE OF CONTENTS

1KBU 64 RACKMOUNT SPECIFICATION 1–1

1.1 INTRODUCTION 1–1

2FRONT AND REAR PANELS AND INTERFACES 2–1

2.1 FRONT PANEL 2–1

2.2 REAR INTERFACE CARDS 2–1

2.2.1 LINK SETTINGS 2–3

2.2.2 COMMAND PORT - KBU 64 REAR INTERFACE CARDS 2–4

2.2.3 V35 REAR INTERFACE CARD 2–5

2.2.4 X21 REAR INTERFACE CARD 2–6

2.2.5 V24 REAR INTERFACE CARD 2–6

3MANAGER CARD 3–1

3.1 INTRODUCTION 3–1

3.2 FRONT PANEL 3–3

3.3 REAR PANEL 3–3

4CARD INSTALLATION 4–1

4.1 MANAGER CARD INSTALLATION 4–1

4.2 CONFIGURATION USING A MANAGER CARD 4–2

5INSTALLATION AND POWER SUPPLY REQUIREMENTS 5–1

6RACK SPECIFICATIONS 6–1

7REGULATORY REQUIREMENTS 7–1

7.1 UNITED KINGDOM AND EUROPE 7–1

7.2 ADDITIONAL UK REQUIREMENTS 7–1

KBU 64 Rackmount Specification

80-10100001-09 1–1

1 KBU 64 Rackmount Specification

1.1 Introduction

This manual describes the Rackmount version of the KBU64. The

standalone KBU 64 has its own manual, Publication 80-10100000. For

information on the command menus and parameters in the rackmount

version, you will need to refer to the standalone KBU 64 manual.

The rackmount KBU 64 is a dual channel rack mountable card that uses

the KBU 64 Card Frame as a host for power and management via the

Management Card. The rackmounted KBU 64 consists of a KBU card

and a rear interface card (card 'pair'), both cards connecting to a

motherplane for power source and management. Rear interface cards

may be ordered as X.21, V.24, or V.35 variants.

Power supply is via two switching supplies, which normally load share

when both are fitted.

KBU64 RackmountUser Manual

80-10100001-091–2

Fivemere Fivemere

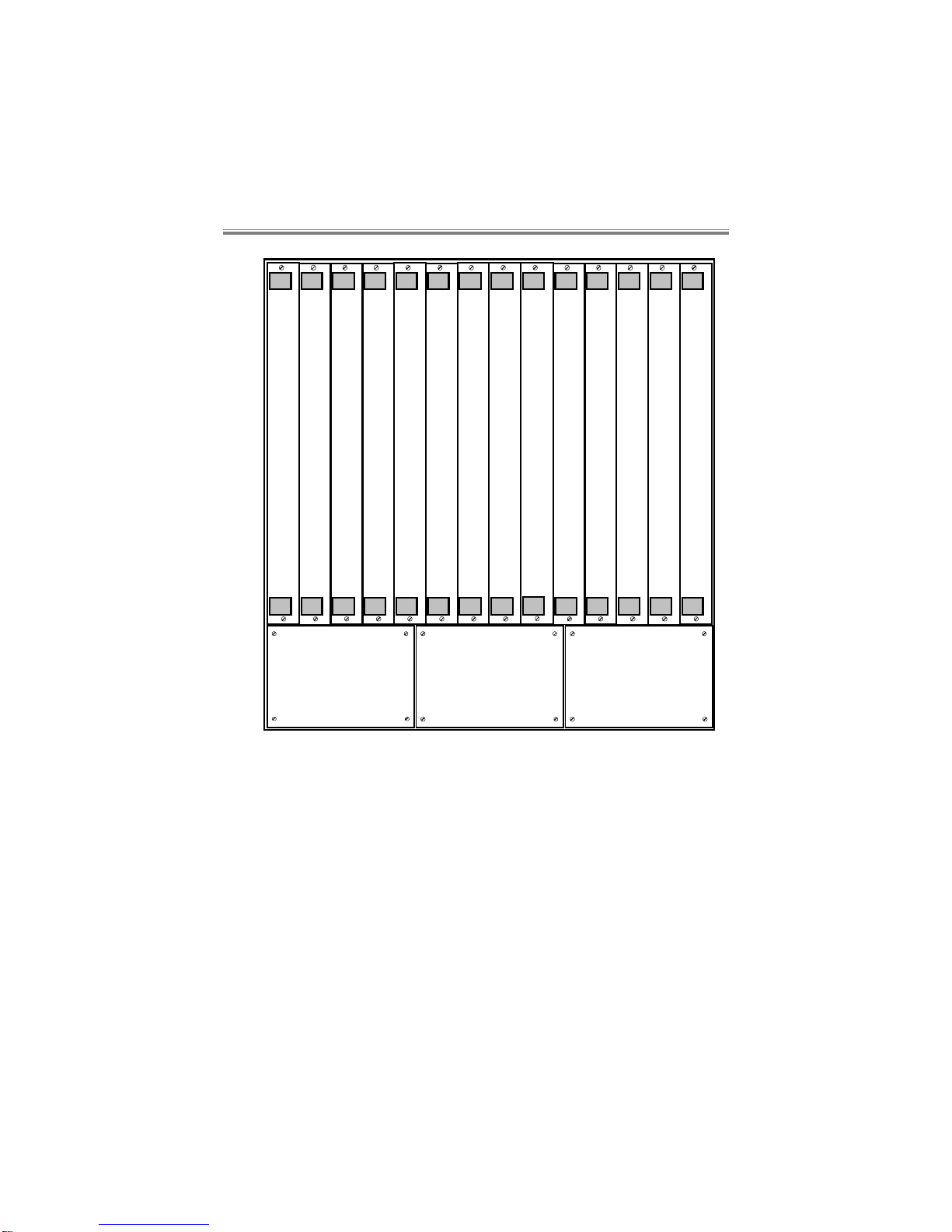

Figure 1.1 The KBU 64 Rackmount Version

Up to 13 KBU 64 card pairs may be fitted with either one or two power

supplies for resilience. The 1st card slot is for the Manager Card which

controls all cards within the rack via the KBU 64 polled management

system. If the Manager Card is not fitted, management of each card can

be performed by connecting a terminal directly to the command port of

the rear interface card. When fitted, the manager card must be placed in

slot 1, the left-hand most slot of the rack.

KBU 64 Rackmount Specification

80-10100001-09 1–3

The rackmount version of the KBU 64 is functionally the same as the

standalone in most respects, as it uses the same software. Therefore

most of the sections of your KBU64 Manual manual (Publication 80-

10100000) relating to KBU 64's operation are relevant.

The rackmount card functionality differs in the following ways:-

•There is a single 15 way command port on each KBU 64 rear card

for all commands and alarms. There is no separate alarm port or

alarm relay output on the cards. The command port has the same

function as the standalone 25 way command port.

•The Management Card (if fitted) provides a command port for

access to all KBU 64 cards in the rack.

•Standard physical interfaces are provided for X21 (15 way 'D'),

V35 (34 way MRAC), and V24 (25 way 'D'). This means that the

V11/V28 selection links are not provided as they are no longer

necessary. A choice of 3 rear interface cards exist to provide

these interfaces.

•The interface LED's are as for the standalone except that the Link

LED's have been omitted for front panel clarity.

•The ISDN cable is connected to the Rear Interface Card by an RJ

45 style plug.

•Power indication for each power supply is present on the Manager

Card.

Front and Rear Panels and Interfaces

80-10100001-09 2–1

2 Front and Rear Panels and Interfaces

2.1 Front Panel

See the KBU64 standalone manual (Publication 80-10100000) for the

description of operation.

2.2 Rear Interface Cards

With all 3 card types the USER ports are configured as physical DCEs,

the LINK ports as DTEs. The USER ports are female and the LINK are

male for X21 and V24, both USER and LINK ports are female for V35.

All three card types use standard pin connection and so require 1 to 1

cables for connection to both user equipment and link equipment.

KBU64 RackmountUser Manual

80-10100001-092–2

T 103

R 104

C 108

I 107

S 114

115

105

109

BACKUP

USER 1

Front Rear

(X.21) Rear

(V.35)

USER 2

T 103

R 104

C 108

I 107

S 114

115

105

109

BACKUP

B1 IN USE

B1 BACKUP

B2 IN USE

B2 BACKUP

ALARM 1

ALARM 2

USER 1

LINK 1

USER 2

LINK 2

COMMAND

IS D N

LINK 1

USER 2

LINK 2

USER 1

COMMAND

IS D N

COMMAND

IS D N

USER 1

LINK 1

USER 2

LINK 2

Rear

(V.24)

Figure 2.1 Front and rear Panel Layout

Front and Rear Panels and Interfaces

80-10100001-09 2–3

2.2.1 Link Settings

For all 3 types of Rear Interface Card the command port jumper settings

are as follows:

Without Manager Card

With

Manager

Card

Link Normal Polled Polled Only

JP8 IN IN X

JP9 OUT OUT X

JP10 OUT IN X

JP11 IN OUT X

JP12 IN IN OUT

JP13 IN IN OUT

JP14 IN IN OUT

'X' = don't care
