Bryant TSTATBBNQ001 Guide

Battery Operated

4-Wire Operation

Millivolt Compatible

Digital Display

DC Voltage Compatible

Stage: 1-Heat, 1-Cool

Easy Slide Switch

Operation

USERS INFORMATION MANUAL

MODEL TSTATBBNQ001

NON-PROGRAMMABLE DIGITAL

THERMOSTAT

NOTE TO INSTALLER:

This manual must be left with the equipment user.

Heating & Cooling Systems

Heat Cool Thermostat

SINGLE STAGE HEAT & COOL

THERMOSTAT

Page 1

Table Of Contents

LOCATION OF CONTROLS

DISPLAY

NORMAL OPERATION

PREPARATION

REMOVE OLD THERMOSTAT

WIRE CONNECTIONS

JUMPER CONFIGURATION

TEST OPERATION

TROUBLESHOOTING

WARRANTY

INSTALLATION AND BATTERY

REPLACEMENT

Bryant Heating & Cooling Systems Patents Pending 4/03

TSTATBBNQ001

Safety Warnings

Page 2

CAUTION Follow Installation Instructions carefully.

DISCONNECT POWER TO THE HEATER -

AIR CONDITIONER BEFORE REMOVING

THE OLD THERMOSTAT AND INSTALLING

THE NEW THERMOSTAT.

WARNING

The 2 Alkaline “AA” batteries must be replaced at least

every 12 months to assure proper operation.

The thermostat will display the Low Battery

code (fig. 1) on the display of the thermostat

when it is time to replace the batteries.

When is displayed the batteries must be replaced

immediately. The manufacturer cannot be liable for

improper operation of the thermostat if the batteries are

not immediately replaced.

The annual battery replacement is especially critical in

locations subject to freezing temperatures. The

thermostat will be unable to turn on the Heat if the

batteries are exhausted.

CAUTION

This device complies with Part 15 of the FCC rules.

Operation is subject to the following 2 conditions:

(1) This device may not cause harmful interference, and (2)

This device must accept any interference received, including

interference that may cause undesired operation.

FIG. 1

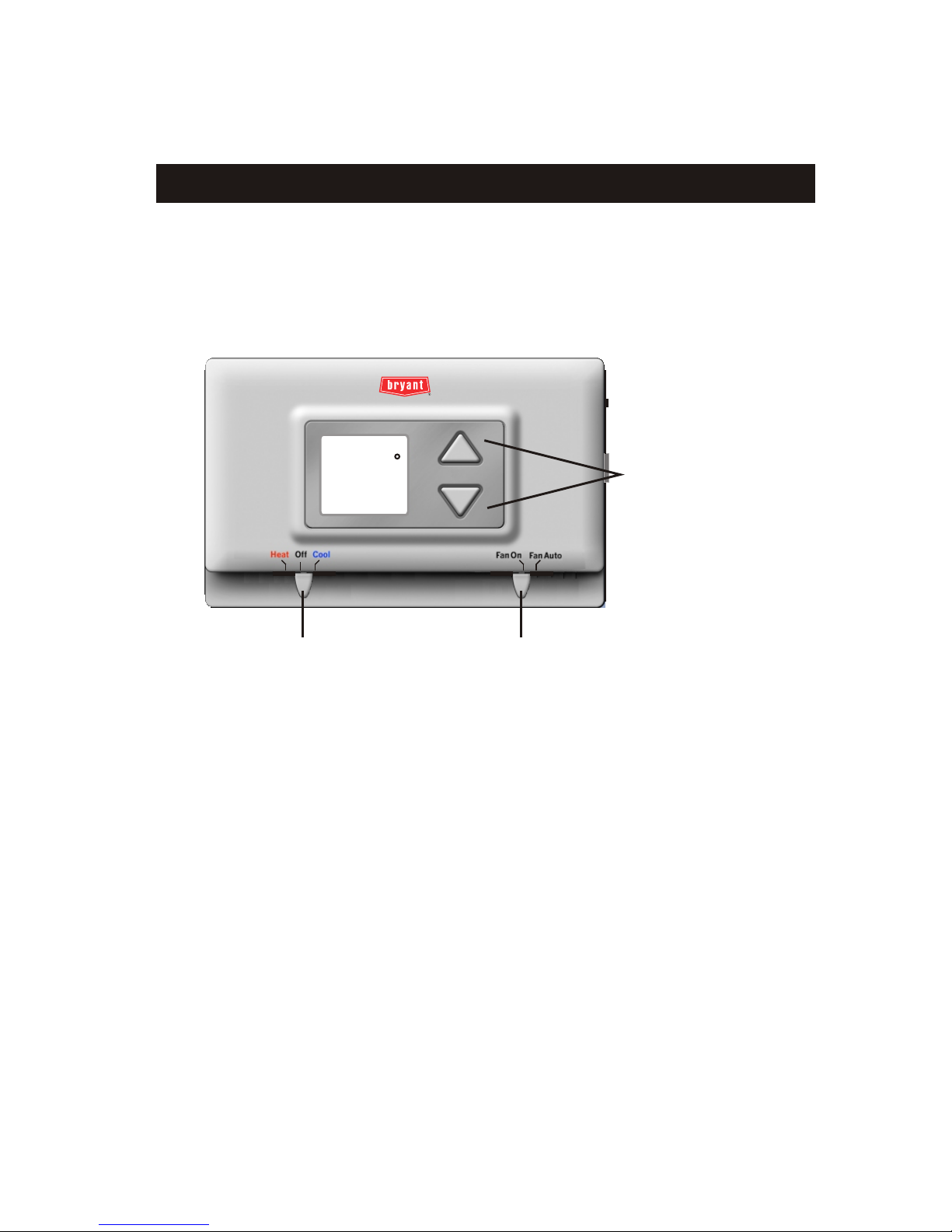

Location of Controls

Page 3

MODE SWITCH

Heat, Cool or Off On or Auto

FAN SWITCH

UP & DOWN

BUTTONS

Display

Page 4

Current room temperature.

If the Up or Down arrow buttons are pressed the

thermostat will show the desired Set Temp temperature

indicator. Once this screen is reached you may use the

Up or Down arrow buttons to adjust the desired room

temperature.

After five seconds with no button presses the

thermostat will revert back to show the current

room temperature.

78 74

SET TEMP

Page 5

Normal Operation

Manual Operation

Select heat or cool with the mode switch.

Normally leave the fan switched to auto.

In fan auto, the fan will turn on only with a heat

or cool demand. When Fan On is selected, the

fan will run continuously, even when the mode

switch is set to Off.

Adjust the desired set temperature with the

Up or Down buttons.

MODE SWITCH

Heat, Cool or Off On or Auto

FAN SWITCH

UP & DOWN

BUTTONS

Step #1 Preparation

Page 6

These tools will be required:

Flat Blade

Screwdriver

Wire cutter

& Stripper

Make sure your Heater/Air Conditioner

is working properly before beginning

installation of the thermostat.

Carefully unpack the thermostat.

Save the screws and instructions.

Turn off the power to the Heating/Air

Conditioning system at the main fuse

panel. Most residential systems have

a separate breaker for disconnecting

power to the furnace.

Proper installation of the thermostat will be

accomplished by following these step

by step instructions. If you are unsure

about any of these steps, call a qualified

technician for assistance.

Heat Off Cool FanOn

FanAuto

Heat Off Cool FanOn

FanAuto

Heat Off Cool FanOn

FanAuto

Heat Off Cool FanOn

FanAuto

Heat Off Cool FanOn

FanAuto

Page 7

Step #2 Remove & Replace Old Thermostat

Remove the cover of the old thermostat.

If it does not come off easily check for

screws.

Loosen the screws holding the thermostat

base or subbase to the wall, and lift away.

Disconnect the wires from the old

thermostat. Tape the ends of the wires

as you disconnect them, and mark them

with the letter of the terminal for easy

reconnection to the new thermostat.

Keep the old thermostat for reference

purposes, until your new thermostat is

functioning properly.

Heat Off Cool FanOn

FanAuto

Heat Off Cool FanOn

FanAuto

Heat Off Cool FanOn

FanAuto

Heat Off Cool FanOn

FanAuto

Page 8

The top of the thermostat housing has two (2) screw-

driver slots to assist when seperating.

Repeat the procedure in the other screw driver slot.

Separate the housing halves by pulling the top

forward until the pins release, and then lift the bottom

out.

SCREWDRIVER

SLOTS

The batteries must be replaced

immediately when the thermostat

displays the Low Battery code (fig.1). FIG. 1

To Open The Thermostat

Step #3 Installation and Battery Replacement

To pull the housing apart, insert a small blade screw-

driver into the slot and rotate 90 . This will release

the top housing snaps.

Page 9

Battery Replacement

REPLACE WITH ALKALINE BATTERIES AT LEAST ONCE

EVERY YEAR, OR WHEN THE “LOW BATTERY” ICON

APPEARS (pages 2,8).

USE “AA” SIZE

ALKALINE BATTERIES USE “AA” SIZE

ALKALINE BATTERIES

POSITION BATTERIES AS SHOWN

FAN W/ HEAT

HEAT PUMP

123
