Brother HL-4040CDN - Color Laser Printer User manual

Brother Color Laser Printer

PARTS REFERENCE LIST

MODEL: HL-4040CN/4040CDN/

4050CDN/4070CDW

Read this list thoroughly before maintenance work.

Keep this list in a convenient place for quick and easy reference at all times.

January 2007

PL-PRN100

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it is necessary to mention the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No. etc.)

REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK

Revision No.: marked on the main printed circuit board (Main PCB)

B48K056

2. Design-changed parts:

If any of the parts is changed, one of the following symbols is indicated in the REMARK column.

CHG (chg): The part is changed for a new one.

ADD (add): The part is newly added.

DEL (del): The part is deleted.

Symbol in capital letters indicates the latest parts change information in the page.

3. The original parts reference list is based on the information available in January 2007.

4. Parts are subject to change in design without prior notice.

(1) (4)

(3)

(2)

Circuit board No.

COUNTRIES AND AREAS

AP: Asia Pacific

ARG: Argentina

ARL: Australia

BEL: Belgium

BRZ: Brazil

CAN: Canada

CHL: Chile

CHN: China

EEU: EEU GENERAL

(Bulgaria/Czech/Hungary/Poland/Romania/

Slovakia)

EUR: Europe

FRA: France

GER: Germany

GULF: Gulf

HOL (NL): Holland (Netherlands)

IBERIA: Spain/Portugal

ISR: Israel

ITA: Italy

NZ: New Zealand

PAN-NOR: Norway/Finland/Denmark/Sweden

RUS: Russia

SAF: South Africa

SGP: Singapore

SWI: Switzerland

UK: U.K.

US: U.S.A

LANGUAGES

BUL: Bulgarian

CHN: Chinese

CZE: Czech

DEN: Danish

DUT: Dutch

ENG: English

FIN: Finnish

FRE: French

GER: German

HUN: Hungarian

ITA: Italian

NOR: Norwegian

POL: Polish

POR: Portuguese

ROM: Romanian

RUS: Russian

SVK: Slovak

SPA: Spanish

SWE: Swedish

CONTENTS

1. FRAME UNIT........................................................................................1

2. DRIVE...................................................................................................3

3. LASER UNIT ........................................................................................ 5

4. PAPER FEEDER..................................................................................7

5. MP UNIT............................................................................................... 9

6. DX....................................................................................................... 11

7. PAPER TRAY..................................................................................... 13

8. FUSER UNIT ...................................................................................... 15

9. PAPER EJECT...................................................................................17

10. COVERS&LABELS............................................................................ 19

11. MAIN PCB.......................................................................................... 21

12. ENGINE PCB......................................................................................23

13. LVPS................................................................................................... 25

14. HVPS.................................................................................................. 27

15. AC CORD...........................................................................................29

16. ACCESSORIES.................................................................................. 31

17. PACKING MATERIALS...................................................................... 33

18. PERIODICAL MAINTENANCE PART ...............................................35

1. FRAME UNIT

REF No. CODE Q'TY DESCRIPTION REMARKS

1 LR0402001 4 NEW TONER ACTUATOR

2 LR0403001 4 NEW TONER ACTUATOR SPRING

3 UH2208001 2 RUBBER FOOT

4 LM9189001 1 DEVELOP RELEASE SENSOR PCB ASSY

5 LM9210001 4 TONER LED PCB ASSY

6 LR1094001 4 LED HOLDE

7 LM9211001 1 TONER SENSOR PCB ASSY K

(

TE/NEW

)

8 LM9334001 1 TONER SENSOR PCB ASSY Y

(

TE/NEW

)

9 LM9335001 1 TONER SENSOR PCB ASSY M

(

TE/NEW

)

10 LM9336001 1 TONER SENSOR PCB ASSY C

(

TE/NEW

)

11 UL9037001 4 PT SENSOR HOLDER

12 LR0523001 1 BELT CLEANER RELEASE ASSY

12-1 LM9218001 1 BELT CLEANER RELEASE SENSOR PCB ASSY

12-2 085310816 1 TAPTITE BIND B M3X8

13 LR0532001 1 WASTE TONER NEAR/FULL SENSOR ASSY

13-1 LM9221001 2 WASTE TONER SENSOR

14 LR0589001 1 AIR INTAKE FAN

(

AIR

)

15 LR0217001 1 BELT DRIVE MOTOR

16 LR0903001 1 LVPS FAN

(

)

17 LR0906001 1 FUSER UNIT FAN

(

)

18 LU4228001 1 DRUM UNIT FAN HOLDER ASSY

(

OPC

)

CHG

19 0A2301603 4 SCREW PAN

(

P WASHER

)

M3X16 ch

20 085310816 3 TAPTITE BIND B M3X8

21 087310816 1 TAPTITE CUP B M3X8

22 LR1820001 1 ALUMINUM SHEET FRAME

23 LU4027001 1 DX HOOK ASSY AC

(

HL-4040CDN/4050CDN/4070CDW

)

add

84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW

- 1 -

- 2 -

1. FRAME UNIT

21 20 11

13-1

12-1

12-2

2. DRIVE

REF No. CODE Q'TY DESCRIPTION REMARKS

CLEANER DRIVE

A1 LR1246001 1 DRIVE FRAME UNIT ASSY

A1-1 LR0440001 1 PAPER FEED/BELT CLEANER MOTOR ASSY

A1-2 087320616 4 TAPTITE CUP S M3X6

A2 LR1126001 1 FUSER DRIVE GEAR 18 ADD

DRUM DRIVE

B1 LR1904001 1 DRUM DRIVE ASSY chg

B1-1 LM9192001 1 DRUM PHASE SENSOR PCB ASSY1

B1-2 LM9337001 1 DRUM PHASE SENSOR PCB ASSY2

B1-3 Z31008001 1 DRUM DRIVE MOTOR1 chg

B1-4 Z31012001 1 DRUM DRIVE MOTOR2 chg

B1-5 085320616 6 TAPTITE BIND S M3X6

DEVELOP DRIVE

C1 LR0193001 1 DEVELOP DRIVE MOTOR ASSY

C2 087320616 3 TAPTITE CUP S M3X6

C3 LU4111001 1 FRICTION CAP add

DRUM DRAW DRIVE

D1 LR1006001 1 RELEASE RACK

D2 LR1007001 1 RELEASE RACK PLATE

D3 087310816 1 TAPTITE CUP B M3X8

D4 LR1008001 1 RELEASE RACK SPRING

D5 LR1228001 1 THM/HUM SENSOR HOLDER ASSY

D6 LR0803001 1 DEVELOP PRESS DRIVE L ASSY

D6-1 LR0823001 1 DEVELOP RELEASE DRIVE MOTOR ASSY

D6-2 LR0827001 1 FRONT COVER INTERLOCK SWITCH ASSY

D7 LR1014001 1 DRUM LOCK LEVER L

D8 LR1018001 1 DRUM LOCK LEVER R

D9 LR1710001 1 DRUM LOCK LEVER LABEL

D10 087320616 5 TAPTITE CUP S M3X6

D11 LR1023001 1 DRUM LOCK GEAR 24 add

D12 LR0307001 1 HOOK B add

D13 LR0308001 1 HOOK C add

D14 LR0327001 1 BUSH 7 add

D15 LR0910001 1 HOOK SPRING BC add

D16 LR0310001 1 PP GEAR CLUTCH CAM SPRING add

D17 LR0296001 3 BUSH 5 add

84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW

- 3 -

2. DRIVE

- 4 -

B1-4

B1-3

A1-1 A1-2

A1-2

D10

C2 C2

B1 D6

D6-1

D6-2

B1-2

B1-5

B1-5 B1-5

B1-5

B1-1

D17

D16 D13 D12

D15

D14

D11

3. LASER UNIT

REF No. CODE Q'TY DESCRIPTION REMARKS

1 LU4373001 1 LASER UNIT AC

(

)

CHG

2 LJ0908001 1 LASER CAUTION LABEL (EXCEPT CHN)

2 UL7931001 1 LASER CAUTION LABEL (CHN)

3 LM5867001 7 TAPTITE CUP S M3X6 SR

84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW

- 5 -

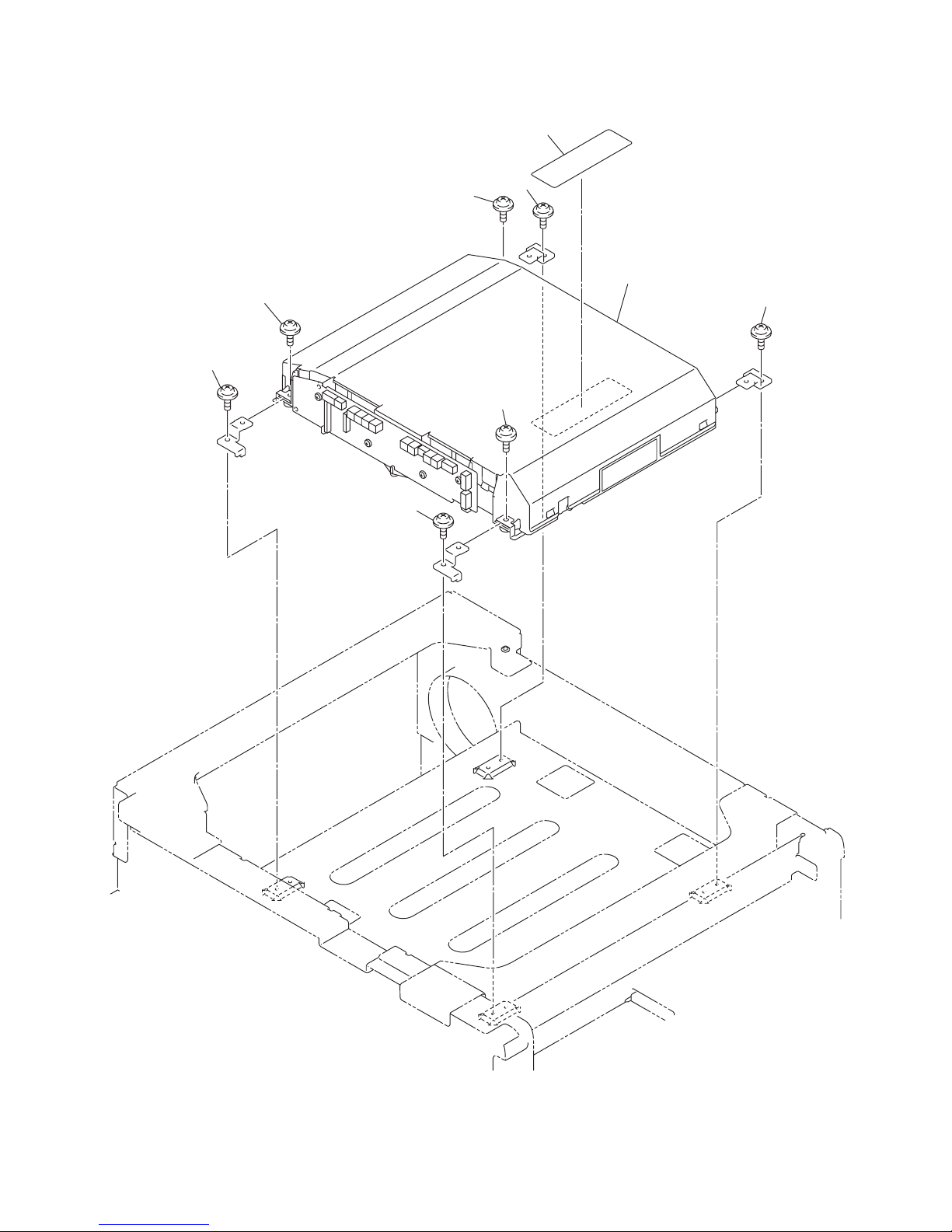

3. LASER UNIT

- 6 -
