Brother FAX-T7 Plus User manual

FACSIMILE EQUIPMENT

PARTS REFERENCE LIST

MODEL: FAX-T72 / T74 / T7 Plus /

T76 / T82 / T84 / T86

(For Germany / United Kingdom / France /

Norway / Belgium / Netherlands /

Switzerland / Ireland / Finland / Denmark /

Austria / Spain / Italy / South Africa /

Sweden / Portugal / Poland /

Czecho / Hungary / Euro Generic )

No part of this publication may be reproduced in any form

or by any means without permission in writing from the

publisher.

Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q' ty

(3) Description

Note: No orders without Parts Code or Tool No. can be accepted.

[Example] (1) (2) (3)

REF.NO. CODE Q' TY DESCRIPTION REMARKS

2. Design-changed parts:

When the parts are changed, any one of the following symbols is mentioned in the REMARKS column.

CNG(cng) : The part is changed to a new part.

ADD(add) : The part is newly added.

DEL(del) : The part is deleted.

Symbol in capital letters indicates that the change is the latest one in the page.

3. Parts change will be informed by the technical information.

COUNTRIES

GERMANY ----- GER

UNITED KINGDOM ----- UK

FRANCE ----- FRA

NORWAY ----- NOR

BELGIUM ----- BEL

NETHERLANDS ---- NLD

SWITZERLAND ---- CHE

IRELAND ---- IRE

FINLAND ---- FIN

DENMARK ---- DEN

AUSTRIA ---- AUS

SPAIN ---- SPA

ITALY ---- ITA

SOUTH AFRICA ---- ZAF

SWEDEN ---- SWE

PORTUGAL ----POR

POLAND ----POL

CZECHO ----CZE

HUNGARY ----HUN

EURO GENERIC ---- GNR

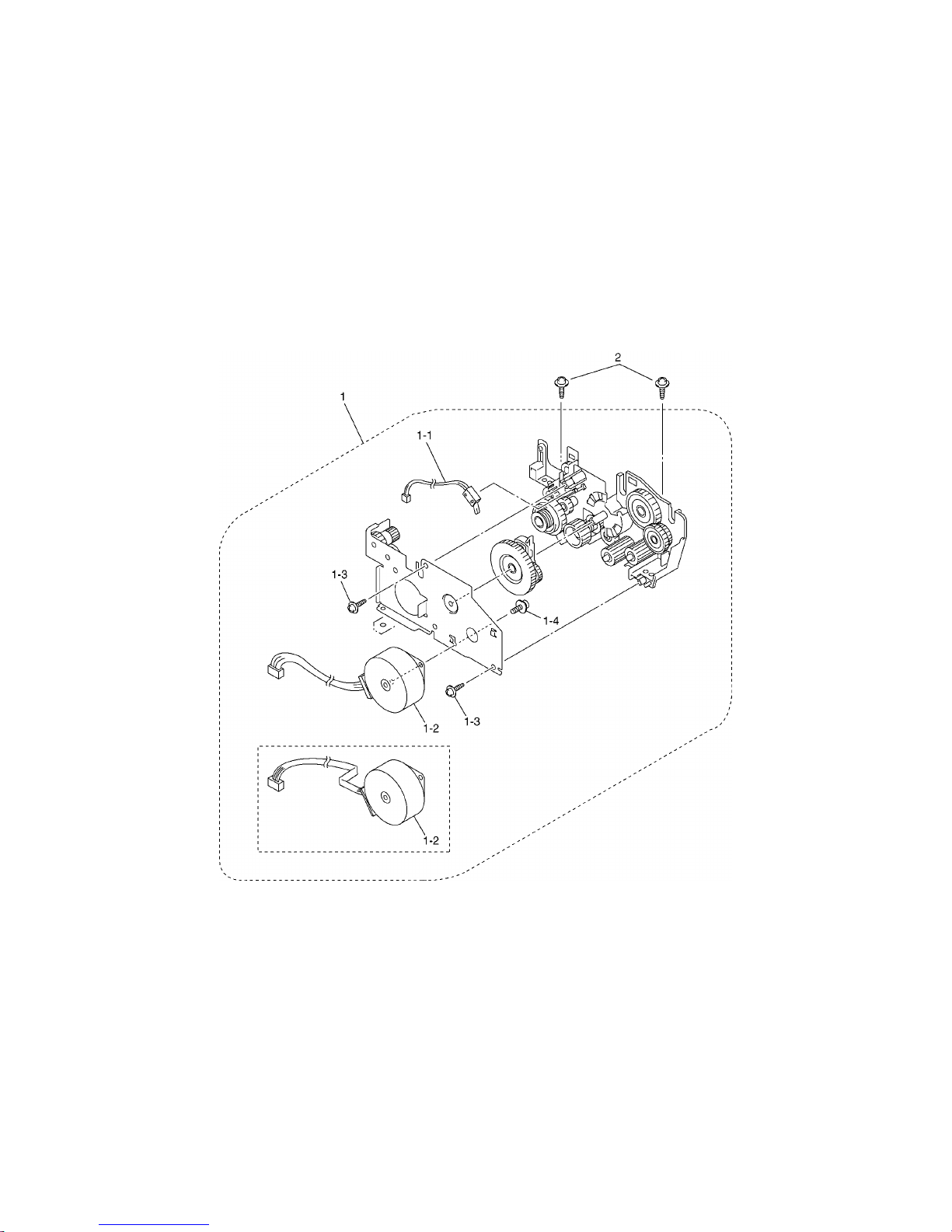

LIST1 (DRIVING)

REF No. CODE Q'TY DESCRIPTION REMARKS ORDER TO

BIUK

*1 LE4001001 1 DRIVE UNIT [FOR THE EARLY LOT]

*1 LF1412001 1 DRIVE UNIT CHG

1-1 LG2581001 1

RM HP SWITCH ASSY

1-2 LE4028001 1 MOTOR WITH HARNESS

1-3 08731081

2 TAPTITE, CUP B M3X8

√

1-4 U09759001 1 SCREW, PAN (S/P WASHER) M3X6

√

(

1-5

)

LE5629001 1 PLANETARY GEAR SUPPLY ASSY

2 08731101

2 TAPTITE, CUP B M3X10

5X4582/5X4583/5X4588 FAX-T72/T74/T7Plus/T76/T82/T84/T86

LIST2 (SCANNING)

REF No. CODE Q'TY DESCRIPTION REMARKS ORDER TO

BIUK

1 LG3076001 1 CIS UNIT, FAX-T72/T7Plus/T76/T86

1 LG3595001 1 CIS UNIT, FAX-T74/T84

√

2 LE4029001 1 CIS HOLDE

3 LE4030001 1 CIS FILM(BLACK)

4 08531081

1 TAPTITE, BIND B M3X8

5 08731081

1 TAPTITE, CUP B M3X8

√

6 LG2557001 1 CIS-MAIN HARNESS

FAX-T72/T74/T7Plus/T76/T82/T84/T865X4582/5X4583/5X4588

LIST3 (RECORDING)

REF No. CODE Q'TY DESCRIPTION REMARKS ORDER TO

BIUK

1 LE4031001 1 RECORDER FRAME

2 08731081

2 TAPTITE, CUP B M3X8

√

3 LE5406001 1 RECORDING HEAD ASSY

4 UF8072001 3 HEAD SPRING

√

5 LG2779001 1 MAIN-HEAD HARNESS, FAX-T72/T74/T7Plus/T82/T84

√

5 LG2558001 1 MAIN-HEAD HARNESS, FAX-T76/T86

6 LG2559001 1 HEAD-POWER HARNESS

7 UF9856001 1 HEAD PROTECTOR

8 LE4034001 1 GROUNDING SPRING

FAX-T72/T74/T7Plus/T76/T82/T84/T865X4582/5X4583/5X4588
