Bradley S19-125SBF User manual

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817

bradleycorp.com

Installation

215-1568 Rev. B; ECN 08-518

Page 1 of 7 9/29/08

S19-125SBF

S19-125SFMBF

Barrier Free Recess-Mounted

Drench Shower

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . 2

Assembly of Components . . . . . . . . . . . . . . . 3

Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . 3

Cabinet Dimensions . . . . . . . . . . . . . . . . . . . . 4

Rough-Ins. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

www.bradleycorp.com

PUSH

ACTIVATE

SHOWER

www.bradleycorp.com

PUSH

ACTIVATE

SHOWER

S19-125SBF

S19-125SFMBF

S19-125SBF, S19-125SFMBF Installation

9/29/08 Bradley Corporation • 215-1568 Rev. B; ECN 08-518

IMPORTANT

Read this installation manual completely to ensure proper installation, then file it

with the owner or maintenance department. Compliance and conformity to drain

requirements and other local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before

discarding any packaging material. If any parts are missing, do not begin installation

until you obtain the missing parts.

Flush the water supply lines before beginning installation and after installation is

complete. Test the unit for leaks and adequate water flow. Main water supply to the

eyewash should be “ON” at all times. Provisions shall be made to prevent unauthorized

shutoff.

The ANSI Z358.1 standard requires an uninterruptible supply of flushing fluid at a

minimum 30 PSI (0.21 MPa) flowing pressure. Flushing fluid should be tepid per ANSI

Z358.1.

The inspection and testing results of this equipment should be recorded weekly to verify

proper operation. This equipment should be inspected annually to ensure compliance

with ANSI Z358.1.

Workers who may come in contact with potentially hazardous materials should be

trained regarding the placement and proper operation of emergency equipment per ANSI

Z358.1.

For questions regarding the operation or installation of this product, visit www.

bradleycorp.com or call 1-800-BRADLEY.

Product warranties and parts information may also be found under ”Products” on our

web site at www.bradleycorp.com.

Installation

THIS

SIDE

Packing List

•

P.O.Box309,MenomoneeFalls,WI53051

TESTTHISUNITEACHWEEK

Test-operatevalve(s) each week and sign below.

Reportany malfunctions immediately.

Ventil(e)wöchentlich im Testbetriebprüfen, bestätigt

durchUnterschrift. Jegliche Störung sofort melden.

Date

Datum

Date

Signed

Unterschrift

Signe

Date

Date Signed

Signed

DIESESGERÄT1STWÖCHENTLICHZUPRÜFEN.

ESSAIHEBDOMADAIRE

Testle fonctionnement des valves chaque semaine et

signeen bas. S'il y à quelque chose qui ne va pas fait

unrapport immédiatement.

P.O.BOX309, MENOMONEE FALLS,WI 53052-0309 USA

TEL:1-800-BRADLEY FAX:(262-251-5817)

http://www.bradleycorp.com

114-051

Supplies Required:

• Teflon tape and Pipe sealant

• Piping to 1” NPT water supply inlet on unit

• Adequate supply pipe supports

• Hardware to mount escutcheon to ceiling

• Minimum 4” (102 mm) drain to accommodate 30 gallons per minute discharge for drench

shower waste

• Sign-mounting hardware

Installation S19-125SBF, S19-125SFMBF

Bradley Corporation • 215-1568 Rev. B; ECN 08-518 9/29/08

Assembly of Components and Parts List

113-864

(S19-125SBF ONLY)

204-421

www.bradleycorp.com

114-090

Valve/Handle Prepack

(includes Handle and Valve Assembly)

S45-2238

P.O.Box 309, Menomonee Falls,WI 53051

TESTTHIS UNIT EACH WEEK

Test-operate valve(s) each week and sign below.

Report any malfunctions immediately.

Ventil(e) wöchentlich imTestbetrieb prüfen, bestätigt

durch Unterschrift. Jegliche Störung sofort melden.

Date

Datum

Date

Signed

Unterschrift

Signe

Date

Date Signed

Signed

DIESES GERÄT 1STWÖCHENTLICH ZU PRÜFEN.

ESSAI HEBDOMADAIRE

Test le fonctionnement des valves chaque semaine et

signe en bas. S'il y à quelque chose qui ne va pas fait

un rapport immédiatement.

150-212

(S19-125SBF ONLY)

186-1495

(COVER PLATE)

www.bradleycorp.com

PUSH

ACTIVATE

SHOWER

204-605

(LABEL)

S24-189

(S19-125SBF only)

S24-197

(S19-125SFMBF only)

169-1027

(S19-125SBF only)

S19-125SBF, S19-125SFMBF Installation

9/29/08 Bradley Corporation • 215-1568 Rev. B; ECN 08-518

S19-125 Series Cabinet Dimensions

14"

(357mm)

7-11/16"

(195mm)

8-7/16"

(214mm)

2-1/4"

(57mm)

10"

(254mm)

12-1/2"

(318mm)

(178mm)

3" (76mm)

Side View Front View

Installation S19-125SBF, S19-125SFMBF

Bradley Corporation • 215-1568 Rev. B; ECN 08-518 9/29/08

82" (2083mm) min.

96" (2438mm) max.

to floor

25"

(635mm)

min.

38" (965mm)

to 48" (1219mm)

from floor

S19-125SBF S19-125SFMBF

Ceiling hole

Ø 1-3/8" (35mm)

Wall opening

6" (152mm) wide

10" (254mm) high

Piping and

adequate

supports by

installer

38" (965mm)

to 48" (1219mm)

from floor

Ceiling hole

Ø 5" (127mm)

Piping and

adequate

supports by

installer

25"

(635mm)

min.

6" (152mm) min.

clearance

82" (2083mm) min.

96" (2438mm) max.

to floor

1Rough-ins

S19-125SBF, S19-125SFMBF Installation

9/29/08 Bradley Corporation • 215-1568 Rev. B; ECN 08-518

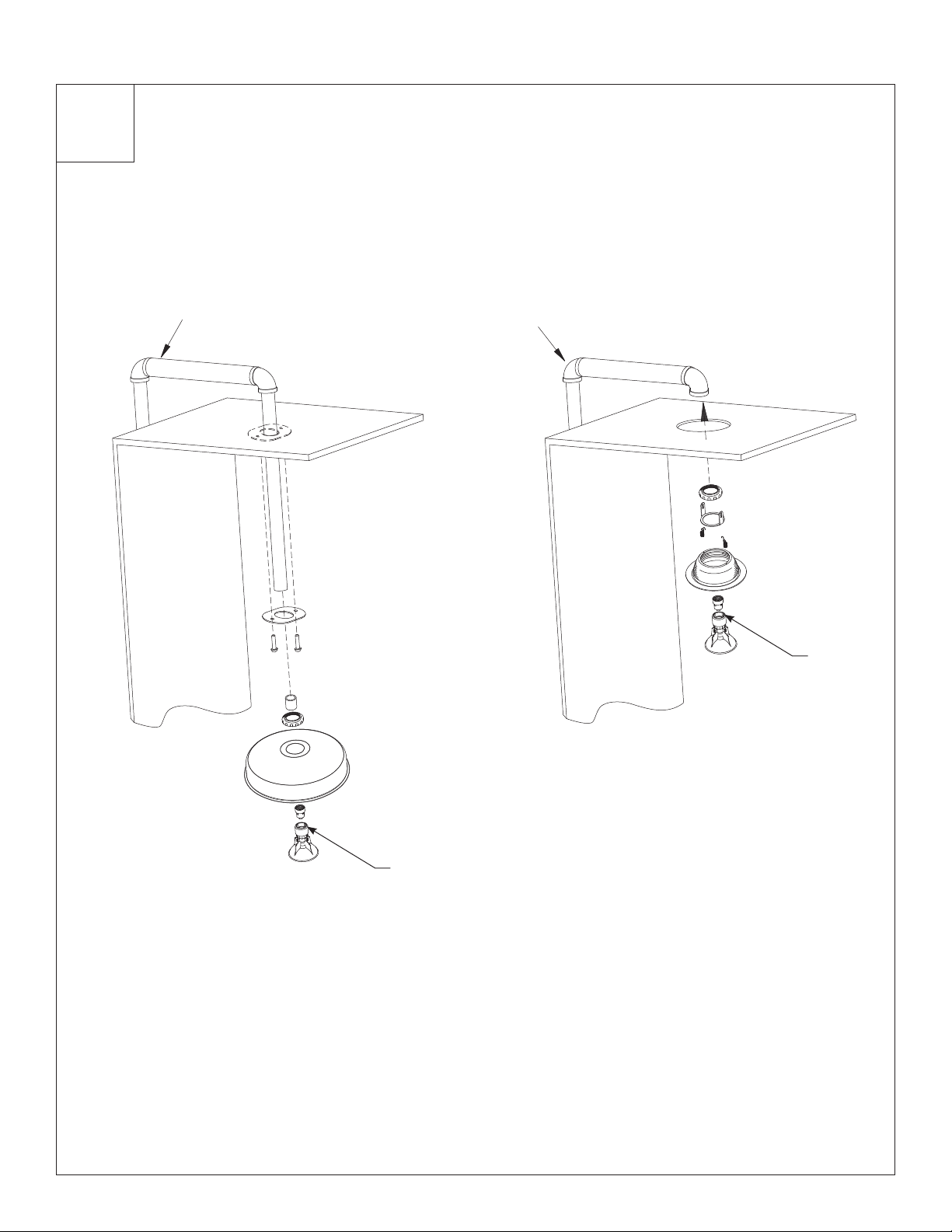

S19-125SBF S19-125SFMBF

Piping and

adequate

supports by

installer

Piping and

adequate

supports by

installer

2Installation

NOTE: Use

teflon tape

only.

NOTE: Use

teflon tape

only.

Installation S19-125SBF, S19-125SFMBF

Bradley Corporation • 215-1568 Rev. B; ECN 08-518 9/29/08

www.bradleycorp.com

114-090

To Showerhead

Connect supply

piping.

1" NPT supply

line

3Connect Water Supply
