Bradley LOFT Series User manual

Installation

P.O. Box 309

Menomonee Falls, WI 53052 USA

800 BRADLEY (800 272 3539)

+1 262 251 6000

bradleycorp.com

AD3-LOFT_Install Rev. B

Page 1 of 17 12/10/2021

Euro Style Restroom Partitions

Phenolic LT – LOFT Series

Read the instructions in this manual before beginning installation. Save these instructions

and refer to them for inspection, maintenance, and troubleshooting information.

For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com

or call 800.BRADLEY (800.272.3539).

Product warranties and parts information may also be found under “Resources” on our website at bradleycorp.com.

Table of Contents

Safety Information ...........................2

Supplies Required ...........................2

Marking & Installing U-Brackets.................3

Making Back Wall Notches (if necessary) .........4

Installing Middle and End Panels................6

Mounting Support Feet .......................6

Mounting U-Bracket on Pilaster .................7

Mounting Pilaster to Partition Panel..............8

Inserting Interior Pilaster ......................9

Attaching Doors ............................10

180° Barrel Hinge Type ....................10

110° Integral Hinge Type ...................10

Mounting Headrail ..........................11

Aligning the System & Securing the Feet ........12

Securing the Feet ..........................13

Mounting Headrail on End Panel...............14

Mounting the Door Latch .....................15

Mounting Hooks & Bumpers ..................16

Scan code to view

installation overview video

Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation

12/10/2021 Bradley • AD3-LOFT_Install Rev. B

Safety Information

Warning

Before beginning installation, make sure that the wall and floor backing are adequate to support the secure mounting of the toilet

compartment units.

Partitions are extremely heavy and may require more than one person to position and install.

Failure to comply with these instructions may result in personal injury and/or property damage and will void the partition warranty.

Caution

Personal protective equipment (PPE) is required during the installation and maintenance of this product.

Notice

To prevent warping, always lay the material flat. Do not lean the material against the wall or stack unevenly.

Make sure all floors and walls are clean and smooth. Remove loose impediments, such as protruding nails and other debris which

could affect installation.

To minimize break-out, always use a support block when drilling through the material.

Carefully remove components from skid, do not drag.

Important

Review your partition layout drawings and verify the number of stalls and components before beginning installation.

Read this installation manual completely to ensure proper installation, then file it with the owner or maintenance department.

This installation manual provides instruction for the assembly of normal partition configurations and standard components. Non-

standard configurations or components including but not limited to curved or angled walls, notched walls, partial walls, oversized

panels, or modified hardware are not covered in this manual. Compliance and conformity to local codes and ordinances is the

responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding packaging material. If any parts are

missing, do not begin installation until you obtain the missing parts.

Supplies Required

• Chalk line and pencil

• 4D laser level

• Power drill or screw gun with drill bit extension

• Miter saw with aluminum saw blade

• Circular saw or jigsaw

• Cordless screwdriver

• Power rivet gun

• Metric tape measure (recommend a wood folding metric ruler)

• Standard hand tools

• Metric HSS drill bits (8 mm, 5 mm, 4.2 mm)

• Scissor jacks

• Rubber hammer

• Step ladder

Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series

Bradley • AD3-LOFT_Install Rev. B 12/10/2021

When installing the partition components, consult the

applicable Bradley Partition submittal drawing speciﬁc to

this job for compartment layout dimensions.

Be aware of your surroundings and avoid obstructions.

1Marking & Installing U-Brackets

From the accompanying production drawing you

can see the centerline plus overall dimensions and

the dimensions of the front wall. Transfer these

measurements to the ﬂoor and appropriate walls.

Number the wall U-brackets while laying out the stalls.

Use the laser level to locate the drill points for each

U-bracket. Mark and then drill the locations.

Using the 4D laser level, locate the centerline of each

U-bracket. Measure up from the ﬂoor 100 mm and

mark the bottom of the ﬁrst U-bracket. Use the ﬁrst

bracket base location as a guide to locate and mark the

remaining bracket locations using the laser level.

Mark the drill holes for the wall connection U-brackets.

Hold the numbered brackets at these locations, line up

the U-bracket pre-drilled holes at laser centerline, and

mark the screw hole locations on the wall. Be sure to

keep the numbered brackets straight.

Drill the marked holes using an 8 mm drill bit, and

then mount the U-brackets using 8 mm x 51 mm

plastic anchors and 5.5 mm x 60 mm countersunk

screws with 6.4 mm washers.

If the centerline dimensions are not speciﬁed, the

cubicle is divided equally according to the dimensions

for the front side.

The dimensions from the ﬂoor for the remaining

U-brackets may vary depending on any slope in the

ﬂoor.

Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation

12/10/2021 Bradley • AD3-LOFT_Install Rev. B

This step may not be necessary, depending on the layout.

Determine whether the shelf is at a right angle.

If several notches are required, align the height of the

U-brackets using a laser level.

2Making Back Wall Notches (if necessary)

Measure the height of the shelf on the back wall and

subtract the specified ground clearance at that location

from this dimension.

Shorten the mitered pre-cut U-bracket to the correct

size. Place the U-bracket with the miter end up,

making sure that it is flush with the top of the shelf.

Adjust the remaining piece of the long U-bracket to the

height of the system, and then attach the U-bracket,

setting it perpendicular to the wall.

Transfer the notch dimension with the addition of

0.20" clearance to the partition panel, and then use a

circular saw to make the notch.

Adjust the short miter U-bracket, and then attach it to

the shelf.

Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series

Bradley • AD3-LOFT_Install Rev. B 12/10/2021

Place the partition panel into the notched brackets.

Level and use jacks to support the panel and to hold the

panel in place.

Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation

12/10/2021 Bradley • AD3-LOFT_Install Rev. B

3Installing Middle and End Panels

Place a small bead of silicone on both sides of the

U-bracket side walls towards the front of the bracket.

This will help reduce noise when complete.

Support the panel at both the front and back using

scissor jacks. Use a standard level to verify the panel

is level.

The corner pilaster is assembled up to a width of

400 mm to the end panel.

If gluing the feet to the ﬂoor, use the black plastic disk

that is included in the pre-pack.

Insert the stainless steel feet into the assembled

plastic bushing in the bottom of the pilasters. Verify

the loose escutcheon is in place to cover the ﬂange of

the foot.

4Mounting Support Feet

Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series

Bradley • AD3-LOFT_Install Rev. B 12/10/2021

Verify the correct pilasters are selected by matching

the label on the pilasters with what is indicated on the

submittal drawings.

Pay close attention to the latch side versus hinge side,

in addition to the in-swing or out-swing.

5Mounting U-Bracket on Pilaster

Determine the centerline of the pilaster and then draw

a full-length line along the pilaster. There may be a

custom dimension indicated on the sumittal drawing.

Place the U-bracket on the interior pilaster flush with

the bottom, and then mark the drill holes.

Using a 4.2 mm drill bit, drill the holes through the

surface of the first panel only, and then attach the

U-bracket using 5.5 mm x 25 mm pan head screws.

Make sure the lower hole catches part of the interior

aluminum frame at the bottom edge of the pilaster.

Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation

12/10/2021 Bradley • AD3-LOFT_Install Rev. B

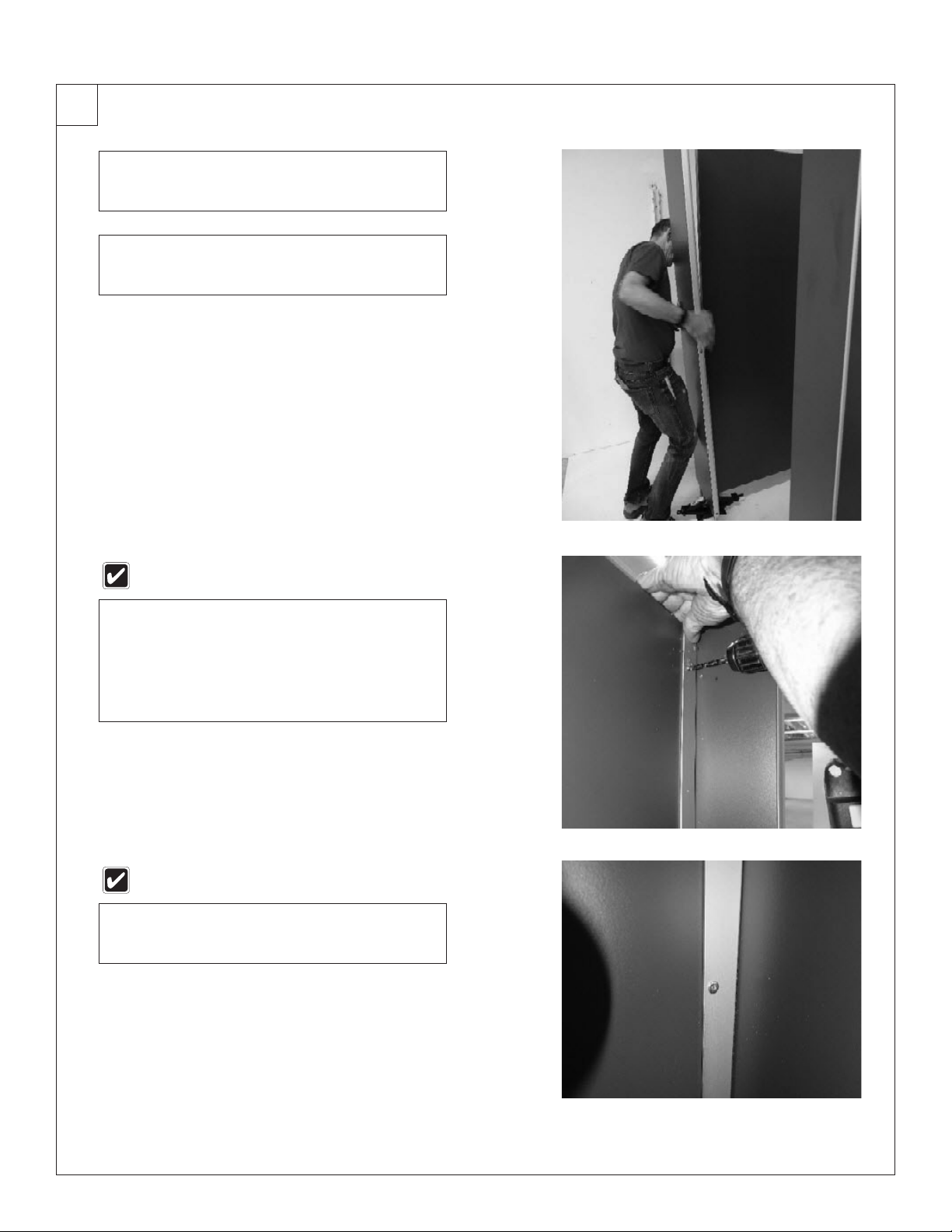

6Mounting Pilaster to Partition Panel

Place a small bead of silicone on the inside walls of

the U-bracket.

Place the interior pilaster onto the partition panel and

use a jack to line up the bottom edges.

Drill pilot holes through the U-bracket and into the first

wall of the panel using a 5 mm drill bit.

Be sure to mark the pilot hole locations 100 mm from

the top, 100 mm from the bottom, and then center the

third hole in the middle of the bracket.

Drill closer to the edge of the bracket to make sure the

drill bit catches the panel.

Secure the middle pilaster to the partition panel using

three aluminum 4.8 mm x 16 mm rivets at the top,

middle, and bottom locations.

Use a standard level to verify the pilasters and panels

are level and ﬂush.

Use a standard level to verify the pilasters and panels

are level and ﬂush.

Installation Euro Style Restroom Partitions, Phenolic LT — LOFT Series

Bradley • AD3-LOFT_Install Rev. B 12/10/2021

7Inserting Interior Pilaster

Place a small bead of silicone on the inside walls of

the U-bracket, and then set the end pilaster into the

bracket.

Use a jack to support the end pilaster. Verify the lower

edge of the end pilaster is flush with the U-bracket.

Euro Style Restroom Partitions, Phenolic LT — LOFT Series Installation

12/10/2021 Bradley • AD3-LOFT_Install Rev. B

8Attaching Doors

Place the aluminum channel with the four small

screws to the top of the door with the pin on the hinge

side.

Line up the top barrel hinges on the door with the

bottom barrel hinges installed on the pilasters, and

then hang the door in place.

Remove the rubber O-ring from the plastic cam at the

base of the pilaster (O-ring was used to secure cam

during shipping), and then place the plastic cam in the

correct position for desired "at rest" position.

Line up the four screws in the aluminum channel with

the slots in the corresponding pilaster. With the screws

aligned on the upper channel, simultaneously place

the door on the bottom pin with the plastic cam.

180° Barrel Hinge Type

110° Integral Hinge Type

The door hinges are pre-installed on the doors and

pilasters.

Doors are available with two types of hinges: 180° barrel hinge or 110° integral hinge.

Follow the instructions for the type of hinge installed on your doors.

Table of contents

Other Bradley Bathroom Fixture manuals

Bradley

Bradley Express SS Series User manual

Bradley

Bradley S19-310FW User manual

Bradley

Bradley LUCENT Series User manual

Bradley

Bradley S19-280D User manual

Bradley

Bradley S19-310SBFW User manual

Bradley

Bradley SXWS9557FM User manual

Bradley

Bradley Express SS Series User manual

Bradley

Bradley Vernatherm S59-4004 User manual

Bradley

Bradley Express SS Series User manual

Bradley

Bradley S19-130BF User manual

Bradley

Bradley OmniDeck 3000 Series User manual

Bradley

Bradley SXWS9148 User manual

Bradley

Bradley Terreon Deep Bowl TDB3100 Series User manual

Bradley

Bradley Terrazzo WF2613 User manual

Bradley

Bradley S19-310SS User manual

Bradley

Bradley Halo S19314EW User manual

Bradley

Bradley S19-120HFP User manual

Bradley

Bradley 400 Series User manual

Bradley

Bradley 400 Series User manual

Bradley

Bradley S19-270HD User manual

Bradley

Bradley HSR20 User manual

Bradley

Bradley Verge LVA Series User manual

Bradley

Bradley S19-310 User manual

Bradley

Bradley Express SS-3N/IR/STD User manual

Popular Bathroom Fixture manuals by other brands

DURAVIT

DURAVIT C.1 C15240 0090 Instructions for mounting and use

Heatstore

Heatstore HSTRL500WTN Installation and operating instructions

Sunshower

Sunshower PURE SOLO manual

Delabie

Delabie Delabie Sporting 714700 manual

Kohler

Kohler K-13056 Homeowner's guide

ESS

ESS Container TCL-11 installation manual

Mustee

Mustee 22C installation instructions

VITRA

VITRA V-Flow manual

baliv

baliv DUK-80.30 T manual

Malmet

Malmet B105BT Operation, maintenance and installation manual

bathstore

bathstore Transition H1690MM Installation, Care & Adjustment Instructions

BELLOSTA

BELLOSTA Edward 0800/M Installation instruction

baliv

baliv DU-5160 manual

Franke

Franke PRTR0006 Installation and operating instructions

Gessi

Gessi RILIEVO 59011 manual

noken

noken VITAE 100188525-N299998810 manual

Allen + Roth

Allen + Roth 1142VA-30-201 manual

Britex

Britex HBDA installation guide
