Bradley Express SS Series User manual

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817

bradleycorp.com

Installation

215-1575 Rev. J; ECN 17-08-026

Page 1 of 15 5/15/2018

SS-3N/ndt/STD

SS-3N/ndt/WH

Express®Lavatory System SS-Series

Table of Contents

Pre-Installation Information .................2

Components.............................3

Supplies Required ........................4

Dimensions............................... 4–5

Rough-Ins ...................................6

Installation ...........................7–11

Solenoid Valve Troubleshooting .............12

Navigator®Mixing Valve Troubleshooting ......13

Stop Valve Troubleshooting ................14

Cleaning and Maintenance for Terreon®. . . . . . .14

Soap Dispenser Maintenance ..............15

Express Lavatory Systems are ADA and TAS compliant

U.S. Pat. Nos. 5,611,093, D447,224

Other Patents Pending

SS-3N/ndt/STD/LSD-3

SS-3N/ndt/WH/LSD-3

DISCONTINUED

SS-3N/ndt/STD, SS-3N/ndt/WH Installation

25/15/2018 Bradley • 215-1575 Rev. J; ECN 17-08-026

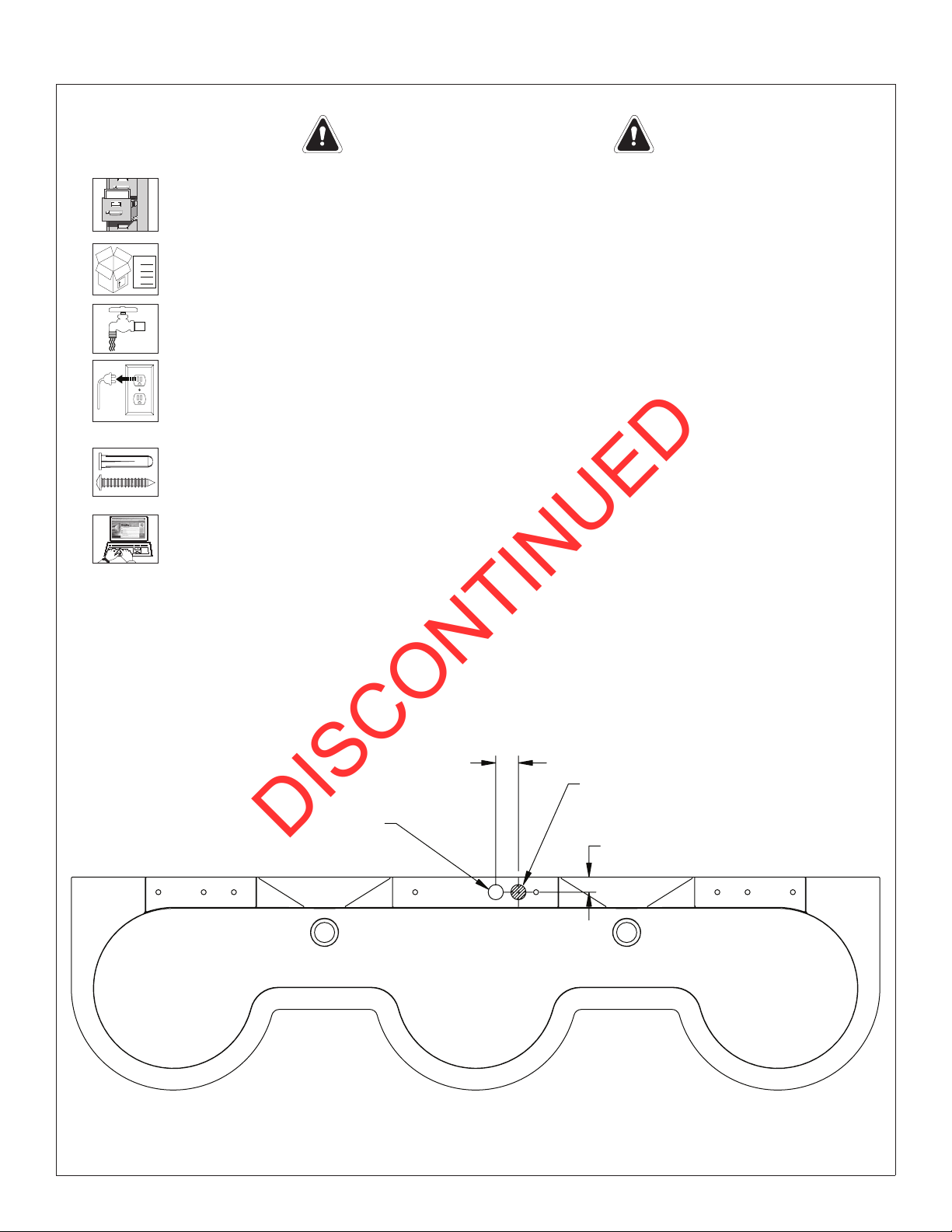

IMPORTANT!

Read this entire installation manual to ensure proper installation. When ﬁnished with the

installation, ﬁle this manual with the owner or maintenance department. Compliance and

conformity to local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding

any packaging material. If any parts are missing, do not begin installation until you obtain the

missing parts.

Make sure that all water supply lines have been ﬂushed and then completely turned off

before beginning installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to

installation. Electrical power MUST remain off until unit and optional water heater have

been plumbed. After installation is complete, turn on the water supply ﬁrst, then turn on the

electrical power.

Hardware supplied by installer must be appropriate for wall construction. Wall anchors must

have a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or

juvenile height based on conﬁguration and required rim height. Overtightening fasteners can

damage the Terreon®material. Use caution when tightening bowl and sprayhead fasteners.

Product warranties may be found in the “Products” section on our Web site at www.

bradleycorp.com.

Installation

THIS

SIDE

Packing List

•

Special Note for Sprayhead/Bowl retroﬁt

to retroﬁt new SS-3N sprayhead onto existing SS-3 bowl

1½" (38mm)

Drill hole Ø 1" (25mm)

to 1½" (38mm).

Existing Hole

2¼" (57mm)

DISCONTINUED

Installation SS-3N/ndt/STD, SS-3N/ndt/WH

Bradley • 215-1575 Rev. J; ECN 17-08-026 5/15/2018 3

#8-32 SCREW

(160-319)

STRAINER

(P16-075)

DRAIN PLUG

(P16-072)

1/8" RUBBER WASHER

(125-001DP)

WASTE SHOE

(111-062)

P-TRAP (POLYPROPYLENE)

(269-1697)

OPTIONAL P-TRAP

(CHROME-PLATED BRASS)

(S29-094)

DRAIN ASSEMBLY

WASTE TEE

(111-063)

Components

1/4"-20 x 1/2"

PAN HEAD

SCREW (qty. 4)

(160-389)

1/4"-20

WASHER

(qty. 4)

(142-002DB)

BOWL MOUNTING

HARDWARE

WASHER

142-002BJ

LOCKWASHER

142-002BK

NUT, 5/16-18

161-036

BOLT 5/16-18

160-371

SCREW 10-24

160-386

MAIN FRAME

(S17-323)

SCUFF BASE

(17-324)

(USED WITH STANDARD

HEIGHT FRAME ONLY)

SCUFF PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(4) PLACES

SCUFF BASE PANEL

(185-033) - GRAY

(185-033A) - PUTTY

(185-033B) - COAL

PEDESTAL PANEL

(186-1454) - GRAY

(186-1454A) - PUTTY

(186-1454B) - COAL

PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(8) PLACESS

SPRAYHEAD COVER ndite

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

SPRAYHEAD BODY

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

BOWL

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

DISCONTINUED

SS-3N/ndt/STD, SS-3N/ndt/WH Installation

45/15/2018 Bradley • 215-1575 Rev. J; ECN 17-08-026

Supplies Required:

• (10) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)

• STD. HEIGHT ONLY: (2) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• ½" nominal copper tubing for hot and cold supplies and 1½" NPT drain piping

Dimensions - Front and Top Views

SOAP

SOAP SOAP

SOAP

Top View

80" (2032mm)

Front View

Standard Frame

Front View

Wall-Hung Frame

85⁄8" (219mm)

30" (762mm)

8" (203mm)

51¼" (1302mm)

58" (1473mm)

64" (1626mm)

68¼" (1734mm)

8" (203mm)

68¼" (1734mm)

58" (1473mm)

64" (1626mm)

8" (203mm) Radius 10" (254mm) Radius

30" (762mm)

DISCONTINUED

Installation SS-3N/ndt/STD, SS-3N/ndt/WH

Bradley • 215-1575 Rev. J; ECN 17-08-026 5/15/2018 5

Dimensions - Side Views

TAS

Wall Hung Mounted

at Standard Height

Standard

Height

Wall Hung Mounted

at Juvenile Height

Ages: 6 through 12

Wall Hung Mounted

at TAS Height

Grades: 6

through

8 or 9

Wall Hung Mounted

at TAS Height

Grades: Pre-K

through 5 or 6

211⁄8" (537mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

13¼"

(311mm)

11½"

(292mm)

Scuff Base on

Standard Height Only

3" (76mm)

85⁄8"

(219mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

13¼"

(311mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

36½"

(927mm)

32"

(813mm)

28"

(711mm)

11¼"

(286mm)

35½"

(902mm)

31"

(787mm)

27"

(686mm)

10¼"

(260mm)

34½"

(876mm) 30"

(762mm)

26"

(660mm)

9¼"

(235mm)

DISCONTINUED

SS-3N/ndt/STD, SS-3N/ndt/WH Installation

65/15/2018 Bradley • 215-1575 Rev. J; ECN 17-08-026

1Rough-Ins

CODE DESCRIPTION QTY.

A³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 6

C³⁄₈" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2

D1 ½" nominal copper tubing for Hot Supply, stub-out 2" from wall 1

D2 ½" nominal copper tubing for Cold or Tempered Supply, stub-out 2" from wall 1

E 1½" NPT Drain, stub-out 2" from wall 2

On the bowl back, measure the distance between the ¾" bowl mounting holes. Divide this measurement

in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two

³⁄₈" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by installer) at locations marked.

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES

A–E, H, C and W FIXTURE STYLE

34" None Standard Height

34" None Wall-Hung

32" Subtract 2" TAS, Grades 6 through 8 or 9

31" Subtract 3" Juvenile Height

30" Subtract 4" TAS, Pre-K through Grades 5 or 6

MOUNTING FOR STANDARD AND WALL HUNG HEIGHTS ARE SHOWN

D1 D2 E

RIM HEIGHT

SEE CHART

24-3/8"

(619mm)

(203mm)

2-3/4"

70mm)

(102mm)

24-3/8"

(619mm)

32"

(813mm)

28-3/4"

(720mm)

15"

(381mm)

5-5/8"

(143mm)

34"

(864mm)

3-1/2" (89mm)

FLOOR

38-1/2" (978mm)

REF. DIM.

38-1/2" (978mm)

REF. DIM.

24"

(610mm)

DISCONTINUED

Installation SS-3N/ndt/STD, SS-3N/ndt/WH

Bradley • 215-1575 Rev. J; ECN 17-08-026 5/15/2018 7

3Install Bowl The sprayhead body has slotted holes for adjusting

the fit-up with the bowl and wall.

For clarity, the scuff base frame and drain are not

shown. Turn the tailpiece down to its proper position

before installing the bowl.

Secure the bowl to the

wall anchors with ³⁄₈"

bolts and 1" min. O.D.

washers, two places.

Do not overtighten.

Attach the bowl to the frame with

¼"-20 x ½" pan-head screws and

washers. Do not tighten.

Tighten the pan-head screws

Do not overtighten.

SCUFF PANEL

STANDARD HEIGHT

FRAME ONLY

SCUFF BASE FRAME

STANDARD HEIGHT

FRAME ONLY

2Mount Frame to Wall

Anchoring the frame to a wall that is not

flat may cause the frame to bend, making

it difficult to reinstall the access panels. If

necessary, use shims to compensate for

wall distortion.

Once you have positioned the frame such that it is

level and flat against the wall or shimmed, mount

the frame to the wall at six places using ³⁄₈" bolts

and 1" min. O.D. washers.

NOTE: When mounting the standard height frame,

mount the scuff base to the wall at the same time

using two additional ³⁄₈" bolts and washers.

AUsing a T20 torx key, remove

the fasteners securing the

access panel to the main

frame, and remove the panel.

DISCONTINUED

SS-3N/ndt/STD, SS-3N/ndt/WH Installation

85/15/2018 Bradley • 215-1575 Rev. J; ECN 17-08-026

4a Connect the Supply — Hot and Cold Supply

4b Connect the Supply — Single Tempered Supply

The letter “H” on the Navigator Mixing

Valve indicates hot water supply inlet.

Loosen but do not remove

the two mounting screws

holding the valve bracket

to the frame.

Slide the valve bracket up

and lift it from the frame.

Connect one end of each hose to the

Navigator valve (one on the hot side, one on

the cold side).

Connect the other swivel end to the stop

valves.

Attach the stops to the hot

and cold water wall stub-outs.

Loosen but do not remove the two

mounting screws holding the valve

bracket to the frame.

Slide the valve bracket up and lift

it from the frame.

Connect one end of flexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop valve.

Attach the stop to the

tempered wall stub-out.

DISCONTINUED

Installation SS-3N/ndt/STD, SS-3N/ndt/WH

Bradley • 215-1575 Rev. J; ECN 17-08-026 5/15/2018 9

5Install the Drains

To Drain

Stub-Out

Snap the sensor

cable plugs from

the sprayhead

into the proper

valve’s circuit

board.

Loosen the compression nuts.

Push the sprayhead supply tubes firmly into

the tube connectors until they are fully seated.

Tighten the compression nuts by hand.

6Connect Electrical and Sprayhead Supplies

Connect the solar

cell plug from the

solar cover to the

power-in cable on the

power management

module.

WARNING: The SS-3N/NDT Express®must be connected to the NDITE®power management module.

Connection to 110 VAC can cause personal injury and will result in damage to the electronics.

Reinstall the valve bracket.

Connect the power supply cables

from the power management

module into the gang valve circuit

board plugs (any connection

order will work properly).

Red Supply Tubing

Green Supply Tubing

Black Supply Tubing

DISCONTINUED

SS-3N/ndt/STD, SS-3N/ndt/WH Installation

10 5/15/2018 Bradley • 215-1575 Rev. J; ECN 17-08-026

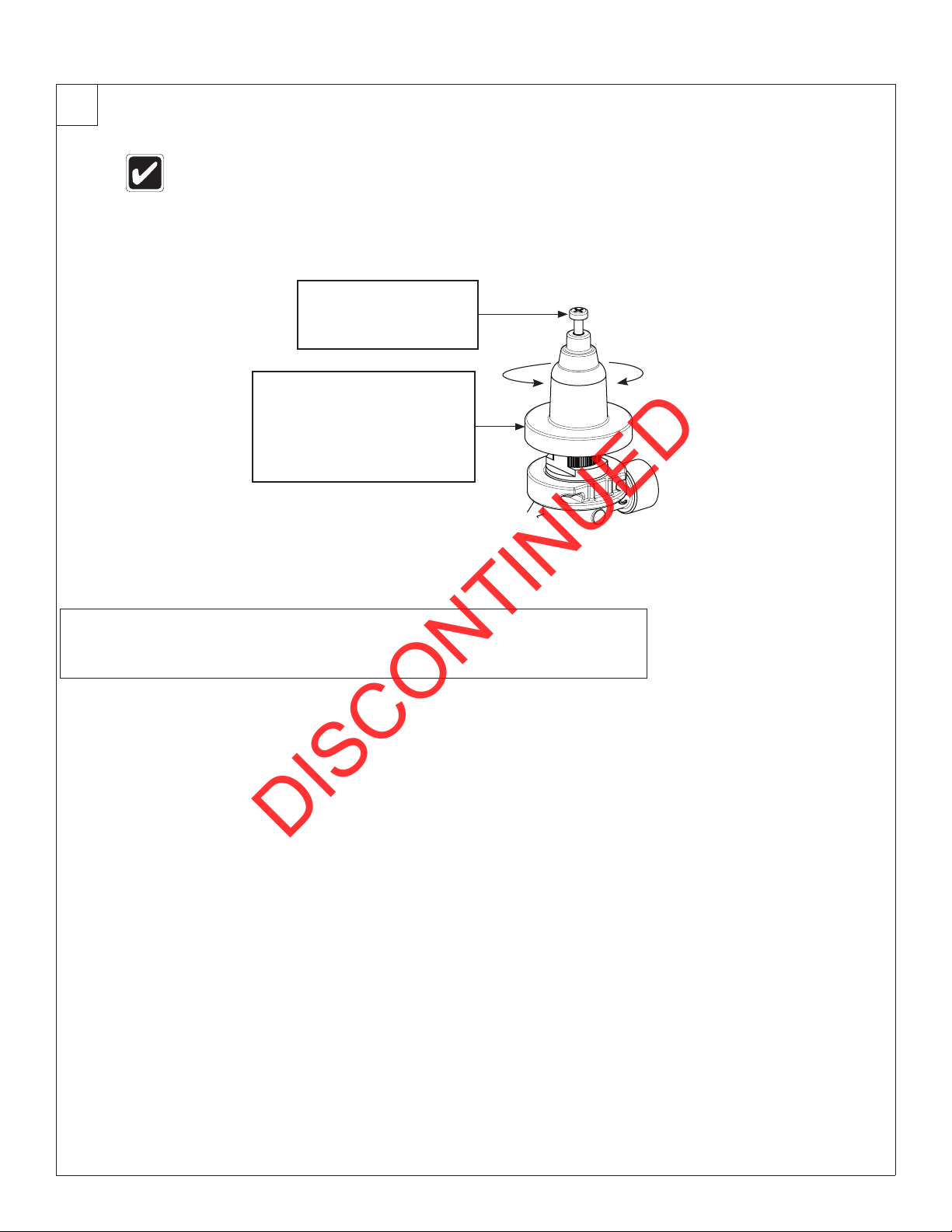

ALoosen the cap screw

about ¼" (4–6 turns)

and lift up the cover

(do not remove).

Using the cover, turn the

cartridge gently until

desired water temperature

is reached. Do not turn past

stops as this may damage

the unit. Push the cover

down and tighten the screw.

This valve is NOT factory preset. Upon installation, the temperature of this

valve must be checked and adjusted to ensure delivery of a safe water

temperature. Water in excess of 110°F (43°C) may cause scalding.

Turn on the water supply and check for leaks. After 60 minutes at 700 LUX, the system

should be ready to operate. Pass your hand in front of each station’s sensor until all the

air is purged from the lines and water is flowing smoothly. Reinstall the access panel.

7Adjust the Temperature

DISCONTINUED

Other manuals for Express SS Series

This manual suits for next models

Table of contents

Other Bradley Bathroom Fixture manuals

Bradley

Bradley HN300 User manual

Bradley

Bradley SN2005/TT User manual

Bradley

Bradley SXWS9557FM User manual

Bradley

Bradley WF2705 User manual

Bradley

Bradley Express EXD Series User manual

Bradley

Bradley WF2608 User manual

Bradley

Bradley OmniDeck 4000 Series User manual

Bradley

Bradley Terreon Deep Bowl TDB3100 Series User manual

Bradley

Bradley 400 Series User manual

Bradley

Bradley Verge LVA Series User manual

Bradley

Bradley Verge LVSD2 User manual

Bradley

Bradley S19-310AC User manual

Bradley

Bradley S19-120 User manual

Bradley

Bradley LVA Series User manual

Bradley

Bradley Terreon Classic WF2500 Series User manual

Bradley

Bradley Bradmar 400 Series User manual

Bradley

Bradley HSR20 User manual

Bradley

Bradley SA70 Series User manual

Bradley

Bradley S19-310UU User manual

Bradley

Bradley S19-110BF User manual

Bradley

Bradley S19-120HFP User manual

Bradley

Bradley WS-1X-HN User manual

Bradley

Bradley TDB3105 User manual

Bradley

Bradley S19-310SBFW User manual

Popular Bathroom Fixture manuals by other brands

DURAVIT

DURAVIT C.1 C15240 0090 Instructions for mounting and use

Heatstore

Heatstore HSTRL500WTN Installation and operating instructions

Sunshower

Sunshower PURE SOLO manual

Delabie

Delabie Delabie Sporting 714700 manual

Kohler

Kohler K-13056 Homeowner's guide

ESS

ESS Container TCL-11 installation manual

Mustee

Mustee 22C installation instructions

VITRA

VITRA V-Flow manual

baliv

baliv DUK-80.30 T manual

Malmet

Malmet B105BT Operation, maintenance and installation manual

bathstore

bathstore Transition H1690MM Installation, Care & Adjustment Instructions

BELLOSTA

BELLOSTA Edward 0800/M Installation instruction

baliv

baliv DU-5160 manual

Franke

Franke PRTR0006 Installation and operating instructions

Gessi

Gessi RILIEVO 59011 manual

noken

noken VITAE 100188525-N299998810 manual

Allen + Roth

Allen + Roth 1142VA-30-201 manual

Britex

Britex HBDA installation guide
