Bosch LC1 User manual

LC1 Modular Ceiling Loudspeaker Range

LC1

en Product Information & Installation Manual

LC1 Modular Ceiling Loudspeaker Range Table of Contents | en 3

Bosch Security Systems B.V. Product Information & Installation Manual F.01U.076.021 | V1.0 | 2012.04

Table of Contents

1SystemOverview 4

1.1 Housings 4

1.2 Loudspeakers 4

1.3 Accessories 5

2 Installation 6

2.1 LC1-MMSB 6

2.2 LC1-CMR/LC1-CBB 9

2.3 LC1-MFD 12

2.4 LC1-CSMB 15

3 Technical Data 18

3.1 Electrical 18

3.2 Mechanical 19

3.3 Environmental conditions 20

3.4 Standards 21

3.5 Additional technical data 22

3.5.1 LC1-WC06E8 22

3.5.2 LC1-WM06E8 24

3.5.3 LC1-UM06E8 26

3.5.4 LC1-UM12E8 28

3.5.5 LC1-UM24E8 30

3.6 EC declaration of conformity 32

4en | System Overview LC1 Modular Ceiling Loudspeaker Range

F.01U.076.021 | V1.0 | 2012.04 Product Information & Installation Manual Bosch Security Systems B.V.

1 System Overview

1.1 Housings

1.2 Loudspeakers

LC1-MFDLC1-CMR / LC1-CBB

LC1-MMSB LC1-CSMB

NOTICE!

To be compliant with UL-1480 the loudspeaker must be installed with the LC1-CMR including

LC1-CBB or LC1-MFD or LC1-CSMB.

LC1-MFD

LC1-CMR / LC1-CBB

LC1-MMSB

LC1-CSMB

Pilot tone

indication board:

LC1-PIB

Line/loudspeaker

Supervision Boards:

LBB 4441/00

LBB 4442/00

LBB 4443/00

LC1-WC06E8

LC1-UM12E8

LC1-UM24E8

LC1-UM06E8

LC1-WM06E8

LC1 Modular Ceiling Loudspeaker Range System Overview | en 5

Bosch Security Systems B.V. Product Information & Installation Manual F.01U.076.021 | V1.0 | 2012.04

1.3 Accessories

LC1-MFD

LC1-CMR / LC1-CBB

LC1-MMSB

LM1-TB

6en | Installation LC1 Modular Ceiling Loudspeaker Range

F.01U.076.021 | V1.0 | 2012.04 Product Information & Installation Manual Bosch Security Systems B.V.

2 Installation

2.1 LC1-MMSB

Fig. 1 Fig. 2

Fig. 3 Fig. 4

Fig. 5 Fig. 6

Optional

190 mm190 mm

(7.48 in)(7.48 in)

LC1 Modular Ceiling Loudspeaker Range Installation | en 7

Bosch Security Systems B.V. Product Information & Installation Manual F.01U.076.021 | V1.0 | 2012.04

Fig. 7 Fig. 8

Fig. 9 Fig. 10

Optional

Pilot tone indication board: LC1-PIB

Notice! Push until you hear a click.

Optional

Line/Loudspeaker supervision boards:

LBB 4441/00, LBB 4442/00, LBB 4443/00

Fig. 11 Fig. 12

Max.

50 mm

(1.97 in)

MIN / MAX

0.5 mm² / 3 mm²

AWG 20 / AWG 13

LC1-PIB

8en | Installation LC1 Modular Ceiling Loudspeaker Range

F.01U.076.021 | V1.0 | 2012.04 Product Information & Installation Manual Bosch Security Systems B.V.

Fig. 13

Notice! Standard connected to rated power at 100V

Fig. 14 Fig. 15

24W

100V

70V

24W

12W

24W

12W

4Ω

12W

100V

70V

12W

1.5W

12W

1.5W

4Ω

100V

70V

0.75W

1.5W

0.75W

4Ω

LC1 Modular Ceiling Loudspeaker Range Installation | en 9

Bosch Security Systems B.V. Product Information & Installation Manual F.01U.076.021 | V1.0 | 2012.04

2.2 LC1-CMR/LC1-CBB

Fig. 1 Fig. 2

Fig. 3 Fig. 4

Fig. 5

Optional

Fig. 6

200 mm200 mm

(7.88 in)(7.88 in)

10 en | Installation LC1 Modular Ceiling Loudspeaker Range

F.01U.076.021 | V1.0 | 2012.04 Product Information & Installation Manual Bosch Security Systems B.V.

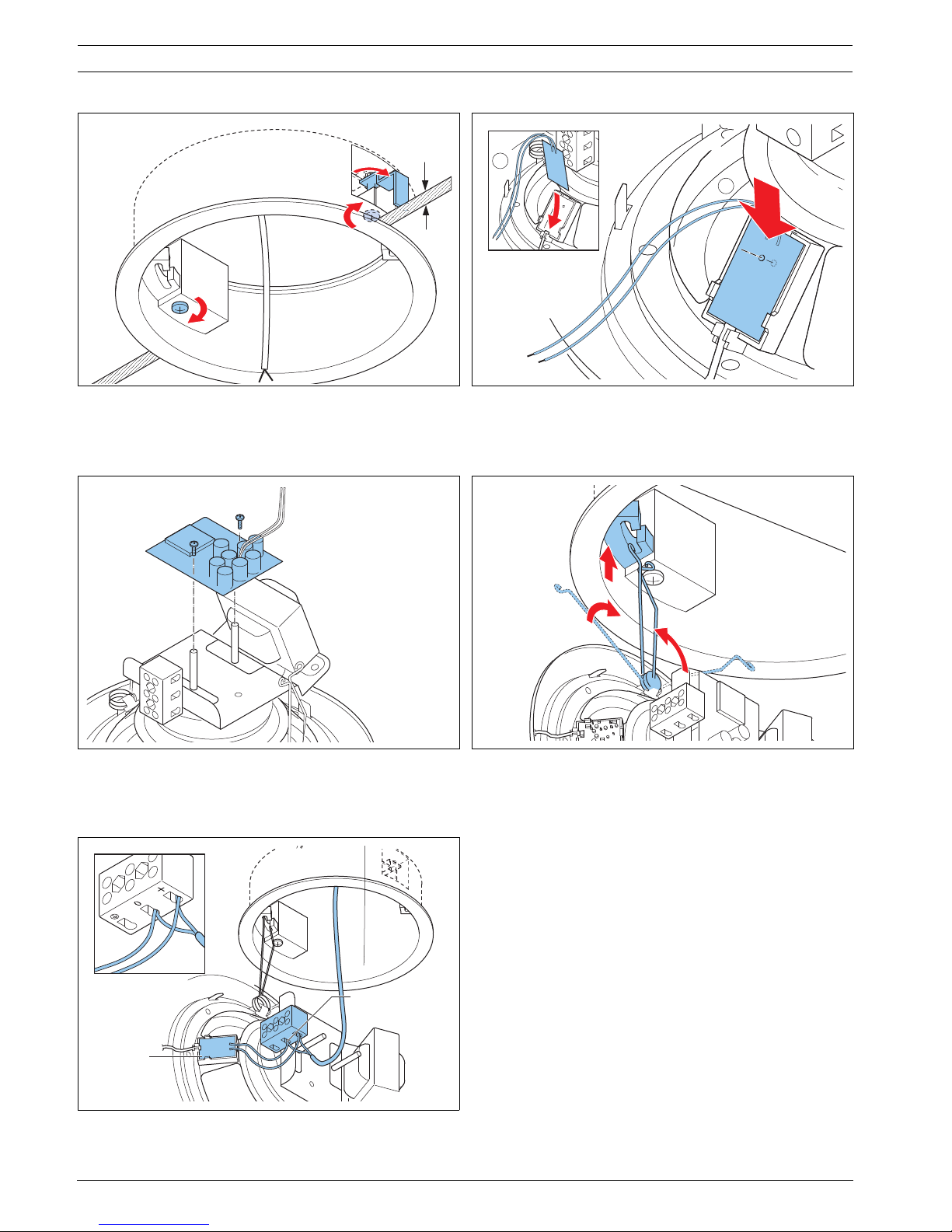

Fig. 7 Fig. 8

Optional

Pilot tone indication board: LC1-PIB

Notice! Push until you hear a click.

Fig. 9 Fig. 10

Optional

Line/Loudspeaker supervision boards:

LBB 4441/00, LBB 4442/00, LBB 4443/00

Fig. 11

Max.

25 mm

(0.98 in)

LC1-PIB

MIN / MAX

0.5 mm² / 3 mm²

AWG 20 / AWG 13
