Bosch LC4-UC06E Installation and operation manual

Ceiling Loudspeakers

LC4-UC06E, LC4-UC12E and LC4-UC24E

en Installation Note

Installation

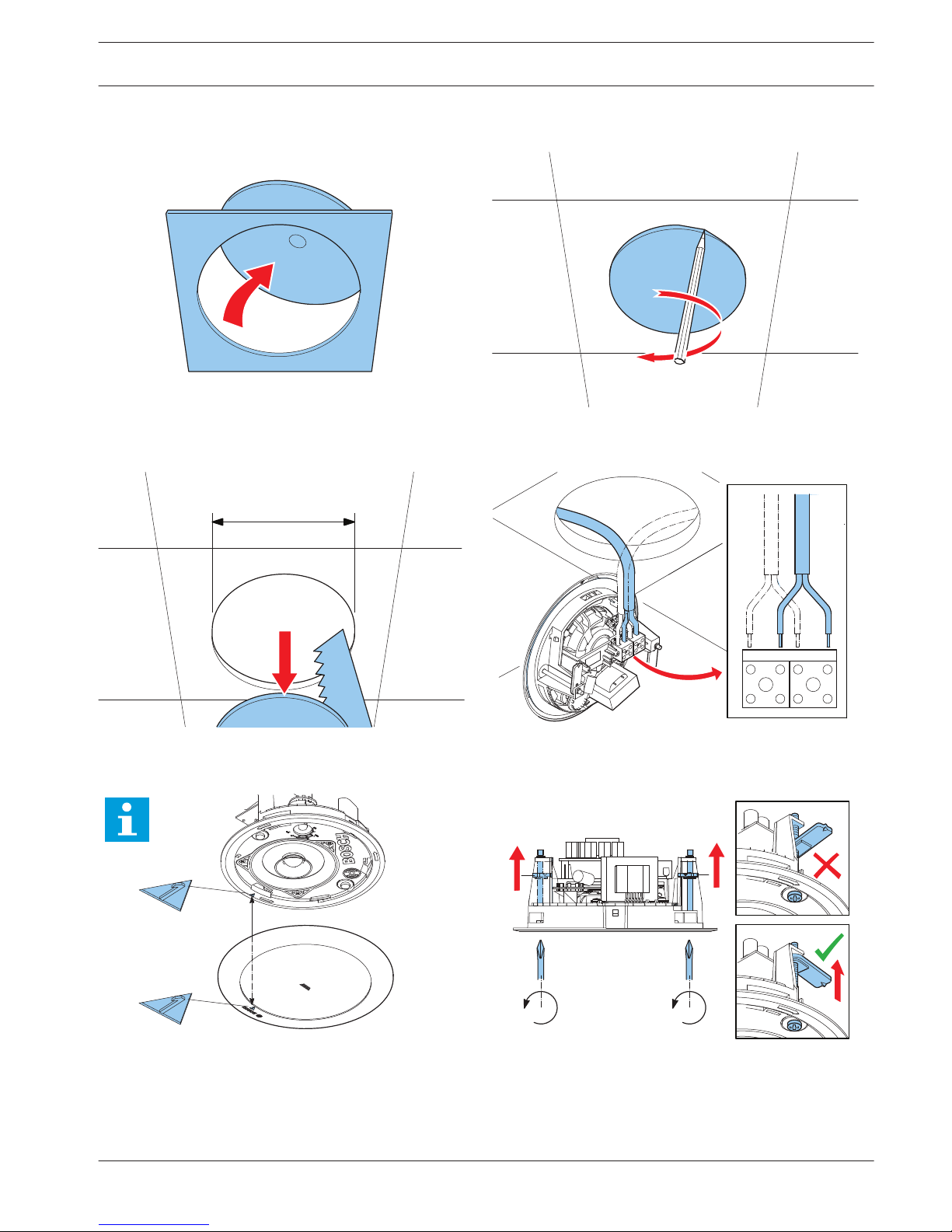

Fig. 1 Fig. 2

162 mm / 6.37"

00++

Fig. 3 Fig. 4

Fig. 5 Fig. 6

Ceiling Loudspeakers Installation | en 3

Bosch Security Systems B.V. Installation Note 2014.01 | V1.31 |

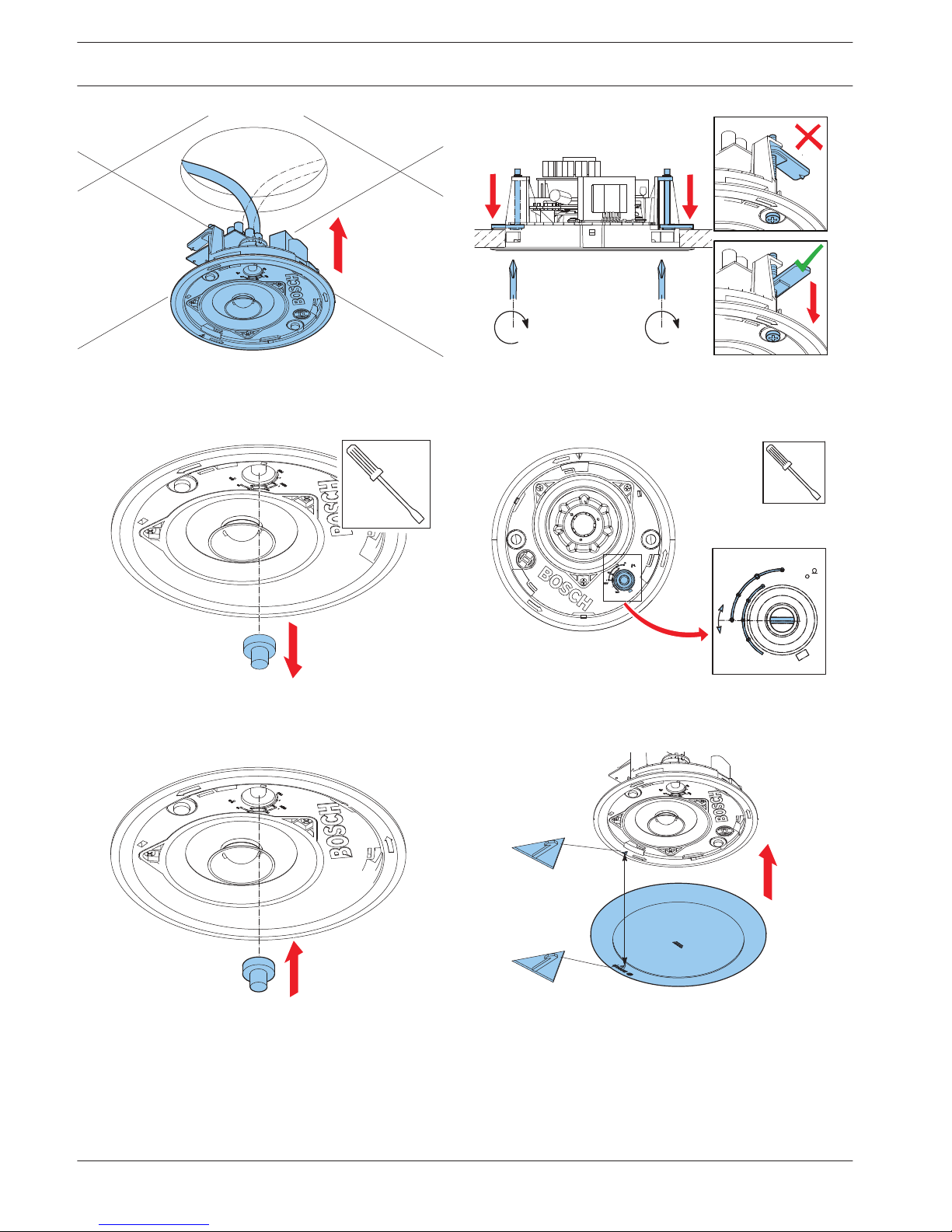

Fig. 7 Fig. 8

1/8

1/4

1/2

1/8

1/4

1/2

70V

100V

Fig. 9 Fig. 10

Fig. 11 Fig. 12

4en | Installation Ceiling Loudspeakers

2014.01 | V1.31 | Installation Note Bosch Security Systems B.V.

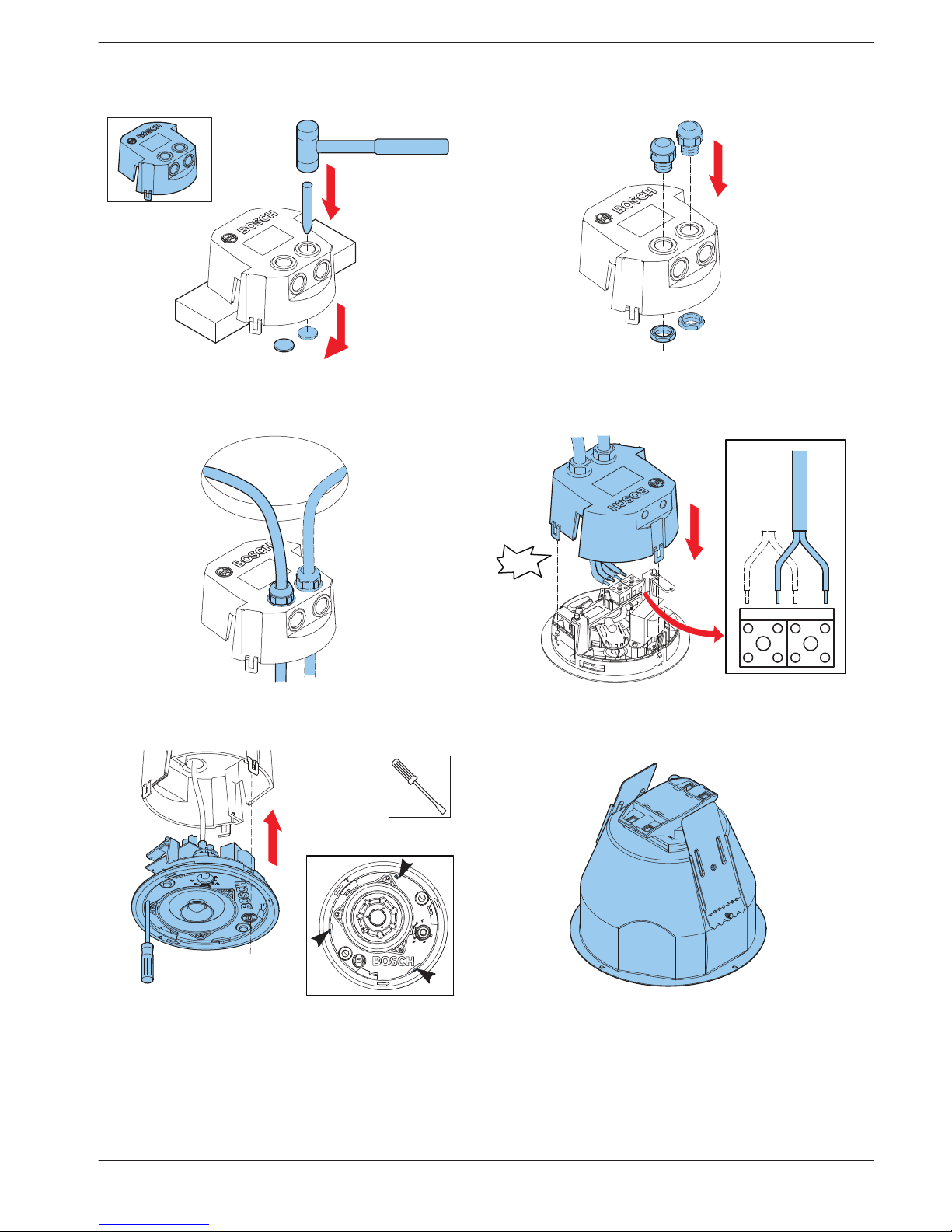

Fig. 13 Fig. 14

LC4‑CBB

click

00++

Fig. 15 Fig. 16

Next steps: fig 5‑12

Fig. 17 Fig. 18

LC4‑MFB

Ceiling Loudspeakers Installation | en 5

Bosch Security Systems B.V. Installation Note 2014.01 | V1.31 |

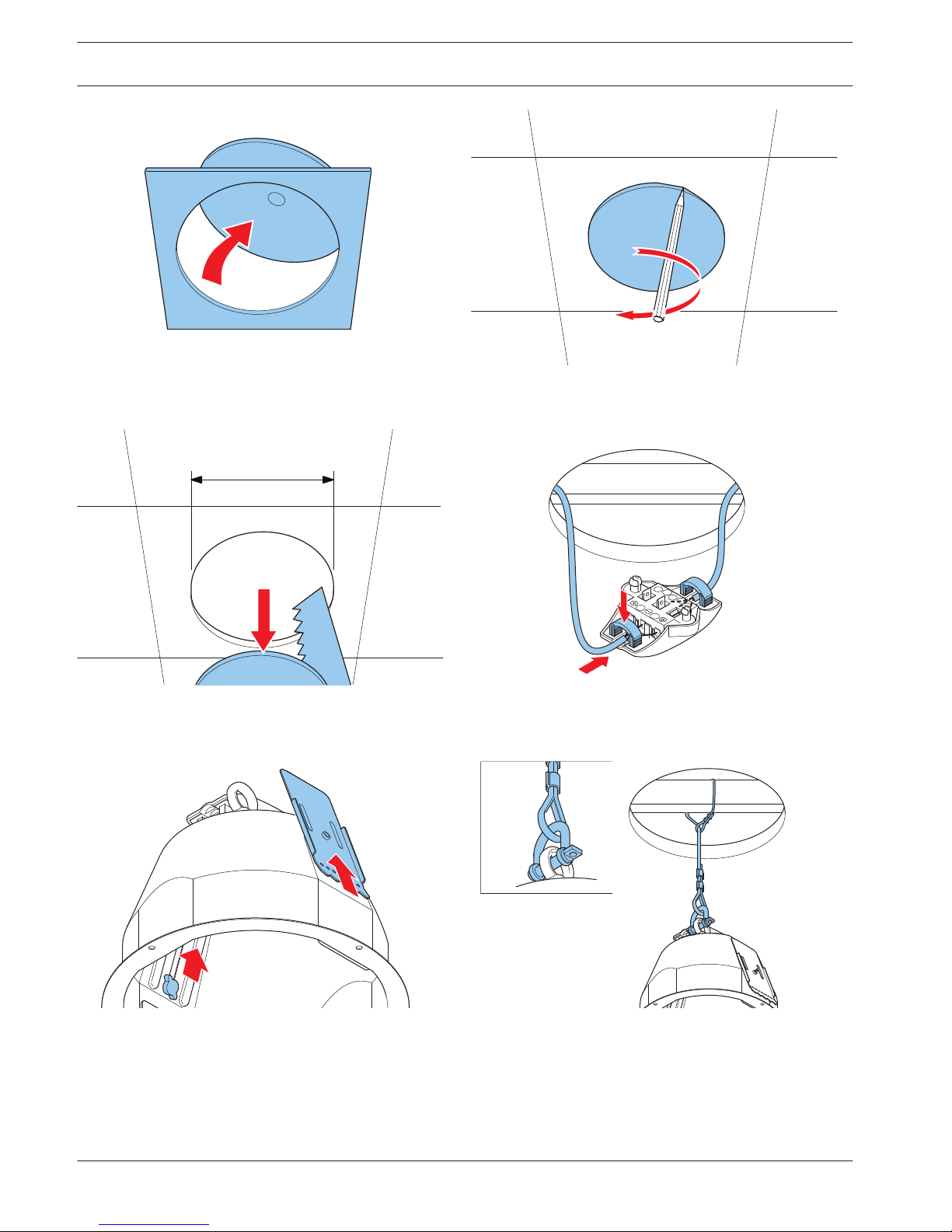

Fig. 19 Fig. 20

178 mm / 7.00"

Fig. 21 Fig. 22

Fig. 23 Fig. 24

Optional

6en | Installation Ceiling Loudspeakers

2014.01 | V1.31 | Installation Note Bosch Security Systems B.V.

CLICK!

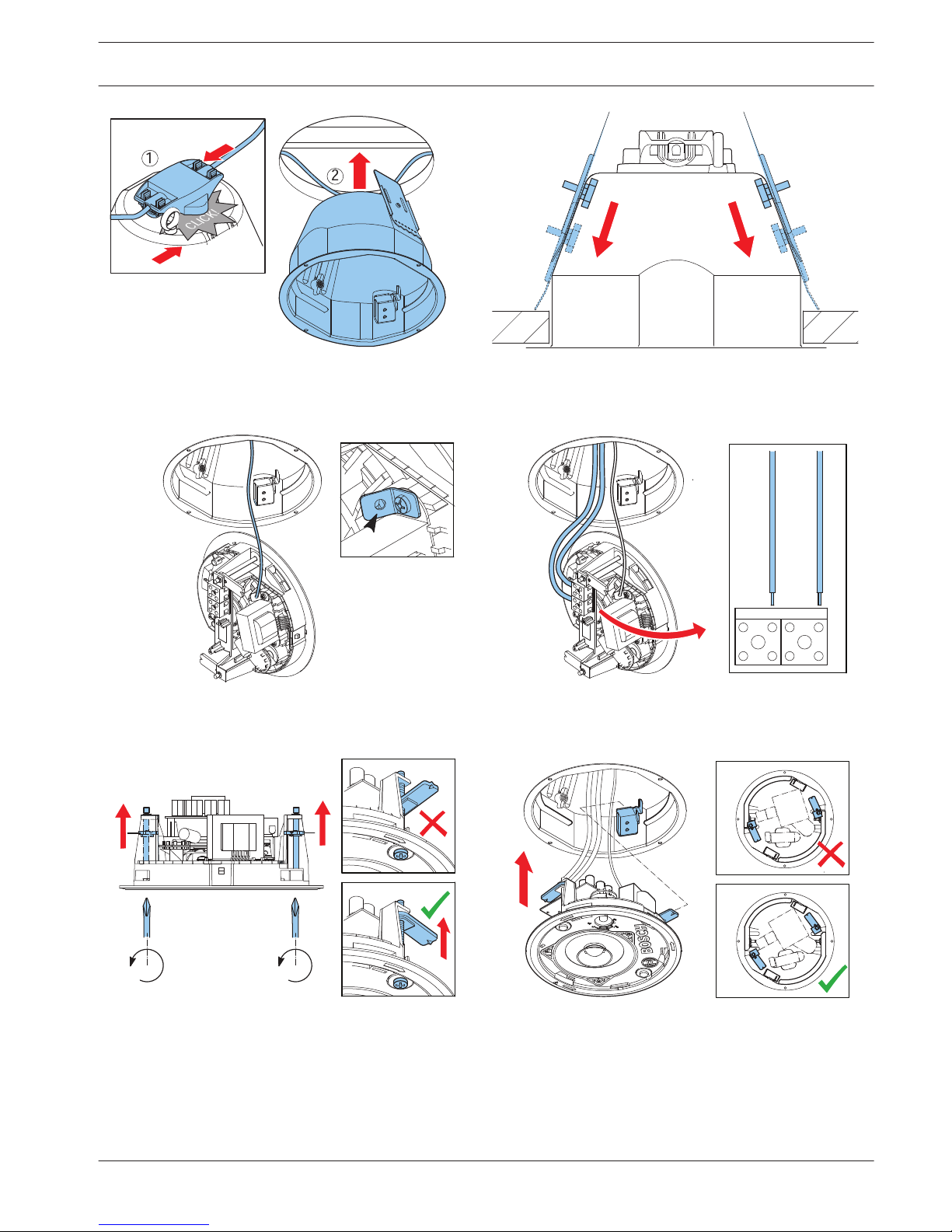

Fig. 25 Fig. 26

00++

Fig. 27 Fig. 28

Fig. 29 Fig. 30

Ceiling Loudspeakers Installation | en 7

Bosch Security Systems B.V. Installation Note 2014.01 | V1.31 |

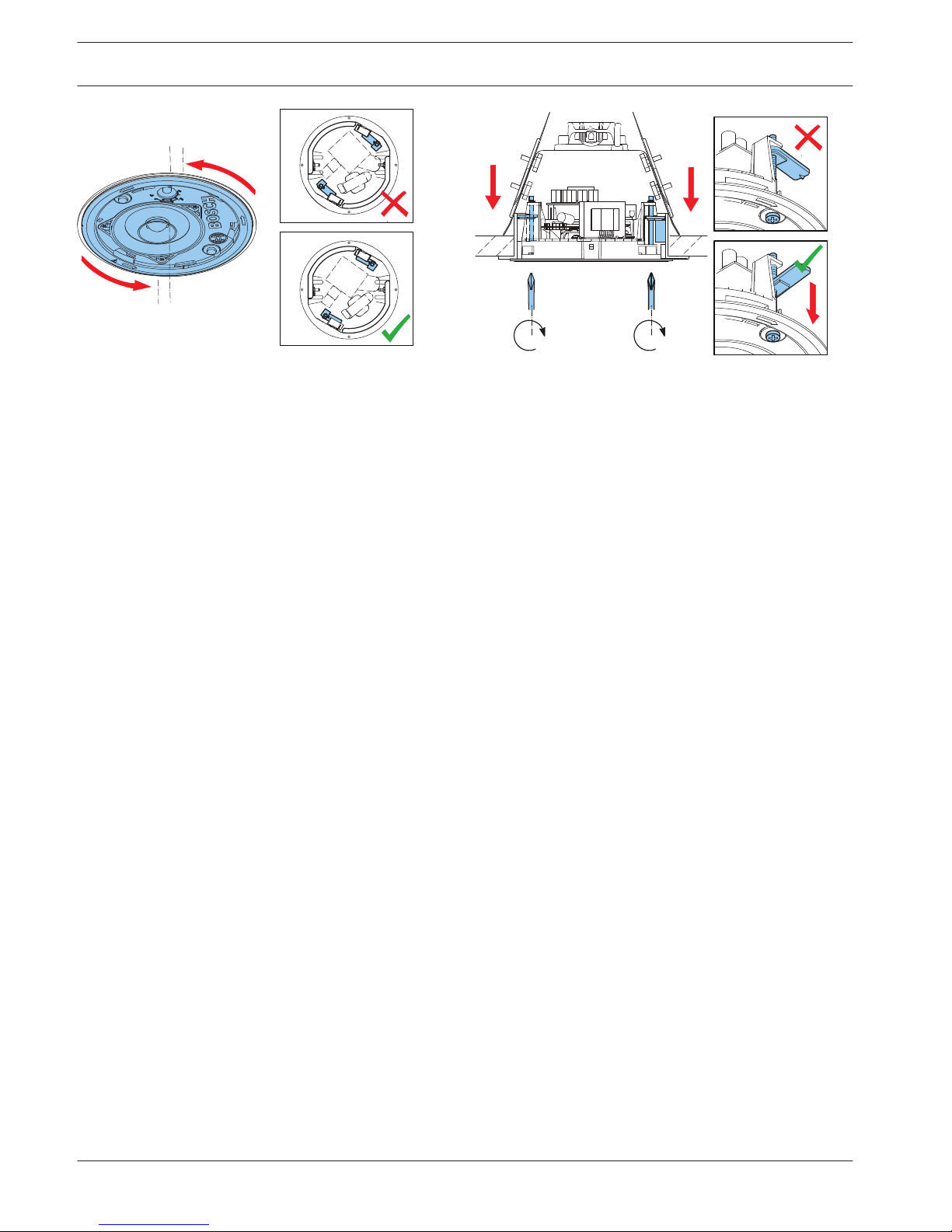

Fig. 31 Fig. 32

Next steps: fig. 9‑12

8en | Installation Ceiling Loudspeakers

2014.01 | V1.31 | Installation Note Bosch Security Systems B.V.

2 x 20.5 mm / 0.80"

95 mm / 3.74"

70 mm / 2.75"

17 mm / 0.66"

162 mm / 6.37"

200 mm / 7.87"

2 x 20.5 mm / 0.80"

2 x 11.5 mm / 0.45"

Dimensions

1/8

1/81/4

11/2

1/41/2

100V 70V

Circuit diagram

6 0

7 0

8 0

9 0

10 0

110

10 10 0 100 0 10 00 0 10 0 00 0

Freque ncy

dB SPL

BOSCH

Frequency response

Ceiling Loudspeakers Installation | en 9

Bosch Security Systems B.V. Installation Note 2014.01 | V1.31 |

Technical specifications

Electrical *

LC4‑UC06E LC4‑UC12E

Description Ceiling loudspeaker

Maximum power 9 W 18 W

Rated power 6 W (6/3/1.5/0.75W) 12 W (12/6/3/1.5W)

Sound pressure level

at 6 W power / 1 W

(1 kHz, 1 m)

95 dB / 87 dB (SPL) 98 dB / 87 dB (SPL)

Opening angle

at 1 kHz / 4kHz (-6 dB)

180° / 180° 180° / 180°

Effective frequency range

(-10 dB)

65 Hz to 20 kHz 65 Hz to 20 kHz

Rated voltage 6.93 / 70 / 100 V 9.8 / 70 / 100 V

Rated impedance 8 / 835 / 1667 Ohm 8 / 418 / 833 Ohm

Electrical connection 4‑way screw terminal block

Acceptable wire gauge 0.5 – 3 mm2

LC4‑UC24E

Description Ceiling loudspeaker

Maximum power 36 W

Rated power 24 W (24/12/6/3 W)

Sound pressure level

at 6 W power / 1 W

(1 kHz, 1 m)

101 dB / 87 dB (SPL)

Opening angle

at 1 kHz / 4kHz (-6 dB)

180° / 180°

Effective frequency range

(-10 dB)

65 Hz to 20 kHz

Rated voltage 13.9 / 70 / 100 V

Rated impedance 8 / 208 / 417 Ohm

Electrical connection 4-way screw terminal block

Acceptable wire gauge 0.5 – 3 mm2

* Technical performance according to IEC 60268‑5

10 en | Technical specifications Ceiling Loudspeakers

2014.01 | V1.31 | Installation Note Bosch Security Systems B.V.
