Bosch OMNEO OM-1 User manual

OMNEO module

OM-1

english

deutsch

русский

english Table of contents 4

deutsch Inhaltsverzeichnis 10

русский Содержание 15

OMNEO module | 3

17-Jun-2015 | 03 | F01U308252

Short information

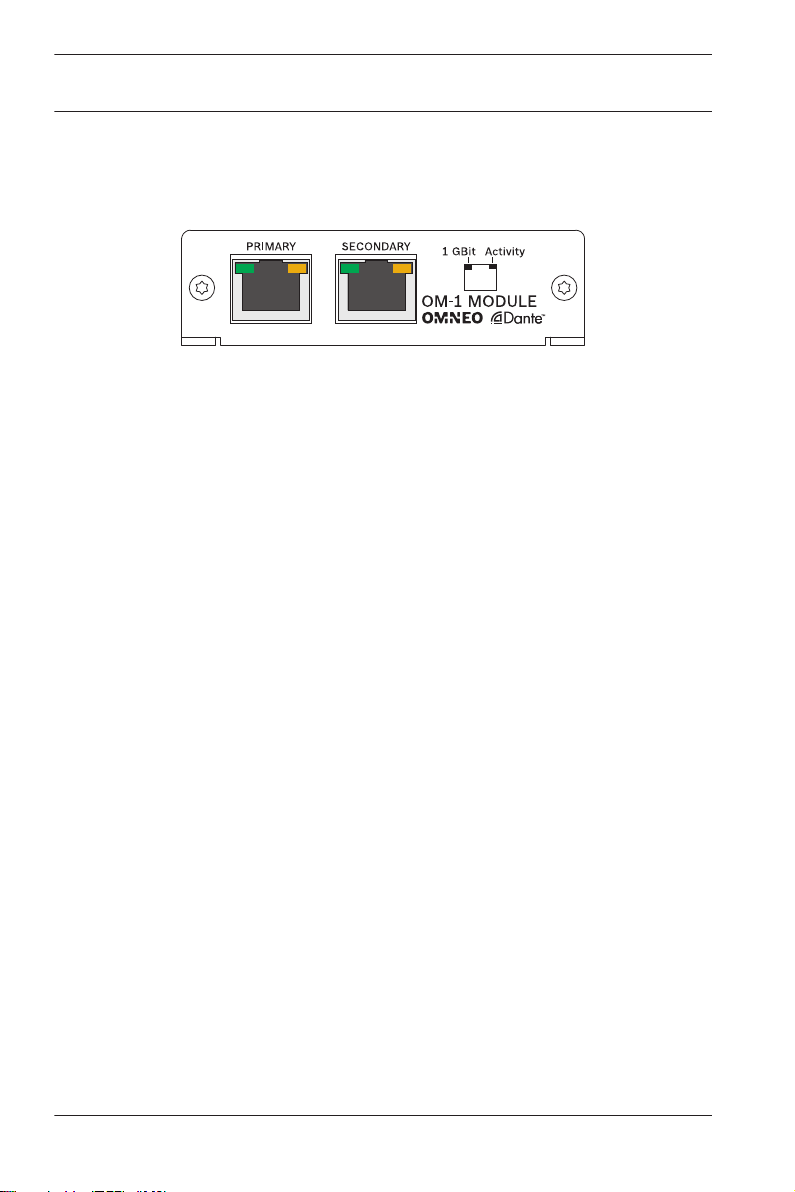

The OM-1 is a compact interface module which enables the

connection of a DYNACORD P 64 or Electro-Voice N8000 to an

OMNEO network. In addition, the OM-1 is able to send and

receive Dante audio to and from other Dante equipment.

OMNEO is a network technology for multi-channel transmission

of digital audio data and control data via Ethernet. The

transmission of up to 32 digital audio input signals and 32

digital audio output signals with low latency (typically 1 ms) is

possible with the OM-1.

Further OM-1 features are:

– Gigabit Ethernet Interface - 1000 MBit/s full-duplex

Ethernet Interface, IEEE 802.3u compatible

– Secondary Gigabit Ethernet Interface - Second Ethernet

Interface for the connection of a redundant network to

establish fault-tolerant systems

– Status LEDs - Link, Activity and Gigabit active status

indication for each Ethernet interface

Dante is a registered trademark of Audinate, Inc.

Parts included

Quantity Component

1 Interface module

1 Interconnection cord internal (190 mm)

1 Interconnection cord internal (65 mm)

4en | Short information OMNEO module

17-Jun-2015 | 03 | F01U308252

Quantity Component

4 Torx screw M3✕6

1 Installation note

TORX is a registered trademarks of Acument Intellectual Properties, LLC.

OMNEO module Short information | en 5

17-Jun-2015 | 03 | F01U308252

Installation

1. Turn off the power of the unit and pull the mains plug

2. Remove the cover plate (6 screws on the sides, 3 screws on

top, 4 screws on the rear)

3. Remove the blind on the rear panel (2 screws)

4. Install the OM-1 module (see picture); first, secure it with 2

screws on the rear panel Ⓐ, then with 2 screws on the bolt

Ⓑ, tighten the screws

5. Make the following cable connections: Left connector on

OM-1 module with CN28 on main board 80500 (65 mm flat

wire cable) Ⓒ. Right connector on OM-1 module with CN5

on DSP-Board 80496 (190 mm flat wire cable) Ⓓ.

6. Re-install the cover plate

7. Plug in the mains cord and turn the unit’s power on

8. Configure OM-1 module parameter in IRIS-Net according to

application needs

6en | Installation OMNEO module

17-Jun-2015 | 03 | F01U308252

OM-1

Figure 2.1: Installation of OM-1 in N8000 or P 64

OMNEO module Installation | en 7

17-Jun-2015 | 03 | F01U308252

Technical data

Supply voltage/current +3.3 V DC / 860mA

Ethernet connectors

(Primary / Secondary)

100/1000 Mbit/s, RJ-45,

integrated transformer

isolation

Sampling rate 48 kHz

Data format 24 Bit

Audio channels Up to 32 ✕ 32 at 48 kHz

Audio flows Up to 32 ✕ 32 simultaneous

audio streams

Latency across network 1 ms (typically)

Electromagnetic environment E1, E2, E3

Operating temperature -5 °C to 45 °C

Product dimensions (Width ✕

Height ✕ Depth)

89 ✕ 27 ✕ 92 mm

Net weight 75 g

AUDIO OUT

POWER

SUPPLY

HOST /

SERIAL

+3.3V

PRIMARY

RJ-45

SECONDARY

RJ-45

FPGA SRAM

SDRAM

FLASH

MODULE INTERFACE

VCXO

OMNEO

INTERFACE

AUDIO IN

4 x 8 Audio Channels

Ethernet

3-Port

Switch

CLOCK OUT

Audio Clocks

+5V

Host

Processor

PSU

Host Interface

Figure 3.1: Circuit diagram

8en | Technical data OMNEO module

17-Jun-2015 | 03 | F01U308252

Figure 3.2: Dimensions

OMNEO module Technical data | en 9

17-Jun-2015 | 03 | F01U308252

Kurzinformation

Das OM-1 ist ein kompaktes Schnittstellenmodul, das die

Anbindung eines DYNACORD P 64 oder Electro-Voice N8000 an

ein OMNEO-Netzwerk ermöglicht. Darüber hinaus ist das OM-1

in der Lage, Dante-Audiodaten an andere Dante-Geräte zu

senden und von diesen zu empfangen. OMNEO ist eine

Netzwerktechnologie für die Mehrkanalübertragung von digitalen

Audio- und Steuerungsdaten über Ethernet. Mit dem OM-1

können gleichzeitig bis zu 32 digitale Audioeingangssignale und

32 digitale Audioausgangssignale mit niedriger Latenzzeit

(typischerweise 1 ms) übertragen werden.

Weitere Leistungsmerkmale des OM-1:

– Gigabit-Ethernet-Schnittstelle – 1000 MBit/s Vollduplex-

Ethernet-Schnittstelle, kompatibel mit IEEE 802.3u

– Sekundäre Gigabit-Ethernet-Schnittstelle – zweite Ethernet-

Schnittstelle für die Anbindung eines redundanten

Netzwerkes zum Aufbau fehlertoleranter Systeme

– Status-LEDs – Statusanzeigen „Link“, „Activity“ und

„Gigabit active“ für jede Ethernet-Schnittstelle

Dante ist ein eingetragenes Warenzeichen von Audinate, Inc.

10 de | Kurzinformation OMNEO module

17-Jun-2015 | 03 | F01U308252
