Bosch ICP-COM-IF User manual

Description of the ICP-COM-IF Module

The ICP-COM-

IF Module allows an isolated connection to be created between the MAP5000 (Interface

Module DE) and an external communicator (for example the AT 2000) via the parallel S1 interface. The

ICP-COM-IF Module offers:

Notes for installation

-The ICP-COM-IF Module can be mounted on the hinged mounting plate or the mounting rails of the

MAP control panel housing.

-A clearance of 15 mm is required on either side for subsequent wiring. Pull to disconnect the

connectors.

-The enclosure of an external transmission unit has to be mounted side by side to the panel enclosure

where the ICP-COM-IF module is mounted.

Mounting

1. Hook the ICP-COM-IF Module carrier plate into the existing breadboard of the

hinged mounting

plate or onto the mounting rails.

2. Use the screw provided to secure the carrier plate to the bottom rail.

•Seven outputs:

The output signals from the MAP Interface Module DE

control the ICP-COM-IF Module relays that provide isolated

changeover contacts (R1 to R7)

•Two inputs:

The inputs ST and R (for the "Communicator fault" or

"Negative confirmation" signals, for instance) can be

controlled via the following:

- isolated contacts

- C points (isolated via optocouplers)

Technical specifications

Rated voltage +10 to +28 V DC

Rated current

67 mA at 28 V or 180 mA at 10 V

Relay contacts rating 3 A/120 V AC, 3 A/28 V DC

Temperature range −25 °C to +55 °C

Weight 198 g

Dimensions (L x W x H) 132 mm x 85 mm x 20 mm (5.2 inches x 3.3

inches x 0.8 inches)

Bosch Sicherheitssysteme GmbH

Robert

-Bosch-Ring 5

85630 Grasbrunn

Germany

www.boschsecurity.com

32014/11

ICP-COM-IF

Installation guide

VdS class C G 111040

EN 50131

-2-6 Grade 3

Jumper settings

The inputs ST and R can be controlled via the following:

•isolated contacts

•C points (isolated via optocouplers)

To control the inputs via external "isolated contacts" or "C points", the jumpers must be

connected as follows:

Input Jumper setting Description

ST Control via isolated contact (factory default)

R Control via isolated contact (factory default)

ST Control via C point

R Control via C point

Relays

Output/input

Stand-by mode

Activation with

Output for the communicator alarm line ML1

Summary alarm

Output for the communicator alarm line ML2

Off

Duress

Output for the communicator alarm line ML3

Off

Holdup

Output for the communicator alarm line ML4

Intrusion/Tamper

Output for the communicator alarm line ML5

Summary Trouble

Output for the communicator alarm line ML6

Off

Fire

Output for the communicator alarm line ML7

Off

Armed (any area)

Input from external communicator

Communicator fault

Input from external communicator

Negative confirmation

ssysteme GmbH, 2014

32014/11

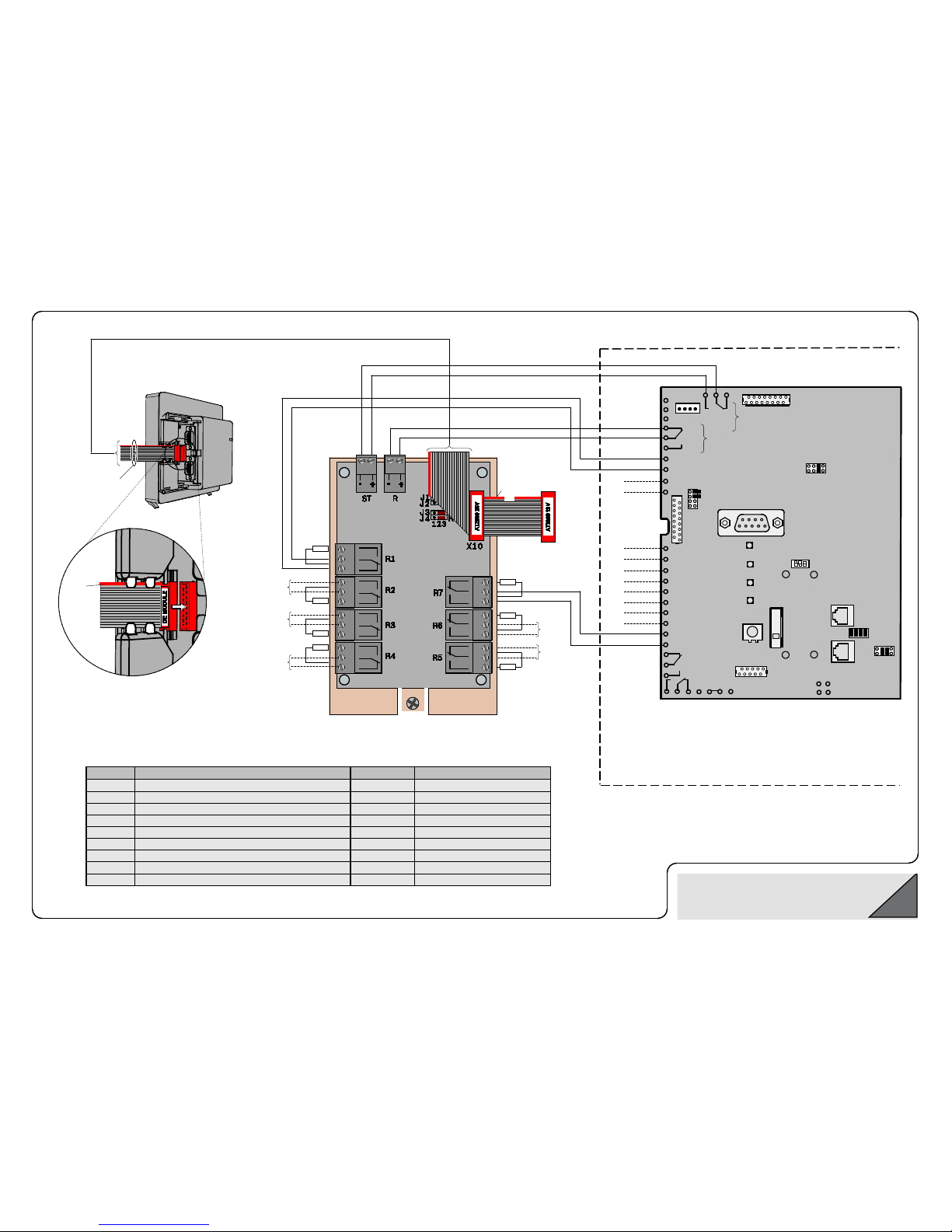

Relay 1

AT 2000

Relay 2

Remote communicator, for example the AT 2000

R1A

R1B

R1C

C1C

ML7

ML6

ML5

ML4

ML3

ML2

ML1

AT 2000 programming

•

Relay 1: "Continuous activation", stand-by "on"

•

Relay 2: "5 seconds", stand-by "off"

•

ML1–ML7: Conventional Lines Intrusion

Relay 2:

Negative

confirmation

Relay 1:

Communicator fault

C1B

C1A

ICP

-COM-IF

MAP Interface Module DE

The ribbon cable is

ttached to the MAP

Inter

face Module DE

Parallel S1 in-

terface

Red

marking at

top

The size of the terminal resistors (RE) to be looped in

depends on the communicator (for example 10 k for the AT 2000).

Pull to disconnect the connectors.

ML2

ML3

ML4

ML6

ML5

Red

arking

at top
