Biostar P4 TDG Operating and installation instructions

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a

particular installation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves the

right to revise this publication and to make changes to the contents here of

without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole is not allowed without

first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

ENGLISH.................................................................................................1

P4TDG Features .................................................................................................... 1

Package contents.................................................................................................. 1

Layout of P4TDG ................................................................................................... 2

CPU Installation..................................................................................................... 2

CPU Installation..................................................................................................... 3

DDR DIMM Modules: DDR1-2 ............................................................................... 4

Jumpers, Headers, Connectors & Slots.............................................................. 5

ESPAÑOL..............................................................................................10

Características del P4TDG ................................................................................. 10

Contenido del Paquete ....................................................................................... 10

Disposición del P4TDG........................................................................................11

Instalación de la CPU...........................................................................................11

Instalación de la CPU.......................................................................................... 12

Módulos DDR DIMM: DDR1-2............................................................................. 13

Conectores, Cabezales, Puentes y Ranuras..................................................... 14

TROUBLE SHOOTING..........................................................................19

SOLUCIÓN DE PROBLEMAS...............................................................20

iip

iio

English

P4TDG Features

 Use Intel 82845G/ 82801DB Chipset, Winbond W83627HF, LAN Chip

(optional).

 Contains on board I/O facilities, which include a serial port, a parallel port, a

VGA port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB

ports, a LAN port (optional) and a game port.

 Supports the Intel Pentium 4®(Socket 478) processor up to 2.2 GHz.

 Supports Ultra 100/66/33, BMIDE and PIO modes.

 Supports USB2.0 High Speed Device.

 Supports up to 2 GB for DDR 200/266 MHz unregister (Non-ECC) devices,

running at 400/533 MHz Front Side Bus frequency.

 Supports AGP 2.0 interface, 2X/4X Fast write protocol. (1.5V Only)

 Complies with PC Micro-ATX form factor specifications.

 Supports popular operating systems such as Windows 98SE, Windows NT,

Windows 2000, Windows ME, Windows XP, LINUX and SCO UNIX.

 Intel®AC’97 2.2 compatible.

 High S/N ratio meets PC 99 requirements.

 4CH DAC, applicable for leading motherboard chipsets.

 Line-in phonejack share with rear out.

Package contents

 HDD Cable X 1, FDD Cable X 1

 Flash Memory Writer for BIOS update X 1

 USB Cable X 2 (Optional)

iip

iio

 Rear I/O Panel for Micro-ATX Case X 1 (Optional)

 Fully Setup Driver CD X 1

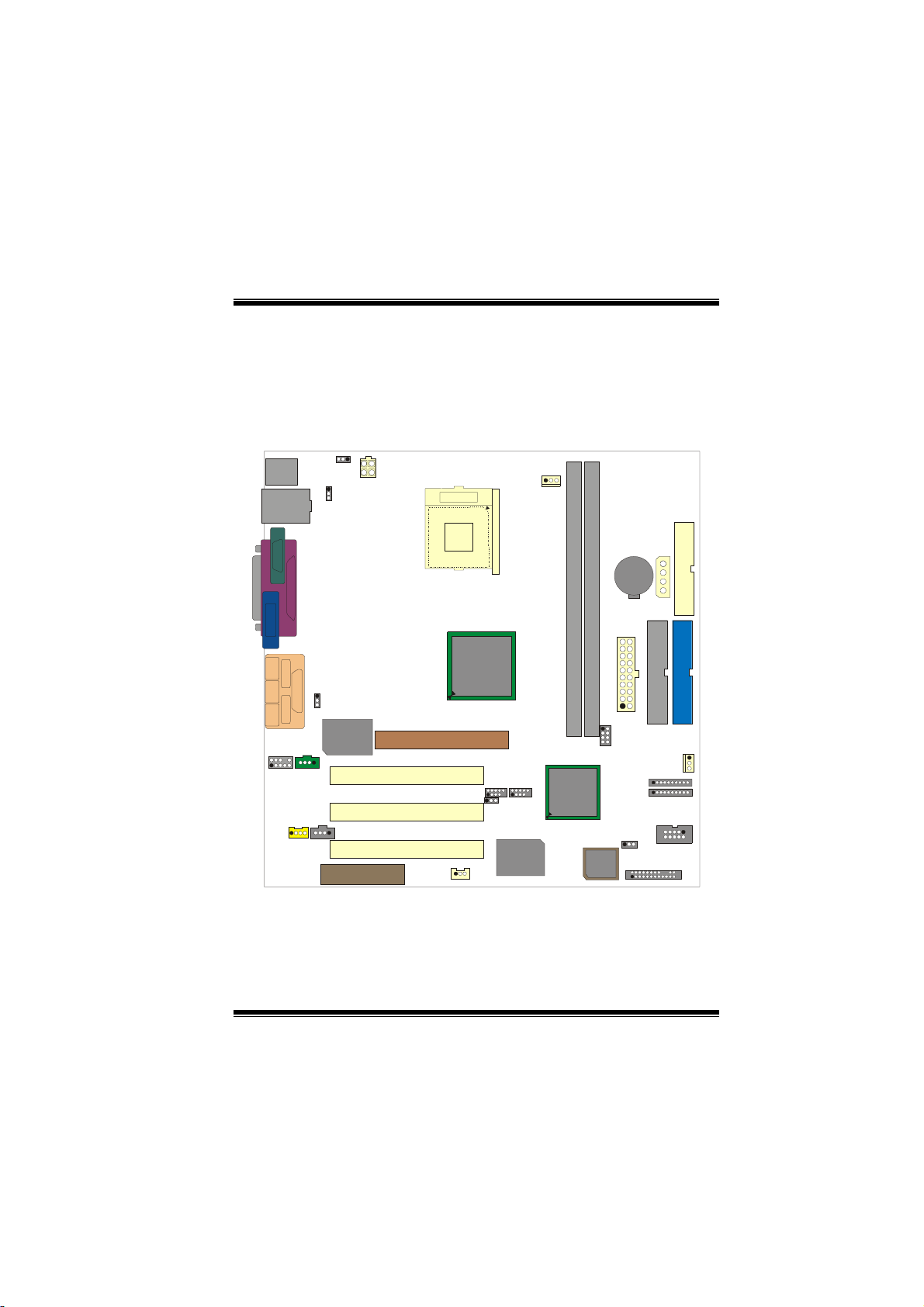

Layout of P4TDG

JATXPWR2

JKBMS1

JPRNT1

Socket 478

K/B

Mouse

JRJ45USB1

USB & LAN

DDR1

DDR2

JAUDIO1

PCI1

PCI2

PCI3

JATXPWR1

LAN

CHIP

JCDIN1

JCOM1

JVGA1

COM1

VGA1

JTAD1

JCDIN2

CNR1 WOL1

AGP1

JUSB3

JCMOS1

JPANEL1

JSFAN1

JDIMMVOLT

JCFAN1

JAUXPWR1

FDD1

IDE2 IDE1

Parallel Port

BAT1

INTEL

82845G

INTEL

82801DB

(ICH4)

Winbond

I/O FWH

BIOS

JMS1

JSD1

JSC1

JUSBV1

JKBV1

JUSB4

JUSBV2

JUSBV3_4

JGAME_USB1

GAME Port

SP-OUTMIC-IN LINE-IN

USBUSB

iip

iio

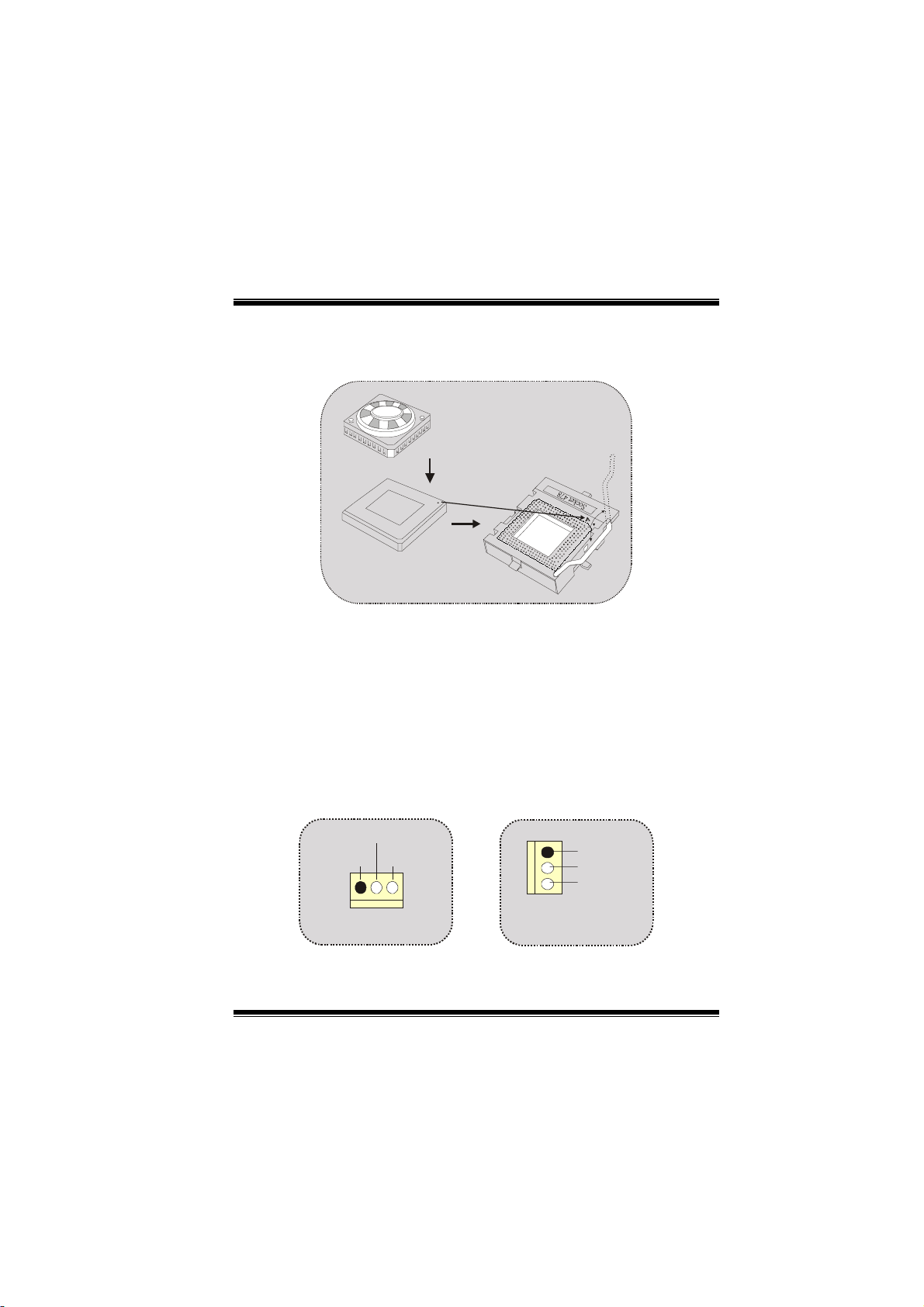

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

JCFAN1

Ground

12V

Sense

JSFAN1

Ground

12V

Sense

iip

iio

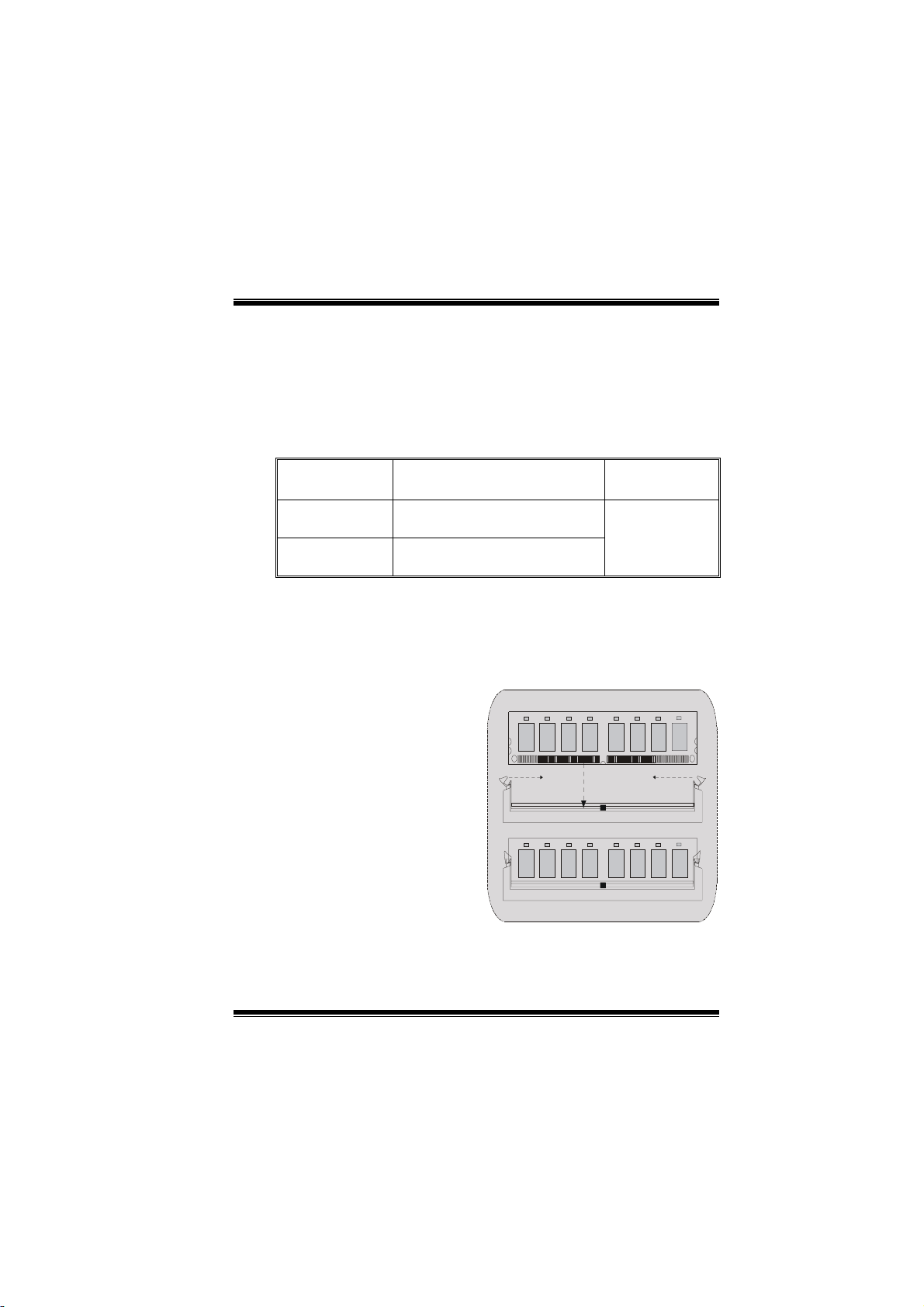

DDR DIMM Modules: DDR1-2

DRAM Access Time: 2.5V Unregister (Non-ECC) DDR 200/266 MHz

Type required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

* The list shown above for DRAM configuration is only for reference.

How to install a DIMM Module

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port (AGP). An AGP card will take advantage of

AGP technology for improved video efficiency and performance,

especially with 3D graphics.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports audio,

network and modem only.

Peripheral Component Interconnect Slots: PCI1-3

This motherboard is equipped with 3 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards, which has, supplanted the older ISA bus standard in

most ports. This PCI slot is designated as 32 bits.

iip

iio

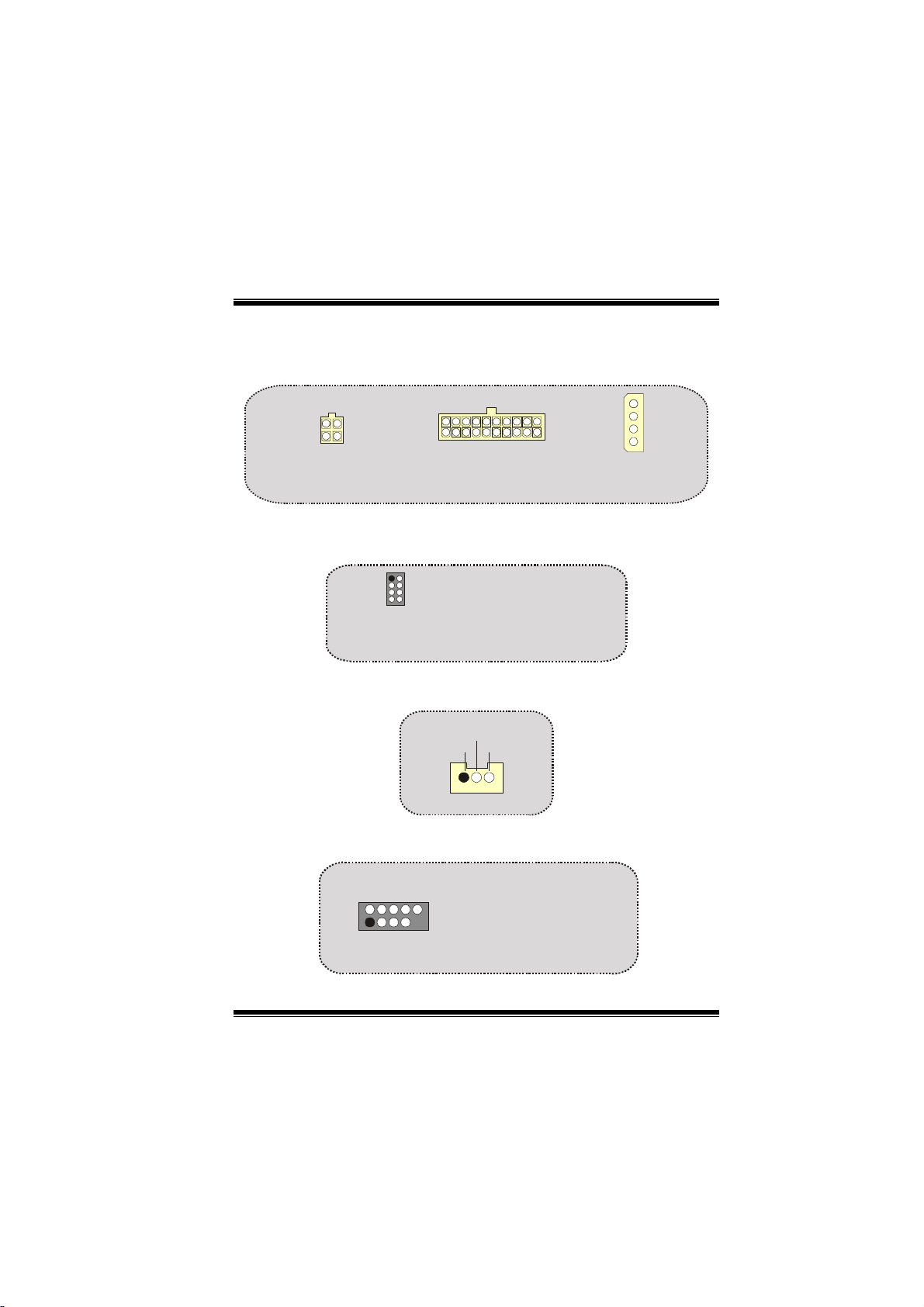

Power Connectors: JATXPWR1/ JATXPWR2/

(JAUXPWR1=>Optional)

DIMM Power Selection Connector: JDIMMVOLT

Wake On LAN Header: WOL1

Front USB Header: JUSB3/(JUSB4=>Optional)

JATXPWR1

(ATX Main Power Conn.)

JATXPWR2

(ATX 12V Power Conn.)

JAUXPWR1

(AUX Power Conn.)

WOL1

5V_SB Wakeup

Ground

JUSB3/4

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

JDIMMVOLT

Pin 1-2 off ==> 2.6V

Pin 3-4 off ==> 2.7V

Pin 5-6 off ==> 2.8V

Pin 7-8 off ==> 2.9V

(Default ==> 2.5V)

JDIMMVOLT

Jump On ==> 2.5V

Pin 1-2 on ==> 2.6V

Pin 3-4 on ==> 2.75V

Pin 5-6 on ==> 2.8V

Pin 7-8 on ==> 2.9V

(Default ==> 2.6V)

iip

iio

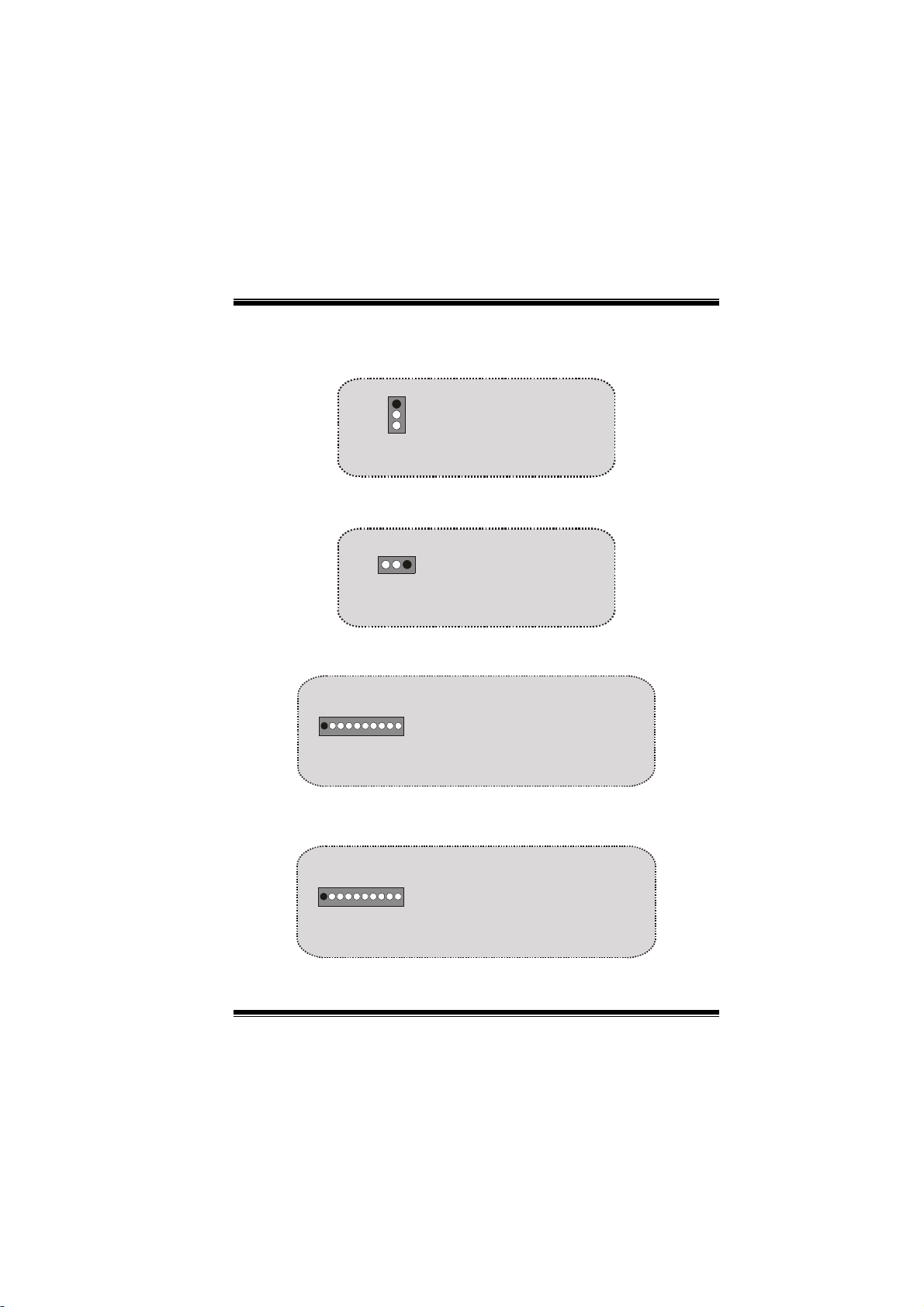

5V/ 5VSB Selection for USB: JUSBV1/ (JUSBV2/3_4=>

Optional)

5V/ 5VSB Selection for Keyboard: JKBV1

Memory Stick Header: JMS1 (optional)

SD Memory Card Header: JSD1 (optional)

JMS1

Pin1 ==> Ground , Pin2 ==> MS1

Pin3 ==> 3.3V , Pin4 ==> MS2

Pin5 ==> MS3 , Pin6 ==> MS4

Pin7 ==> MS5 , Pin8 ==> MSCLK

Pin9 ==> MSPWCTL#

Pin10 ==> MSLED

JSD1

Pin1 ==> Ground , Pin2 ==> SD1

Pin3 ==> 3.3V , Pin4 ==> SD2

Pin5 ==> SD3 , Pin6 ==> SD4

Pin7 ==> S 5 , Pin8 ==> SDCLK

Pin9 ==> SDPWCTL#

Pin10 ==> SDLED

JUSBV1/2/3_4

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JKBV1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

iip

iio

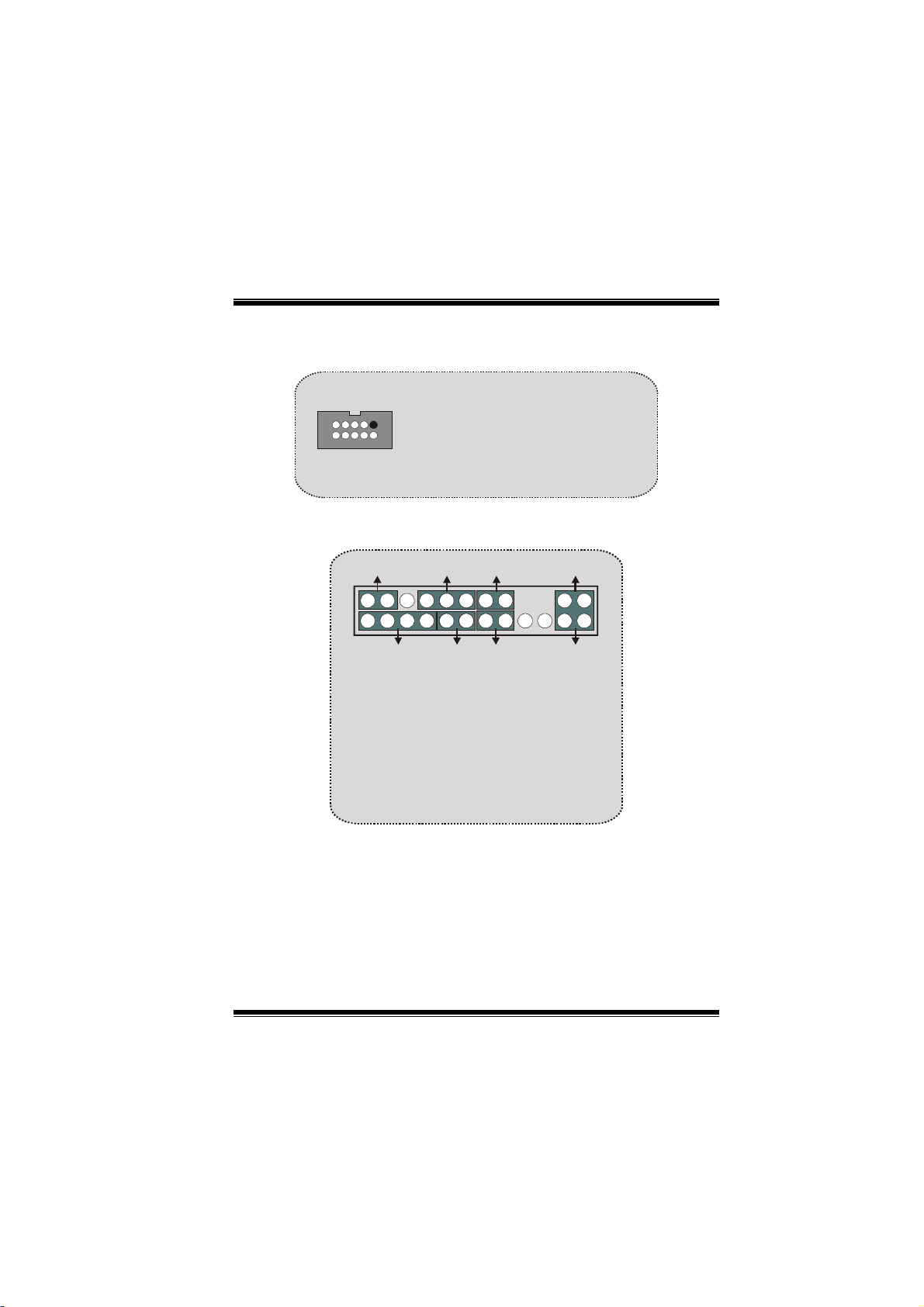

Smart Card Header: JSC1 (optional)

Front Panel Connector: JPANEL1

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

SPK ==> Speaker Conn.

HLED ==> Hard Driver LED

RST ==> Reset Button

IR ==> Infrared Conn.

SLP ==> Sleep Button

PWR_LED ==> Power LED

ON/ OFF ==> Power-on Button

JSC1

Pin1 ==> 5V , Pin2 ==> Ground

Pin3 ==> SCAPWRCTL#

Pin4 ==> SCAR5#

Pin5 ==> SCAC4 , Pin6 ==> SCALED

Pin7 ==> SCAIO , Pin8 ==> SCAC8

Pin9 ==> SCACLK

Pin10 ==> SCAPSNT
